CptTripps |
![]()
Post
#1
|
:: Punch and Pie :: ![]() ![]() ![]() ![]() Group: Members Posts: 3,585 Joined: 26-December 04 From: Tuscaloosa, AL and Akron, OH Member No.: 3,342 Region Association: Upper MidWest ![]() |
I've been thinking a lot about the gauges I'm going to be using, and wanting to do something special. I was just going to go with the stock gauges and use modern innards (search for the Sunpro Tach thread) but realized that I am putting a 8,000rpm motor in.
So I busted out my handy vinyl cutter and Adode Illustrator to see if I could make my own. |
CptTripps |
![]()
Post
#2
|
:: Punch and Pie :: ![]() ![]() ![]() ![]() Group: Members Posts: 3,585 Joined: 26-December 04 From: Tuscaloosa, AL and Akron, OH Member No.: 3,342 Region Association: Upper MidWest ![]() |

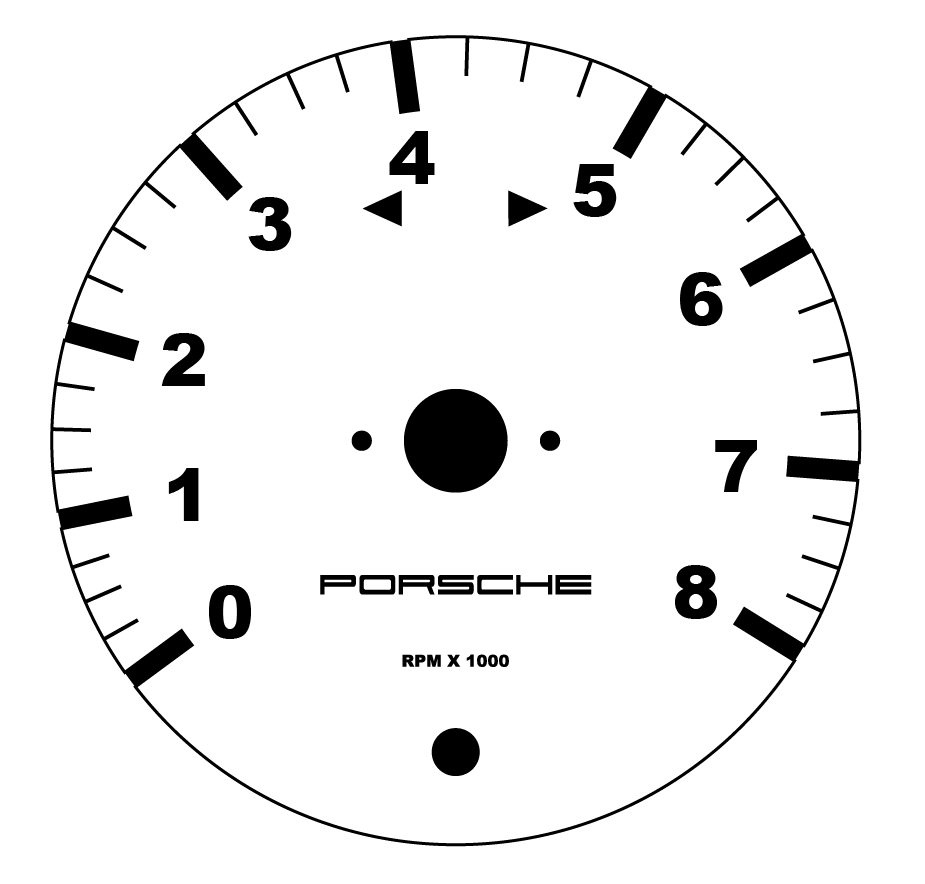

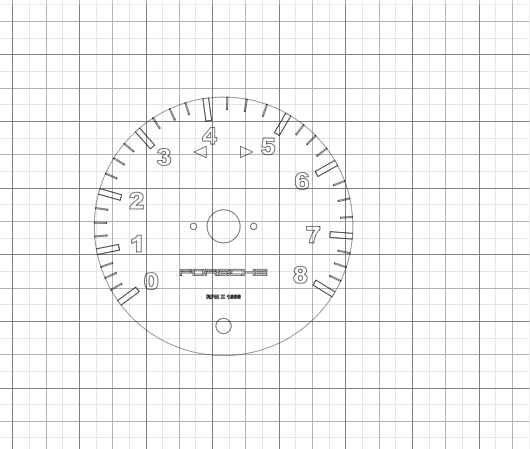

First step was making the gauge template. This is JUST A TEST so I wasn't going for scale.
Attached image(s) ![]() |
CptTripps |
![]()
Post
#3
|
:: Punch and Pie :: ![]() ![]() ![]() ![]() Group: Members Posts: 3,585 Joined: 26-December 04 From: Tuscaloosa, AL and Akron, OH Member No.: 3,342 Region Association: Upper MidWest ![]() |
Then I transferred it to my Vinyl Cutting program and loaded it up.
Attached image(s) ![]() |
CptTripps |
![]()
Post
#4
|
:: Punch and Pie :: ![]() ![]() ![]() ![]() Group: Members Posts: 3,585 Joined: 26-December 04 From: Tuscaloosa, AL and Akron, OH Member No.: 3,342 Region Association: Upper MidWest ![]() |

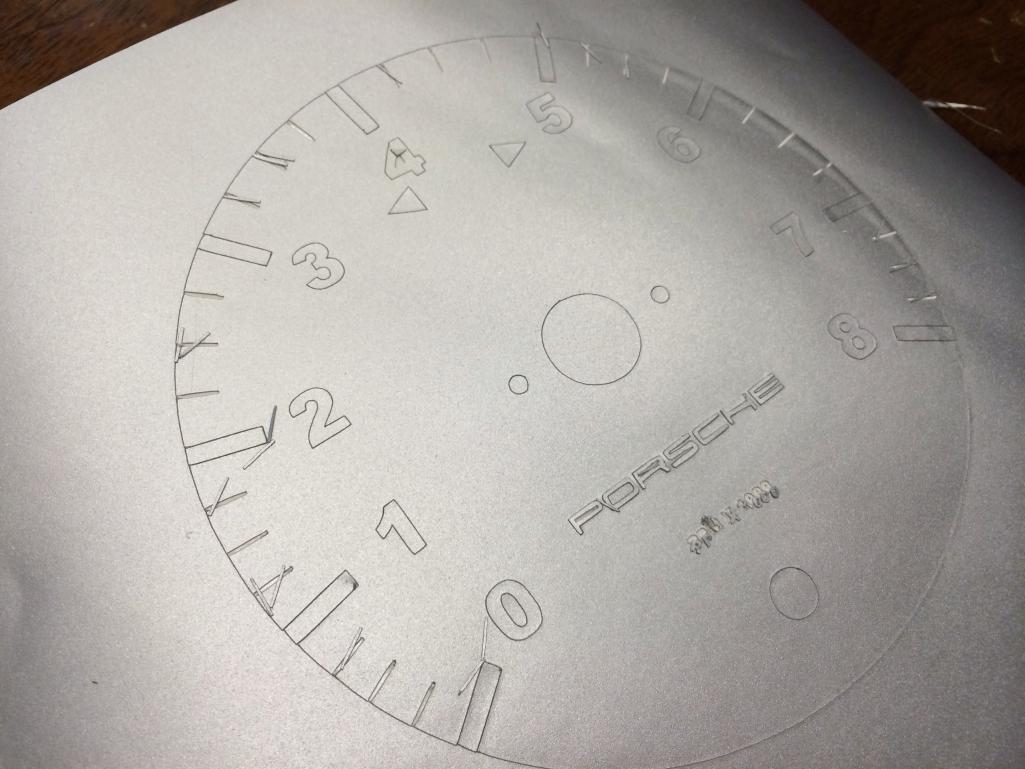

Cut it on Silver vinyl. Not the best vinyl, but worked for the test.
Attached thumbnail(s) ![]() |
CptTripps |
![]()
Post
#5
|
:: Punch and Pie :: ![]() ![]() ![]() ![]() Group: Members Posts: 3,585 Joined: 26-December 04 From: Tuscaloosa, AL and Akron, OH Member No.: 3,342 Region Association: Upper MidWest ![]() |

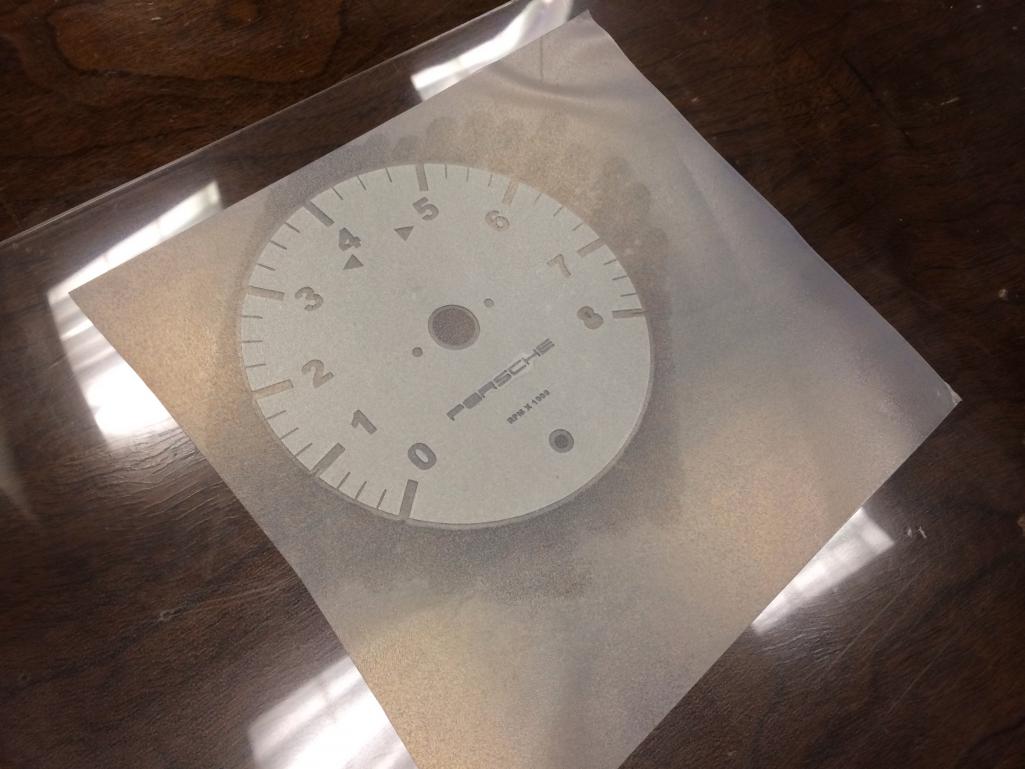

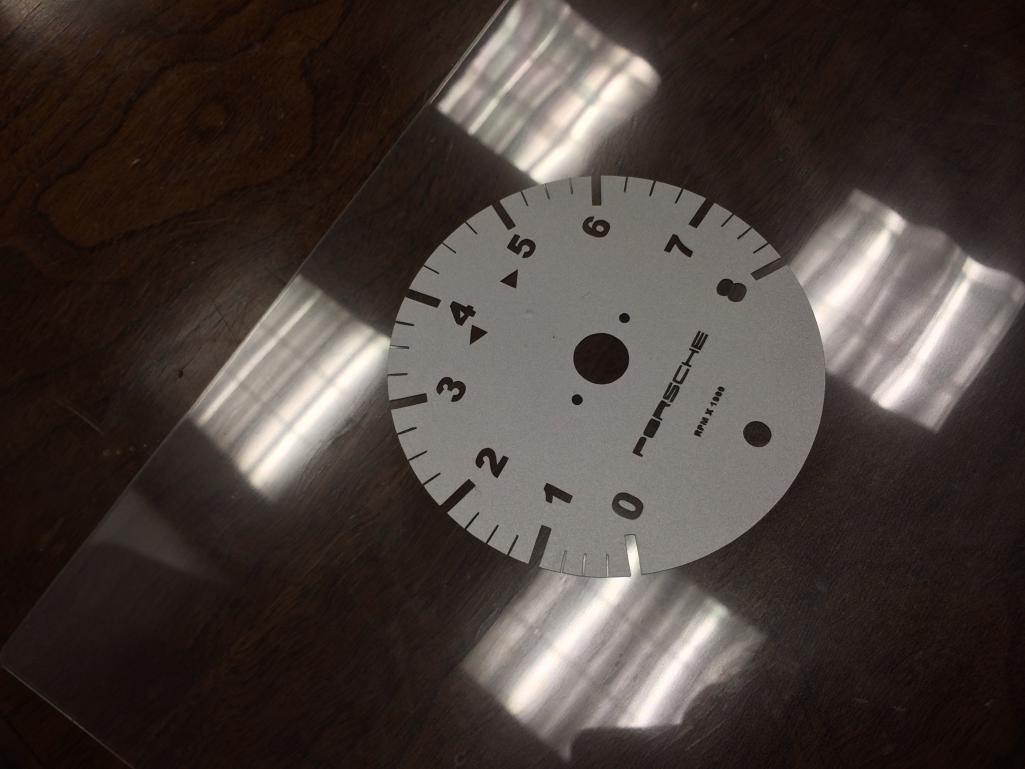

Next I transferred it to some thick-ish Lexan.
Attached thumbnail(s) ![]() ![]() |
CptTripps |
![]()
Post
#6
|
:: Punch and Pie :: ![]() ![]() ![]() ![]() Group: Members Posts: 3,585 Joined: 26-December 04 From: Tuscaloosa, AL and Akron, OH Member No.: 3,342 Region Association: Upper MidWest ![]() |

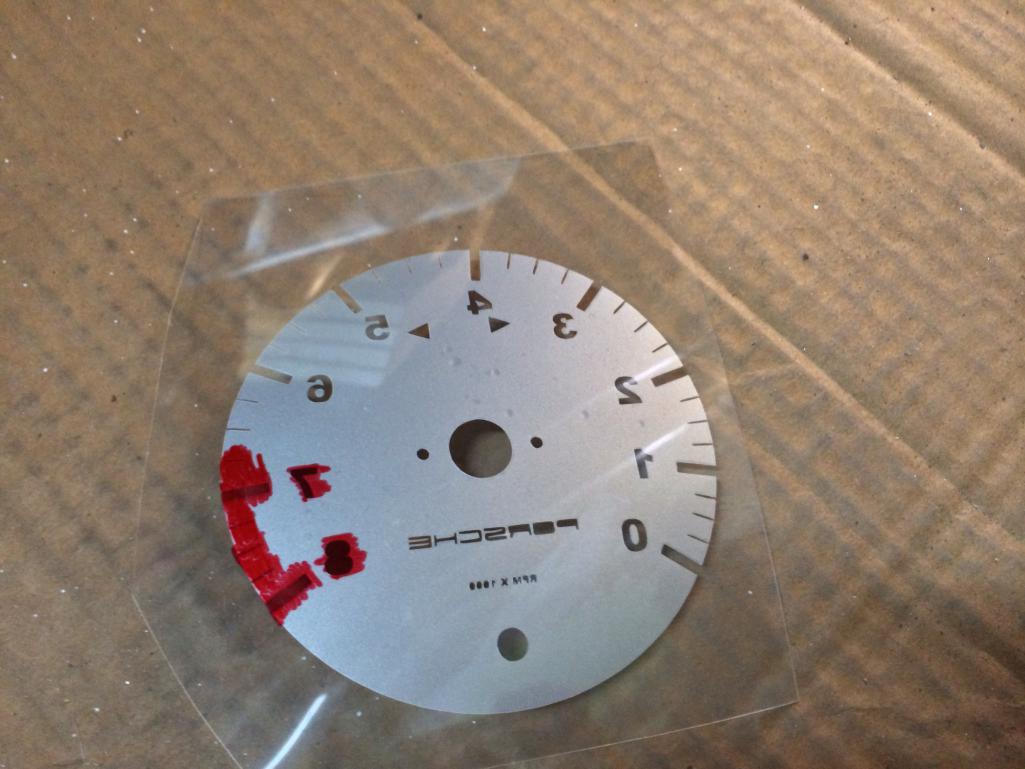

Using my "RC Car Body" skills, I hit the redline with a sharpie real quick before the backing.
Attached thumbnail(s) ![]() |
CptTripps |
![]()
Post
#7
|
:: Punch and Pie :: ![]() ![]() ![]() ![]() Group: Members Posts: 3,585 Joined: 26-December 04 From: Tuscaloosa, AL and Akron, OH Member No.: 3,342 Region Association: Upper MidWest ![]() |

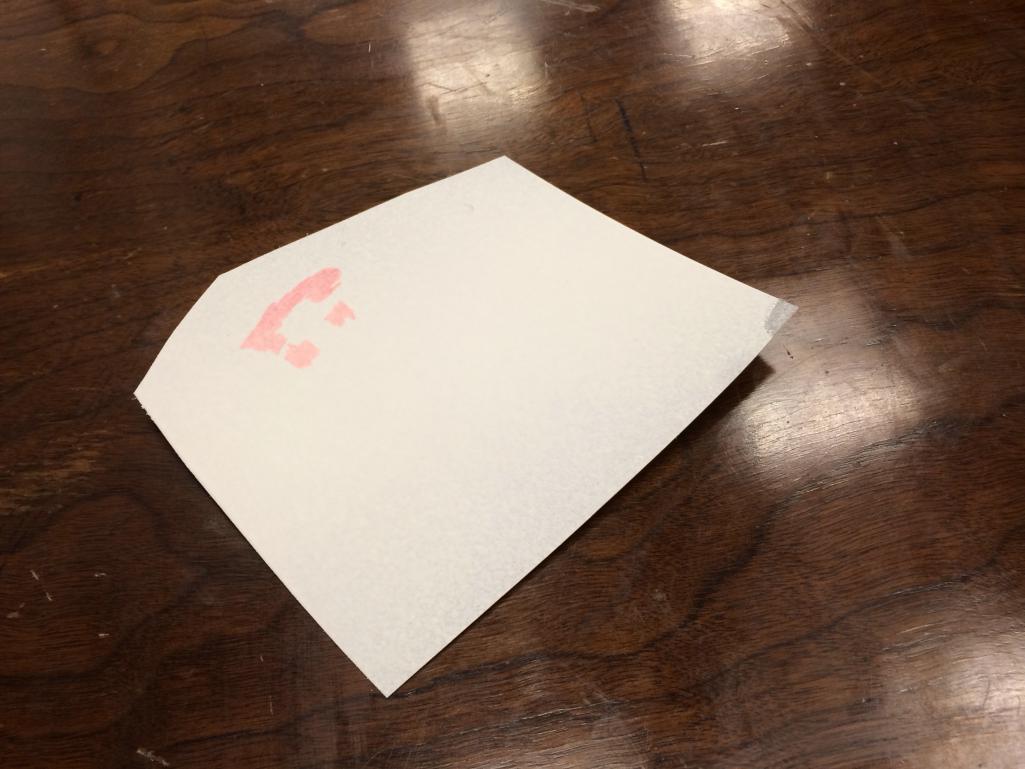

Next I painted over the back with a quick coat of white primer. I'll use proper Lexan paint later, but this would give me an idea.
Attached thumbnail(s) ![]() |
CptTripps |
![]()
Post
#8
|
:: Punch and Pie :: ![]() ![]() ![]() ![]() Group: Members Posts: 3,585 Joined: 26-December 04 From: Tuscaloosa, AL and Akron, OH Member No.: 3,342 Region Association: Upper MidWest ![]() |

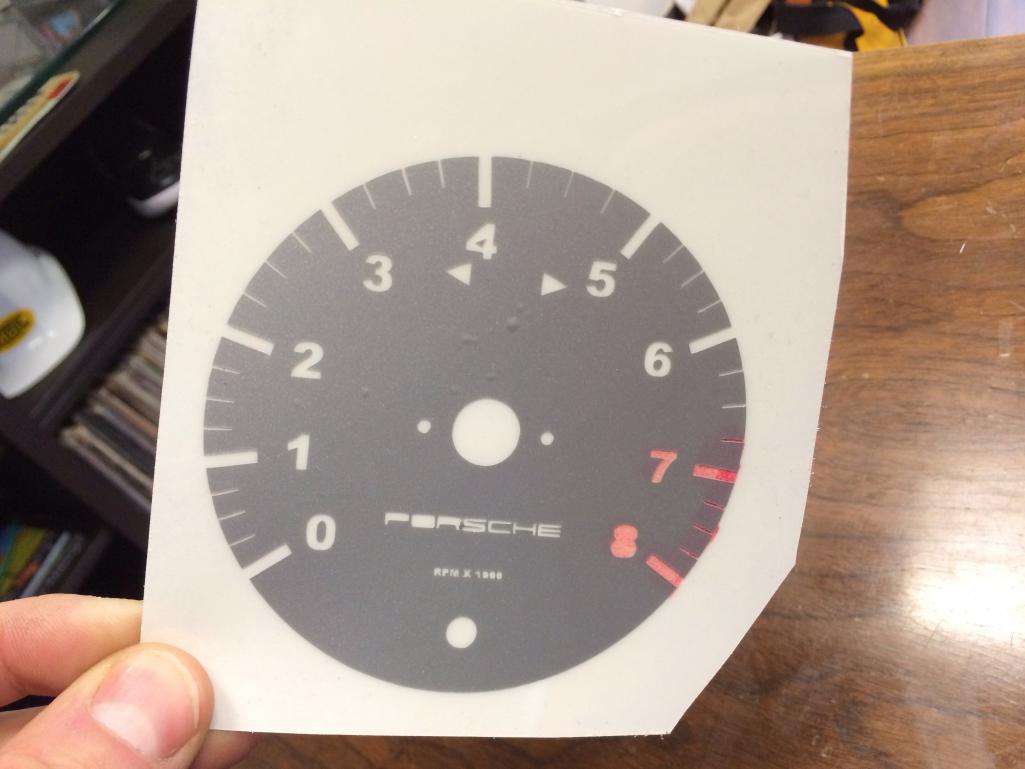

Viola! After a second coat, I'm getting an idea of how it'll look.
I'm going to let it dry a little more and then cut it out. I can already tell that the red sharpie isn't going to cut it. I have some red vinyl that I'll eventually use on the back before paint. That should do the trick a little better. Attached thumbnail(s) ![]() |
CptTripps |
![]()
Post
#9
|
:: Punch and Pie :: ![]() ![]() ![]() ![]() Group: Members Posts: 3,585 Joined: 26-December 04 From: Tuscaloosa, AL and Akron, OH Member No.: 3,342 Region Association: Upper MidWest ![]() |
I'm going to have to get rid of the bubbles before I put it through the laminator again. (Just a thought...it may not work at all.)
So...at the end of the day, I think it was worth 30min of time to see if I had a viable plan or not. Some things I learned: 1: The lettering is a little TOO thin to do reverses on the PORSCHE and the RPM piece. Perhaps I'll do those in black vinyl and apply after the fact. 2: I need to pull the centers for the 4, 6, 8 so I can apply them afterwards. No biggie there. 3: Maybe a little thicker plastic with an additional black backer that's the reverse. That'll help focus the light on the numbers and I won't have any bleed for the light hitting the silver vinyl. I'm going to thicken up the middle-ticks so they are a LITTLE thicker. That's all I got for now...what do you think? |
nathansnathan |
![]()
Post
#10
|
Senior Member ![]() ![]() ![]() Group: Members Posts: 1,052 Joined: 31-May 10 From: Laguna Beach, CA Member No.: 11,782 Region Association: None ![]() |
You should use this typeface to match the original gauges
http://fontzone.net/font-details/dinmittelschrift Also, maybe do the "UPM/RPM" - it seems more euro and cool that way? |
zymurgist |
![]()
Post
#11
|
"Ace" Mechanic ![]() ![]() ![]() ![]() ![]() Group: Members Posts: 7,411 Joined: 9-June 05 From: Hagerstown, MD Member No.: 4,238 Region Association: None ![]() |
Cool!
|
CptTripps |
![]()
Post
#12
|
:: Punch and Pie :: ![]() ![]() ![]() ![]() Group: Members Posts: 3,585 Joined: 26-December 04 From: Tuscaloosa, AL and Akron, OH Member No.: 3,342 Region Association: Upper MidWest ![]() |
My other thought was to use the font from the Boxster or new 911.

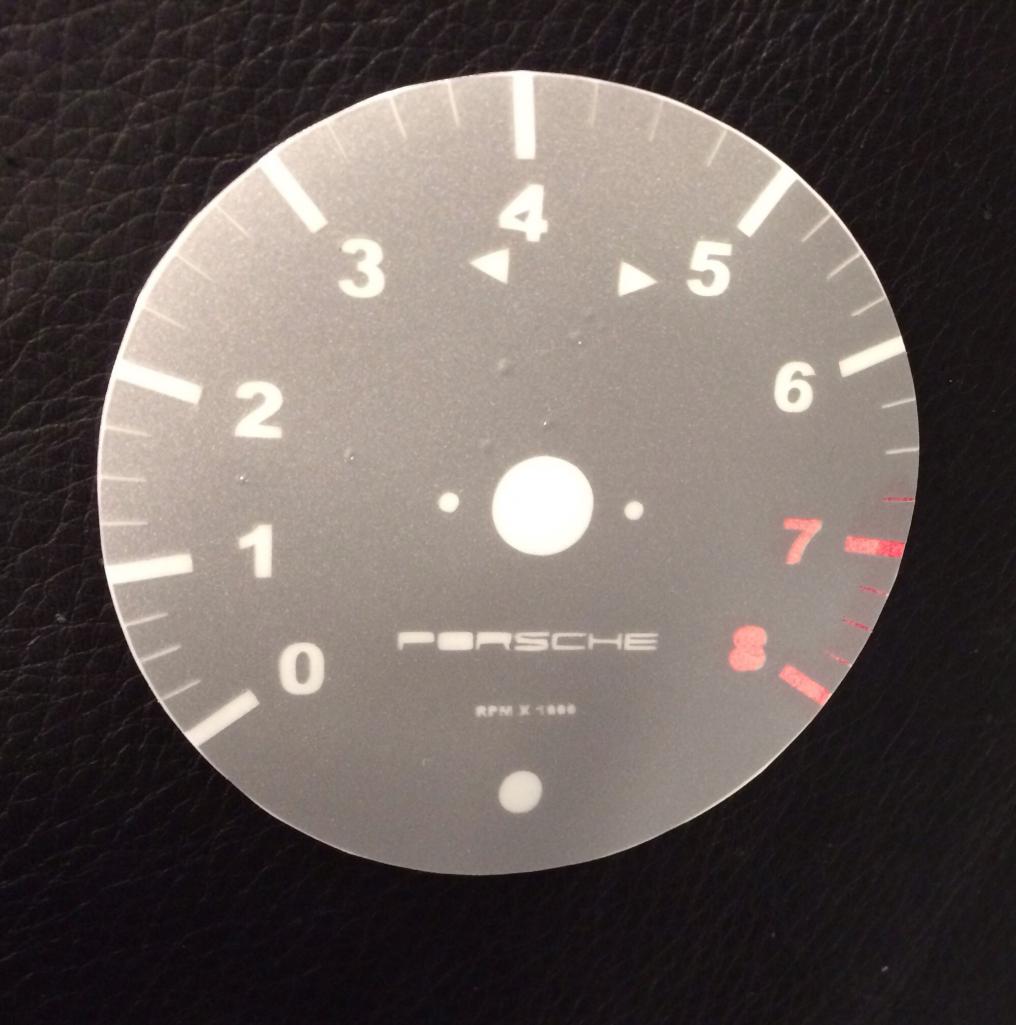

Another was to make the gauges look more like airplane gauges. I'm a watch guy and could make them out like a Bell & Ross or Panerai. Lots of fun ideas. I just trimmed this one. Came out pretty bad, but now I know what I need to do. You never learn until you try! Attached thumbnail(s) ![]() |
ripper911 |
![]()
Post
#13
|
corde pulsum tangite ![]() ![]() ![]() ![]() Group: Members Posts: 2,920 Joined: 25-April 10 From: Powder Springs, GA Member No.: 11,654 Region Association: South East States ![]() |
|
euro911 |
![]()
Post
#14
|
Retired & living the dream. God help me if I wake up! ![]() ![]() ![]() ![]() ![]() Group: Members Posts: 8,911 Joined: 2-December 06 From: So.Cal. & No.AZ (USA) Member No.: 7,300 Region Association: Southern California ![]() ![]() |
|
r_towle |
![]()
Post
#15
|
Custom Member ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() Group: Members Posts: 24,705 Joined: 9-January 03 From: Taxachusetts Member No.: 124 Region Association: North East States ![]() ![]() |
How did you cut the lexan without chipping it?
|
mikesmith |
![]()
Post
#16
|
Member ![]() ![]() Group: Members Posts: 202 Joined: 5-September 13 From: SF Member No.: 16,354 Region Association: Northern California ![]() |
|
CptTripps |
![]()
Post
#17
|
:: Punch and Pie :: ![]() ![]() ![]() ![]() Group: Members Posts: 3,585 Joined: 26-December 04 From: Tuscaloosa, AL and Akron, OH Member No.: 3,342 Region Association: Upper MidWest ![]() |
How did you cut the lexan without chipping it? Lexan Scissors from any hobby store. Those are bad-ass. Maybe I'll just bag the whole idea and buy those. |
CptTripps |
![]()
Post
#18
|
:: Punch and Pie :: ![]() ![]() ![]() ![]() Group: Members Posts: 3,585 Joined: 26-December 04 From: Tuscaloosa, AL and Akron, OH Member No.: 3,342 Region Association: Upper MidWest ![]() |

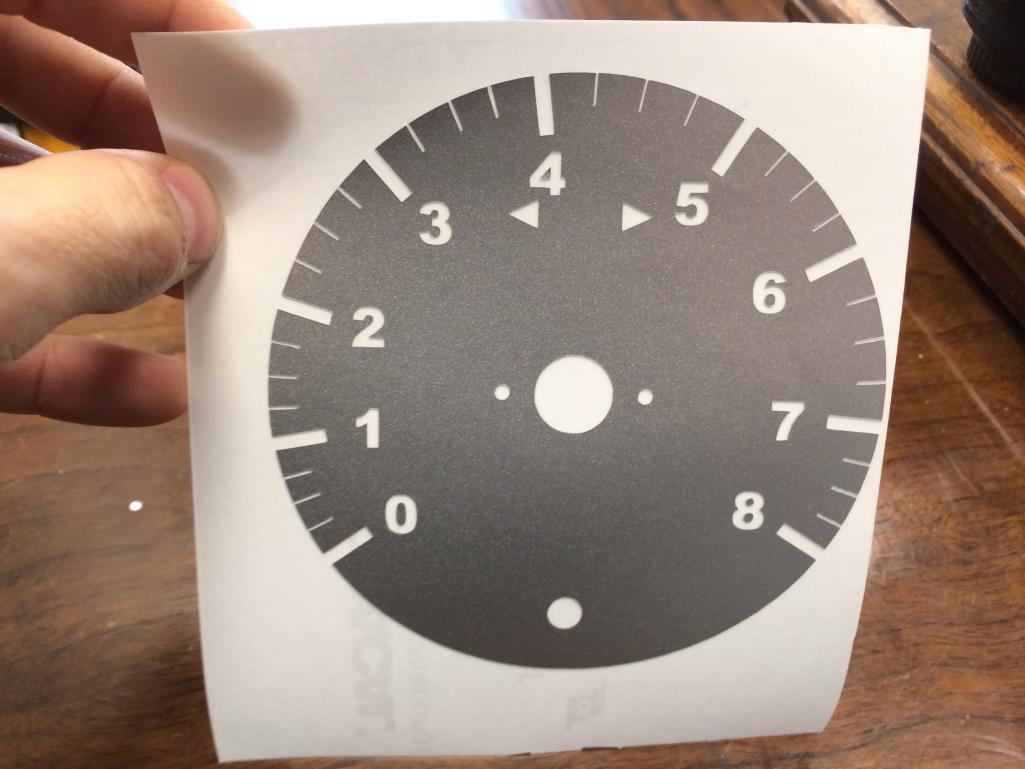

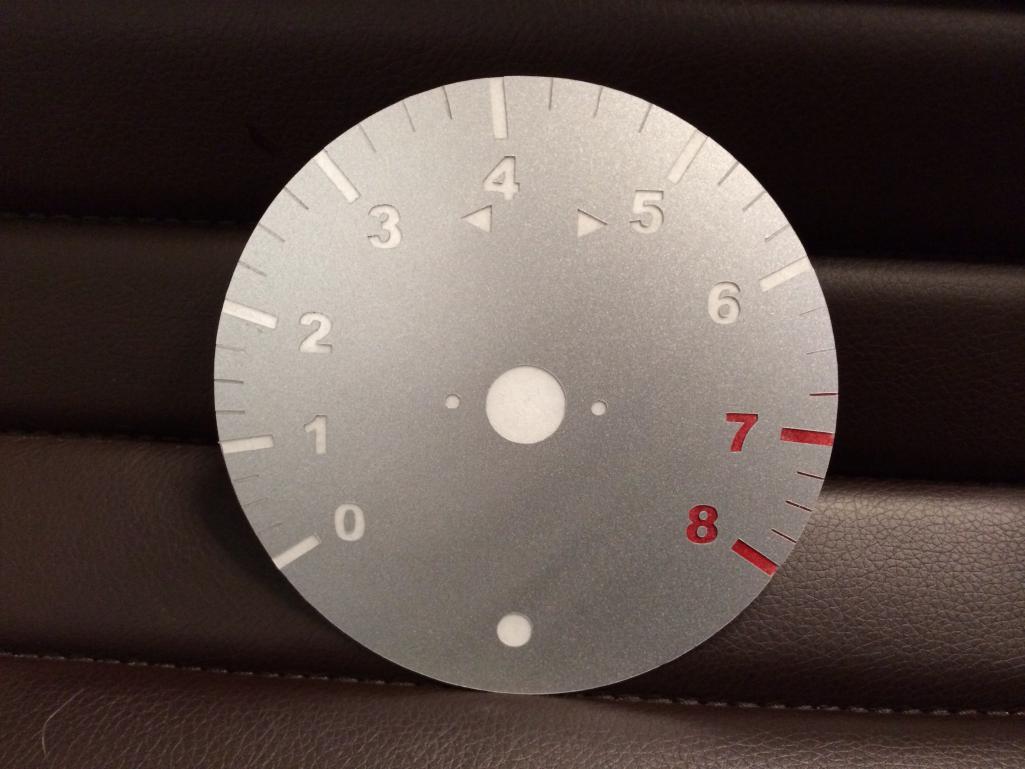

Attempt #2: Much better.
Used a thicker vinyl and thin white plastic backing. Light comes through evenly and the red was a lot easier too. Attached thumbnail(s) ![]() ![]() |
Dave_Darling |
![]()
Post
#19
|
914 Idiot ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() Group: Members Posts: 15,200 Joined: 9-January 03 From: Silicon Valley / Kailua-Kona Member No.: 121 Region Association: Northern California ![]() ![]() |
The minor ticks still need to be fatter. Especially the red ones; the darker color (red vs. white) will look thinner so you need to thicken it up a bit to compensate.
(I used to do this stuff in software for a living. (IMG:style_emoticons/default/wink.gif) ) --DD |
![]() ![]() |
![]() |
