> Mystery plug in 914 wiring harness
Mwood
post Jan 19 2014, 01:40 PM
Post #1


Member
**

Group: Members
Posts: 56
Joined: 11-February 13
From: Bay Area
Member No.: 15,509
Region Association: Northern California

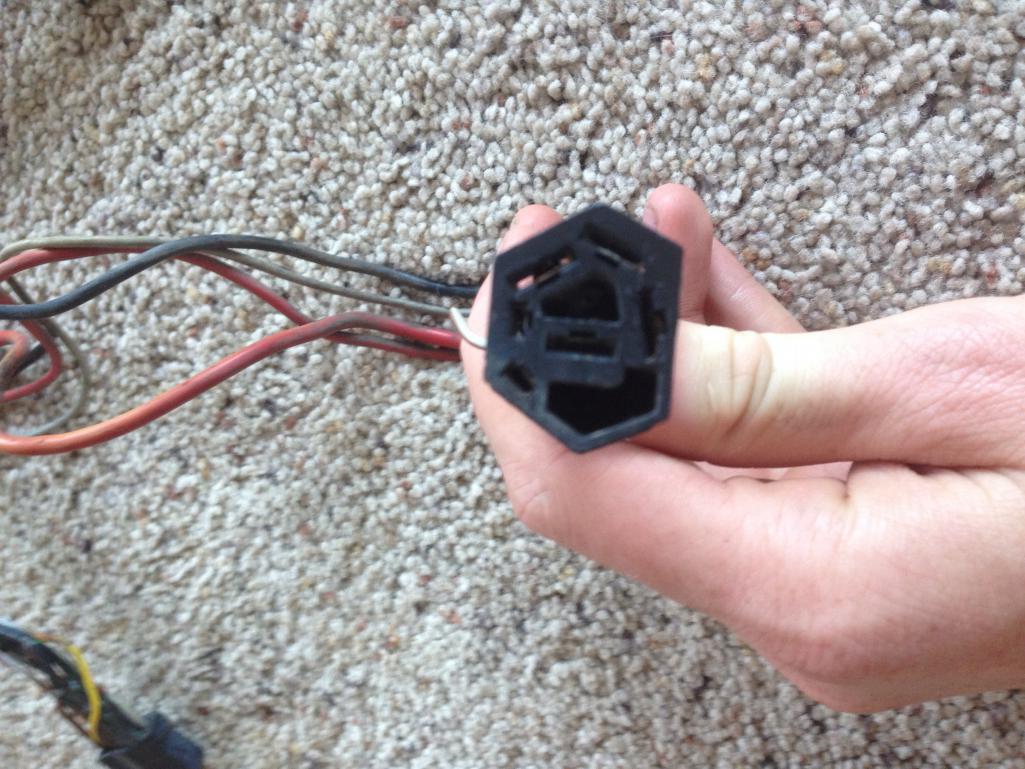

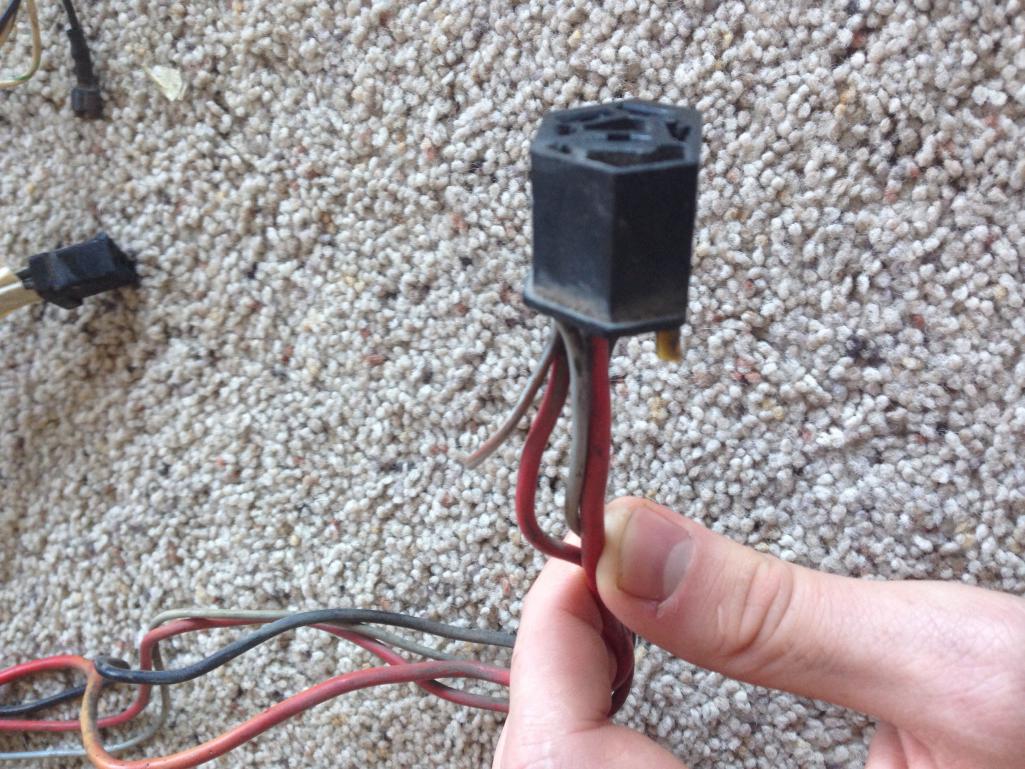

Have the harness out right now for some stripping and cleaning and cant figure out where this plug would go.
I have a 72, not sure if it was efi or carb, i would think it was a carb but i dont know the year they started selling efi (73?)

If someone knows what it is, i would also like to know if the harness will function without it being plugged in.

Thanks alot.
Sorry about iphone pics


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post

 Reply to this topicStart new topic
Replies(1 - 10)
Mwood
post Jan 19 2014, 01:41 PM
Post #2


Member
**

Group: Members
Posts: 56
Joined: 11-February 13
From: Bay Area
Member No.: 15,509
Region Association: Northern California

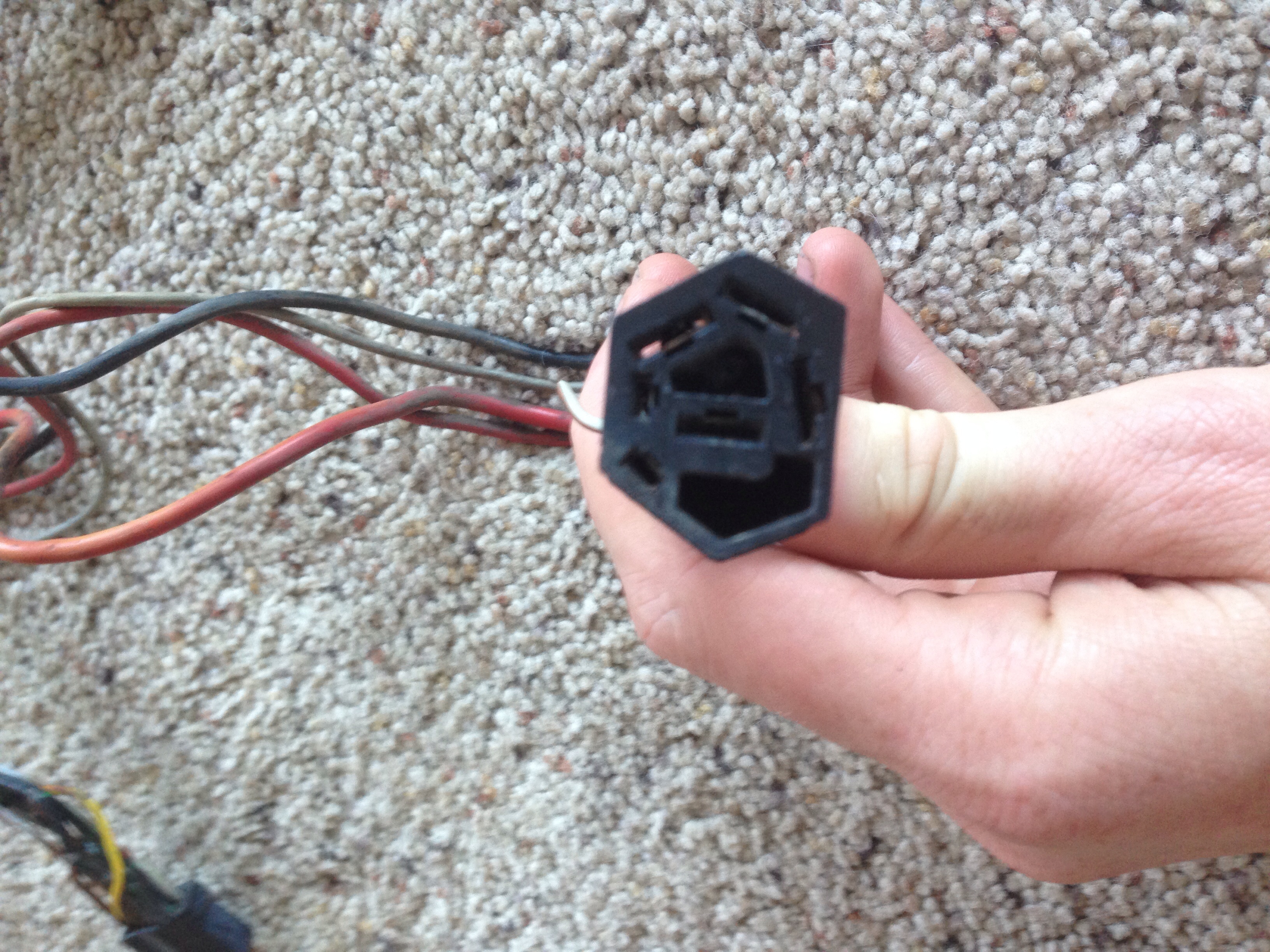

Here it is dead-on


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jan 19 2014, 01:47 PM
Post #3


914 Wiring Harnesses & Beekeeper
*****

Group: Members
Posts: 8,907
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
It goes to the Ignition switch!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
reharvey
post Jan 19 2014, 01:51 PM
Post #4


Senior Member
***

Group: Members
Posts: 573
Joined: 16-July 08
From: N. E. Ohio
Member No.: 9,308
Region Association: North East States
QUOTE(Jeff Bowlsby @ Jan 19 2014, 02:47 PM) *

It goes to the Ignition switch!

(IMG:style_emoticons/default/agree.gif)
You're not going anywhere without that plugged in!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mwood
post Jan 19 2014, 01:53 PM
Post #5


Member
**

Group: Members
Posts: 56
Joined: 11-February 13
From: Bay Area
Member No.: 15,509
Region Association: Northern California
Oh god nice ...

Thanks for the help
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Kirmizi
post Jan 19 2014, 01:54 PM
Post #6


Senior Member
***

Group: Members
Posts: 836
Joined: 12-February 06
From: Wyoming, US
Member No.: 5,568
Region Association: None
(IMG:style_emoticons/default/agree.gif)
You've also got some snipped wires there, so that would affect the corresponding portions of the harness.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
zambezi
post Jan 19 2014, 10:30 PM
Post #7


Senior Member
***

Group: Members
Posts: 711
Joined: 14-April 08
From: Lafayette, LA
Member No.: 8,920
Region Association: South East States
And by the way, ALL 914-4's were originally EFI
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dave_Darling
post Jan 20 2014, 04:45 PM
Post #8


914 Idiot
***************

Group: Members
Posts: 15,161
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California
One exception to that: The European-spec 1.8 liter 914s in 74 and 75. Those had a pair of single-throat Solex carbs.

But yes, all other four-cylinder 914s were built with one form of fuel injection or another.

--DD
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SLITS
post Jan 20 2014, 05:13 PM
Post #9


"This Utah shit is HARSH!"
**********

Group: Benefactors
Posts: 13,602
Joined: 22-February 04
From: SoCal Mountains ...
Member No.: 1,696
Region Association: None
The cut yellow wire is your starter (solenoid power) in the start position

I can't tell the color of the other wire, so I can't tell you what it is for.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mwood
post Jan 20 2014, 07:56 PM
Post #10


Member
**

Group: Members
Posts: 56
Joined: 11-February 13
From: Bay Area
Member No.: 15,509
Region Association: Northern California
thanks all for the info it is much appreciated.

one more question:
will the flow diagram for a '74 914 found on pelican be accurate
for a '72 as far as wire coloring?
I am trying to reconnect my headlight and hazard light switches (only switches retained after harness strip) and I stupidly forgot to take pictures of them before I took the harness out a couple months ago. the flow diagram would be helpful because it has the color of the wire going into the specific pin names on the switches.
Im pretty sure i could go through the wiring diagram and retrace each wire that should go into the headlight switch from its source on the relay board or elsewhere but it would be so much faster if I could just plug them in based on their coloration on the flow diagram.
I have been through google images and ebay for pictures but none of the picture switches have had wires whose color 100% matches the ones in my harness.

thanks
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mwood
post Jan 20 2014, 08:14 PM
Post #11


Member
**

Group: Members
Posts: 56
Joined: 11-February 13
From: Bay Area
Member No.: 15,509
Region Association: Northern California
EDIT: nevermind
figured this one out on my own. Im just making an ass out of myself on here but it ends now haha.

the 1971 wiring diagram has the names of pins on the interior switches on it at the points they connect on the harness with the wire colors
