> 914 Triple Combo Gauge, This is what we used to make the original gauges.
914forme
post Feb 23 2014, 03:56 PM
Post #1


Times a wastin', get wrenchin'!
****

Group: Members
Posts: 3,896
Joined: 24-July 04
From: Dayton, Ohio
Member No.: 2,388
Region Association: None



A lot of people have been asking me for these, so here you all go. They are what we used. Technology has gotten way better now so its a lot easier to improve on these.

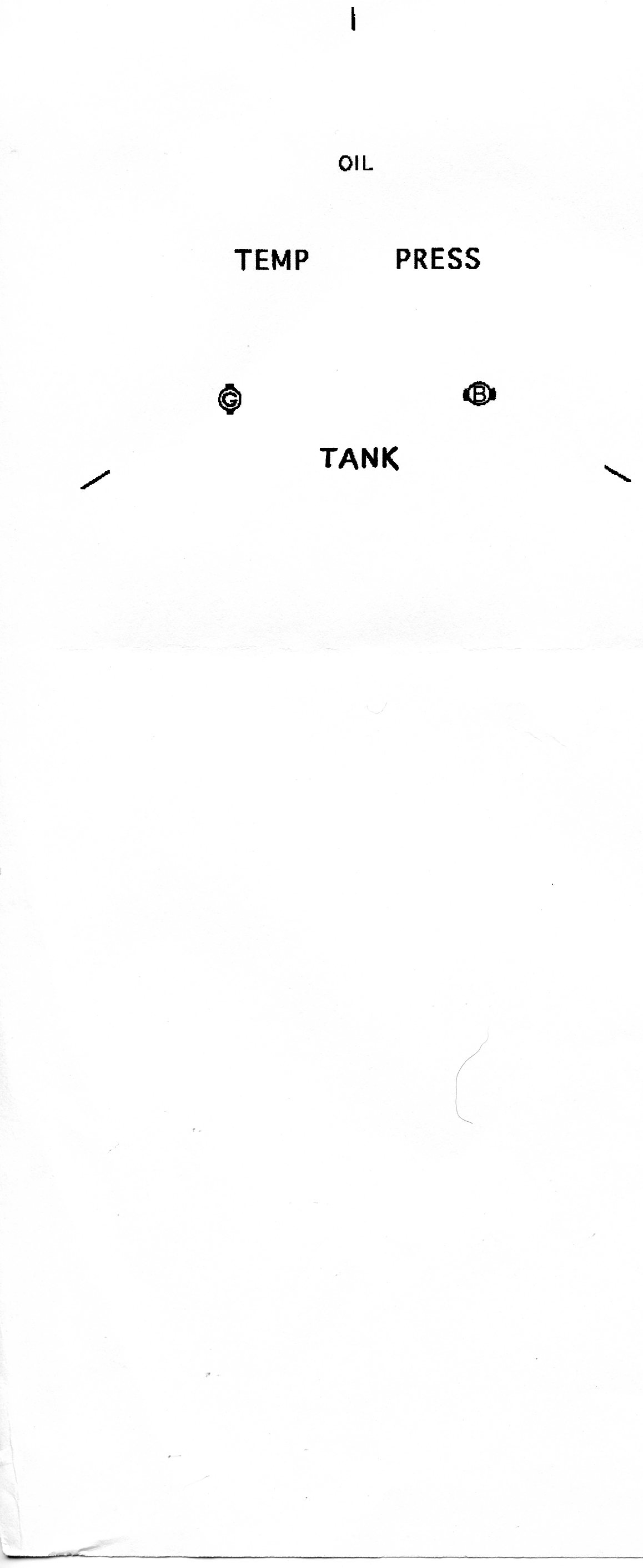

This is the gauge face printing we used it was silk screened onto the face,

Attached Image

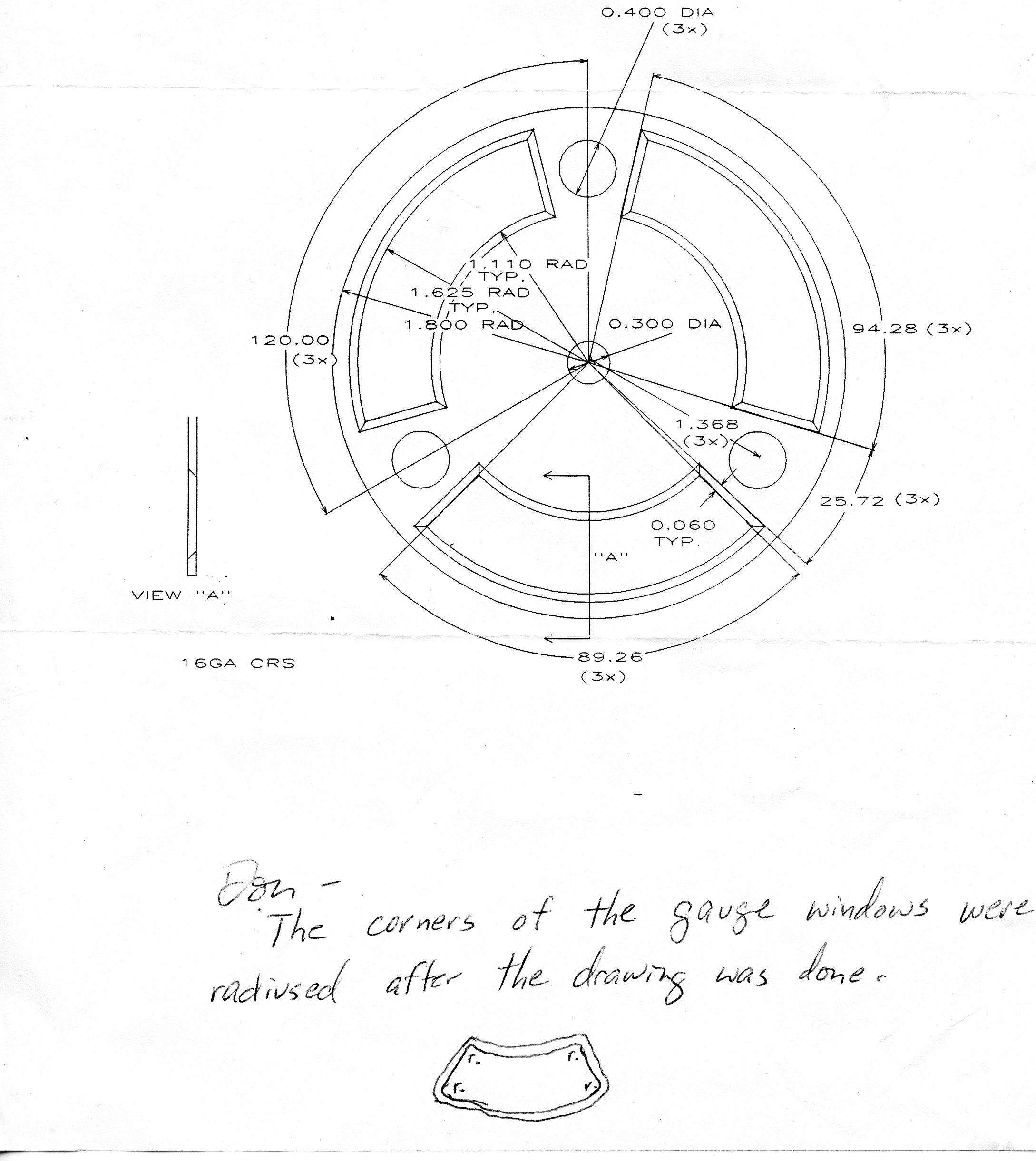

This is the original face we did, I added the radius' to the comers, the sharp 90 degree angles just did not make sense. As you can tell from the note at the bottom of the page.

Attached Image

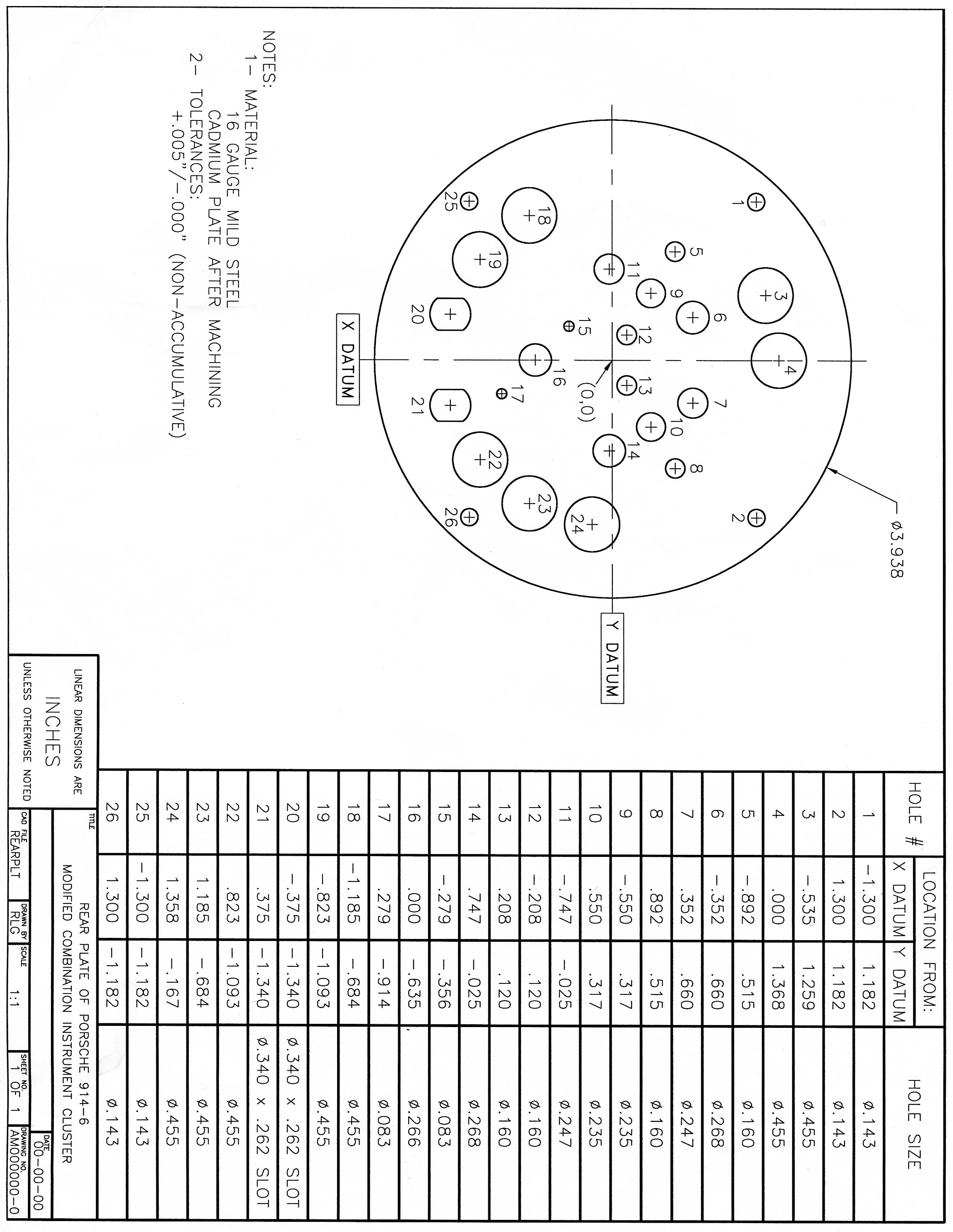

This the back gauge plate it supports all the gauge steppers and lighting tubes.

Attached Image

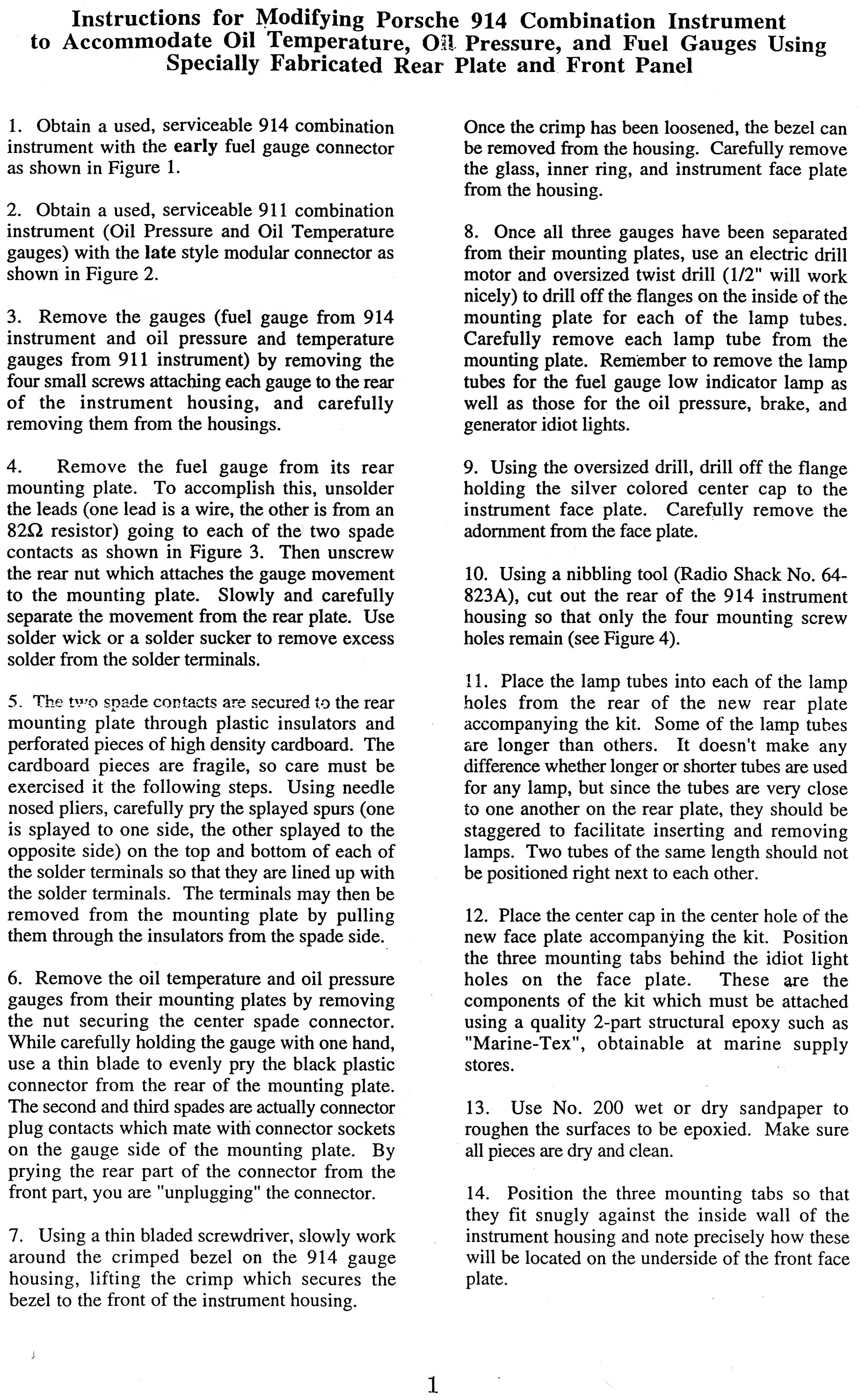

First page of instructions.

Attached Image

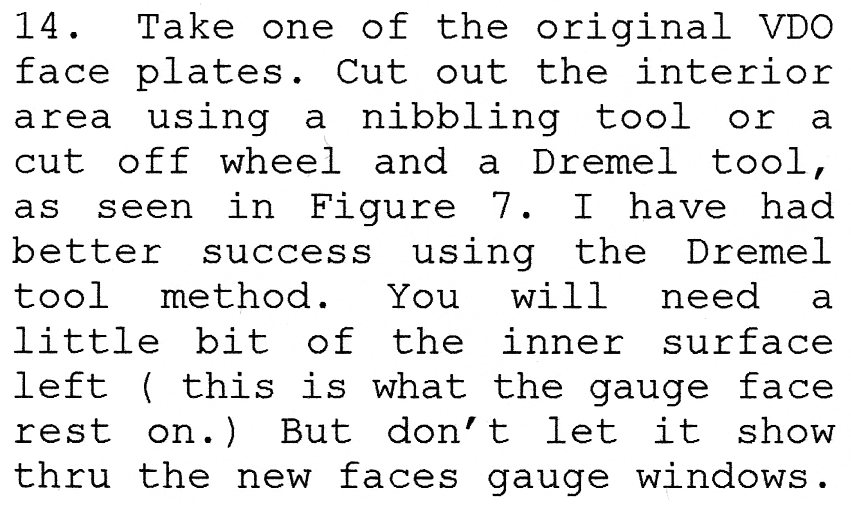

This a replacement to step 14, I did when I did mine. I cut out the original faces to use as support for the new face. This save you trying to epoxy stand off of inside the gauge body. Much easier for me.

Attached Image

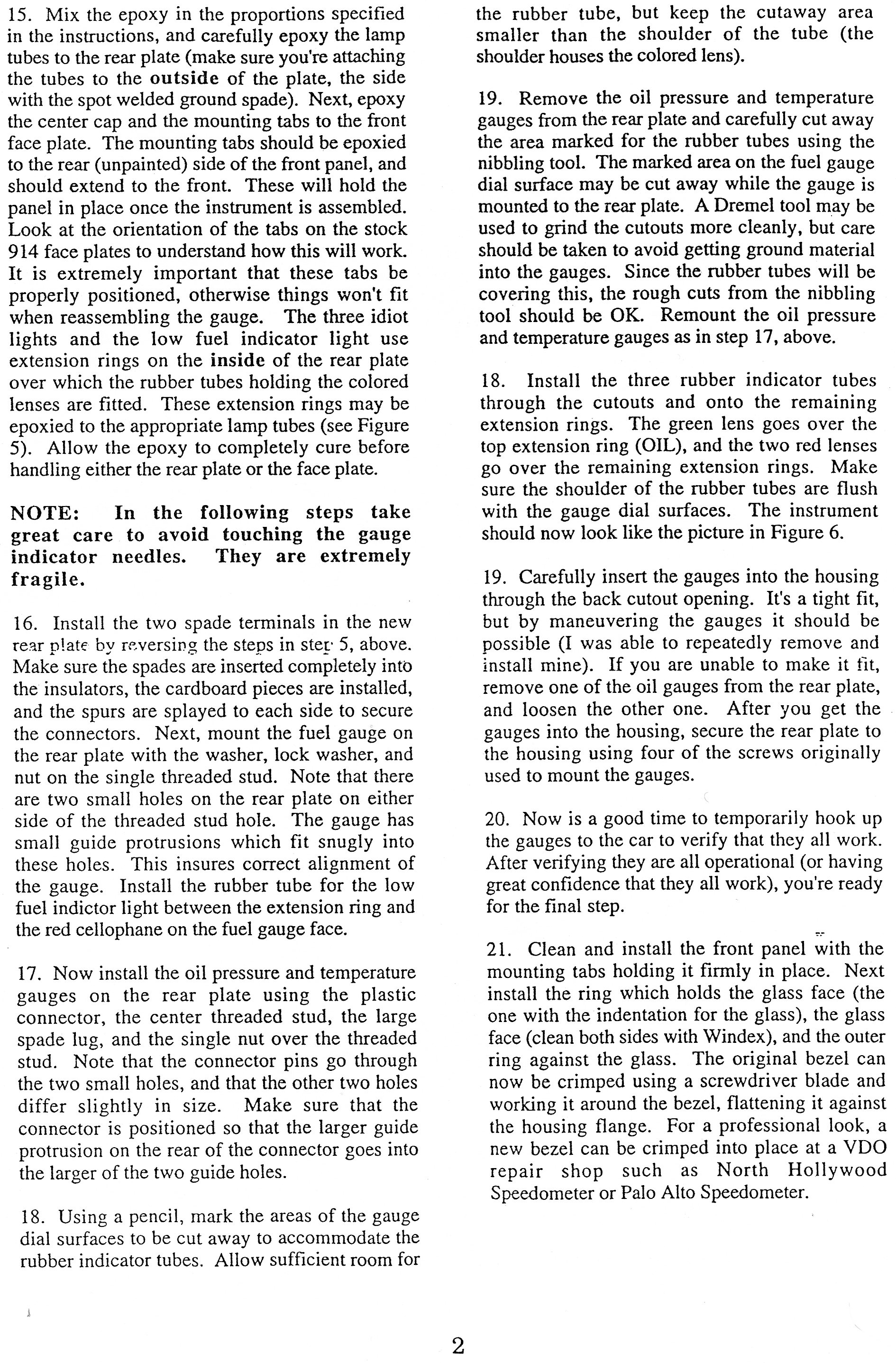

Page two of the instructions.

Attached Image

Adding more files in he next post.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914forme
post Feb 23 2014, 04:03 PM
Post #2


Times a wastin', get wrenchin'!
****

Group: Members
Posts: 3,896
Joined: 24-July 04
From: Dayton, Ohio
Member No.: 2,388
Region Association: None

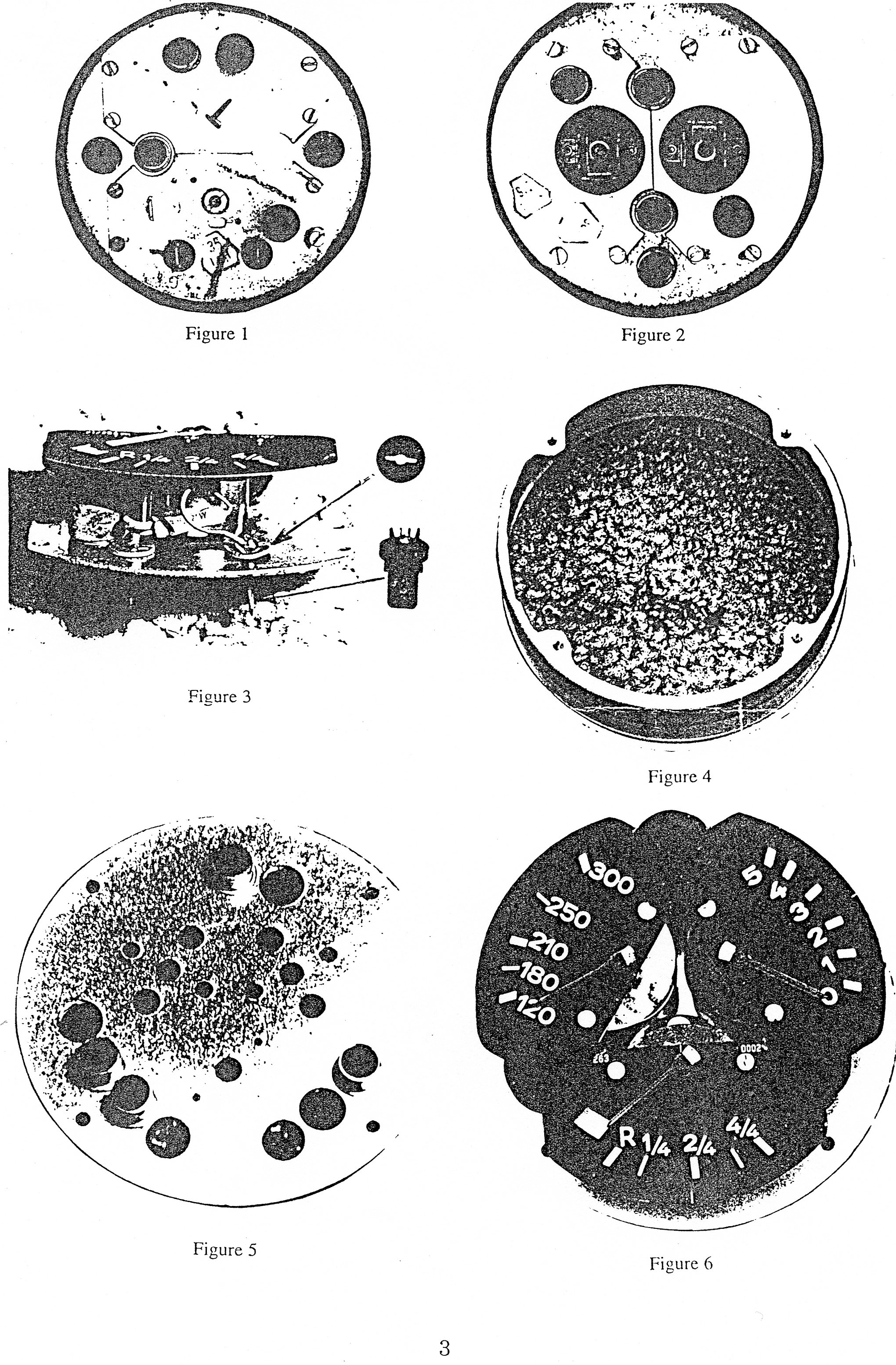

Here is the pictures used as reference in the instructions.

Attached Image

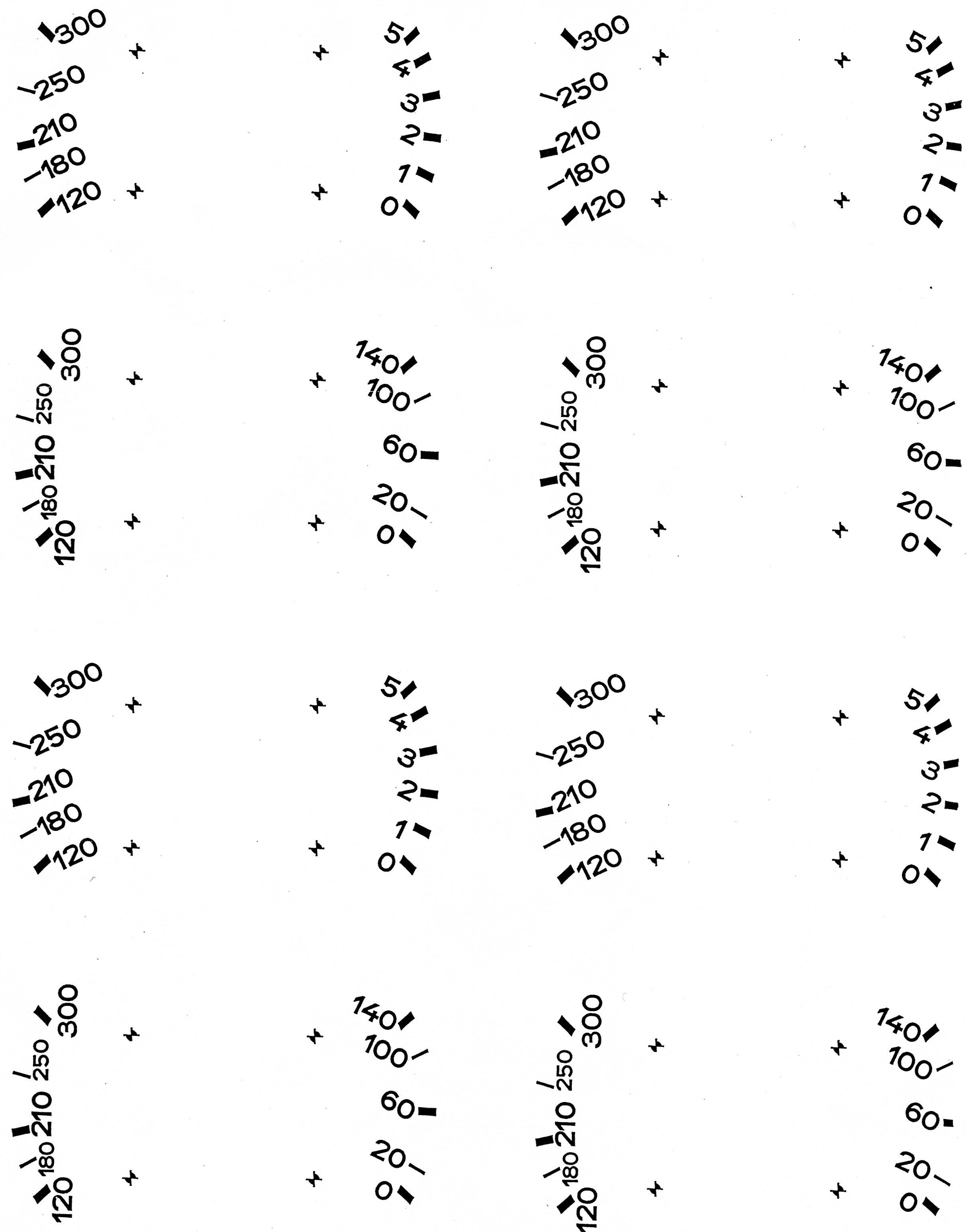

And here is the art work to print the gauge faces themselves in proper letter orientation.

Attached Image

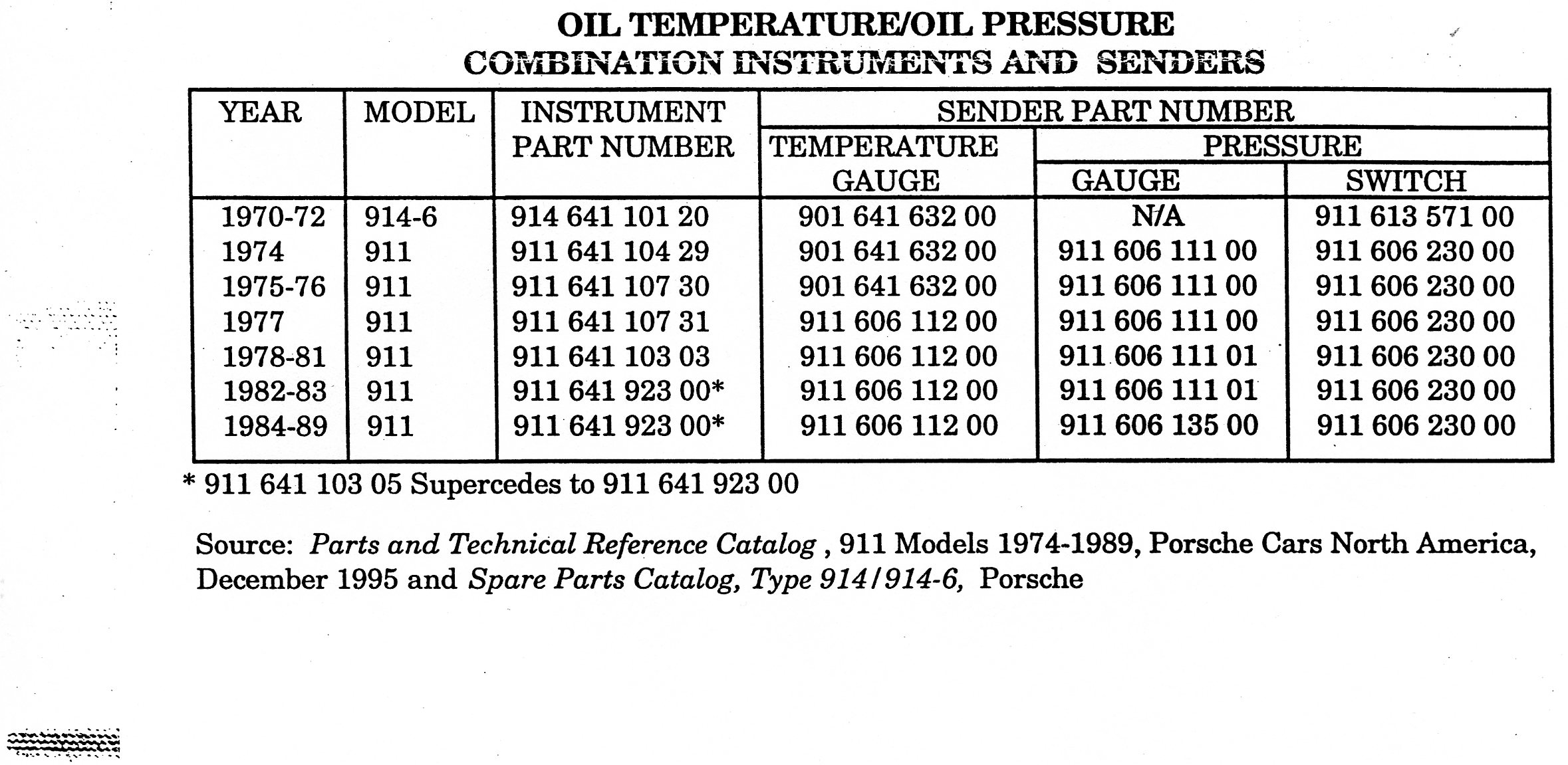

And the cross reference of gauges to senders:

Attached Image

I hope this helps someone out there.

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914forme
post Feb 23 2014, 04:05 PM
Post #3


Times a wastin', get wrenchin'!
****

Group: Members
Posts: 3,896
Joined: 24-July 04
From: Dayton, Ohio
Member No.: 2,388
Region Association: None



You can get these faces printed up via http://whitegauges.net thy also have items to help you restore the gauges like needle paint. etc.... Thanks to timothy_nd28 for this great resource.
