> GT-style Headlight mechanisms, Anyone have any pics?
nein14
post Jan 12 2005, 04:11 PM
Post #41


Senior Member
***

Group: Members
Posts: 839
Joined: 6-February 03
From: USA
Member No.: 262
OK, here is the deal. I just spoke to Steve from www.aircooledracing.com he is the present owner of the factory Max Moritz 914-6 GT car which now resides in PA.

After explaining to him what some of us are looking for in the way of a kit duplicating the mechanical headlights, he has told me he is willing to fabricate a kit based on the one that is on his GT.

He said it should be able to reproduce it a reasonable price. His car was featured in this months Excellence, a great article with a lot of photos. As soon as I get more info on the kit I will post it.

Check out his website its a great source for part for 914 & 911. (IMG:http://www.914world.com/bbs2/html/emoticons/aktion035.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
nynone4
post Jan 12 2005, 04:24 PM
Post #42


Hammer to fit. Paint to match.
**

Group: Members
Posts: 353
Joined: 20-May 03
From: East Peoria, Illinois
Member No.: 713
Region Association: None
Cool! Can't wait to see what "reasonable cost" is. (IMG:http://www.914world.com/bbs2/html/emoticons/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rhilgers
post Jan 12 2005, 04:31 PM
Post #43


Member
**

Group: Members
Posts: 75
Joined: 17-July 03
From: Santa Clara CA
Member No.: 919
Seriously, how many people want to do it?

I have mine 90% done and spend less than $200 on it.
It does not look like the GT method because I did not want to cut anyting. Its stripped down simple.

I dont have one length exact because the engine is out of the car and I need it level to make sure it within the limits of the headlight screws and Im not sure of the LBS rating is correct. ( I used 20lbs gas springs )

If there is some interest I will post pics/specs of the design..

-Rich Hilgersom
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeroen
post Jan 12 2005, 04:39 PM
Post #44


914 Guru
*****

Group: Members
Posts: 7,887
Joined: 24-December 02
From: The Netherlands
Member No.: 3
Region Association: Europe
Post all you got!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
datapace
post Jan 12 2005, 04:48 PM
Post #45


Member
**

Group: Members
Posts: 134
Joined: 19-January 04
From: Atlanta, GA
Member No.: 1,579
Region Association: South East States
Please!!!

I hope *this* isn't "patented" (IMG:http://www.914world.com/bbs2/html/emoticons/screwy.gif)

-bryan
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Jan 12 2005, 05:05 PM
Post #46


914 Freak!
***************

Group: Members
Posts: 17,155
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None

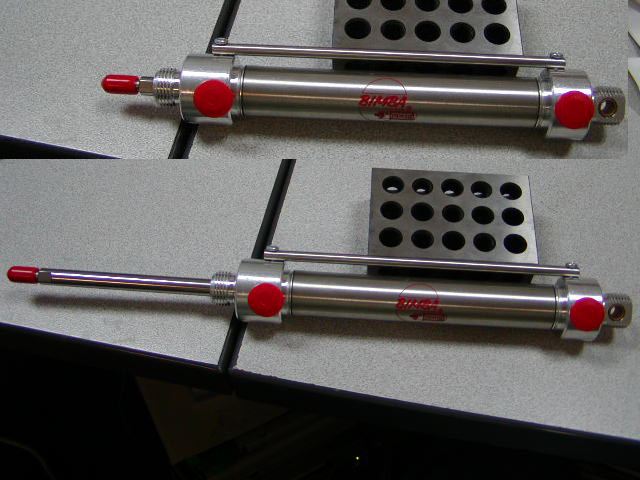

hmmmm...I've got a few of these twin-chamber air-cylinders that could be used instead of a one way gas spring ....instead of using compressed air, vacuum from the engine can be used to open and close the headlights....as long as you have a good detent once opened/closed, you'd only have to supply vacuum to open or close it again

an accumulator can be installed in case the engine vacuum is too low due to an aggressive cam

the block is 1"x2"x3" for size comparison (IMG:http://www.914world.com/bbs2/html/emoticons/smile.gif)


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Jan 12 2005, 05:32 PM
Post #47


914 Wizard
**********

Group: Members
Posts: 10,909
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
Bimbas are great , pretty cheap to special order if they dont have the one you need on the shelf , also like you say up and down,
The factory way is cool if you want a factory type GT part.
The modern approach will work even better, and cheaper. Good Job (IMG:http://www.914world.com/bbs2/html/emoticons/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Joe Bob
post Jan 12 2005, 06:17 PM
Post #48


Retired admin, banned a few times
***************

Group: Members
Posts: 17,427
Joined: 24-December 02
From: Boulder CO
Member No.: 5
Region Association: None
QUOTE (sixnotfour @ Jan 12 2005, 01:10 PM)
Here is how :
http://fly.hiwaay.net/%7Ejonlowe/


They weren't dumb when they were racing at  Leman, with a 2.0

Yeah...a 2.0 with 180+hp....not the 100 ish in the stockers they sold the schmuck in the public sector....

Sorry, I still think it's stoopid....unless you are doing a copy of the factory race car...then it's just anal.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Jan 12 2005, 06:22 PM
Post #49


914 Wizard
**********

Group: Members
Posts: 10,909
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
So is cutting the roof off of a coupe. So there neener neener

(IMG:http://www.914world.com/bbs2/html/emoticons/mueba.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Joe Bob
post Jan 12 2005, 06:25 PM
Post #50


Retired admin, banned a few times
***************

Group: Members
Posts: 17,427
Joined: 24-December 02
From: Boulder CO
Member No.: 5
Region Association: None
QUOTE (sixnotfour @ Jan 12 2005, 04:22 PM)
So is cutting the roof off of a coupe. So there neener neener

(IMG:http://www.914world.com/bbs2/html/emoticons/mueba.gif)

Stoopid or anal?

Stoopid I can live with.....that's doable....BTW roofs are fer wussies....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
airsix
post Jan 12 2005, 08:08 PM
Post #51


I have bees in my epiglotis
****

Group: Members
Posts: 2,196
Joined: 7-February 03
From: Kennewick Man (E. WA State)
Member No.: 266
QUOTE (Mueller @ Jan 12 2005, 03:05 PM)
hmmmm...I've got a few of these twin-chamber air-cylinders that could be used instead of a one way gas spring ....instead of using compressed air, vacuum from the engine can be used to open and close the headlights...

Ha! If we were at Porsche 35 years ago some moron would say "Hey, we could run them off the spare tire!" (IMG:http://www.914world.com/bbs2/html/emoticons/laugh.gif)

I like your idea of using engine vac. These look super cool. How much do they weigh?

-Ben M.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Jan 12 2005, 08:14 PM
Post #52


914 Freak!
***************

Group: Members
Posts: 17,155
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
QUOTE
How much do they weigh?


7.4 oz each

the ends are aluminum, the piston/rod and body is stainless
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
project-914
post Dec 27 2006, 12:42 PM
Post #53


Member
**

Group: Members
Posts: 181
Joined: 2-August 06
From: Oklahoma
Member No.: 6,571
to the top!!!...

I'm about to start fabbing a kit pretty soon
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michel richard
post Dec 27 2006, 01:00 PM
Post #54


Senior Member
***

Group: Members
Posts: 1,291
Joined: 22-July 03
From: Longueuil, Québec
Member No.: 936
FWIW, here's a picture of the parts I made for my car. 5 mm squares.

Not perfect, by any stretch, but they work:



Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michel richard
post Dec 27 2006, 01:01 PM
Post #55


Senior Member
***

Group: Members
Posts: 1,291
Joined: 22-July 03
From: Longueuil, Québec
Member No.: 936
The splitter. The threads did'nt come out straight, and I redid this part. I used 3/4 inch round aluminum stock.



Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michel richard
post Dec 27 2006, 01:04 PM
Post #56


Senior Member
***

Group: Members
Posts: 1,291
Joined: 22-July 03
From: Longueuil, Québec
Member No.: 936
I used ordinary bicylcle brake cables. The expensive part is the pair of gas springs. I mail-ordered these off the web.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michel richard
post Dec 27 2006, 01:05 PM
Post #57


Senior Member
***

Group: Members
Posts: 1,291
Joined: 22-July 03
From: Longueuil, Québec
Member No.: 936
The inside of the forward compartment has since been repainted.

Here's how it attaches to the headlights:



Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michel richard
post Dec 27 2006, 01:09 PM
Post #58


Senior Member
***

Group: Members
Posts: 1,291
Joined: 22-July 03
From: Longueuil, Québec
Member No.: 936
And how the hook looks in the car.

The way it works is this: the hook and the gas spring both engage the same special fitting on the headlight. The cables simply lift the hook so that the gas spring can do it's work and push the headlight open. The head light can only be shut by hand, from the outside: the hook is shaped such that pushing the headlight down will push the hook forward until it drops past the fitting on the headlight.

The bucket has to be modified by adding a vertical slot inside the side support to let the hook through.





Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Marv's3.6six
post Dec 27 2006, 02:40 PM
Post #59


Actual member 7"
***

Group: Members
Posts: 695
Joined: 22-November 04
From: Huntington Beach, Ca.
Member No.: 3,165
Region Association: Southern California
I see this is an old revived thread. I too have been talking to aircooled for well over a year and they keep saying they are gonna make them, I have finally given up on that. (IMG:style_emoticons/default/mad.gif)
On an up note Armando Serrano called me last week and has found a couple complete kits in Europe that are waaay waaay spendy, but WTF, might as well go for it I can't find them anywhere else. (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
project-914
post Dec 27 2006, 03:06 PM
Post #60


Member
**

Group: Members
Posts: 181
Joined: 2-August 06
From: Oklahoma
Member No.: 6,571
how hard is each headlight to push down with those 2 gas shocks and where did you get the gas shocks?...and what's the part number and how much $$, thanks

I have a plan where I use the same shock set up as that, but instead of just a quick pull release, I can have a cable mechanism to pull the headlights down (still using a splitter like that) and then have it lock somewhere...maybe take a lawn mower pull start handle and connect it to the cable in the cock pit near your knees kinda and have it where you pull on that to close the lights and have it hook around something higher up on the dash...and to release the lights you just release the cable and let the shocks do the work
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
