> Ignition wiring/plug, Early vs Late round 2 please help!
OU8AVW
post Mar 17 2014, 07:44 AM
Post #1


Yacht Rigger
***

Group: Members
Posts: 1,803
Joined: 1-October 08
From: Granbury, TX
Member No.: 9,601
Region Association: Southwest Region
So I bought a steering column with the ignition switch and associated wiring and turn signal. I went to install it on my 71 and the plug is different. My car's plug has a center rib that runs between the individual plugs but my "new" column and plug do not. It sucks because I spent money keying the switch as it did not come with a key.
I was too pissed at the time to get a photo (IMG:style_emoticons/default/dry.gif)

Comments?

So I bought another column that I know is from a 1971 car, it doesn't f!#king fit either!
My car was built in 07/1971....

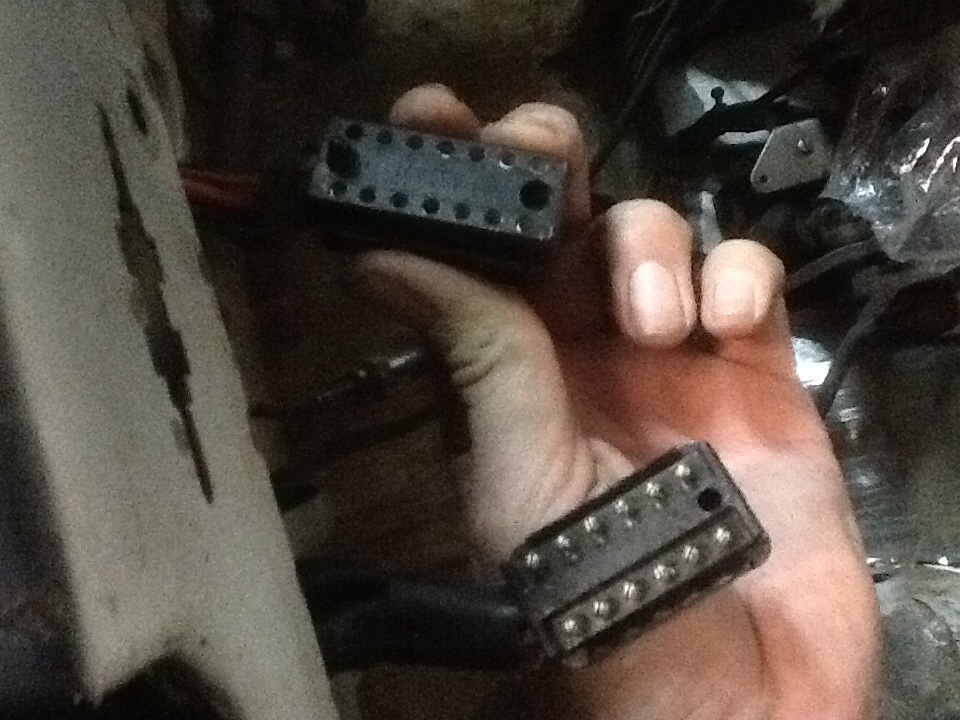

Column plug on the left, car on the right. How can I make this work? Can somebody sell me what I need?

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mike Bellis
post Mar 17 2014, 08:05 AM
Post #2


Resident Electrician
*****

Group: Members
Posts: 8,347
Joined: 22-June 09
From: Midlothian TX
Member No.: 10,496
Region Association: None
70 & 71 have a unique steering column and ignition. I might have the ignition plug you need in a parts car. You would have to graft it into your harness. PM me if you want it.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
OU8AVW
post Mar 17 2014, 12:28 PM
Post #3


Yacht Rigger
***

Group: Members
Posts: 1,803
Joined: 1-October 08
From: Granbury, TX
Member No.: 9,601
Region Association: Southwest Region
Let me see if I can find a column. Thanks
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914Sixer
post Mar 17 2014, 07:15 PM
Post #4


914 Guru
*****

Group: Members
Posts: 9,142
Joined: 17-January 05
From: San Angelo Texas
Member No.: 3,457
Region Association: Southwest Region
70,71 column were sourced from the VW Type 3 parts . When the 72 came along with the built in wiper switch they were sourced from the VW Type 1 Bug.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
OU8AVW
post Mar 29 2014, 08:39 PM
Post #5


Yacht Rigger
***

Group: Members
Posts: 1,803
Joined: 1-October 08
From: Granbury, TX
Member No.: 9,601
Region Association: Southwest Region
Please see edit in first post (IMG:style_emoticons/default/blink.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Mar 29 2014, 09:13 PM
Post #6


914 Wiring Harnesses & Beekeeper
*****

Group: Members
Posts: 8,927
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
The best idea would be to keep looking for a 1971 steering column, that has the 14pin connector. The 12pin is a 1970 column, I tmay have come from a 1971 car, but it was not original to it. The 1971 chassis harness has a 13th wire in it that the 1970 does not have, and uses the 14pin connector with one empty cavity.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cap'n Krusty
post Mar 29 2014, 09:20 PM
Post #7


Cap'n Krusty
**********

Group: Members
Posts: 10,794
Joined: 24-June 04
From: Santa Maria, CA
Member No.: 2,246
Region Association: Central California
You'll want to be sure the replacement column bolts in, as well. That changed, too, but I'm not sure when.

The Cap'n
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post Mar 29 2014, 09:26 PM
Post #8


"I got blisters on me fingers"
**********

Group: Members
Posts: 11,273
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest
Mike Why not just change the connector?
PM me.

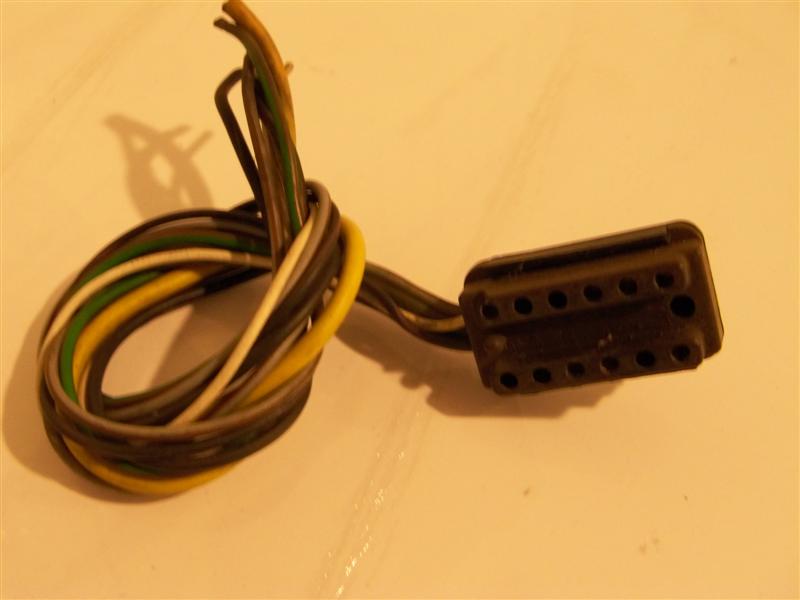

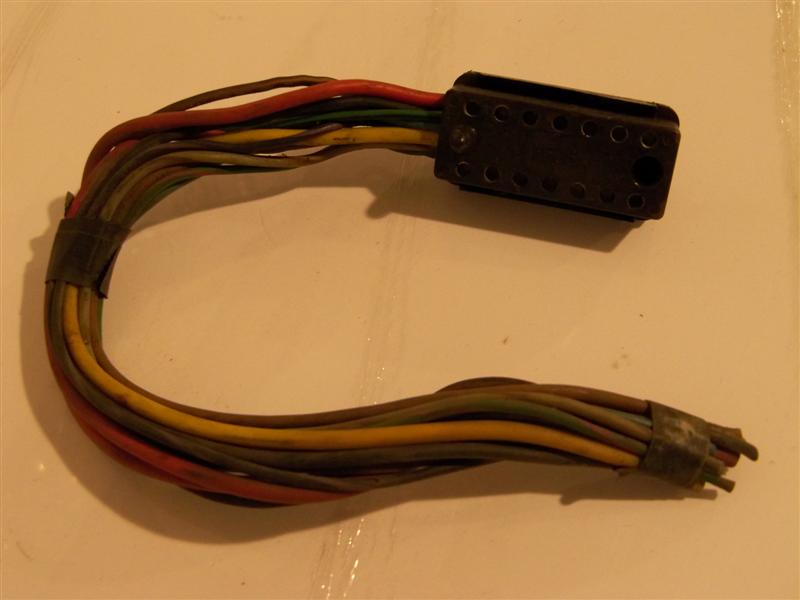

Attached image(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914itis
post Mar 29 2014, 09:43 PM
Post #9


Advanced Member
****

Group: Members
Posts: 2,892
Joined: 9-October 10
From: New York City
Member No.: 12,256
Region Association: North East States
QUOTE(rdauenhauer @ Mar 29 2014, 11:26 PM) *

Mike Why not just change the connector?
PM me.

I worked on my som's 70 today with the same issue . I attempted to change the connector but 3 or 4 of the wire colors didn't match. I manage to make it work for the most part, after an hour of testing. I still have to do some more testing in the morning.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Mar 29 2014, 10:58 PM
Post #10


914 Wiring Harnesses & Beekeeper
*****

Group: Members
Posts: 8,927
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
Brad Mayeur has an NOS 1971 column on ebay right now...or contact him directly.

http://www.ebay.com/itm/Porsche-914-1971-S...4de&vxp=mtr
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
hndyhrr
post Mar 29 2014, 11:08 PM
Post #11


Senior Member
***

Group: Members
Posts: 617
Joined: 1-September 13
From: central point,oregon
Member No.: 16,332
Region Association: Pacific Northwest
I have a 70. bought one that was for 72. grrrrr Call Easy Porsche Parts in Emeryville, cali. and see if they have one.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
mepstein
post Mar 30 2014, 06:22 AM
Post #12


914-6 GT in waiting
***************

Group: Members
Posts: 19,919
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
QUOTE(Jeff Bowlsby @ Mar 30 2014, 12:58 AM) *

Brad Mayeur has an NOS 1971 column on ebay right now...or contact him directly.

http://www.ebay.com/itm/Porsche-914-1971-S...4de&vxp=mtr

(IMG:style_emoticons/default/agree.gif) buy the one on ebay. sell the others.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Mar 30 2014, 07:36 AM
Post #13


Life's been good to me so far.....
***************

Group: Admin
Posts: 16,369
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille
Porsche sells both the male and female 14 pin connector shells brand new. Just buy two of them and replace the shells.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
OU8AVW
post Mar 30 2014, 09:05 AM
Post #14


Yacht Rigger
***

Group: Members
Posts: 1,803
Joined: 1-October 08
From: Granbury, TX
Member No.: 9,601
Region Association: Southwest Region
QUOTE(ClayPerrine @ Mar 30 2014, 06:36 AM) *

Porsche sells both the male and female 14 pin connector shells brand new. Just buy two of them and replace the shells.


That's a good idea, but what's that 13th wire for on the car and will that mess me up with a 12 wire column?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Mar 30 2014, 09:32 AM
Post #15


914 Wiring Harnesses & Beekeeper
*****

Group: Members
Posts: 8,927
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None

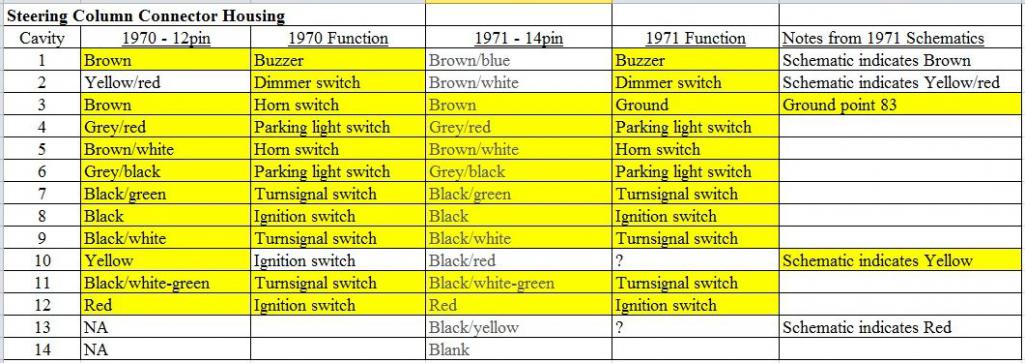

Someone had contacted me recently about this...I did a study with the limited information I have. The major problem is that there is no 1970 chassis harness schematic available and I have not had an opportunity to completely wring out a 1970 harness to know what each circuit it. Based on wire color only:




Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
