> Bosch Fuel pump, EDIT: electrical connections on bosch 69414 small post is +
malcolm2
post Apr 27 2014, 09:02 AM
Post #1


Advanced Member
****

Group: Members
Posts: 2,747
Joined: 31-May 11
From: Nashville
Member No.: 13,139
Region Association: South East States



I purchased a new fuel pump. The current one is a BOSCH, but it is a different part #. The electrical connections are different. My installed unit has the blade type connector. The new one has posts. The new one has 1 large post and 1 smaller post.

I marked the current one, so I would re-connect the wires the same way the PO did.

Which wire goes on the large post? Ground or power?

Maybe it just doesn't matter, cause they put no instructions, at all, in the box.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Qarl
post Apr 27 2014, 09:07 AM
Post #2


Shriveled member
*****

Group: Benefactors
Posts: 5,233
Joined: 8-February 03
From: Florida
Member No.: 271
Region Association: None



Photo?

IF it has the red and blue studs, the larger of the two is the positive connection (usually red). The smaller of the two is negative (usually blue).

As far as the original connection... brown is ground (negative).
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
malcolm2
post Apr 27 2014, 09:13 AM
Post #3


Advanced Member
****

Group: Members
Posts: 2,747
Joined: 31-May 11
From: Nashville
Member No.: 13,139
Region Association: South East States



QUOTE(Qarl @ Apr 27 2014, 10:07 AM) *

Photo?

IF it has the red and blue studs, the larger of the two is the positive connection (usually red). The smaller of the two is negative.

As far as the original connection... brown is ground (negative).



no color on the new unit studs or the old unit spades. My 1st thought was larger stud was 12v.

web photo with studs


User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sdthomas
post Apr 27 2014, 09:34 AM
Post #4


Member
**

Group: Members
Posts: 64
Joined: 14-June 11
From: Seattle
Member No.: 13,193
Region Association: Pacific Northwest



I recently purchased one of these and it took me a while to figure out that the posts are marked + and -, they are just really hard to see because they are in the brown plastic around the poles.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Qarl
post Apr 27 2014, 09:38 AM
Post #5


Shriveled member
*****

Group: Benefactors
Posts: 5,233
Joined: 8-February 03
From: Florida
Member No.: 271
Region Association: None



Larger is positive

See correct info below.

Depends on pump model, apparently.

Glad Bosch is so "consistent"
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
malcolm2
post Apr 27 2014, 09:44 AM
Post #6


Advanced Member
****

Group: Members
Posts: 2,747
Joined: 31-May 11
From: Nashville
Member No.: 13,139
Region Association: South East States



QUOTE(sdthomas @ Apr 27 2014, 10:34 AM) *

I recently purchased one of these and it took me a while to figure out that the posts are marked + and -, they are just really hard to see because they are in the brown plastic around the poles.



YOU ARE CORRECT! With an LED flash light I can see them. And the SMALL one is +.

The marks are on a small "bridge" between the electrical connection and the small fuel port. The "bridge" angles down and the marks are on the 45 deg face. I am going to dab alttle paint from my white paint pen to help the next guy. Or me, next time.

Thanks so much.

Clark
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
malcolm2
post Apr 27 2014, 09:45 AM
Post #7


Advanced Member
****

Group: Members
Posts: 2,747
Joined: 31-May 11
From: Nashville
Member No.: 13,139
Region Association: South East States



QUOTE(Qarl @ Apr 27 2014, 10:38 AM) *

Larger is positive



No it is not. I would have hooked it up that way, seems logical.

EDIT:

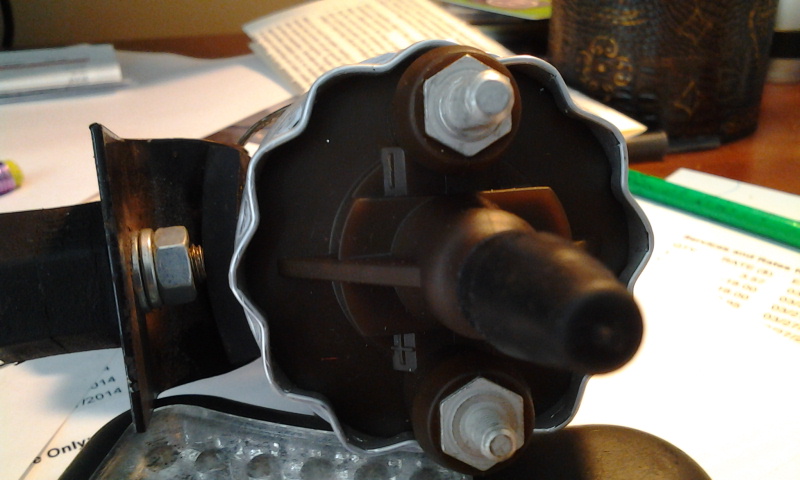

photo added:

Attached Image

BOSCH part number 69414. I have L-jet injection.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Qarl
post Apr 27 2014, 10:08 AM
Post #8


Shriveled member
*****

Group: Benefactors
Posts: 5,233
Joined: 8-February 03
From: Florida
Member No.: 271
Region Association: None



Wow... different than several of the other Bosch pumps I have seen.


Glad you figured it out.

(IMG:http://www.914world.com/bbs2/uploads_offsite/www.mpsracing.com-271-1398614953.1.jpg)
