> Undercarriage inspection, help me identify some things
swooshdave
post Jun 22 2014, 12:37 AM
Post #1


Member
**

Group: Members
Posts: 184
Joined: 11-June 14
From: Portland
Member No.: 17,475
Region Association: Pacific Northwest
This is my first time under the car (and the first time under a 914 or even a VW) so I could use a little help identifying some things.

(IMG:http://www.914world.com/bbs2/uploads_offsite/i237.photobucket.com-17475-1403419060.1.jpg)
There is an unattached cable on the right side.

(IMG:http://www.914world.com/bbs2/uploads_offsite/i237.photobucket.com-17475-1403419060.2.jpg)
There is also another unattached cable above the shifter.

(IMG:http://www.914world.com/bbs2/uploads_offsite/i237.photobucket.com-17475-1403419060.3.jpg)
The car has an ANSA exhaust. I'm not sure if these two pieces are suppose to meet.

(IMG:http://www.914world.com/bbs2/uploads_offsite/i237.photobucket.com-17475-1403419060.4.jpg)
I wonder if this hole should have something attached to it?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mblizzard
post Jun 22 2014, 02:52 AM
Post #2


Advanced Member
****

Group: Members
Posts: 3,033
Joined: 28-January 13
From: Knoxville Tn
Member No.: 15,438
Region Association: South East States
It looks like your heat system is pretty much missing!

Thee cables should connect to heater valves that are opened by the lever just to the rear of the shift lever. If you have heat exchangers you need a number of parts to make the heat work.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bulitt
post Jun 22 2014, 05:04 AM
Post #3


Achtzylinder
****

Group: Members
Posts: 4,189
Joined: 2-October 11
Member No.: 13,632
Region Association: South East States
Air circulates around your exhaust in a heat exchanger.
When heated the air is blown into the two tubes which run inside
your longs. The other ends of the longs have flexible tubes which direct the air up through the dash into the blower plenum. Looks like you are missing
fans, tubes,flapper valves, etc.

Front air system
(IMG:http://www.914world.com/bbs2/uploads_offsite/345053ca7e80c5ad4275-5ac4a1cffde6c91f8fe01efb688d265e.r54.cf2.rackcdn.com-13632-1403435044.1.gif)

Rear air system (fans missing from pic)
(IMG:http://www.914world.com/bbs2/uploads_offsite/345053ca7e80c5ad4275-5ac4a1cffde6c91f8fe01efb688d265e.r54.cf2.rackcdn.com-13632-1403435044.2.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jacksun
post Jun 22 2014, 06:11 AM
Post #4


Member
**

Group: Members
Posts: 236
Joined: 8-August 13
From: mi
Member No.: 16,224
Region Association: Upper MidWest
hi,

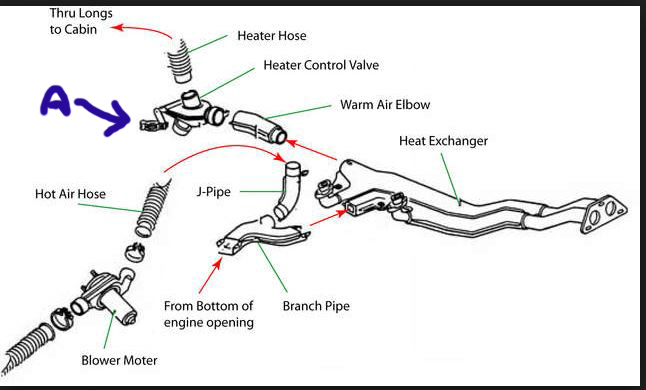

the following is a snip from pelican parts



"a" is where the heater control wires hook up.........one for each side.


randal

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
76-914
post Jun 22 2014, 07:08 AM
Post #5


Repeat Offender & Resident Subaru Antagonist
**********

Group: Members
Posts: 13,698
Joined: 23-January 09
From: Temecula, CA
Member No.: 9,964
Region Association: Southern California
Be sure your car still has the heat exchangers before you start sourcing parts. That would be the big ticket item. Everything else is cheap and easily sourced.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
lsintampa
post Jun 22 2014, 08:44 AM
Post #6


Senior Member
***

Group: Members
Posts: 520
Joined: 28-January 13
From: Tampa, FL
Member No.: 15,441
Region Association: South East States
first two pictures are cables that should attach to heat bellows / valves that let heat into those big holes that run into the car cabin (the last picture).

There should be two of those big holes.

Heat exchangers surround your exhaust "pipes" that connect to the valves.

I see your oil cooler so I assume the motor is in.

DO NOT drive this car in this condition. There are many pictures here to show how your exhaust needs to be setup.

The holes into the cabin will allow carbon dioxide into the car cabin - you don't want that.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
swooshdave
post Jun 22 2014, 08:50 AM
Post #7


Member
**

Group: Members
Posts: 184
Joined: 11-June 14
From: Portland
Member No.: 17,475
Region Association: Pacific Northwest
Without the fan motors on I would think it would be pretty tough for the exhaust gases to get to the cabin. It's about the most convoluted path invented.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jmill
post Jun 22 2014, 09:03 AM
Post #8


Green Hornet
****

Group: Members
Posts: 2,449
Joined: 9-May 08
From: Racine, Wisconsin
Member No.: 9,038
Region Association: Upper MidWest
QUOTE(swooshdave @ Jun 22 2014, 09:50 AM) *

It's about the most convoluted path invented.


What did you expect, it's German. It has 10 parts when 3 would do. (IMG:style_emoticons/default/av-943.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
cary
post Jun 22 2014, 09:26 AM
Post #9


Advanced Member
****

Group: Members
Posts: 3,900
Joined: 26-January 04
From: Sherwood Oregon
Member No.: 1,608
Region Association: Pacific Northwest
That big tube in your last picture is the warm air path to your passenger compartment.
So lingering exhaust gases could get sucked in. In the short term just close them up with duct tape.

If you'd like, I could stop by after lunch today.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
malcolm2
post Jun 22 2014, 09:28 AM
Post #10


Advanced Member
****

Group: Members
Posts: 2,747
Joined: 31-May 11
From: Nashville
Member No.: 13,139
Region Association: South East States
QUOTE(swooshdave @ Jun 22 2014, 09:50 AM) *

Without the fan motors on I would think it would be pretty tough for the exhaust gases to get to the cabin. It's about the most convoluted path invented.


The FAN MOTOR, I believe you are talking about, really only blows air when the car is idling. Older cars had 2 outlets on the fan motor under the relay box in the engine compartment. Later fans only had 1 outlet on the fan and you could add a splitter to go to both pass and driver. I stuck with the 1 for me, the driver.

My fan works, but the engine is running down the road at 3000 rpm, so it over takes the electric heater fan. It turns on when the red floor lever is pulled all the way up. I only use the bottom dash lever when it is cold.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
swooshdave
post Jun 22 2014, 10:25 AM
Post #11


Member
**

Group: Members
Posts: 184
Joined: 11-June 14
From: Portland
Member No.: 17,475
Region Association: Pacific Northwest
QUOTE(cary @ Jun 22 2014, 08:26 AM) *

That big tube in your last picture is the warm air path to your passenger compartment.
So lingering exhaust gases could get sucked in. In the short term just close them up with duct tape.

If you'd like, I could stop by after lunch today.


I'll PM you. That would be awesome.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
swooshdave
post Jun 22 2014, 11:35 AM
Post #12


Member
**

Group: Members
Posts: 184
Joined: 11-June 14
From: Portland
Member No.: 17,475
Region Association: Pacific Northwest
QUOTE(malcolm2 @ Jun 22 2014, 08:28 AM) *


My fan works, but the engine is running down the road at 3000 rpm, so it over takes the electric heater fan. It turns on when the red floor lever is pulled all the way up. I only use the bottom dash lever when it is cold.


Yes, I'll make sure I seal off the openings until I get things sorted.

(IMG:http://www.914world.com/bbs2/uploads_offsite/i237.photobucket.com-17475-1403458533.1.jpg)
Right heat exchanger. It's pretty loose. Not sure where it attaches to.

(IMG:http://www.914world.com/bbs2/uploads_offsite/i237.photobucket.com-17475-1403458533.2.jpg)
Left heat exchanger. Doesn't rattle as much as the right.

(IMG:http://www.914world.com/bbs2/uploads_offsite/i237.photobucket.com-17475-1403458534.3.jpg)
Another picture of the heat exchanger and what I think is the J pipe. Not sure why they don't line up.

(IMG:http://www.914world.com/bbs2/uploads_offsite/i237.photobucket.com-17475-1403458534.4.jpg)
Another shot of the driver side.

(IMG:http://www.914world.com/bbs2/uploads_offsite/i237.photobucket.com-17475-1403458534.5.jpg)
In the engine compartment behind the driver.

(IMG:http://www.914world.com/bbs2/uploads_offsite/i237.photobucket.com-17475-1403458535.6.jpg)
Facing down above the battery.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jacksun
post Jun 22 2014, 02:35 PM
Post #13


Member
**

Group: Members
Posts: 236
Joined: 8-August 13
From: mi
Member No.: 16,224
Region Association: Upper MidWest
hi,

look at the diagram I posted before..

it looks like you are missing both heater control boxes

plus on the passenger side the branch pipe

both branch pipes also connect to the bottom side corners of

fan assembly housing .
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dave_Darling
post Jun 22 2014, 09:40 PM
Post #14


914 Idiot
***************

Group: Members
Posts: 15,148
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California

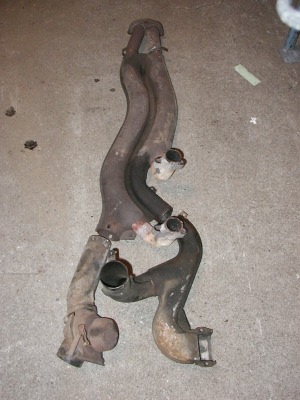

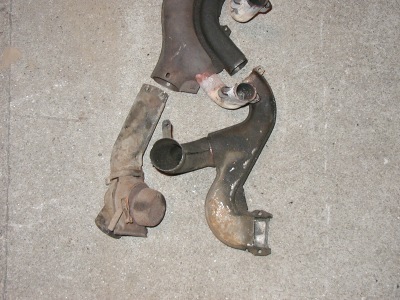

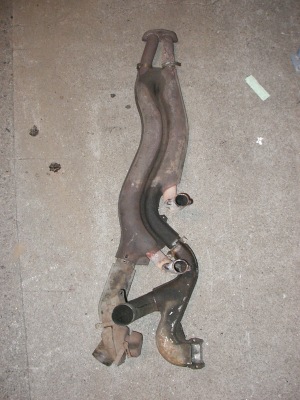

Some pics of the parts as they go together:


Attached Image

Attached Image

Attached Image


A common patch for the rattling exchanger is a stainless steel hose clamp at the rear of the "wrapping".

--DD
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
swooshdave
post Jun 22 2014, 11:53 PM
Post #15


Member
**

Group: Members
Posts: 184
Joined: 11-June 14
From: Portland
Member No.: 17,475
Region Association: Pacific Northwest
(IMG:http://www.914world.com/bbs2/uploads_offsite/i237.photobucket.com-17475-1403502780.1.png)

I need to start looking for the stuff I outlined in green.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dave_Darling
post Jun 23 2014, 01:49 AM
Post #16


914 Idiot
***************

Group: Members
Posts: 15,148
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California
Part of what you outlined is the forward of the pipes up to the head. (IMG:style_emoticons/default/wink.gif)

You have the tube that runs from the exchanger to the flapper valve. In my pic it is shown attached to the valve, but you already have it.

--DD
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
malcolm2
post Jun 23 2014, 01:32 PM
Post #17


Advanced Member
****

Group: Members
Posts: 2,747
Joined: 31-May 11
From: Nashville
Member No.: 13,139
Region Association: South East States

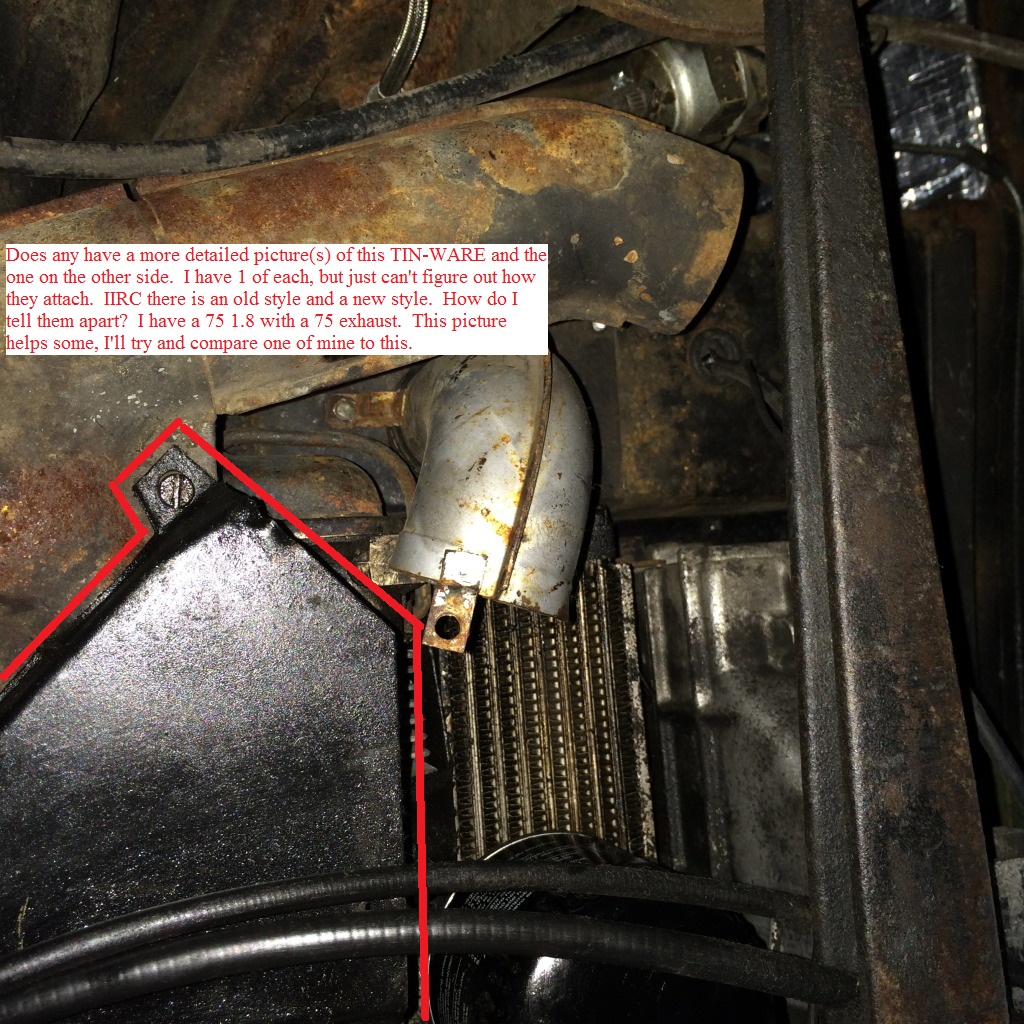

slightly off topic, but I need some pictures of the tin at attaches under the car.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dave_Darling
post Jun 23 2014, 04:30 PM
Post #18


914 Idiot
***************

Group: Members
Posts: 15,148
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California
There are two styles for the right side, and three for the left side.

Early on, the left-side piece bent down under the shift rod. Starting in 73 with the side-shift linkage, the piece then bent up to go over the rod. (The right side stayed the same.)

When they went to the 75+ exhaust, the pieces changed shape to fit the new exhaust.

The older style, as shown in your pic, has two (I think) screws that hold it onto the heat exchanger. Those go through weld-nuts on the edge of the "wrapping" part of the exchanger. There is one or two screws on the inboard edge of the tin piece that go into bosses that stick out of the side of the crankcase.

Sorry, no pics handy.

--DD
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
swooshdave
post Jun 23 2014, 08:47 PM
Post #19


Member
**

Group: Members
Posts: 184
Joined: 11-June 14
From: Portland
Member No.: 17,475
Region Association: Pacific Northwest
QUOTE(malcolm2 @ Jun 23 2014, 12:32 PM) *

slightly off topic, but I need some pictures of the tin at attaches under the car.


I'll get the car back up in the air and get some pictures specifically of these parts.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
GeorgeRud
post Jun 23 2014, 09:14 PM
Post #20


Advanced Member
****

Group: Members
Posts: 3,725
Joined: 27-July 05
From: Chicagoland
Member No.: 4,482
Region Association: Upper MidWest
If you want to drive it without heat, you can use a couple of spray paint lids and hose clamps to seal off the body connections until you can put the entire system back together.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
« Next Oldest · 914World Garage · Next Newest »


2 Pages V  1 2 >
Reply to this topicStart new topic
1 User(s) are reading this topic (1 Guests and 0 Anonymous Users)
0 Members:



Display Mode: Standard · Switch to: Linear+ · Switch to: Outline

Track this topic · Email this topic · Print this topic · Subscribe to this forum

- Lo-Fi Version Time is now: 20th April 2025 - 12:43 AM
Invision Power Board v9.1.4 © 2025  IPS, Inc.
All rights reserved 914World.com © since 2002
914World.com is the fastest growing online 914 community!
We have it all, classifieds, events, forums, vendors, parts, autocross, racing, technical articles, events calendar, newsletter, restoration, gallery, archives, history and more for your Porsche 914 ...
