> 914-6 Restoration, ...and away we go
johnhora
post Nov 25 2014, 01:22 PM
Post #41


Senior Member
***

Group: Members
Posts: 866
Joined: 7-January 03
From: Derby City KY
Member No.: 107
Region Association: None
watching....this is great!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
doug_b_928
post Nov 25 2014, 02:05 PM
Post #42


Senior Member
***

Group: Members
Posts: 689
Joined: 17-January 13
From: Winnipeg
Member No.: 15,382
Region Association: Canada
QUOTE(914350 @ Nov 25 2014, 10:35 AM) *

The Donor car measured out great so I will use it to build a fixture for the 6.


Great thread! Is your 6's chassis bent? Based on what you've said above, I'm wondering if you're going to make fixtures for your bench based on the donor and then will be straightening the 6 chassis to fit those jigs..... If so, I'll be very interested in how you do this.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
914350
post Nov 28 2014, 10:29 PM
Post #43


Senior Member
***

Group: Members
Posts: 548
Joined: 21-April 14
From: Torrance Ca.
Member No.: 17,275
Region Association: Southern California

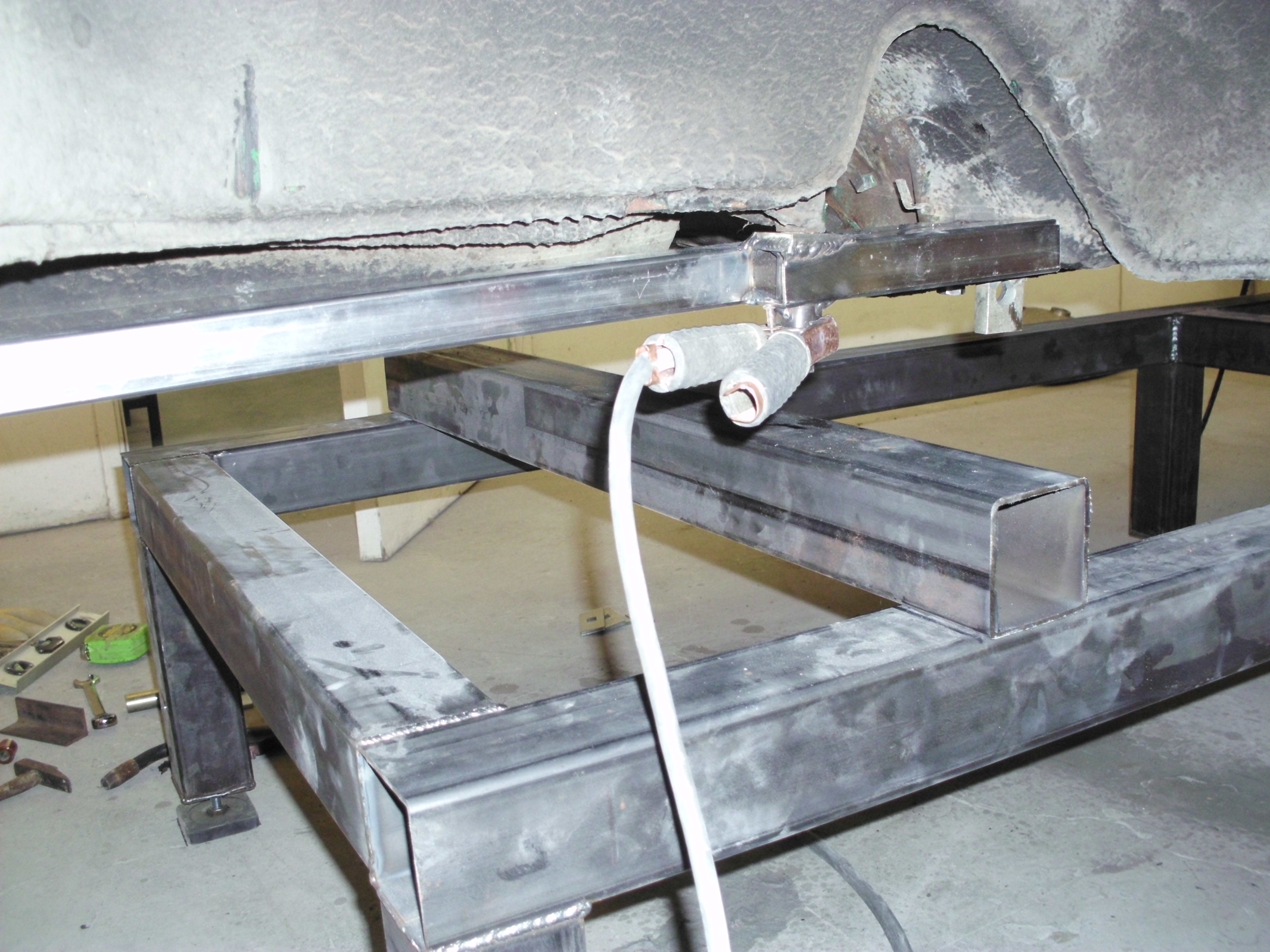

Progress on the fixture.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914350
post Nov 28 2014, 10:32 PM
Post #44


Senior Member
***

Group: Members
Posts: 548
Joined: 21-April 14
From: Torrance Ca.
Member No.: 17,275
Region Association: Southern California
More pics.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914350
post Nov 28 2014, 10:36 PM
Post #45


Senior Member
***

Group: Members
Posts: 548
Joined: 21-April 14
From: Torrance Ca.
Member No.: 17,275
Region Association: Southern California
More pics.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914350
post Nov 28 2014, 10:46 PM
Post #46


Senior Member
***

Group: Members
Posts: 548
Joined: 21-April 14
From: Torrance Ca.
Member No.: 17,275
Region Association: Southern California

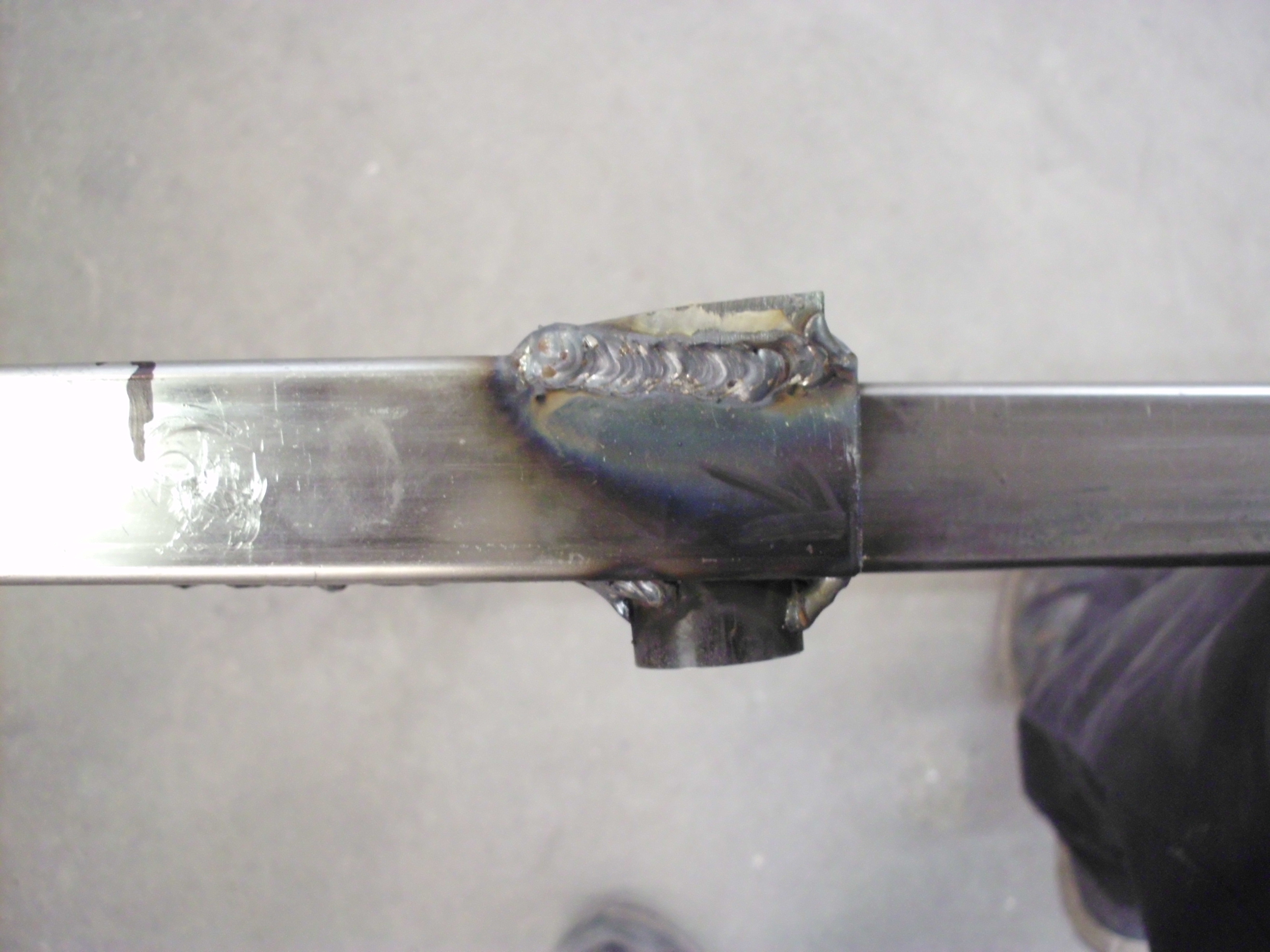

This fixture will be removable from the table so that it can be used on the front of the car once the car is on the rotisserie. Since I will be replacing the front tub, it will help get the torsion perches back in place.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914350
post Nov 28 2014, 10:57 PM
Post #47


Senior Member
***

Group: Members
Posts: 548
Joined: 21-April 14
From: Torrance Ca.
Member No.: 17,275
Region Association: Southern California
QUOTE(doug_b_928 @ Nov 25 2014, 12:05 PM) *

QUOTE(914350 @ Nov 25 2014, 10:35 AM) *

The Donor car measured out great so I will use it to build a fixture for the 6.


Great thread! Is your 6's chassis bent? Based on what you've said above, I'm wondering if you're going to make fixtures for your bench based on the donor and then will be straightening the 6 chassis to fit those jigs..... If so, I'll be very interested in how you do this.

Yes, the car was hit pretty hard in the past and not properly fixed. I will use the fixture to true the 6. I'll be removing a large portion of the fornt of the car and the long on the drivers side due to the long being bent.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914350
post Nov 30 2014, 08:04 AM
Post #48


Senior Member
***

Group: Members
Posts: 548
Joined: 21-April 14
From: Torrance Ca.
Member No.: 17,275
Region Association: Southern California

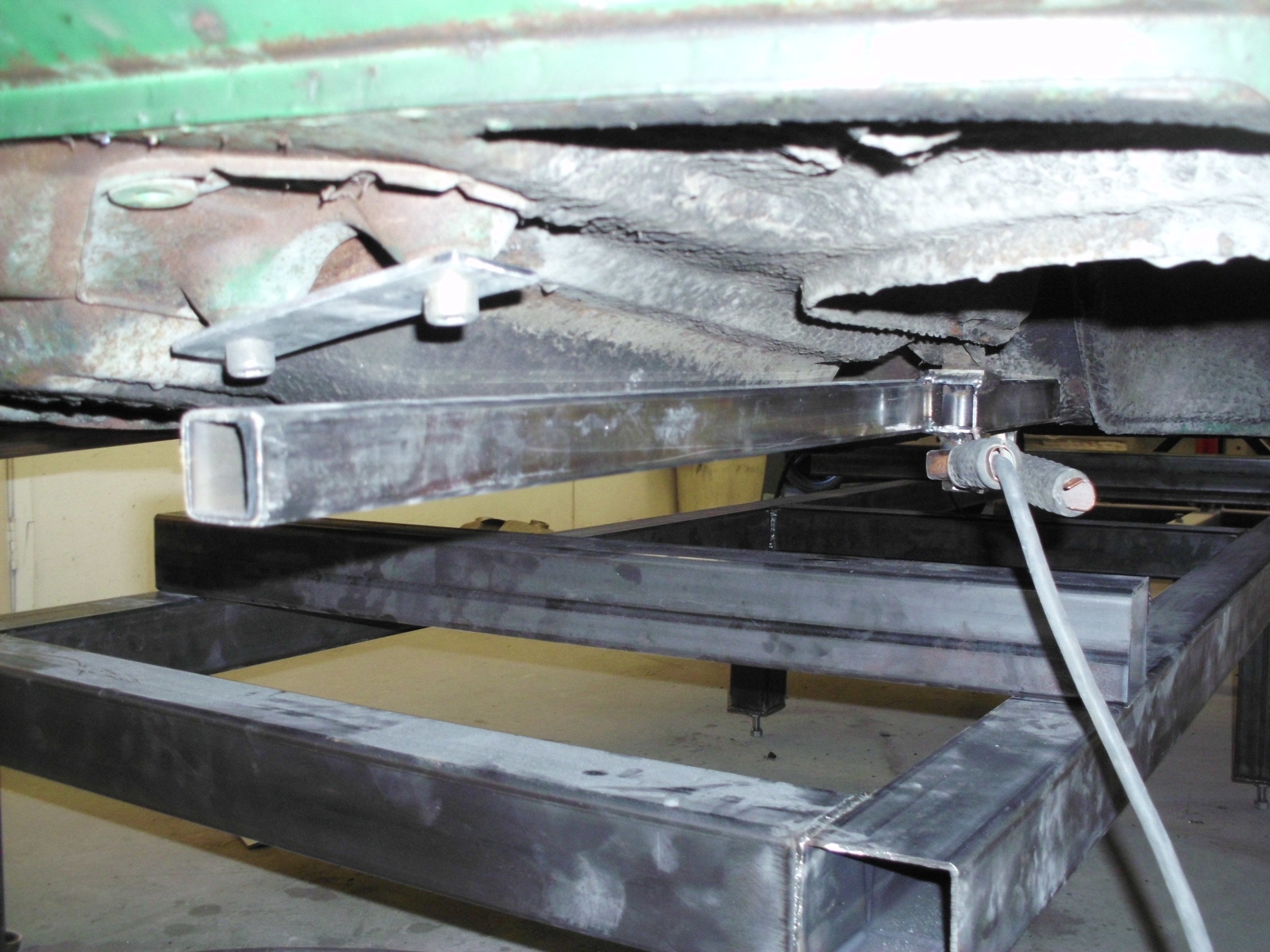

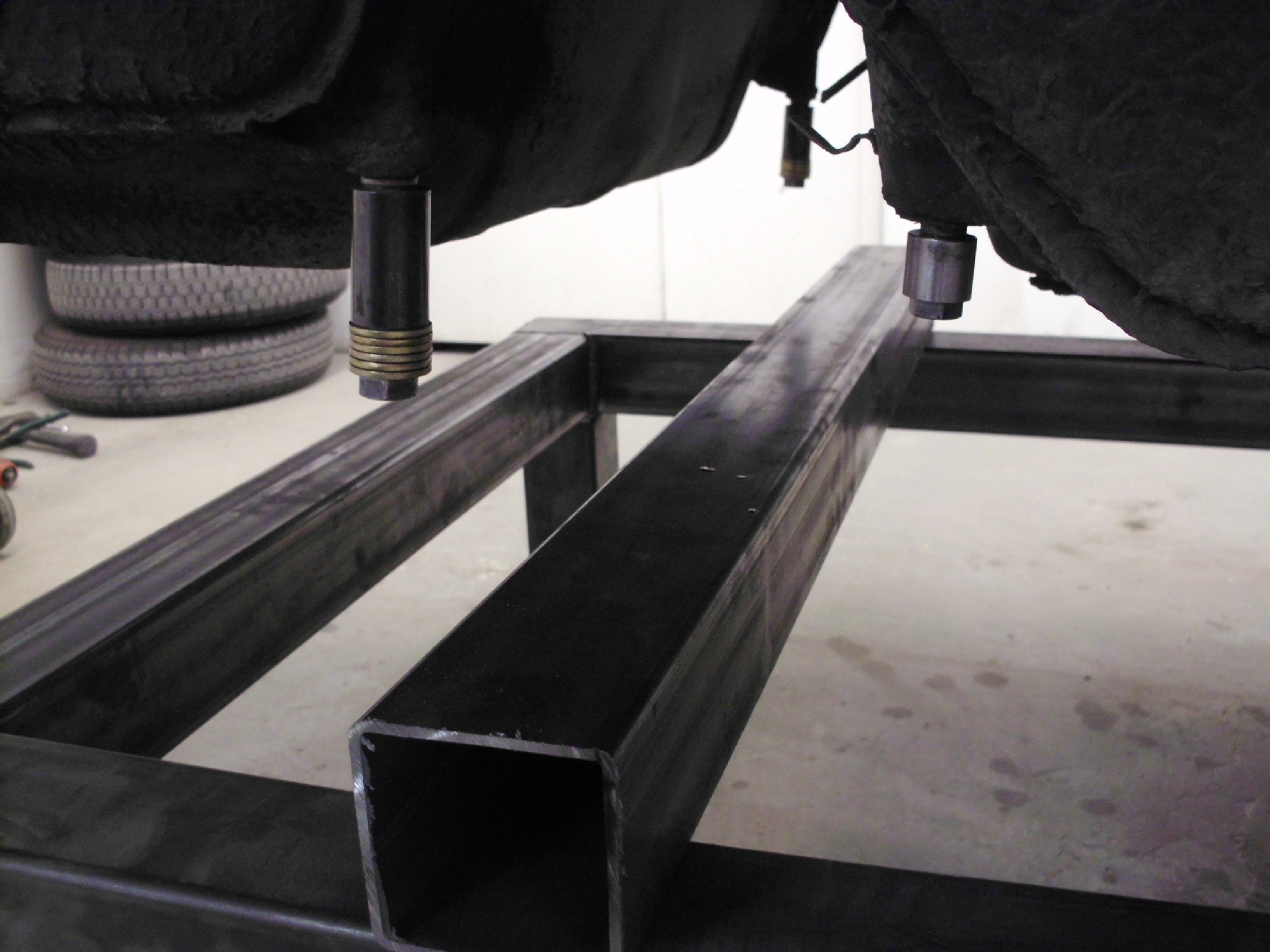

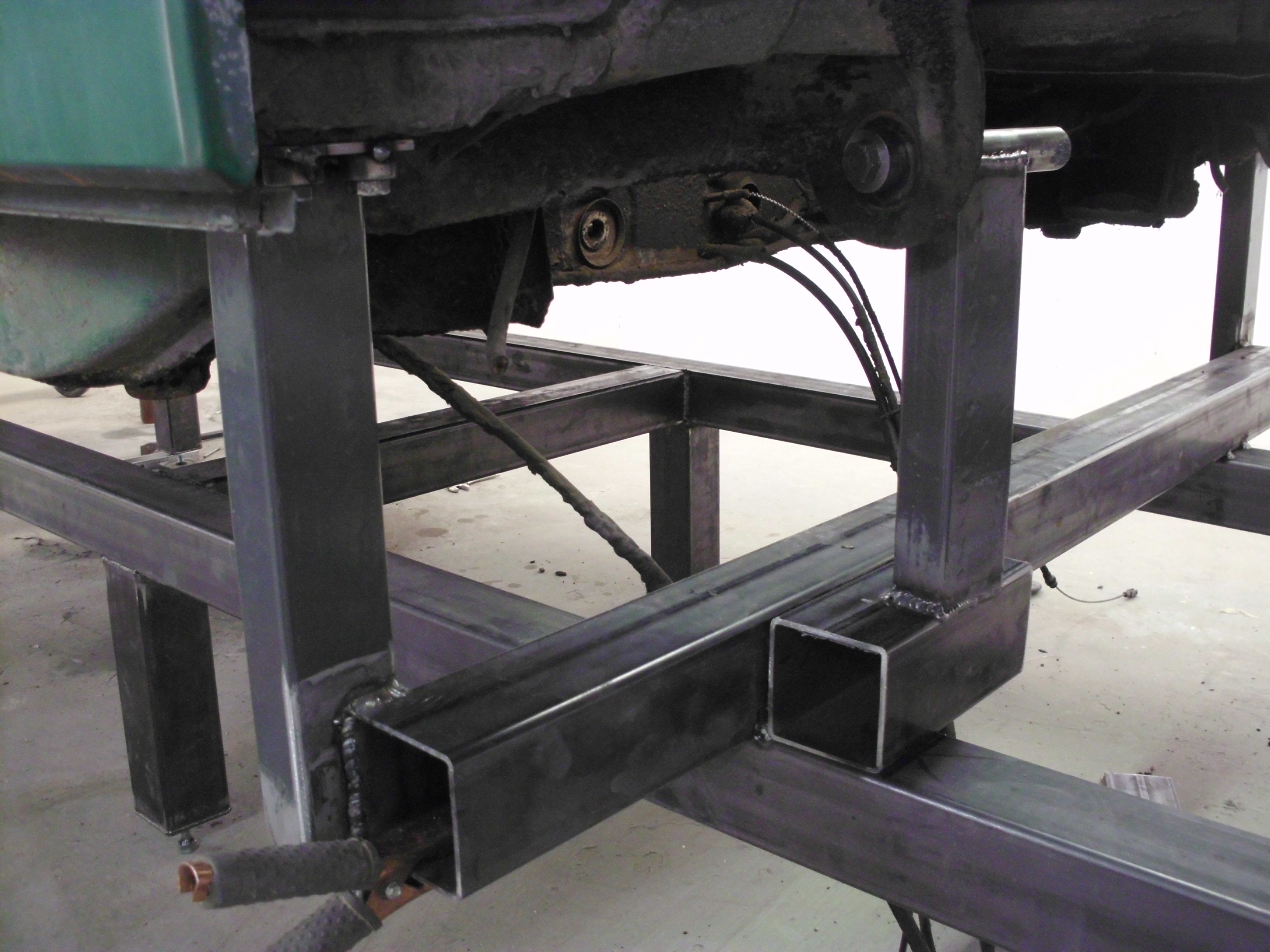

Rear mounting points.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914350
post Nov 30 2014, 08:06 AM
Post #49


Senior Member
***

Group: Members
Posts: 548
Joined: 21-April 14
From: Torrance Ca.
Member No.: 17,275
Region Association: Southern California
More pics.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914350
post Nov 30 2014, 08:12 AM
Post #50


Senior Member
***

Group: Members
Posts: 548
Joined: 21-April 14
From: Torrance Ca.
Member No.: 17,275
Region Association: Southern California

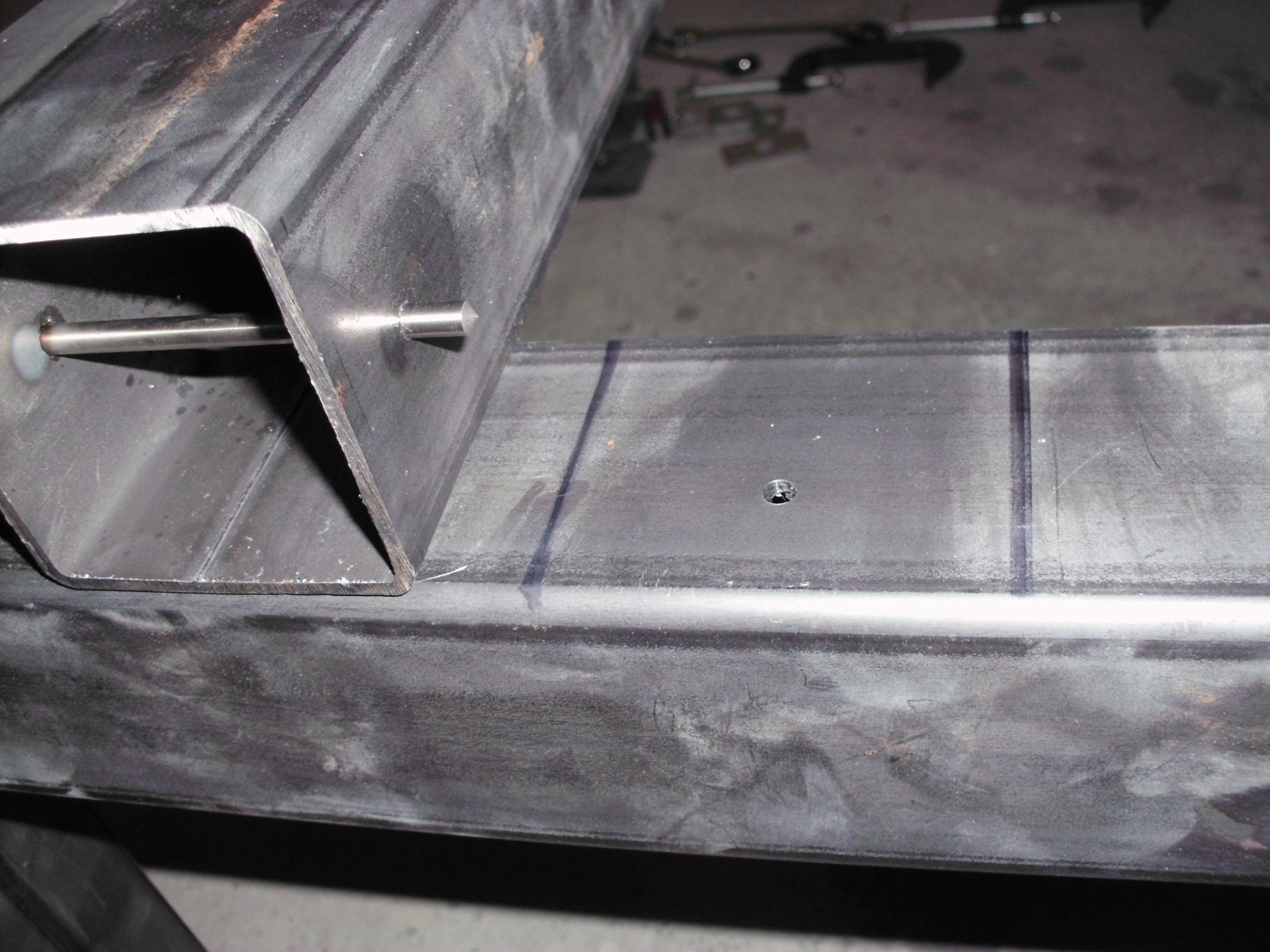

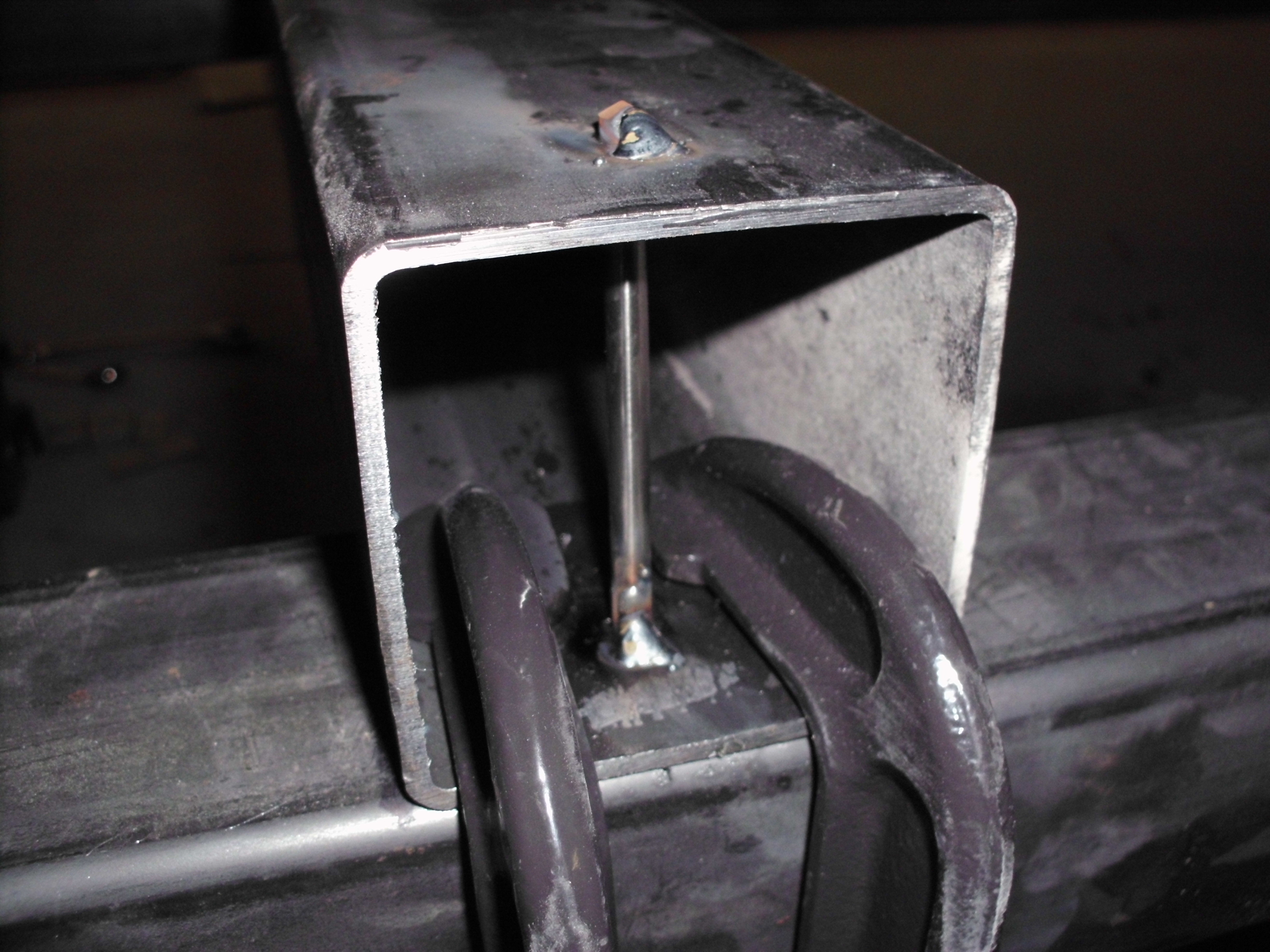

I intalled an alignment dowl to relocate the front of the fixture when removed.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
doug_b_928
post Nov 30 2014, 08:33 AM
Post #51


Senior Member
***

Group: Members
Posts: 689
Joined: 17-January 13
From: Winnipeg
Member No.: 15,382
Region Association: Canada
Very nice work!
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Socalandy
post Nov 30 2014, 02:21 PM
Post #52


Its got to be Yellow!!!
****

Group: Members
Posts: 2,432
Joined: 29-August 09
From: Orange
Member No.: 10,742
Region Association: Southern California

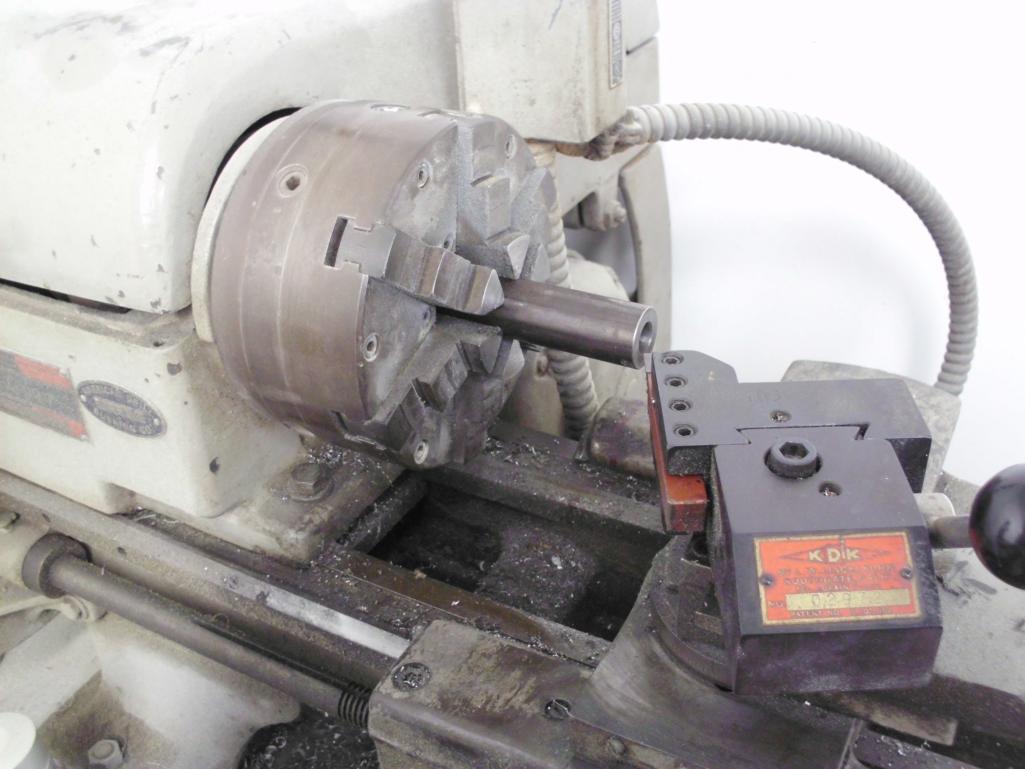

My Dad's Lathe hard at work (IMG:style_emoticons/default/smile.gif) getting closer to taking the rear quarters and fenders off the donor car.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914350
post Dec 1 2014, 09:52 AM
Post #53


Senior Member
***

Group: Members
Posts: 548
Joined: 21-April 14
From: Torrance Ca.
Member No.: 17,275
Region Association: Southern California

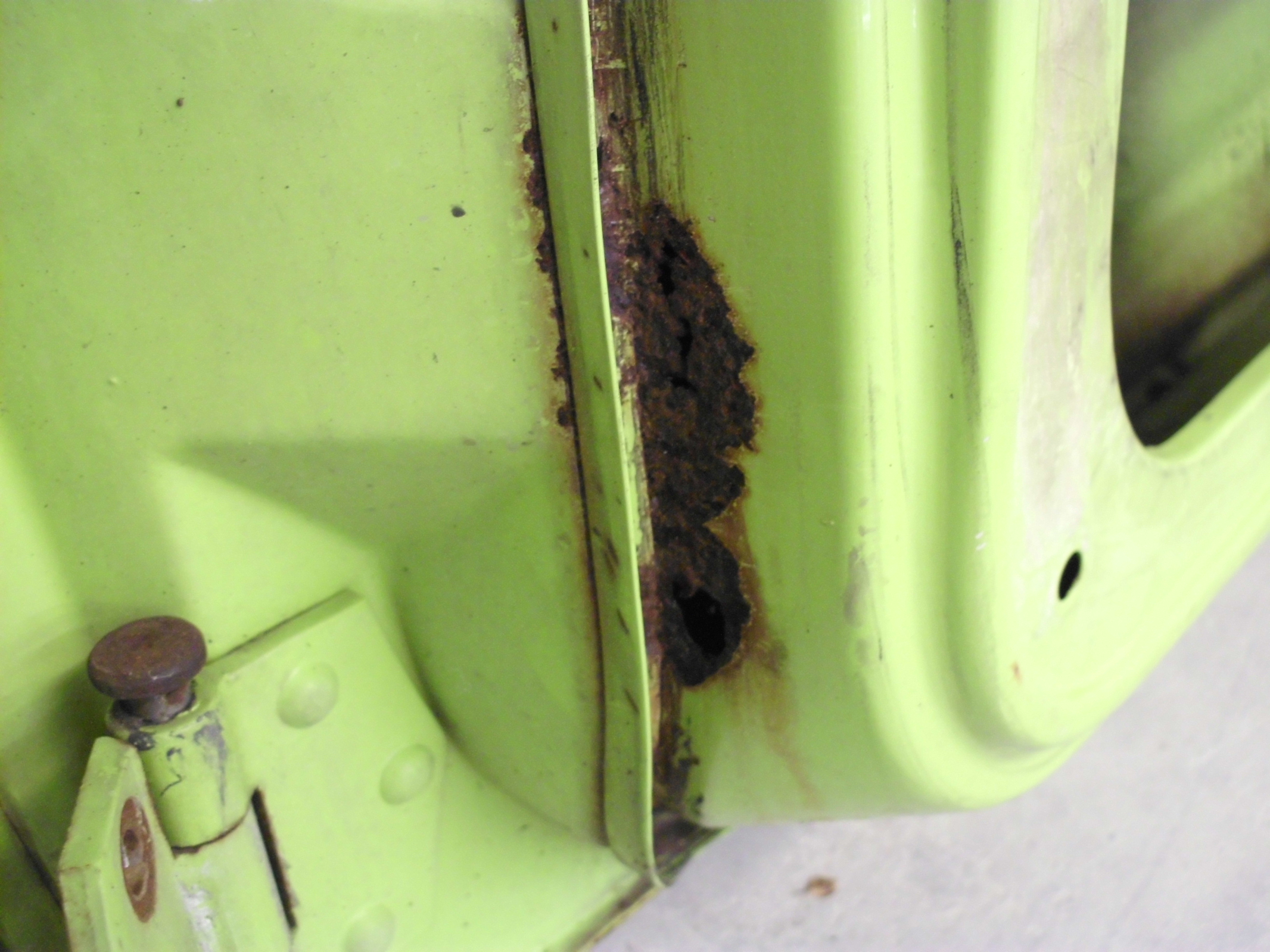

Jim brought by a realy nice set of doors for the car, a little rott from the seal in one but great over all.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914350
post Dec 1 2014, 09:53 AM
Post #54


Senior Member
***

Group: Members
Posts: 548
Joined: 21-April 14
From: Torrance Ca.
Member No.: 17,275
Region Association: Southern California
He got this set of early doors for $70.00...Wow! Great deal.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914350
post Dec 7 2014, 05:37 PM
Post #55


Senior Member
***

Group: Members
Posts: 548
Joined: 21-April 14
From: Torrance Ca.
Member No.: 17,275
Region Association: Southern California

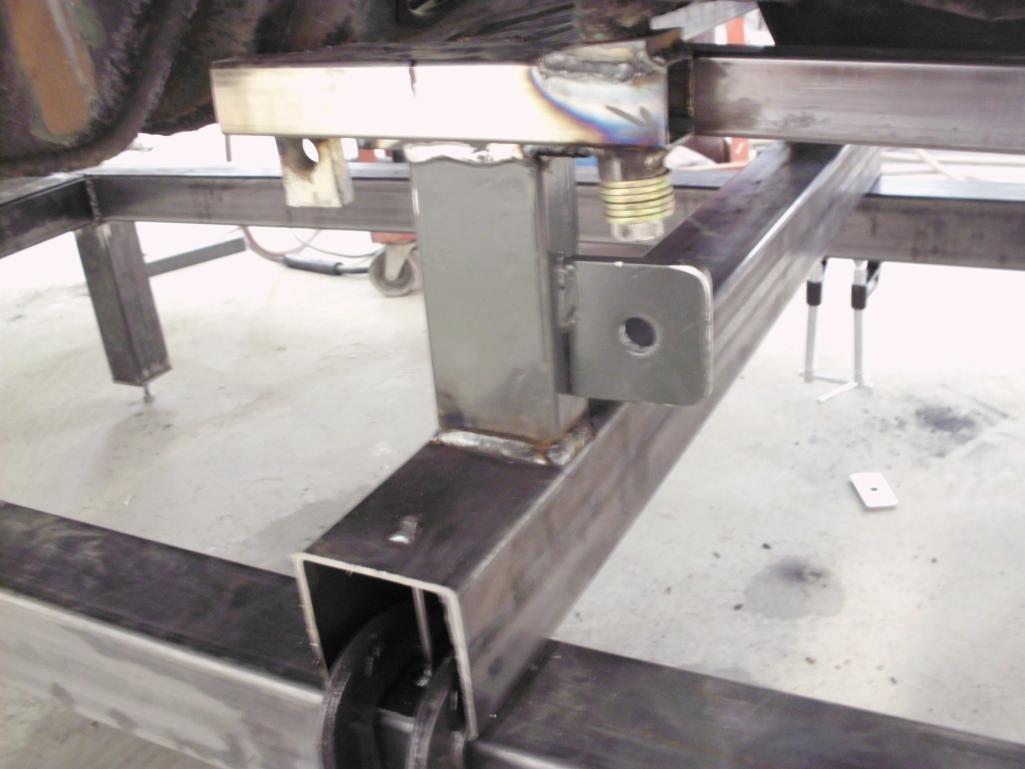

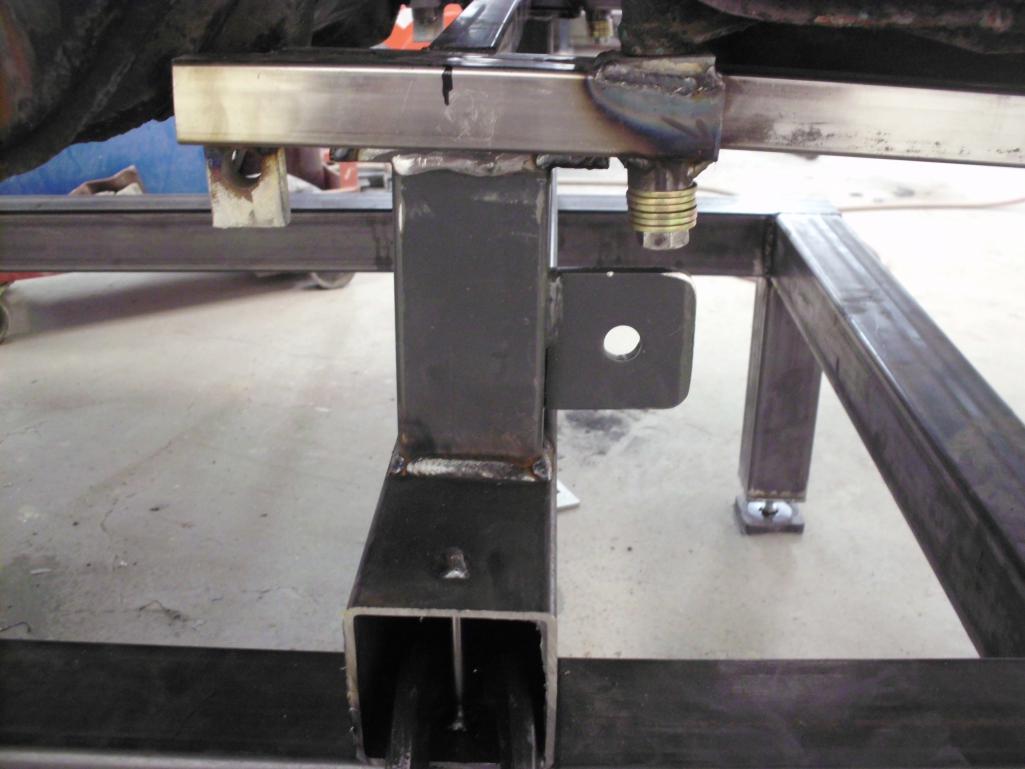

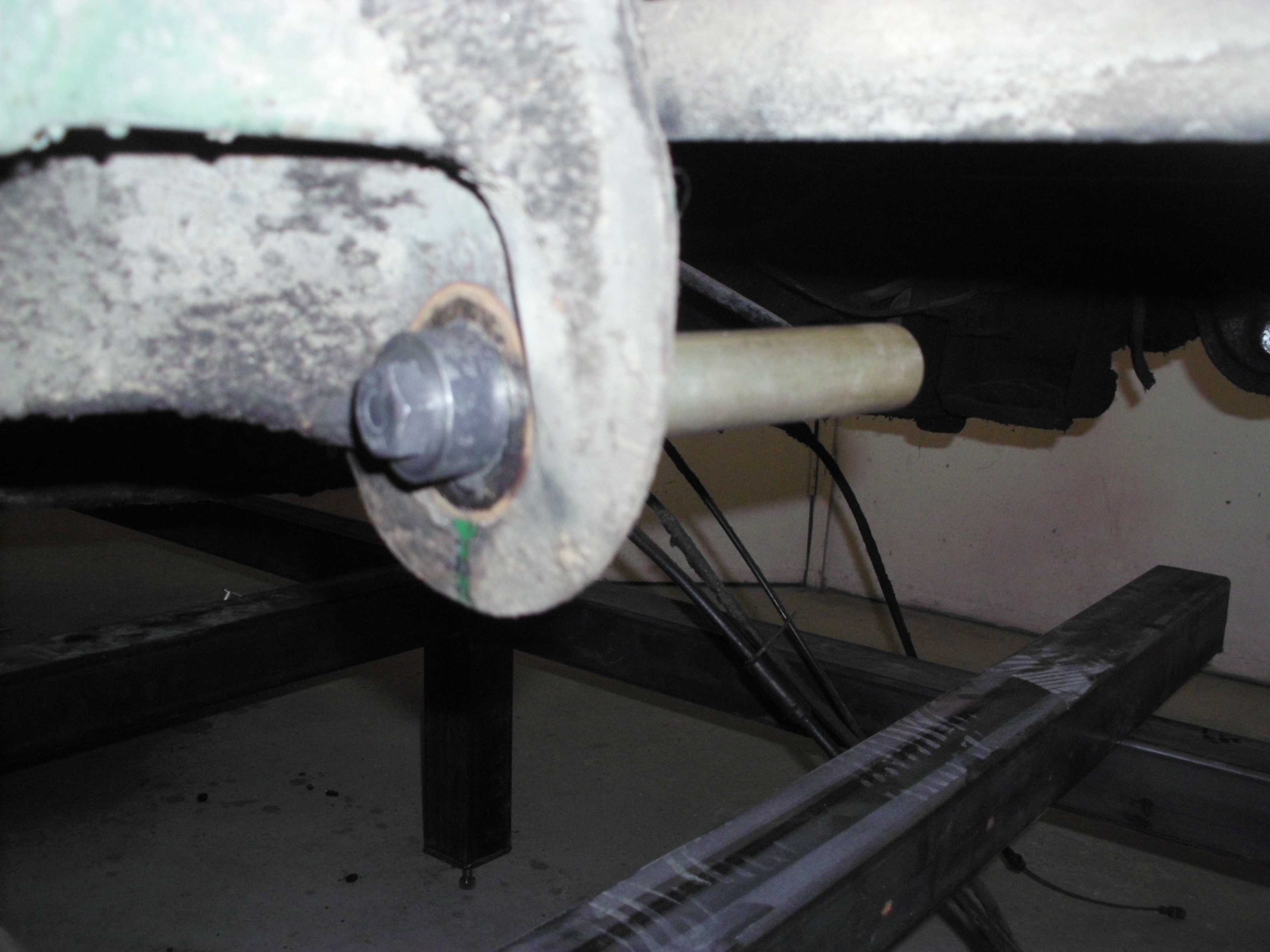

I got some more done on the fixture today. the fronts pretty much done and the rear is started. The front mounts at the four seporate rack mount points and centers on the OD of the mount points as the rack/suspension mount does and picks up the front torsion perches for properly locating them. I added brackets so I can do a soft pull if needed from the fixture to get the damaged car back into place. This would be done only after much of the metal is removed and taking care not to put any stress on the fixture. It looks like the 6 will need to be moved a bit in front.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914350
post Dec 7 2014, 05:49 PM
Post #56


Senior Member
***

Group: Members
Posts: 548
Joined: 21-April 14
From: Torrance Ca.
Member No.: 17,275
Region Association: Southern California
The rear of the fixture is almost done and I hope to have the 6 mounted on it by the end of the next weekend. Can't wait to cut into the 6.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914350
post Dec 7 2014, 05:51 PM
Post #57


Senior Member
***

Group: Members
Posts: 548
Joined: 21-April 14
From: Torrance Ca.
Member No.: 17,275
Region Association: Southern California
More pics.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914350
post Dec 7 2014, 05:53 PM
Post #58


Senior Member
***

Group: Members
Posts: 548
Joined: 21-April 14
From: Torrance Ca.
Member No.: 17,275
Region Association: Southern California
More pics.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
banananose914
post Dec 7 2014, 11:07 PM
Post #59


Member
**

Group: Members
Posts: 235
Joined: 20-November 13
From: california
Member No.: 16,681
Region Association: None
Bad, bad ass!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914350
post Dec 14 2014, 12:30 AM
Post #60


Senior Member
***

Group: Members
Posts: 548
Joined: 21-April 14
From: Torrance Ca.
Member No.: 17,275
Region Association: Southern California
Finished the fixture today and started cutting apart the Donor Car.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
