> Is this 1.7 engine code, WA
ndfrigi
post Oct 28 2014, 05:19 PM
Post #1


Advanced Member
****

Group: Members
Posts: 2,925
Joined: 21-August 11
From: Orange County
Member No.: 13,474
Region Association: Southern California

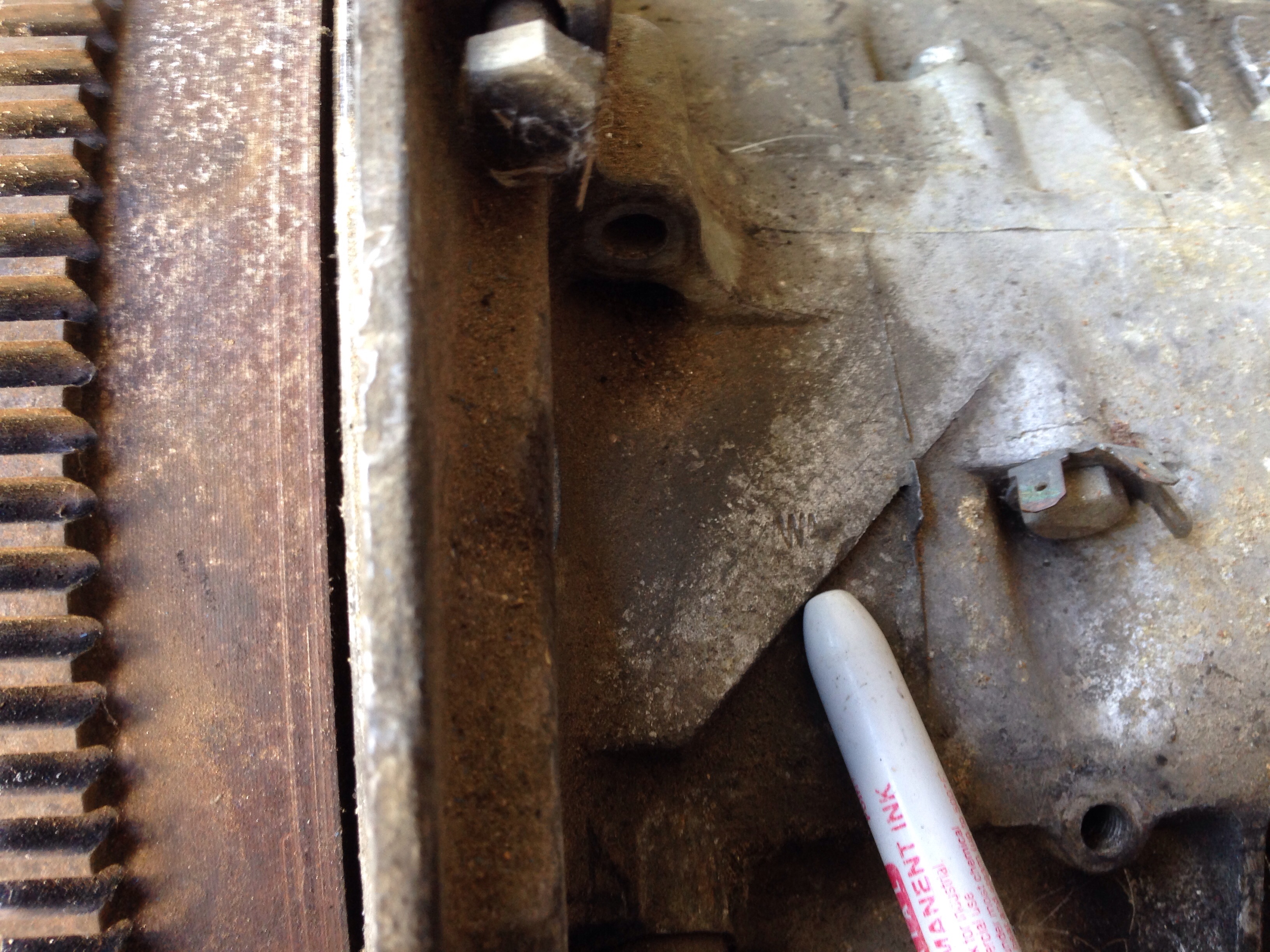

I just picked up this engine yesterday and after removing the tin and few leaves around it. Here is what I notice with the code.

Can someone verify if this is really 914 1.7 engine for 1971 year?

Thanks again fellow teeners!

Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ndfrigi
post Oct 28 2014, 05:21 PM
Post #2


Advanced Member
****

Group: Members
Posts: 2,925
Joined: 21-August 11
From: Orange County
Member No.: 13,474
Region Association: Southern California



Engine turns freely and it pump and sucks air on those covered tape.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
G e o r g e
post Oct 28 2014, 05:38 PM
Post #3


Dr
***

Group: Members
Posts: 1,904
Joined: 20-September 05
From: Southern Cal
Member No.: 4,832
Region Association: None



no
look here for info

(IMG:style_emoticons/default/type.gif) 914 info on top of page (IMG:style_emoticons/default/drunk.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ndfrigi
post Oct 28 2014, 07:39 PM
Post #4


Advanced Member
****

Group: Members
Posts: 2,925
Joined: 21-August 11
From: Orange County
Member No.: 13,474
Region Association: Southern California



QUOTE(G e o r g e @ Oct 28 2014, 04:38 PM) *

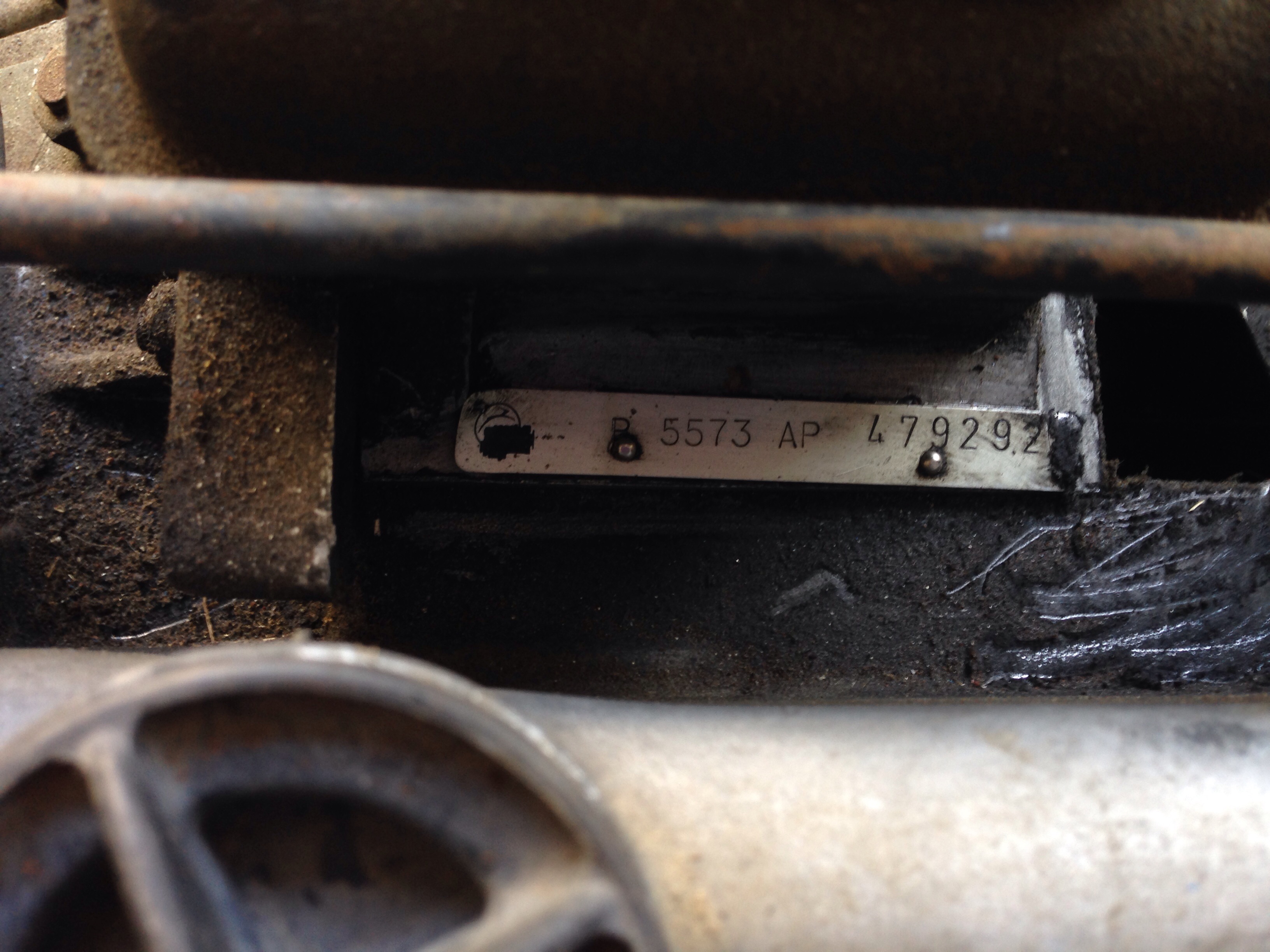

Thanks! And yes I did search on that engine info on this site. But it says W is the code for 1971 1.7 but the engine I have not only has W but "WA" where the common 1.7 and 1.8 engine numbers located and below the oil filler neck with numbers I believe are all 2.0 or GC/GA numbers. That is why I'm a little bit confuse on this engine I got. Currently it has tail shifter engine support bar on it.

thanks again!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
7TPorsh
post Oct 29 2014, 11:37 AM
Post #5


7T Porsh
****

Group: Members
Posts: 2,691
Joined: 27-March 06
From: Glendale Ca
Member No.: 5,782
Region Association: Southern California



QUOTE(ndfrigi @ Oct 28 2014, 06:39 PM) *

QUOTE(G e o r g e @ Oct 28 2014, 04:38 PM) *


Thanks! And yes I did search on that engine info on this site. But it says W is the code for 1971 1.7 but the engine I have not only has W but "WA" where the common 1.7 and 1.8 engine numbers located and below the oil filler neck with numbers I believe are all 2.0 or GC/GA numbers. That is why I'm a little bit confuse on this engine I got. Currently it has tail shifter engine support bar on it.

thanks again!


The 1.7 W blocks were tagged at the back of the case near the tranny hookup...looks like that's where your W is...but I don't see a number in there.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ndfrigi
post Oct 29 2014, 12:13 PM
Post #6


Advanced Member
****

Group: Members
Posts: 2,925
Joined: 21-August 11
From: Orange County
Member No.: 13,474
Region Association: Southern California



QUOTE(7TPorsh @ Oct 29 2014, 10:37 AM) *

QUOTE(ndfrigi @ Oct 28 2014, 06:39 PM) *

QUOTE(G e o r g e @ Oct 28 2014, 04:38 PM) *


Thanks! And yes I did search on that engine info on this site. But it says W is the code for 1971 1.7 but the engine I have not only has W but "WA" where the common 1.7 and 1.8 engine numbers located and below the oil filler neck with numbers I believe are all 2.0 or GC/GA numbers. That is why I'm a little bit confuse on this engine I got. Currently it has tail shifter engine support bar on it.

thanks again!


The 1.7 W blocks were tagged at the back of the case near the tranny hookup...looks like that's where your W is...but I don't see a number in there.


Yes only WA and the number below the oil filler looks like it was tagged in there on top of a numbers underneath. I tried to pull the left side of the tag and I saw Letter "C J" before some numbers but can't get those numbers because of the riveted tag. Well google shows it was "1976-1979 2000cc - European Only".
Do you think it was for a combination of 914 and Type 2 engine combine? The engine bar underneath was for a 914 transmission tail shifter.

thanks for your response!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
pilothyer
post Oct 29 2014, 12:37 PM
Post #7


Member
***

Group: Members
Posts: 838
Joined: 21-May 08
From: N. Alabama
Member No.: 9,080
Region Association: South East States



Here is a picture of the engine serial number of my 1971 W case. It is located in the same place as your marker is pointed in your first picture.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ndfrigi
post Oct 29 2014, 02:30 PM
Post #8


Advanced Member
****

Group: Members
Posts: 2,925
Joined: 21-August 11
From: Orange County
Member No.: 13,474
Region Association: Southern California



QUOTE(pilothyer @ Oct 29 2014, 11:37 AM) *

Here is a picture of the engine serial number of my 1971 W case. It is located in the same place as your marker is pointed in your first picture.


Thanks for sharing! God Bless!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cap'n Krusty
post Oct 29 2014, 03:15 PM
Post #9


Cap'n Krusty
**********

Group: Members
Posts: 10,794
Joined: 24-June 04
From: Santa Maria, CA
Member No.: 2,246
Region Association: Central California



Those are smog pump heads, making it either a 1.7 bus motor or a 2.0 914 motor. Are there block off plated below #1 on the case and behind/above the taco plate? It has a 914 dipstick location, which "could" mean it's a 2 liter 914.

The Cap'n
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jake Raby
post Oct 30 2014, 02:39 PM
Post #10


Engine Surgeon
*****

Group: Members
Posts: 9,394
Joined: 31-August 03
From: Lost
Member No.: 1,095
Region Association: South East States



QUOTE(Cap'n Krusty @ Oct 29 2014, 01:15 PM) *

Those are smog pump heads, making it either a 1.7 bus motor or a 2.0 914 motor. Are there block off plated below #1 on the case and behind/above the taco plate? It has a 914 dipstick location, which "could" mean it's a 2 liter 914.

The Cap'n


Or it came from a 412, which had a dipstick and an oil fill tube provision.. If so the area at the bottom where the oil fill tube went would be blocked off.

Look between the blower housing and the crankcase greater (in the valley) for a number, too.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ndfrigi
post Oct 30 2014, 04:25 PM
Post #11


Advanced Member
****

Group: Members
Posts: 2,925
Joined: 21-August 11
From: Orange County
Member No.: 13,474
Region Association: Southern California



QUOTE(Jake Raby @ Oct 30 2014, 01:39 PM) *

QUOTE(Cap'n Krusty @ Oct 29 2014, 01:15 PM) *

Those are smog pump heads, making it either a 1.7 bus motor or a 2.0 914 motor. Are there block off plated below #1 on the case and behind/above the taco plate? It has a 914 dipstick location, which "could" mean it's a 2 liter 914.

The Cap'n


Or it came from a 412, which had a dipstick and an oil fill tube provision.. If so the area at the bottom where the oil fill tube went would be blocked off.

Look between the blower housing and the crankcase greater (in the valley) for a number, too.



Thanks for your input "The Cap'n" and to you Jake Raby!
It looks like it came from 412/411 and the CJ beginning engine code at the bottom of the oil filler I think is from Type 2 engine. Maybe the previous owner made some collection of various VW engine parts and installed 914 tins on it.

Well I hope someone from 914world would be interested using this for a core or temporary engine while building their engine. I may not be able to use this for my teens.

Thanks again and God Bless!
