| pilothyer |
 Oct 30 2014, 05:17 PM
Post
#1
|
|
Member  Group: Members Posts: 838 Joined: 21-May 08 From: N. Alabama Member No.: 9,080 Region Association: South East States  |
I know there is a left and right side, but which way ? The instructions include a hand drawn picture that doesn't clearly show the orientation..........Does anyone have a picture of either side installed on your car........Thanks in advance.
|
   |

|
| EdwardBlume |
Oct 30 2014, 05:26 PM
Post
#2
|
|
914 Wizard Group: Members Posts: 12,338 Joined: 2-January 03 From: SLO Member No.: 81 Region Association: Central California
|
I don't know.
Please take lots of Picts and show your installation if you can. I need to do this on Dads car. |
|
|
|
| wes |
Oct 30 2014, 05:59 PM
Post
#3
|
|
wes Group: Members Posts: 1,588 Joined: 8-December 07 From: Ukiah Ca Member No.: 8,436 Region Association: Northern California
|
 driver side, cutout is up, adjustment bolt at bottom |
|
|
|
| wes |
Oct 30 2014, 06:05 PM
Post
#4
|
|
wes Group: Members Posts: 1,588 Joined: 8-December 07 From: Ukiah Ca Member No.: 8,436 Region Association: Northern California
|

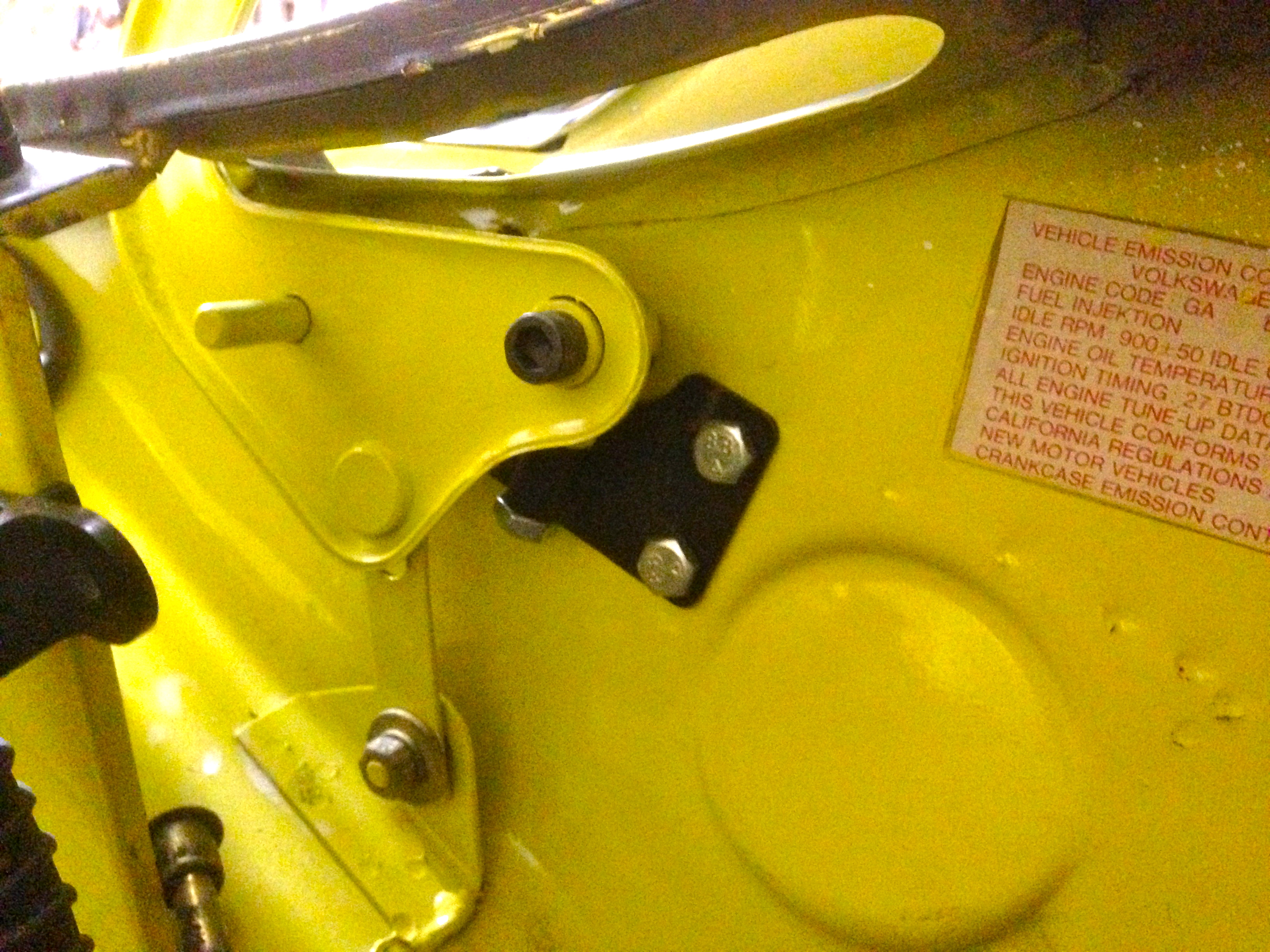

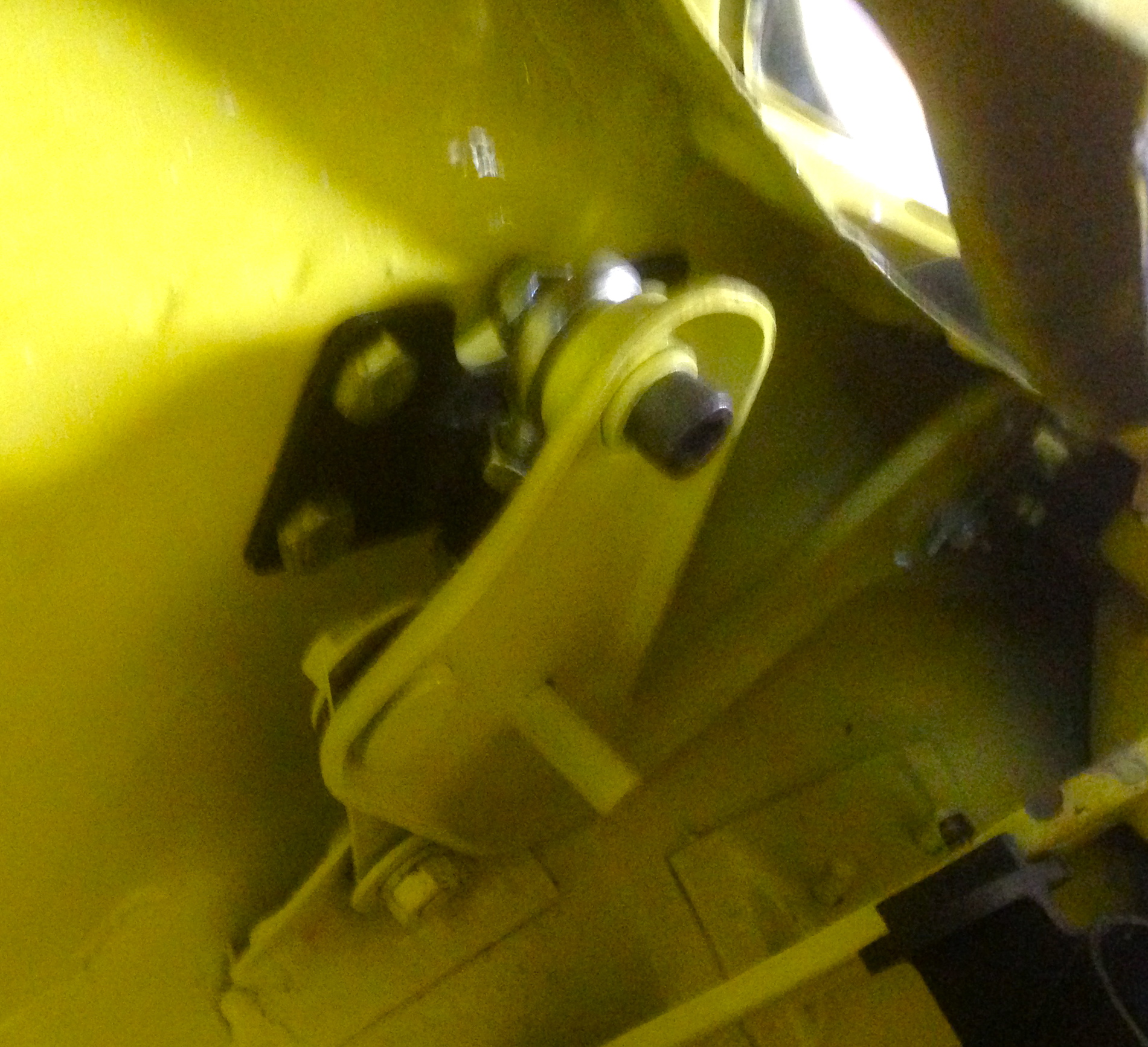

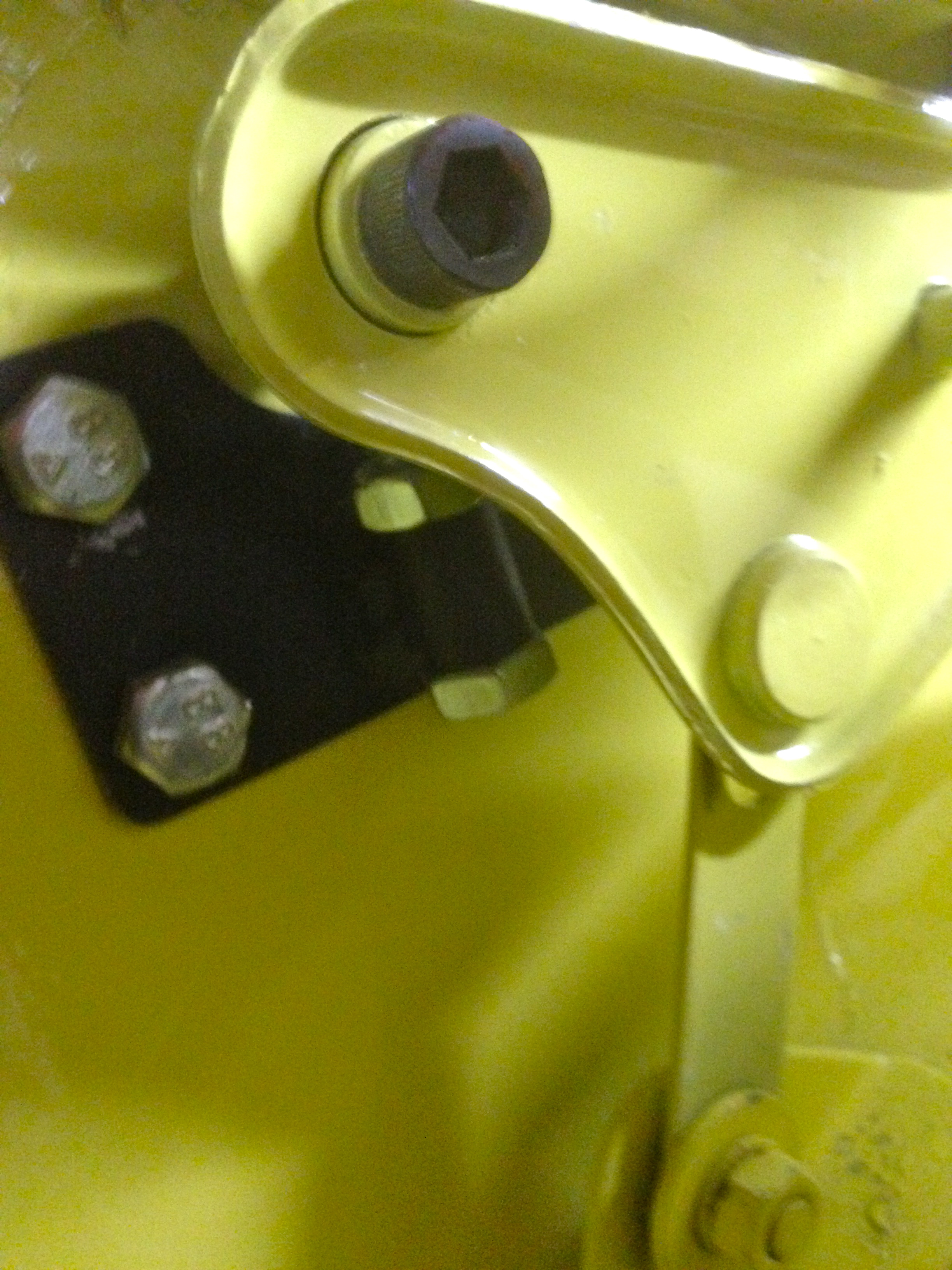

QUOTE(pilothyer @ Oct 30 2014, 04:17 PM)  I know there is a left and right side, but which way ? The instructions include a hand drawn picture that doesn't clearly show the orientation..........Does anyone have a picture of either side installed on your car........Thanks in advance. sorry for poor pictures passenger side,  Attached thumbnail(s)
|
|
|
|
| pilothyer |
Oct 30 2014, 11:33 PM
Post
#5
|
|
Member Group: Members Posts: 838 Joined: 21-May 08 From: N. Alabama Member No.: 9,080 Region Association: South East States |

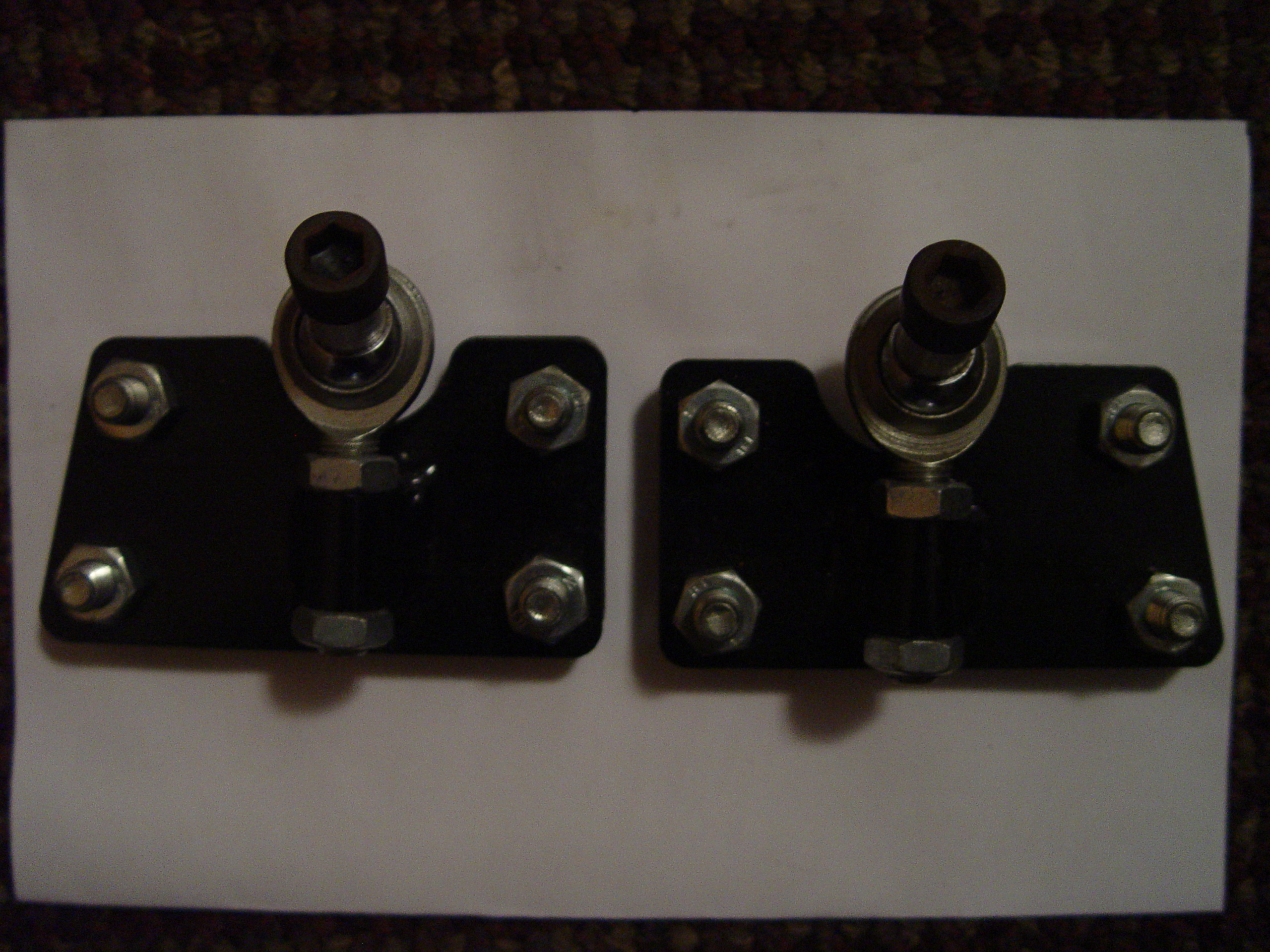

wes........I really appreciate the pics, but I am still not sure about which side goes where. If you look at the picture of the pair I have you will notice that one end is angled and the other end is straight. I am assuming they were cut this way for a reason and need to know which way they go.
 |
|
|
|
| wes |
Oct 31 2014, 12:21 AM
Post
#6
|
|
wes Group: Members Posts: 1,588 Joined: 8-December 07 From: Ukiah Ca Member No.: 8,436 Region Association: Northern California
|
Well I'll look tomorrow! It seems to me there was no left and right just at the top has to be where the hinges are as you have them in photo.
|
|
|
|
| ejm |
Oct 31 2014, 04:08 AM
Post
#7
|
|
I can see the light at the end of the tunnel Group: Members Posts: 2,688 Joined: 3-February 03 From: Massachusetts Member No.: 224 Region Association: None |
It's been a while since I've installed a set but I seem to recall that if you separate the mount from the backing plate they are marked on the back with a Sharpie. When installing you need to position them so the bolts don't go thru the double walled area under the sail panel.
|
|
|
|
| JWest |
Oct 31 2014, 06:45 AM
Post
#8
|
|
Senior Member Group: Members Posts: 1,662 Joined: 6-January 03 From: Fort Worth, TX Member No.: 97 Region Association: None
|
QUOTE(pilothyer @ Oct 30 2014, 06:17 PM) I know there is a left and right side, but which way ? The instructions include a hand drawn picture that doesn't clearly show the orientation..........Does anyone have a picture of either side installed on your car........Thanks in advance. I'm confused about a drawing, I've never drawn it and my instructions include a picture of the left side, oriented to show the alignment. In the picture you can see the vertical support bracket, the hinge, and the stamping for the 914/6 oil filler. The angled side of the bracket is to the rear. The picture is taken with the trunk lid closed and shows 3 of the four holes can be accessed for drilling. Once these three are installed, the trunk can be raised, moving the hinge away so the last hole can be drilled. Since the pivot is installed with the deck lid closed and aligned, it really does not matter how it is oriented as long as you can access the holes for installation. The picture gives the general idea. Attached image(s)
|
|
|
|
| pilothyer |
Oct 31 2014, 08:28 AM
Post
#9
|
|
Member Group: Members Posts: 838 Joined: 21-May 08 From: N. Alabama Member No.: 9,080 Region Association: South East States |
Thanks for the information and the picture.
|
|
|
|
| pilothyer |
Oct 31 2014, 09:45 AM
Post
#10
|
|
Member Group: Members Posts: 838 Joined: 21-May 08 From: N. Alabama Member No.: 9,080 Region Association: South East States |
QUOTE(JWest @ Oct 31 2014, 07:45 AM) I'm confused about a drawing, I've never drawn it and my instructions include a picture of the left side, oriented to show the alignment. James...........I bought my set from someone that didn't use them, but advertised them as directions included. The directions were kinda cartooney . After your reply I followed the link to your web site and noticed that you have the instructions there available for print....Thanks again for your reply and thanks to all for the help. |
|
|
|
| wes |
Oct 31 2014, 11:56 AM
Post
#11
|
|
wes Group: Members Posts: 1,588 Joined: 8-December 07 From: Ukiah Ca Member No.: 8,436 Region Association: Northern California
|
Looks like your good to go!
|
|
|
|
|
