 sorting thru the wire maze - what is #5 grey with black stripe for, One with melted insulation, and no wire on #3 of 1st row |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
  |
| DRPHIL914 |
 Nov 3 2014, 05:49 PM
Post
#1
|
|
Dr. Phil  Group: Members Posts: 5,821 Joined: 9-December 09 From: Bluffton, SC Member No.: 11,106 Region Association: South East States
 |

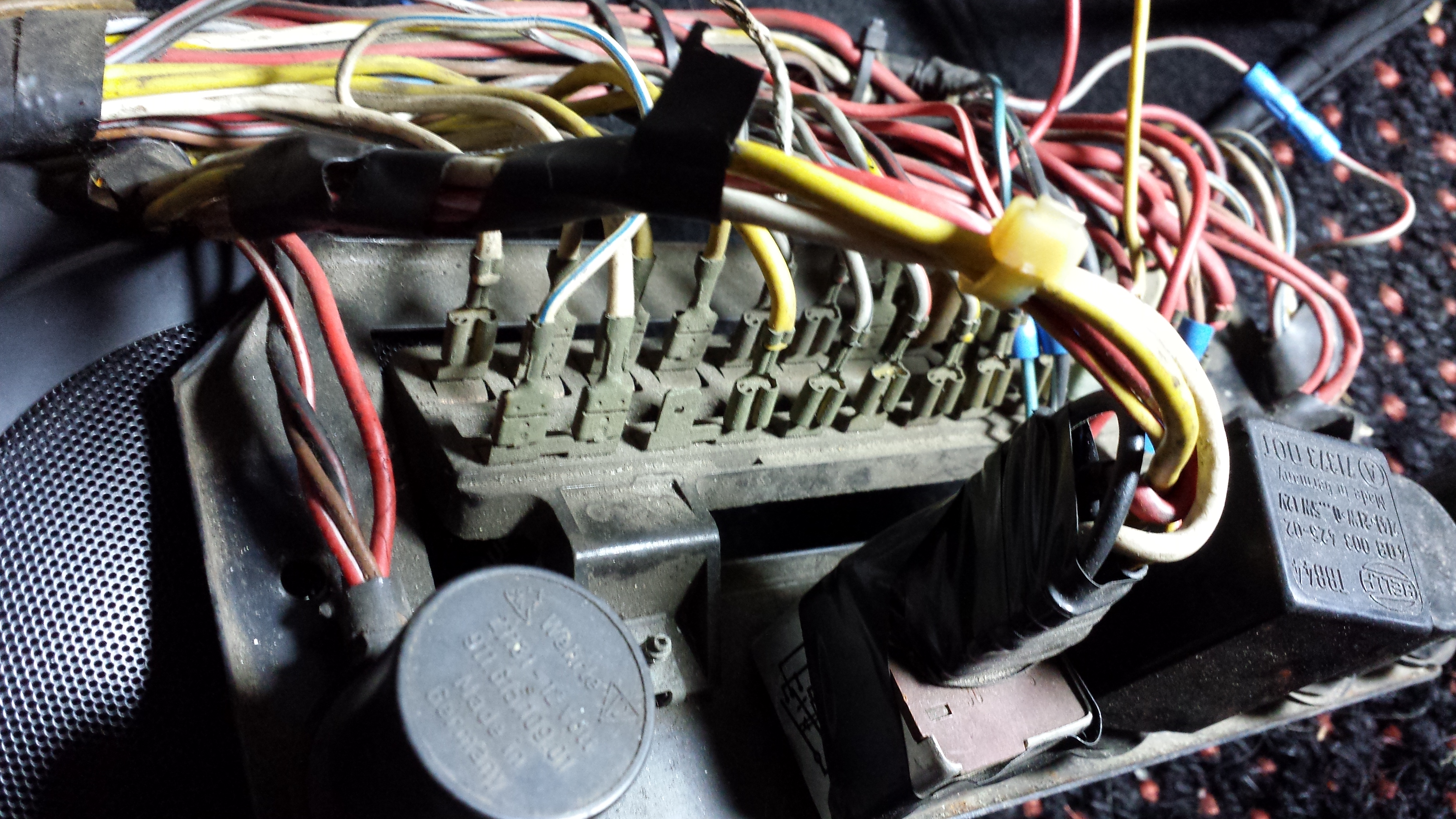

So this grey wire has melted insulation
And the #3 has no wire on the connector in one row. Also looks like some splicing and an extra one or 2 wires added with I think go to the radio I've never blown #5 fuse so I'm not sure when this happened. Attached thumbnail(s)
|
   |

|
| DRPHIL914 |
Nov 3 2014, 05:51 PM
Post
#2
|
|
Dr. Phil Group: Members Posts: 5,821 Joined: 9-December 09 From: Bluffton, SC Member No.: 11,106 Region Association: South East States
|

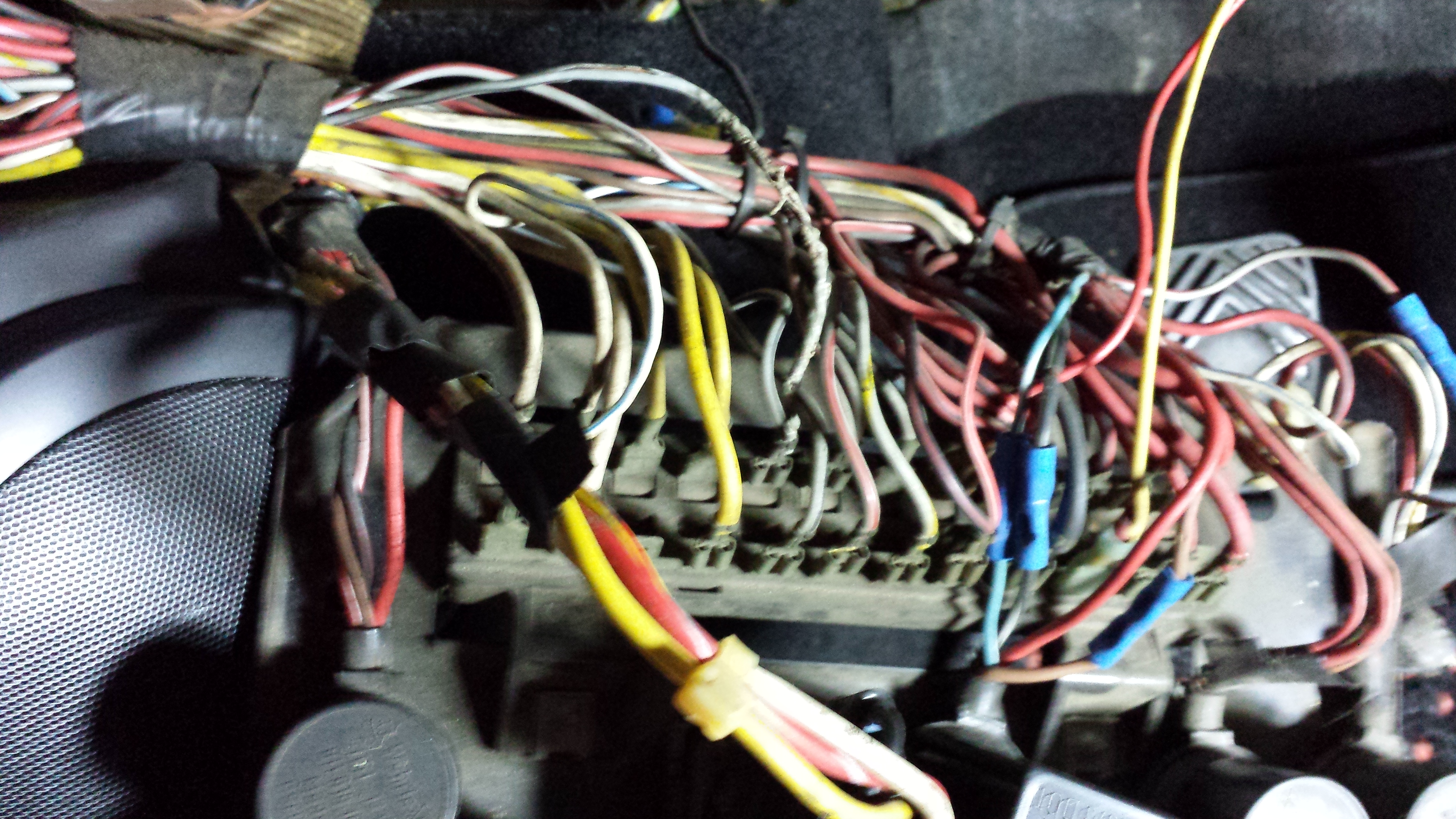

Am I missing a wire? Should I be concerned
Attached thumbnail(s)
|
|
|
|
| DRPHIL914 |
Nov 3 2014, 05:53 PM
Post
#3
|
|
Dr. Phil Group: Members Posts: 5,821 Joined: 9-December 09 From: Bluffton, SC Member No.: 11,106 Region Association: South East States
|

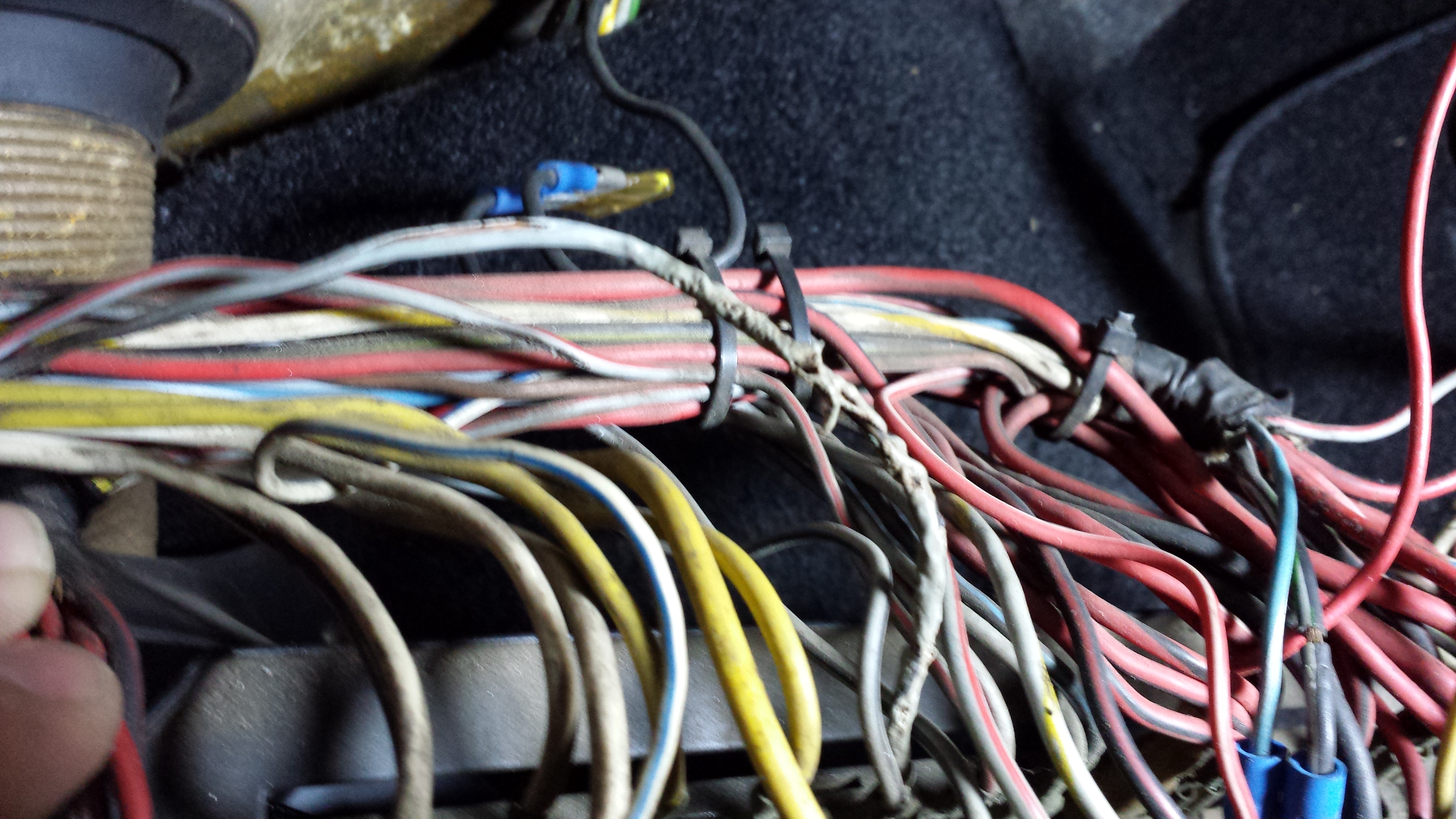

Another
Attached thumbnail(s)
|
|
|
|
| r_towle |
Nov 3 2014, 06:06 PM
Post
#4
|
|
Custom Member Group: Members Posts: 24,705 Joined: 9-January 03 From: Taxachusetts Member No.: 124 Region Association: North East States
|
Looks like 5th position fuse.
Pelican parts has the wiring diagrams in the technical section. |
|
|
|
| type47 |
Nov 3 2014, 06:10 PM
Post
#5
|
|
Viermeister Group: Members Posts: 4,254 Joined: 7-August 03 From: Vienna, VA Member No.: 994 Region Association: MidAtlantic Region |
You can see that #3 connection that is unused is connected to #4 with the yellow wire; if you look at the base, there is metal that runs between 3 and 4 so they are joined/connected/... common terminals. Hope that's understandable ... #1 and 2 are also common...
grey/blk on track 29 http://www.pelicanparts.com/914/parts/Elec...lectric_74C.jpg M1 = left parking light M11 = stop/parking light http://www.pelicanparts.com/914/parts/Elec...lectric_74A.jpg |
|
|
|
|
