 Where can I get this roll pin?, Tailshift, gearshift lever coiled roll pin |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
  |
| Ben and Ralph |
 Nov 16 2014, 10:34 AM
Post
#1
|
|
Ben  Group: Members Posts: 110 Joined: 8-July 10 From: Los Angeles Member No.: 11,917 Region Association: Southern California  |

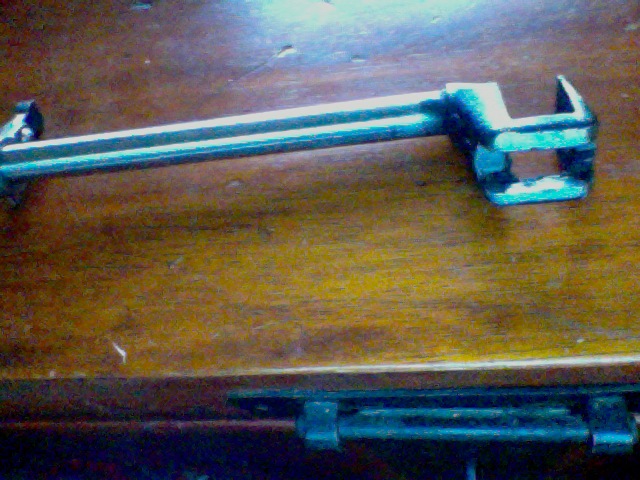

This gear shift lever that goes into the transmission of my tailshift car is held in place with a coiled roll pin m5 x 24ish.
 Does anybody have any idea where I can find this roll pin. I have contacted a few distributors but of course they won't sell me any less than 500. |
   |

|
| 914Sixer |
Nov 16 2014, 11:19 AM
Post
#2
|
|
914 Guru Group: Members Posts: 8,889 Joined: 17-January 05 From: San Angelo Texas Member No.: 3,457 Region Association: Southwest Region
|
Since it is a Roll pin it does not have to be a metric one. Find a SAE size one closest, it will compress and fit in. Check Lowes, Home Depot, Tractor Supply, local auto supply. Take shaft with you and test fit what is the closest.
|
|
|
|
| Larry.Hubby |
Nov 16 2014, 09:56 PM
Post
#3
|
|
Member who doesn't post much, but has a long time in 914s Group: Members Posts: 186 Joined: 24-November 04 From: Palo Alto, CA Member No.: 3,172 Region Association: Northern California |
|
|
|
|
| Cap'n Krusty |
Nov 16 2014, 11:25 PM
Post
#4
|
|
Cap'n Krusty Group: Members Posts: 10,794 Joined: 24-June 04 From: Santa Maria, CA Member No.: 2,246 Region Association: Central California |
Look for a 7/32 roll pin. I would just order the right one from the dealer, though. 900 309 003 00. That way you have the right part, not one that'll just kinda work. Mc Master-Carr doesn't carry the right length.
The Cap'n |
|
|
|
| Ben and Ralph |
Nov 17 2014, 09:07 AM
Post
#5
|
|
Ben Group: Members Posts: 110 Joined: 8-July 10 From: Los Angeles Member No.: 11,917 Region Association: Southern California |
QUOTE(Cap'n Krusty @ Nov 16 2014, 09:25 PM)  Look for a 7/32 roll pin. I would just order the right one from the dealer, though. 900 309 003 00. That way you have the right part, not one that'll just kinda work. Mc Master-Carr doesn't carry the right length. The Cap'n Yup already tried mcmaster carr |
|
|
|
| Ben and Ralph |
Nov 17 2014, 09:27 AM
Post
#6
|
|
Ben Group: Members Posts: 110 Joined: 8-July 10 From: Los Angeles Member No.: 11,917 Region Association: Southern California |
QUOTE(Ben and Ralph @ Nov 17 2014, 07:07 AM) QUOTE(Cap'n Krusty @ Nov 16 2014, 09:25 PM) Look for a 7/32 roll pin. I would just order the right one from the dealer, though. 900 309 003 00. That way you have the right part, not one that'll just kinda work. Mc Master-Carr doesn't carry the right length. The Cap'n Yup already tried mcmaster carr Thanks for the part number Cap'n! |
|
|
|
| orangecrate |
Nov 17 2014, 10:27 AM
Post
#7
|
|
Member Group: Members Posts: 152 Joined: 16-September 13 From: Apache Junction AZ Member No.: 16,394 Region Association: Southwest Region |
(IMG:style_emoticons/default/biggrin.gif) I got mine at ACE-- in the proper metric size. Most ACE's I've been in have a large selection of metric and inch hardware. I can usually find the proper metric nut or bolt I need there -- in the right grade. I seem to recall it being 6x 24 though. Any way , check ACE.
|
|
|
|
| Jon B |
Nov 17 2014, 03:30 PM
Post
#8
|
|
Member Group: Members Posts: 73 Joined: 28-September 13 From: Vista, CA Member No.: 16,448 Region Association: None |

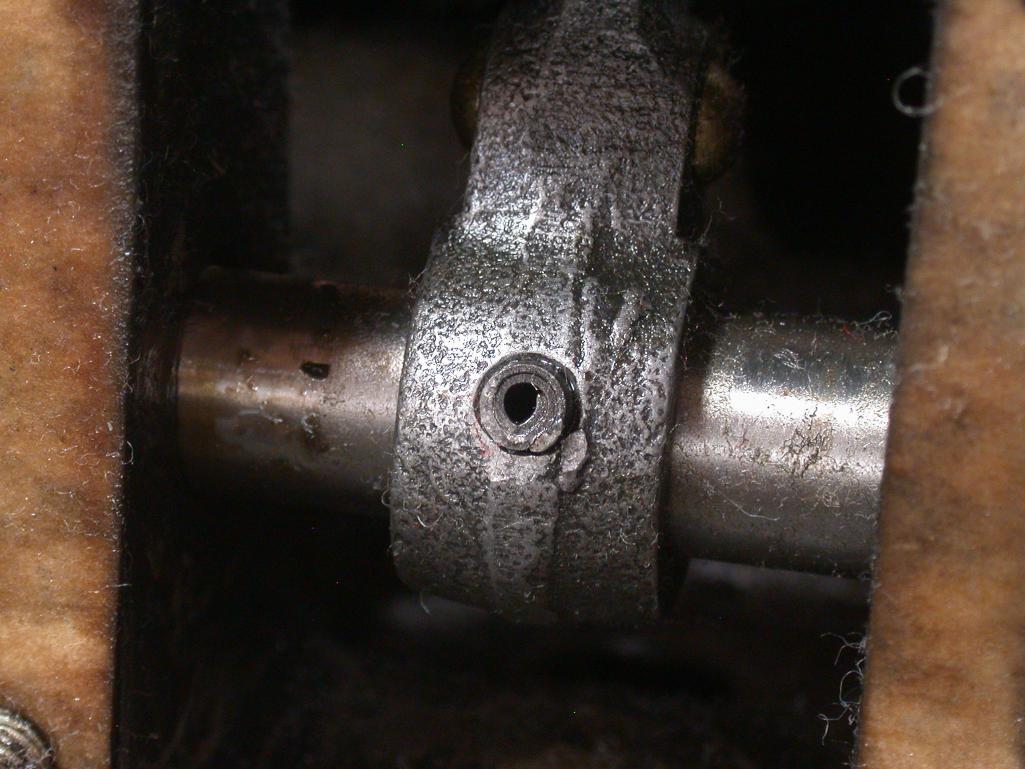

That is a Spiral Pin, much stronger than a standard roll pin.
You should get the correct pin, even a good used one. Jon B. Vista, CA  |
|
|
|
| RenoRoger |
Nov 17 2014, 05:28 PM
Post
#9
|
|
Member Group: Members Posts: 95 Joined: 11-November 10 From: Reno, NV Member No.: 12,370 Region Association: Northern California
|
On my 912E, I had the door painted and the door stop replaced by a body shop. They didn't have a roll pin for the door stop and put in an ill fitting bolt. I went to Harbor Freight and bought a box full of roll pins for $5 and found the one I needed.
|
|
|
|
| Ben and Ralph |
Nov 17 2014, 05:43 PM
Post
#10
|
|
Ben Group: Members Posts: 110 Joined: 8-July 10 From: Los Angeles Member No.: 11,917 Region Association: Southern California |
Odered the original one from Stoddard. Like Jon B said, this is a coiled or spiral roll pin and is an uncommon metric size.
|
|
|
|
| orangecrate |
Nov 18 2014, 08:40 AM
Post
#11
|
|
Member Group: Members Posts: 152 Joined: 16-September 13 From: Apache Junction AZ Member No.: 16,394 Region Association: Southwest Region |
That expalins a few things. Like why mine sheared in the first place! I took the remains of a standard roll pin out. And put a new one back in. Aw such is life.
|
|
|
|
|
