> What are these heads and what are they worth?, Are these 1.8L heads
billh1963
post Dec 6 2014, 03:34 PM
Post #1


Car Hoarder!
****

Group: Members
Posts: 3,402
Joined: 28-March 11
From: South Carolina
Member No.: 12,871
Region Association: South East States

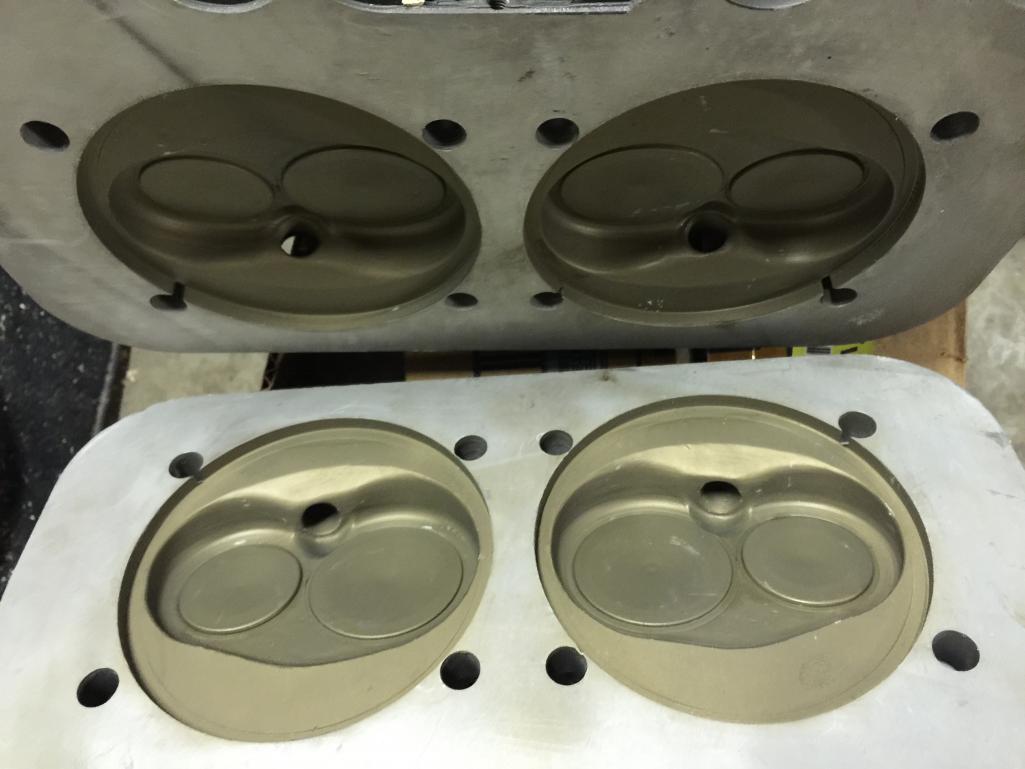

This is the information I found on the internet...Is this correct? What are they worth?

021 101 371S ... 39.3mm Intake X 34mm Exhaust. FI head ('74 1.8L)



Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
billh1963
post Dec 6 2014, 03:35 PM
Post #2


Car Hoarder!
****

Group: Members
Posts: 3,402
Joined: 28-March 11
From: South Carolina
Member No.: 12,871
Region Association: South East States

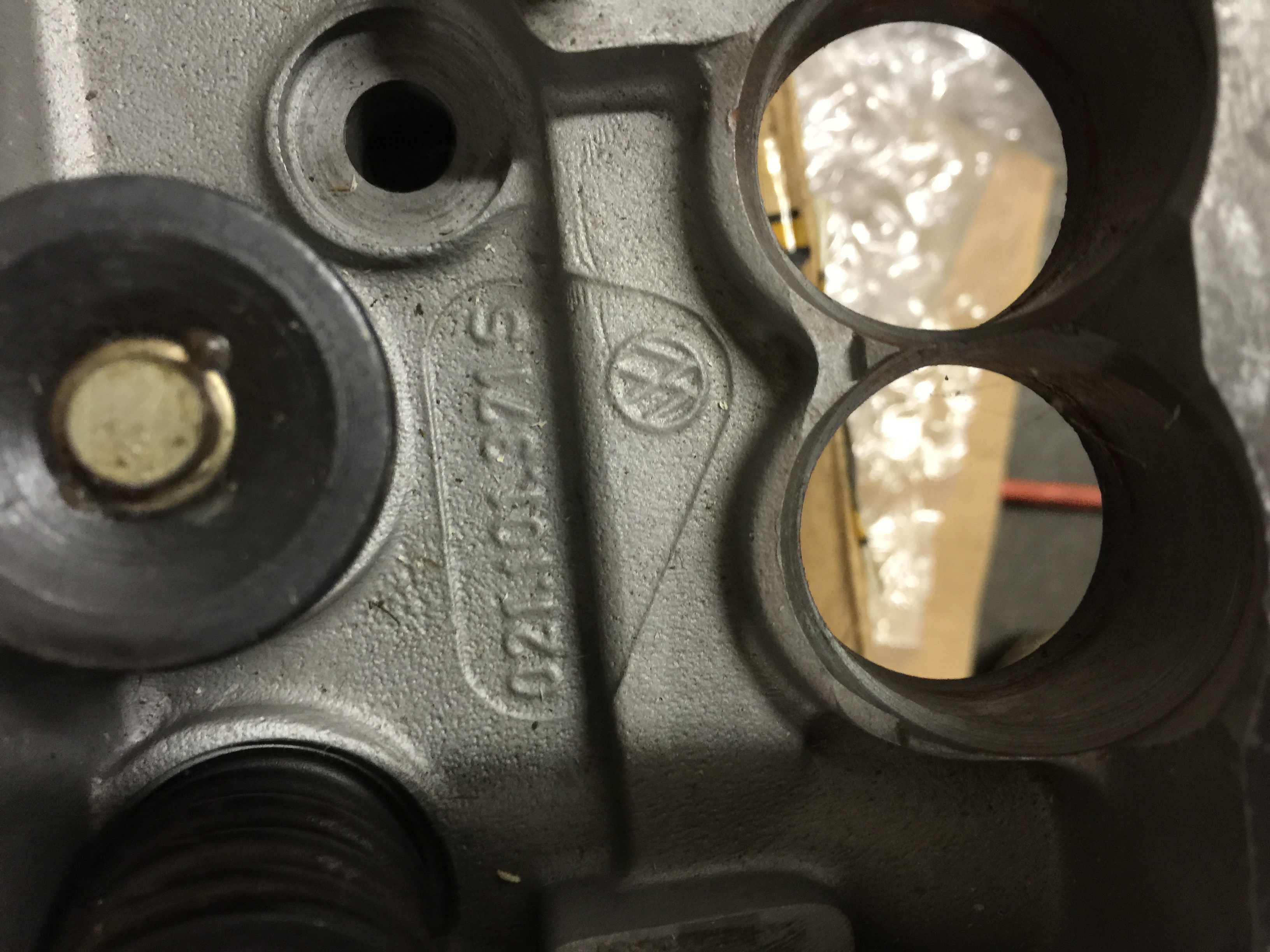

another view



Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Dec 6 2014, 07:04 PM
Post #3


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada
914 1.8 "S" heads, the best 1.8 head.
Those heads have been flycut, if I was buying I'd want to know the chamber size.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Dec 6 2014, 07:35 PM
Post #4


914 Freak!
***************

Group: Members
Posts: 17,146
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
Ceramic coated combustion chambers?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Dec 6 2014, 07:41 PM
Post #5


Custom Member
***************

Group: Members
Posts: 24,574
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
To my untrained eye they look like they were glass beaded and no other work was done.
IC a ridge where the cylinder meets the head, and it down not appear to be even.
I see stains where the washers hold down the hyped nuts.

Don't appera to be new, nor reworked to me.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
billh1963
post Dec 6 2014, 07:53 PM
Post #6


Car Hoarder!
****

Group: Members
Posts: 3,402
Joined: 28-March 11
From: South Carolina
Member No.: 12,871
Region Association: South East States
These are part of my parts stash. I'll be selling them so just trying to get an idea what they are and their value.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cap'n Krusty
post Dec 6 2014, 08:25 PM
Post #7


Cap'n Krusty
**********

Group: Members
Posts: 10,794
Joined: 24-June 04
From: Santa Maria, CA
Member No.: 2,246
Region Association: Central California
Here we go again. Those heads are worth exactly the point where how much you want to sell them meets how much the prospective buyer wants to buy them and money changes hands. For that very brief moment in time, that's the value. Seconds, minutes, hours, or days later that is no longer the value.

The Cap'n
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
billh1963
post Dec 6 2014, 08:42 PM
Post #8


Car Hoarder!
****

Group: Members
Posts: 3,402
Joined: 28-March 11
From: South Carolina
Member No.: 12,871
Region Association: South East States
QUOTE(Cap'n Krusty @ Dec 6 2014, 09:25 PM) *

Here we go again. Those heads are worth exactly the point where how much you want to sell them meets how much the prospective buyer wants to buy them and money changes hands. For that very brief moment in time, that's the value. Seconds, minutes, hours, or days later that is no longer the value.

The Cap'n


True....... Now have another another beer and try not to wax philosophical any more tonight (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cap'n Krusty
post Dec 6 2014, 09:08 PM
Post #9


Cap'n Krusty
**********

Group: Members
Posts: 10,794
Joined: 24-June 04
From: Santa Maria, CA
Member No.: 2,246
Region Association: Central California
Would an ale be OK? I see a Stone's IPA beckoning as I type this ...

The Cap'n
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
wndsnd
post Dec 6 2014, 09:40 PM
Post #10


You wanted a horse, but got a goat. Nobody wants a goat....
****

Group: Members
Posts: 2,861
Joined: 12-February 12
From: North Shore, MA
Member No.: 14,124
Region Association: North East States
I do not like the look of the chambers being cut through the stud holes.

Is that common? I have never seen that before.

John
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mikey914
post Dec 6 2014, 10:09 PM
Post #11


The rubber man
**********

Group: Members
Posts: 12,661
Joined: 27-December 04
From: Hillsboro, OR
Member No.: 3,348
Region Association: None
It is if they are oversized.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Dec 6 2014, 10:54 PM
Post #12


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada
QUOTE(r_towle @ Dec 6 2014, 08:41 PM) *

To my untrained eye they look like they were glass beaded and no other work was done.
IC a ridge where the cylinder meets the head, and it down not appear to be even.
I see stains where the washers hold down the hyped nuts.

Don't appera to be new, nor reworked to me.

The register bumps are gone, the head has been milled flat, you do that for fly-cutting the head.
If you fly-cut it too deep you have to cut the bumps off so the head won't hit the top fin of the cylinder.

QUOTE(wndsnd @ Dec 6 2014, 10:40 PM) *

I do not like the look of the chambers being cut through the stud holes.

Is that common? I have never seen that before.

John

Good catch I missed that, they are cut for 103mm.
That's why the heads are fly-cut.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
billh1963
post Dec 7 2014, 05:37 AM
Post #13


Car Hoarder!
****

Group: Members
Posts: 3,402
Joined: 28-March 11
From: South Carolina
Member No.: 12,871
Region Association: South East States
Lots of good feedback.

If the heads are fly cut for 103mm, what size engine were they intended for?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SLITS
post Dec 7 2014, 07:07 AM
Post #14


"This Utah shit is HARSH!"
**********

Group: Benefactors
Posts: 13,602
Joined: 22-February 04
From: SoCal Mountains ...
Member No.: 1,696
Region Association: None
71 X 103 = 2366
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JoeDees
post Dec 7 2014, 09:36 AM
Post #15


Senior Member
***

Group: Members
Posts: 515
Joined: 10-November 14
From: Northern Kentucky
Member No.: 18,106
Region Association: None
For 103mms.... I have a set of 103mms for sale in the classified forums, but if you'd give me a good deal I may decide to build the engine myself.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Dec 7 2014, 03:53 PM
Post #16


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada
QUOTE(billh1963 @ Dec 7 2014, 06:37 AM) *

Lots of good feedback.

If the heads are fly cut for 103mm, what size engine were they intended for?

QUOTE(SLITS @ Dec 7 2014, 08:07 AM) *

71 X 103 = 2366


Guessing a bit but IIRC 78X103mm was about 2650 and I know 80X103mm is a 2.7L
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Dec 7 2014, 04:27 PM
Post #17


Custom Member
***************

Group: Members
Posts: 24,574
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
Sell them to the guy in Tennessee who is looking to build a big motor.....it's on the main page right now.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DRPHIL914
post Dec 7 2014, 10:04 PM
Post #18


Dr. Phil
*****

Group: Members
Posts: 5,766
Joined: 9-December 09
From: Bluffton, SC
Member No.: 11,106
Region Association: South East States
bill, sent you a PM , I might be interested in these---

Phil
