> Flywheel and ring gear, need some advice?
Cfletch
post Dec 8 2014, 01:57 PM
Post #1


Member
**

Group: Members
Posts: 104
Joined: 30-January 14
From: Santa Barbara
Member No.: 16,941
Region Association: Southern California
I recently purchased all the goodies for my 2.7 to mate to my 901 box. the ring gear adapter, clutch, and PP. Im having issues though trying to get my flywheel and ring gear mated the the measurements seems to be a tad off on the adapter and I cant put them together. Should I just do a hot cold thing to try and get the metal expanded to where itll fit together or what?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Dec 8 2014, 02:07 PM
Post #2


Resident German
*************************

Group: Admin
Posts: 41,636
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
How much are they off?

I would think something isn't right, it shouldn't take heat or cold to make things fit.
(IMG:style_emoticons/default/idea.gif)


PS: Here's my setup, lightened 993 flywheel, ringear adapter and KEP Stage 3 clutch and pressure plate:

(IMG:http://www.914world.com/bbs2/uploads/post-179-1181192469.jpg)

(IMG:http://www.914world.com/bbs2/uploads/post-179-1185423229.jpg)

(IMG:http://www.914world.com/bbs2/uploads/post-179-1185423324.jpg)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Cfletch
post Dec 8 2014, 02:19 PM
Post #3


Member
**

Group: Members
Posts: 104
Joined: 30-January 14
From: Santa Barbara
Member No.: 16,941
Region Association: Southern California

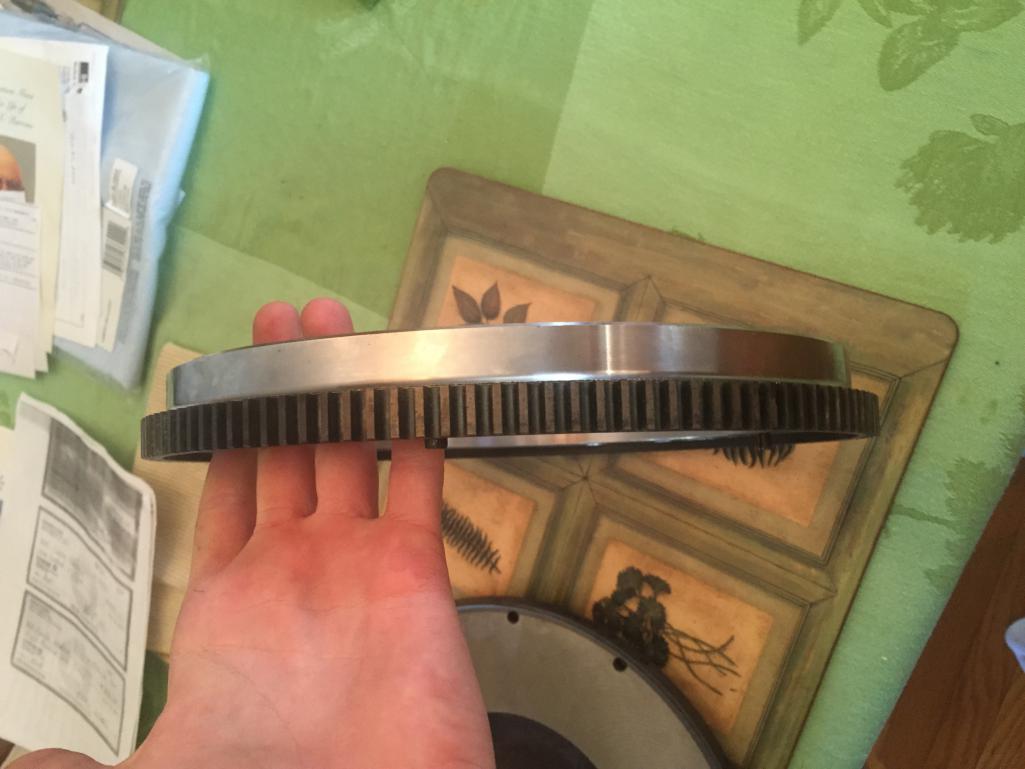

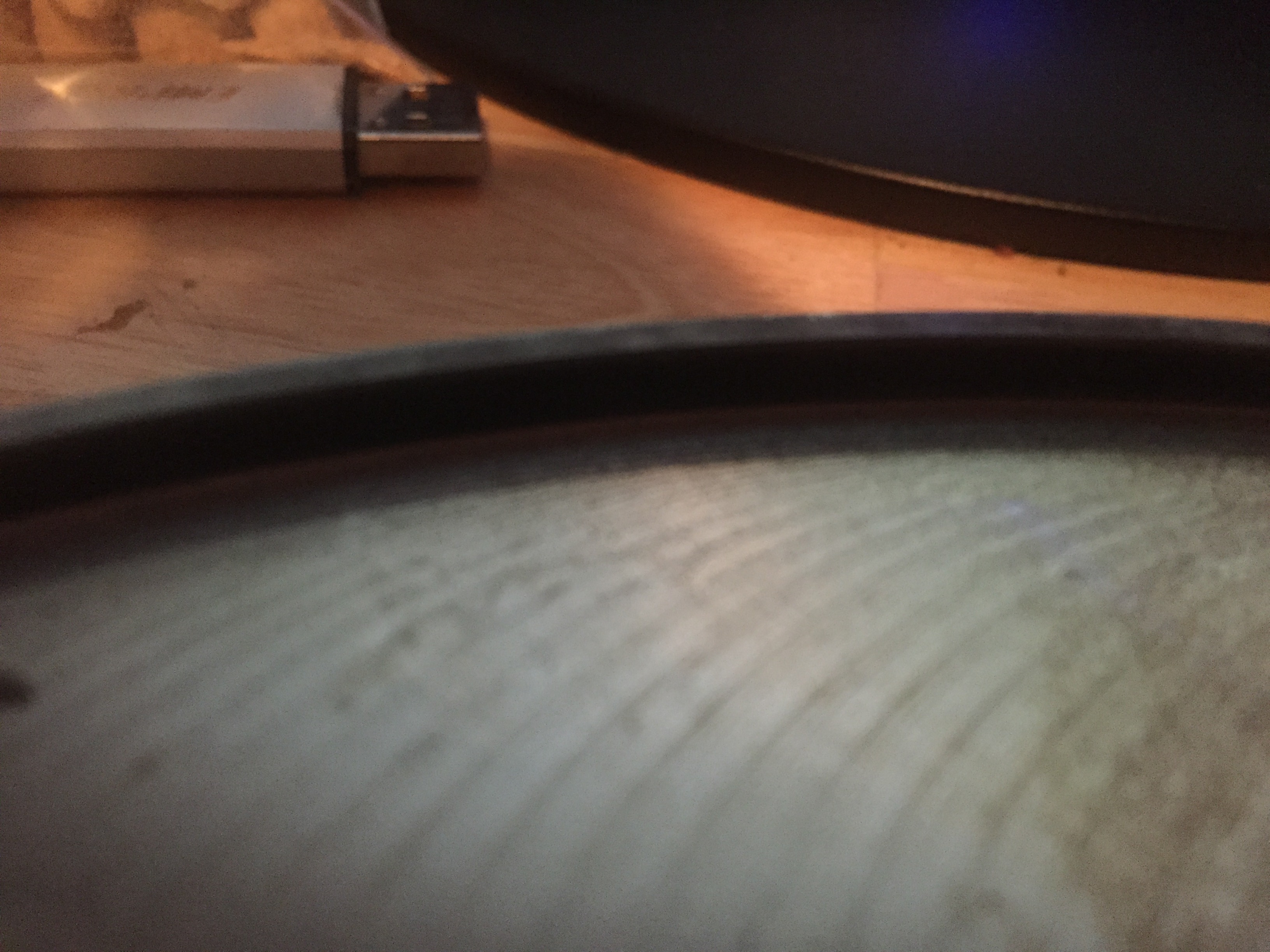

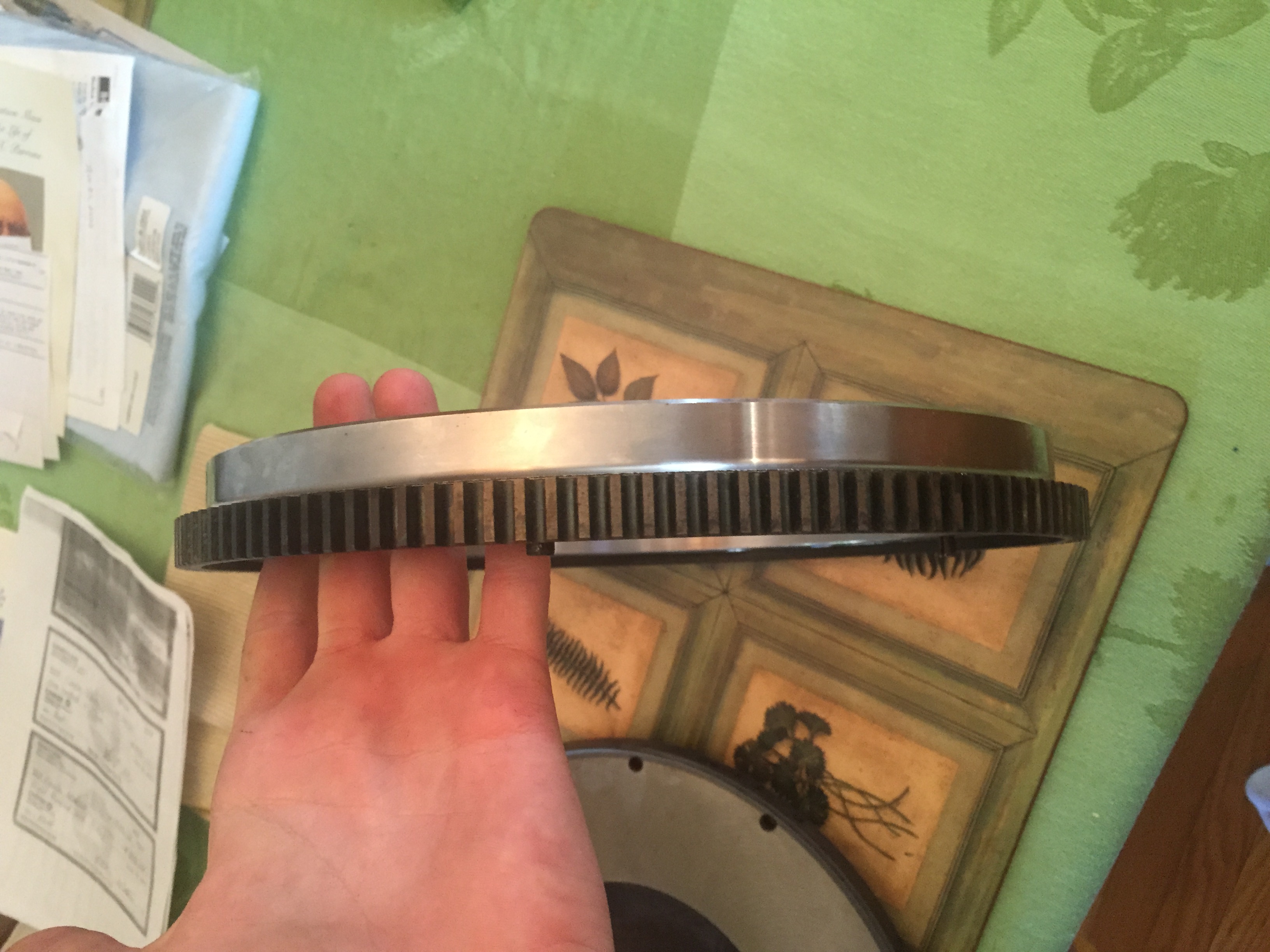

Attached Image Attached ImageAttached Image
the 1st one is in the hole where the other 2 are off just a tad...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Dec 8 2014, 02:31 PM
Post #4


Resident German
*************************

Group: Admin
Posts: 41,636
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
I'm confused. Is that ringgear cut down at all? This looks like a complete flywheel.
(IMG:style_emoticons/default/confused24.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Cfletch
post Dec 8 2014, 02:39 PM
Post #5


Member
**

Group: Members
Posts: 104
Joined: 30-January 14
From: Santa Barbara
Member No.: 16,941
Region Association: Southern California

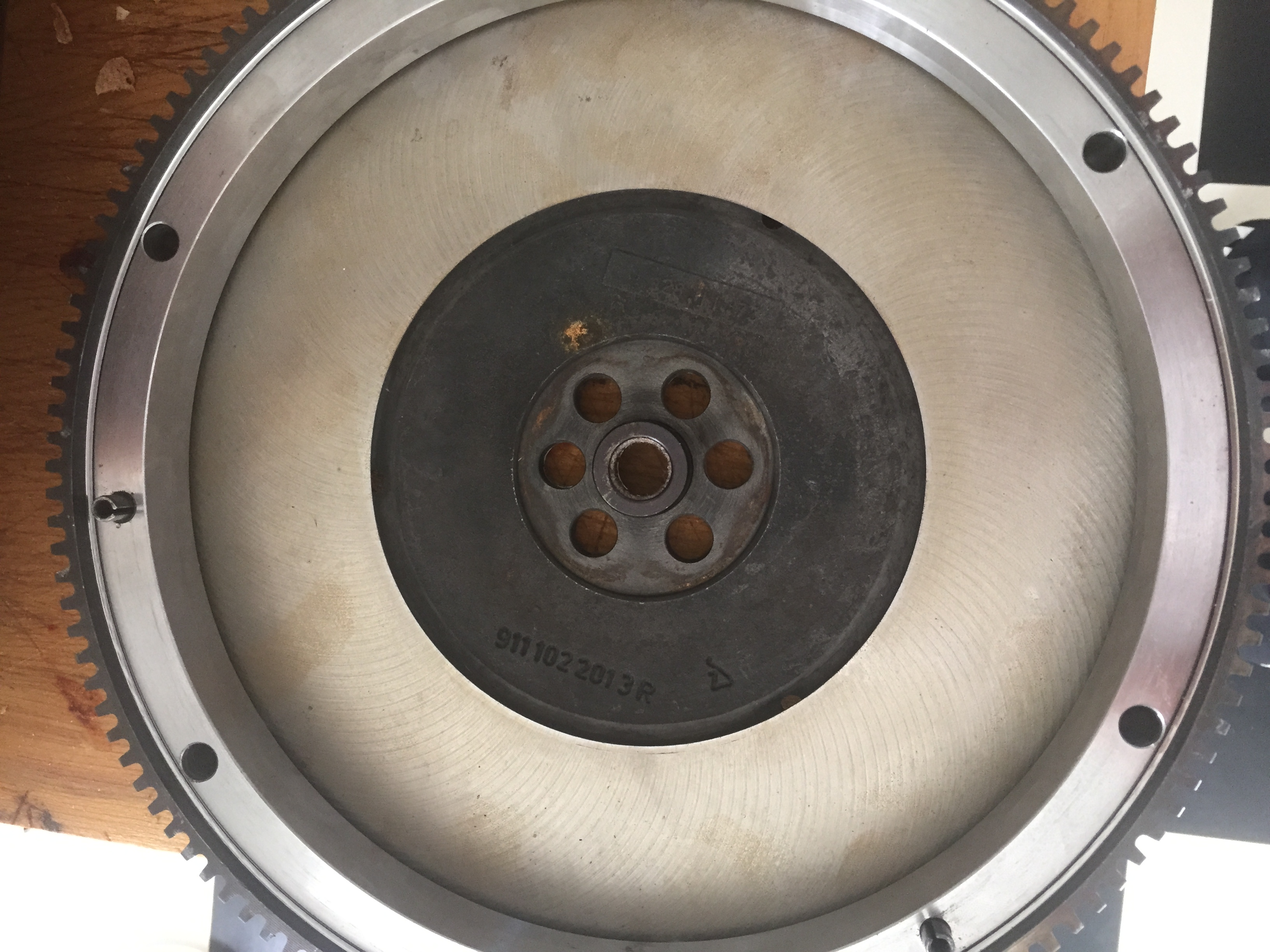

Am I just being dumb.. this is very likely, as im also working on studying for finals.Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Dec 8 2014, 03:28 PM
Post #6


Resident German
*************************

Group: Admin
Posts: 41,636
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(Cfletch @ Dec 8 2014, 12:39 PM) *
Am I just being dumb.

The ringgear goes on the surface side of the flywheel. The pins are used to locate the pressure plate to the ringear, not to mount the ringear to the flywheel.
(IMG:style_emoticons/default/smile.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Dec 8 2014, 03:31 PM
Post #7


Resident German
*************************

Group: Admin
Posts: 41,636
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(SirAndy @ Dec 8 2014, 01:28 PM) *
QUOTE(Cfletch @ Dec 8 2014, 12:39 PM) *
Am I just being dumb.
The ringgear goes on the surface side of the flywheel. The pins are used to locate the pressure plate to the ringear, not to mount the ringear to the flywheel.
(IMG:style_emoticons/default/smile.gif)

Maybe this pic helps ...

(IMG:http://www.914world.com/bbs2/uploads/post-179-1182813958.jpg)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Cfletch
post Dec 8 2014, 03:37 PM
Post #8


Member
**

Group: Members
Posts: 104
Joined: 30-January 14
From: Santa Barbara
Member No.: 16,941
Region Association: Southern California

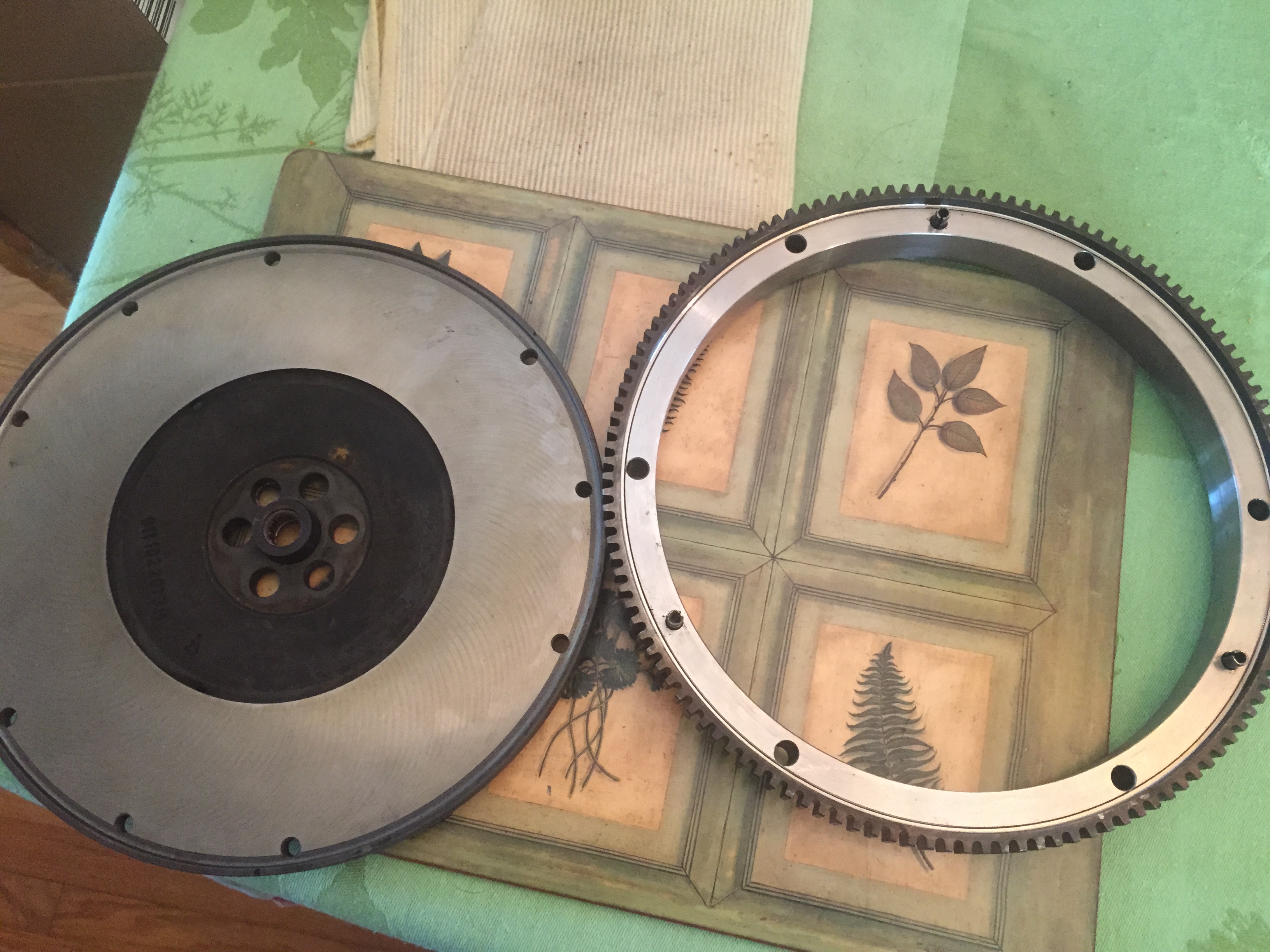

so like this?Attached Image Attached Image there is no end to my stupidity (IMG:style_emoticons/default/lol-2.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Dec 8 2014, 03:42 PM
Post #9


Resident German
*************************

Group: Admin
Posts: 41,636
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(Cfletch @ Dec 8 2014, 01:37 PM) *
so like this?

Yes, that's more like it. Does the ringear fit flush with the flywheel? Hard to tell from your picture.
(IMG:style_emoticons/default/idea.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Cfletch
post Dec 8 2014, 03:46 PM
Post #10


Member
**

Group: Members
Posts: 104
Joined: 30-January 14
From: Santa Barbara
Member No.: 16,941
Region Association: Southern California
No... but it could be because I heated up the gear and cooled the flywheel. Hopefully thats why, if not what would I need to do?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Dec 8 2014, 03:49 PM
Post #11


Resident German
*************************

Group: Admin
Posts: 41,636
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(Cfletch @ Dec 8 2014, 01:46 PM) *

No... but it could be because I heated up the gear and cooled the flywheel. Hopefully thats why, if not what would I need to do?

Good question.

It also looks like your ringgear is missing the mounting holes to secure it to the flywheel.
On mine, the pins were removed and the holes reused to countersink bolts to mount it to the flywheel.
The other 6 remaining holes are used to mount the pressure plate to the ringgear.

Where did you get your parts from?
(IMG:style_emoticons/default/popcorn[1].gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Cfletch
post Dec 8 2014, 03:50 PM
Post #12


Member
**

Group: Members
Posts: 104
Joined: 30-January 14
From: Santa Barbara
Member No.: 16,941
Region Association: Southern California
I purchased everything directly from KEP
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Dec 8 2014, 03:52 PM
Post #13


914 Wizard
**********

Group: Members
Posts: 10,430
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
Is the new resurfaced area flat all the way to the flange 360 around ?? I looks like the resurface may not be 100% centered to the flange, leaving a step ??


Andy the ring gear is part of the spacer on this style..
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Cfletch
post Dec 8 2014, 03:53 PM
Post #14


Member
**

Group: Members
Posts: 104
Joined: 30-January 14
From: Santa Barbara
Member No.: 16,941
Region Association: Southern California
Also my kit only came with the 6 larger bolts.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Dec 8 2014, 03:55 PM
Post #15


Resident German
*************************

Group: Admin
Posts: 41,636
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(Cfletch @ Dec 8 2014, 01:50 PM) *
I purchased everything directly from KEP

Hmmm. If you look at my ringgear picture, you can see 3 larger holes. That's where the pins were originally. The holes were enlarged (but not all the way through) and 3 countersunk bolts were used in there, then 6 bolts were used to mate the pressure plate to the ringgear (those were longer bolts going all the way into the flywheel).

I'm guessing just using 6 long bolts and leaving the pins would probably work OK for your application.
(IMG:style_emoticons/default/idea.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Dec 8 2014, 03:56 PM
Post #16


Resident German
*************************

Group: Admin
Posts: 41,636
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(sixnotfour @ Dec 8 2014, 01:52 PM) *
Andy the ring gear is part of the spacer on this style..

I know that but if you look at his picture, it looks like the ringear does not evenly touch the flywheel surface.
If it sits on the outer lip, the flywheel needs to be machined to make it sit flush.
(IMG:style_emoticons/default/shades.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Cfletch
post Dec 8 2014, 04:00 PM
Post #17


Member
**

Group: Members
Posts: 104
Joined: 30-January 14
From: Santa Barbara
Member No.: 16,941
Region Association: Southern California

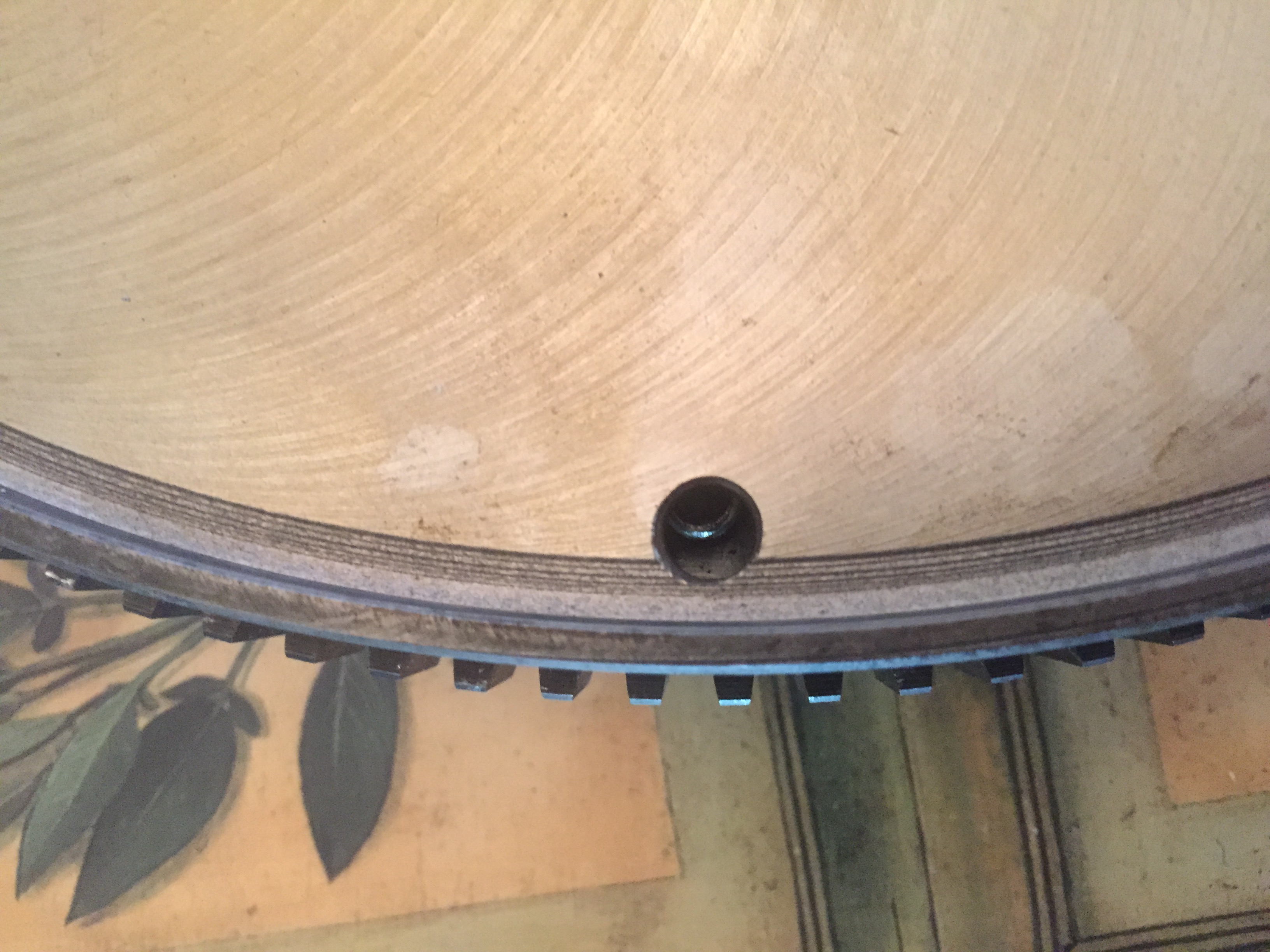

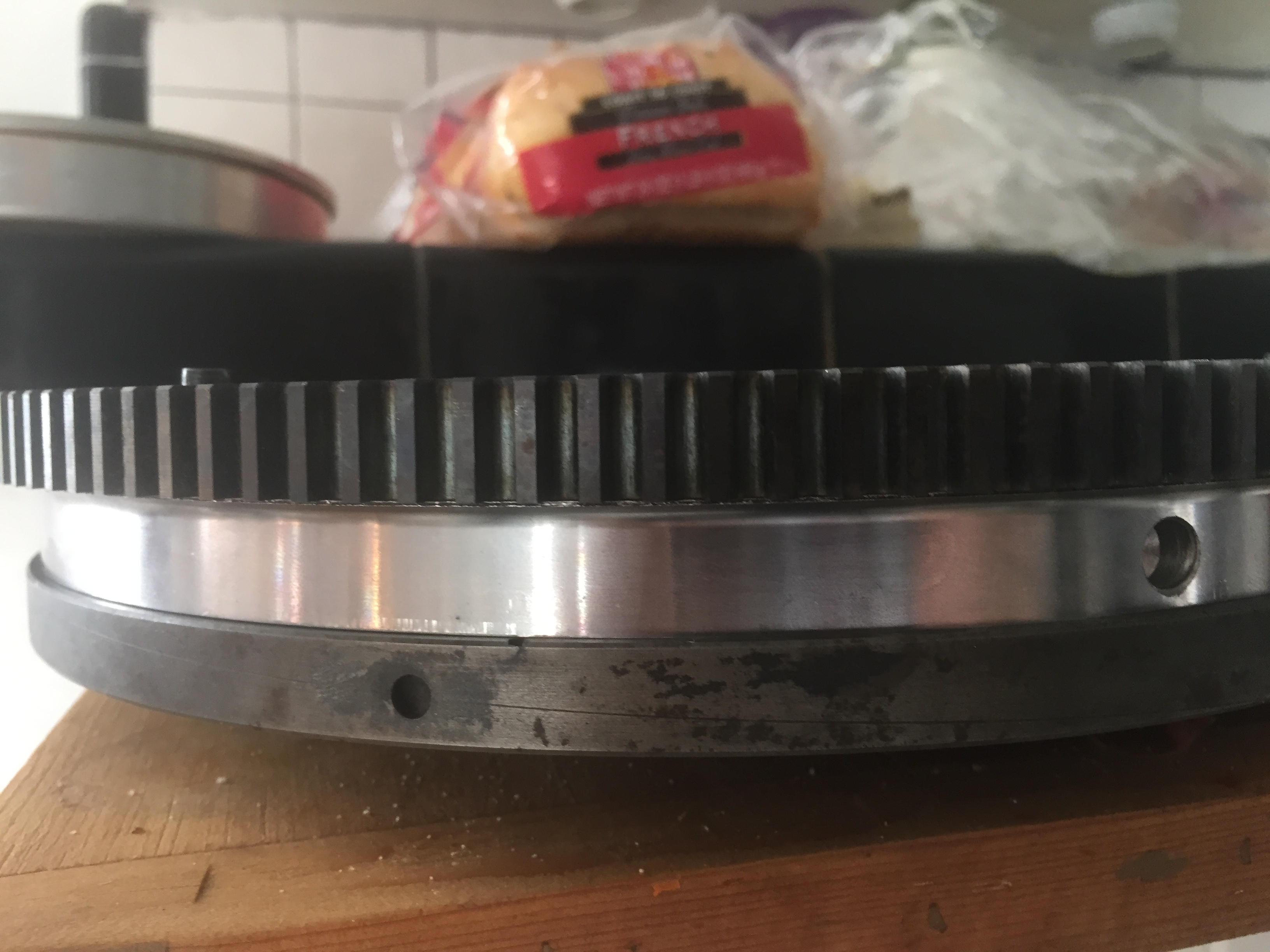

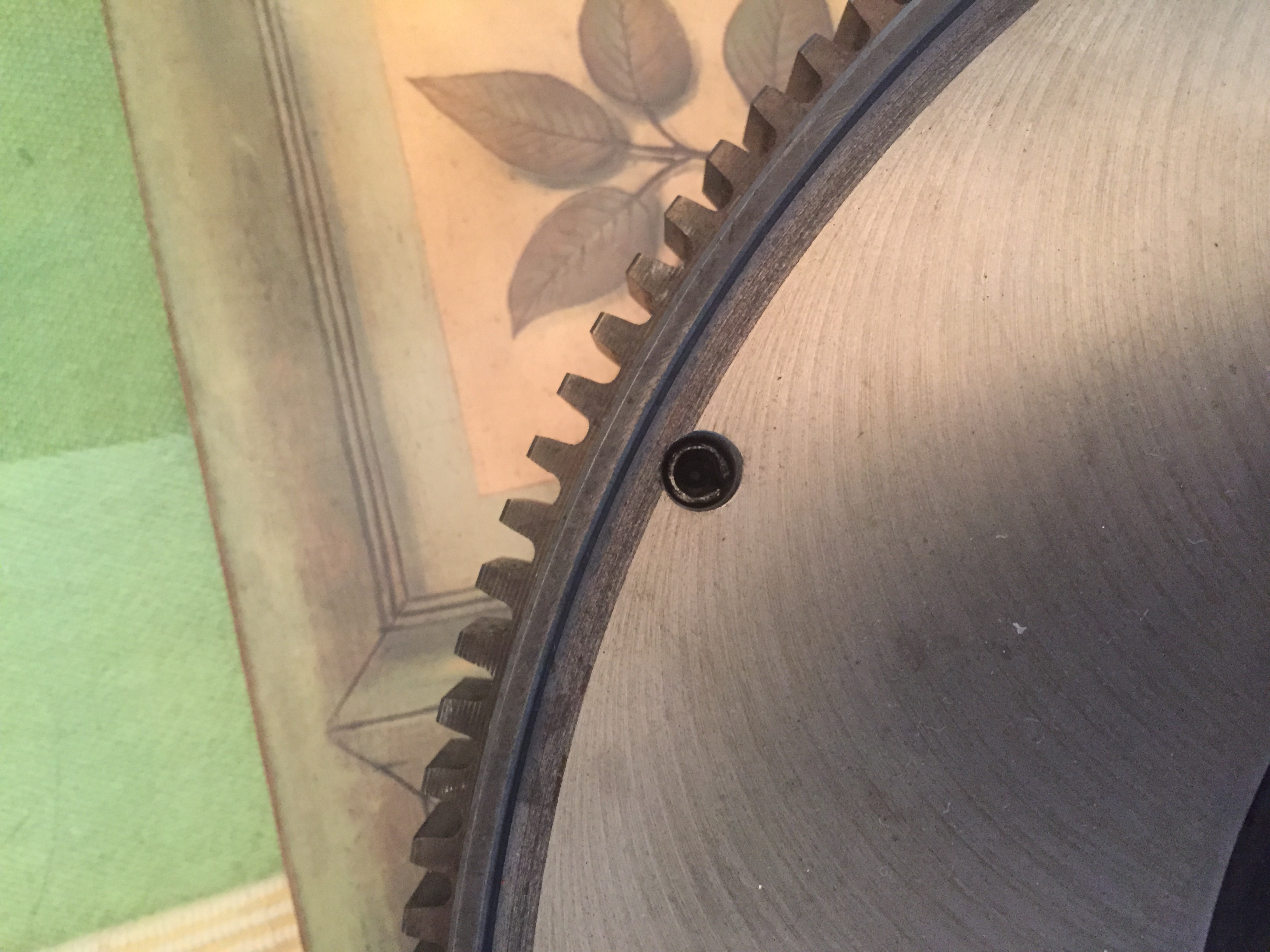

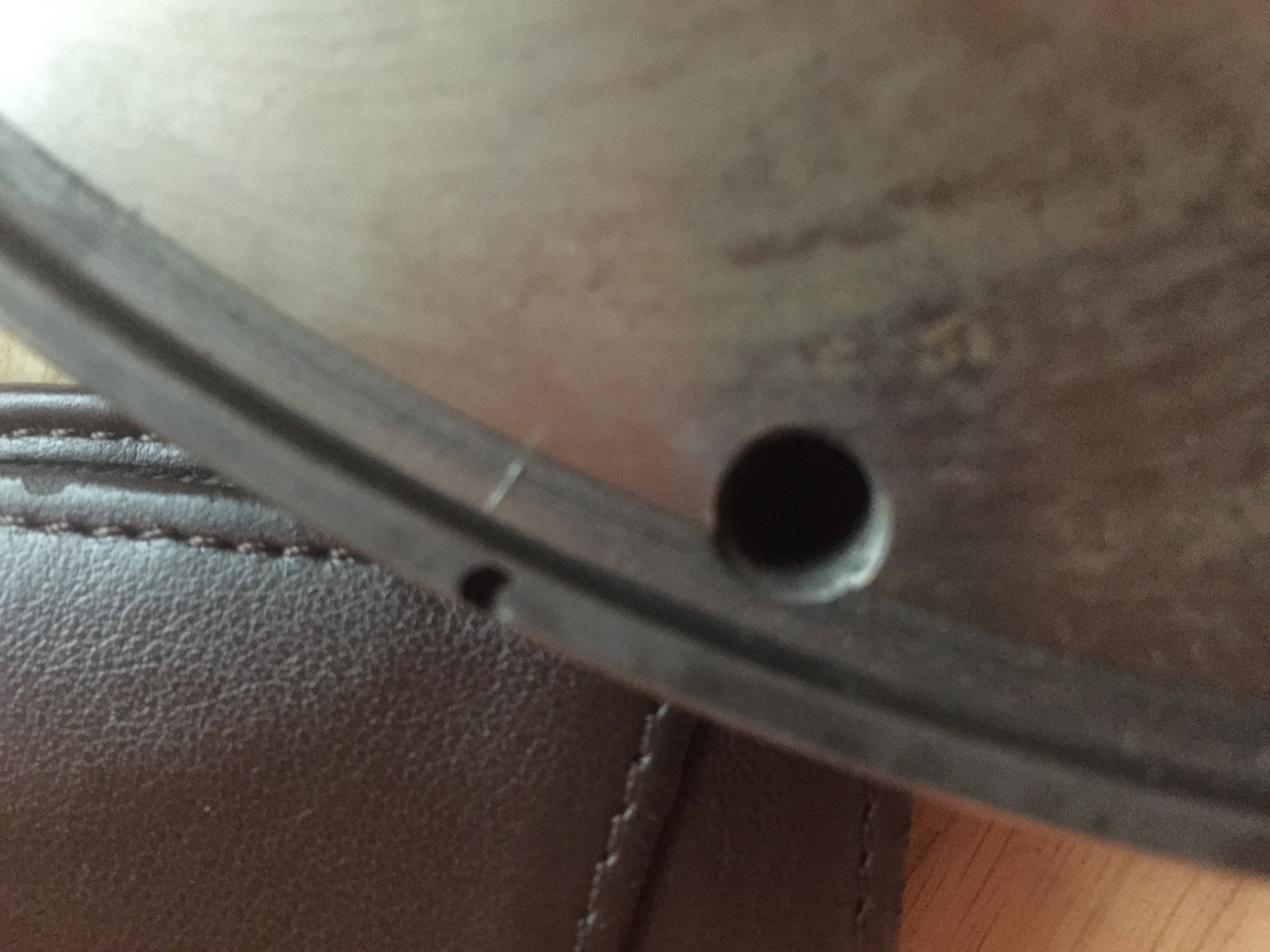

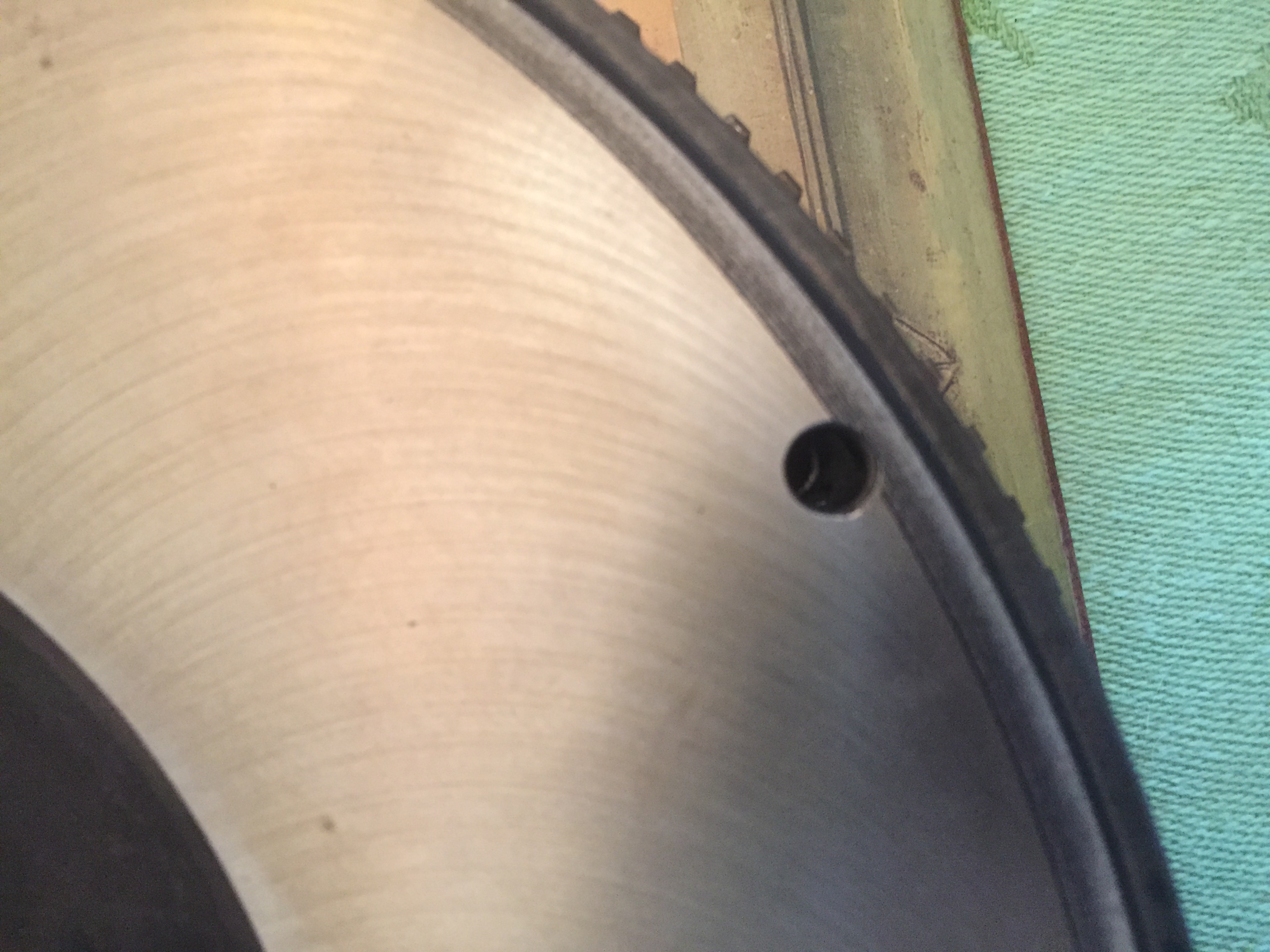

heres some close ups to my flywheelAttached ImageAttached Image

sorry for blurryness but you get the gist
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Dec 8 2014, 04:03 PM
Post #18


Resident German
*************************

Group: Admin
Posts: 41,636
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(Cfletch @ Dec 8 2014, 02:00 PM) *
heres some close ups to my flywheel

The ringear is supposed to fit inside tightly and make full contact with the flywheel surface.

Also note that the inner edge of the ringgear is often chamfered and can make it appear as if it doesn't sit flush when in reality it does.
(IMG:style_emoticons/default/smash.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Cfletch
post Dec 8 2014, 04:14 PM
Post #19


Member
**

Group: Members
Posts: 104
Joined: 30-January 14
From: Santa Barbara
Member No.: 16,941
Region Association: Southern California
Ok, sweet thank you Andy. I'd imagine ill have many more dumb questions about this conversion so I hope to see you around.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
