Best Location for a 2 Channel Amp, And where to run the power cable |
jack20 |
Jul 2 2015, 07:02 PM
Post
#1
|
Member Group: Members Posts: 406 Joined: 7-November 14 From: Granite Bay, CA Member No.: 18,099 Region Association: Northern California |
Hello,
I'm considering a sound system upgrade using the existing Blau Frankfurt's output to a two channel amp and then to round kick panel speakers in modified enclosures. Has anyone done this? If so, where did you mount the amp and where did you run the power wire from the battery to the amp? Thank You, Jack |
Harpo |
Jul 2 2015, 07:29 PM
Post
#2
|
Senior Member Group: Members Posts: 1,304 Joined: 21-August 11 From: Motor City aka Detroit Member No.: 13,469 Region Association: None |
I have seen a few mounted in the front trunk. However running power all the way up there seems like a PITA. I'm considering mounting a small amp up near the glove box.
David |
Chris914n6 |
Jul 3 2015, 08:33 PM
Post
#3
|
Jackstands are my life. Group: Members Posts: 3,320 Joined: 14-March 03 From: Las Vegas, NV Member No.: 431 Region Association: Southwest Region |
There are finally some new tech compact designs coming out that will fit between the seats or in the center console. 2016 will be good for us small car drivers.
|
Kansas 914 |
Jul 3 2015, 08:42 PM
Post
#4
|
Advanced Member Group: Members Posts: 2,999 Joined: 1-March 03 From: Durango, Colorado Member No.: 373 Region Association: Rocky Mountains |
There are finally some new tech compact designs coming out that will fit between the seats or in the center console. 2016 will be good for us small car drivers. Mine is in the front trunk and I used the "spare" gas line as a conduit and ran #14 to the battery. My car is carbed so the return gas line wasn't used. |
Mike Bellis |
Jul 3 2015, 08:56 PM
Post
#5
|
Resident Electrician Group: Members Posts: 8,345 Joined: 22-June 09 From: Midlothian TX Member No.: 10,496 Region Association: None |
Mine is suspended under the glove box on brackets. My battery is in the front so wiring was easy.
|
Montreal914 |
Jul 3 2015, 10:17 PM
Post
#6
|
Senior Member Group: Members Posts: 1,560 Joined: 8-August 10 From: Claremont, CA Member No.: 12,023 Region Association: Southern California |
There are finally some new tech compact designs coming out that will fit between the seats or in the center console. 2016 will be good for us small car drivers. Any links or details on this post (IMG:style_emoticons/default/chowtime.gif) |
Dave_Darling |
Jul 3 2015, 11:20 PM
Post
#7
|
914 Idiot Group: Members Posts: 14,986 Joined: 9-January 03 From: Silicon Valley / Kailua-Kona Member No.: 121 Region Association: Northern California |
I was considering behind the passenger's seat as an option. Short battery run was one of the advantages.
--DD |
TheCabinetmaker |
Jul 4 2015, 05:17 AM
Post
#8
|
I drive my car everyday Group: Members Posts: 8,300 Joined: 8-May 03 From: Tulsa, Ok. Member No.: 666 |
My 1000W boss amp is mounted on the fuel tank bulkhead. Ran the power cord thru the hole where the ac hoses used to be. In line fuse at the battery.
|
Jeffs9146 |
Jul 4 2015, 01:59 PM
Post
#9
|
Ski Bum Group: Members Posts: 4,062 Joined: 10-January 03 From: Discovery Bay, Ca Member No.: 128 |

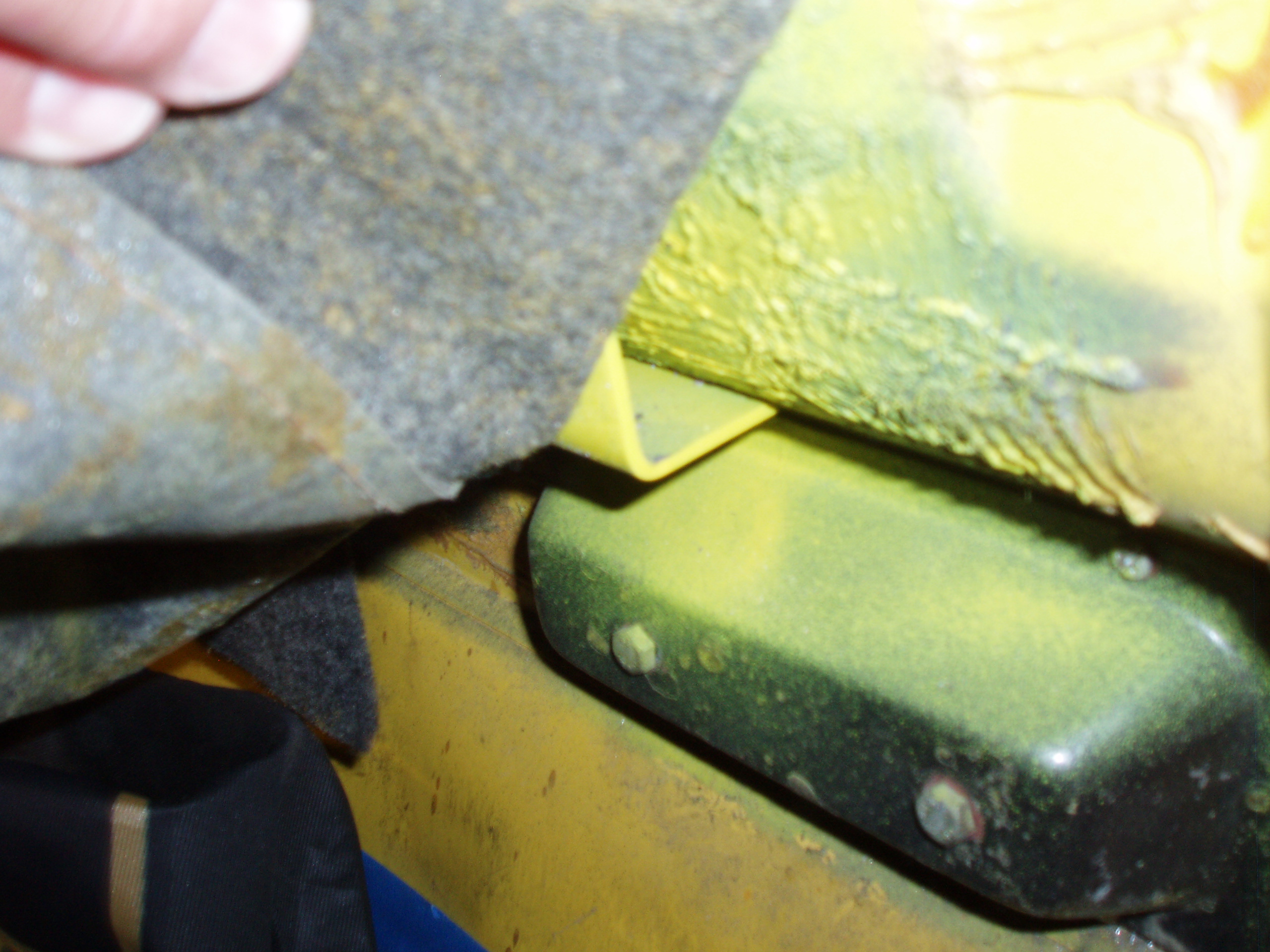

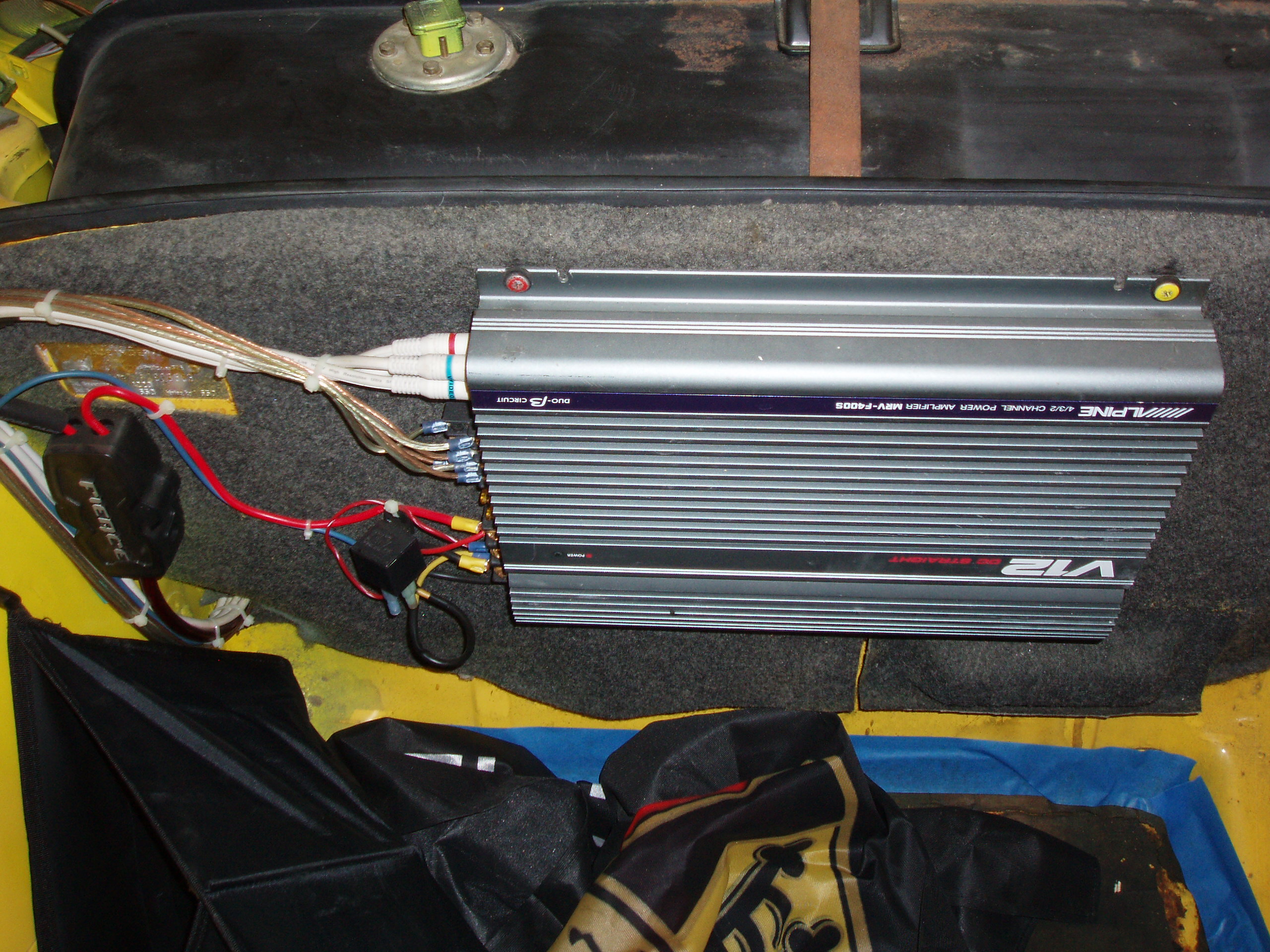

I mounted mine on the front bulkhead. I welded a lower bracket to screw the bottom screws to.
Attached thumbnail(s) |
Chris914n6 |
Jul 4 2015, 10:58 PM
Post
#10
|
Jackstands are my life. Group: Members Posts: 3,320 Joined: 14-March 03 From: Las Vegas, NV Member No.: 431 Region Association: Southwest Region |
There are finally some new tech compact designs coming out that will fit between the seats or in the center console. 2016 will be good for us small car drivers. Any links or details on this post (IMG:style_emoticons/default/chowtime.gif) Practically anything named nano (IMG:style_emoticons/default/biggrin.gif) Most brand names have or are working on a dedicated line under 7" wide. example |
