> BUILD-OFF CHALLENGE: Eisberg rustoration, Need some input...
mbseto
post Aug 16 2015, 07:32 PM
Post #1


Senior Member
***

Group: Members
Posts: 1,257
Joined: 6-August 14
From: Cincy
Member No.: 17,743
Region Association: North East States



Funny, I am as nervous starting this thread as I was to start cutting into my car.

I resolved to start a rustoration thread when I made my first cuts, so here it is. I'm hoping the community will pipe in periodically with any, "Don't do that!", "Do it this other way!", "Do this first!", or "Don't forget this!" comments that are appropriate. Any and all guidance will be appreciated.

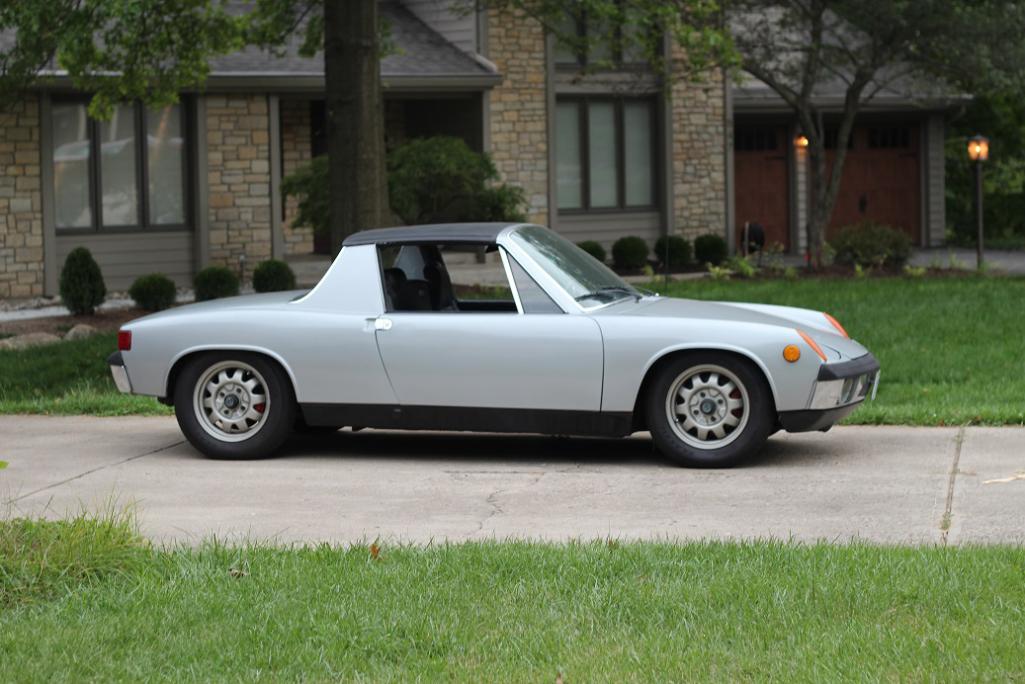

So here's the car as I got it, not quite a year ago:
Attached Image

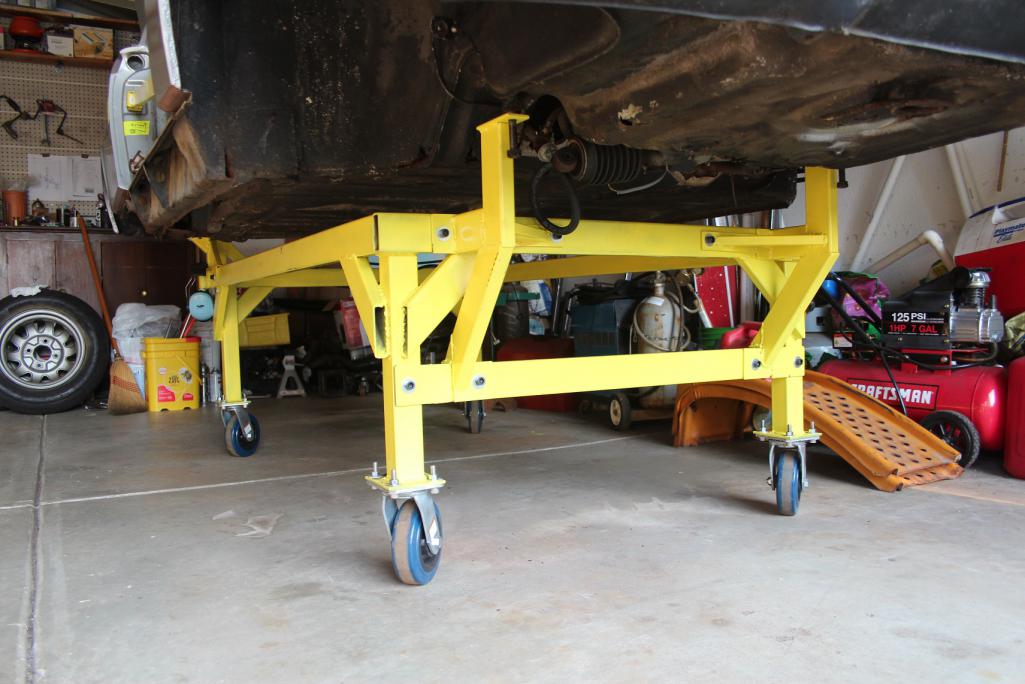

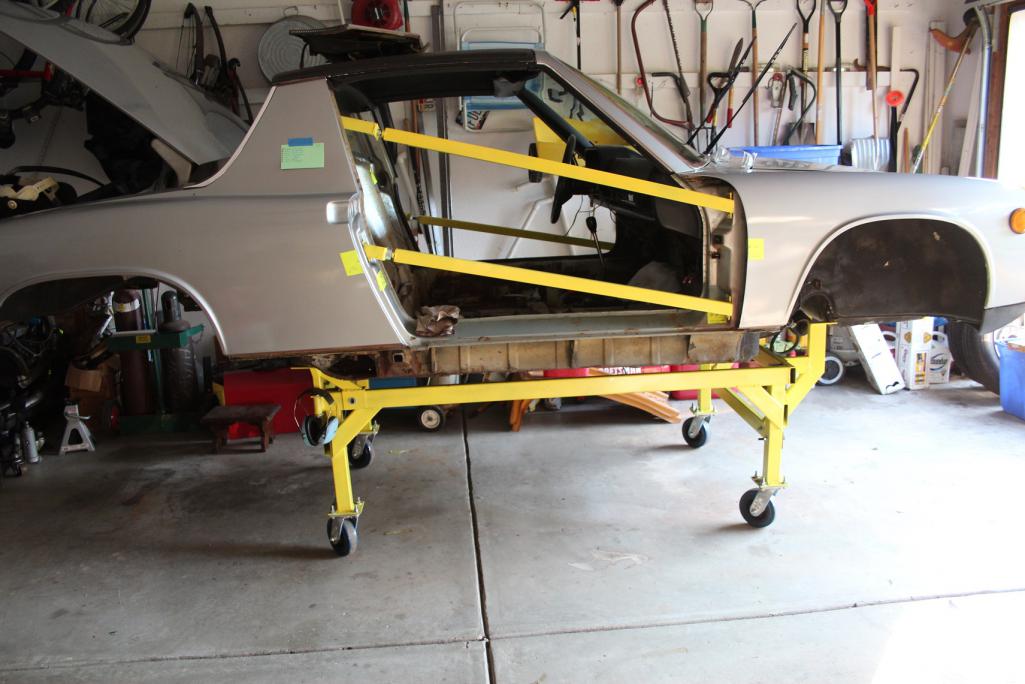

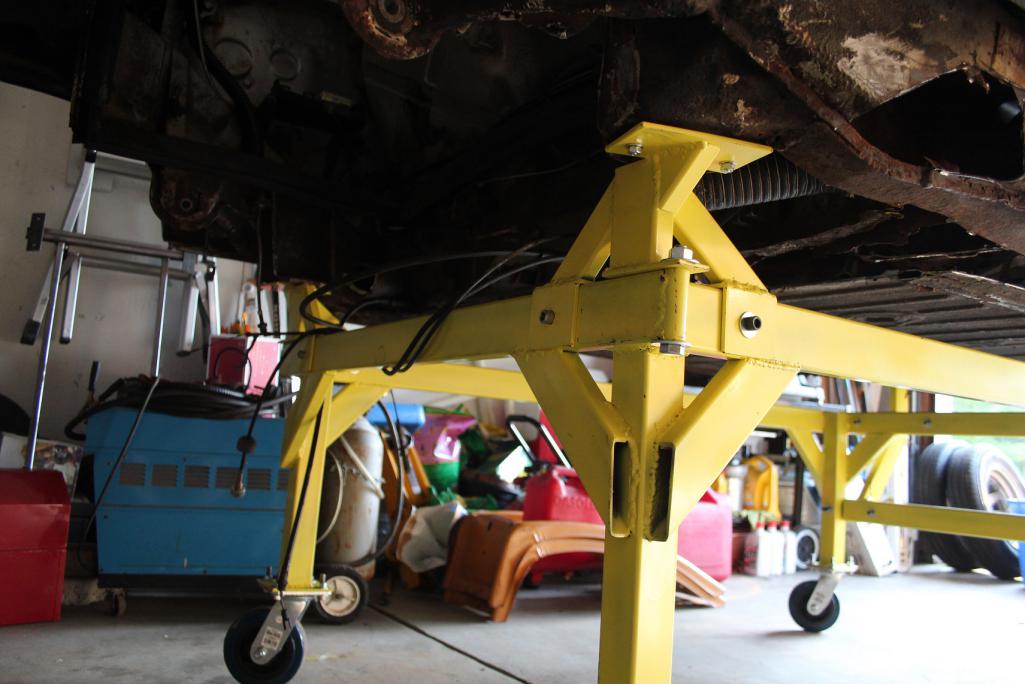

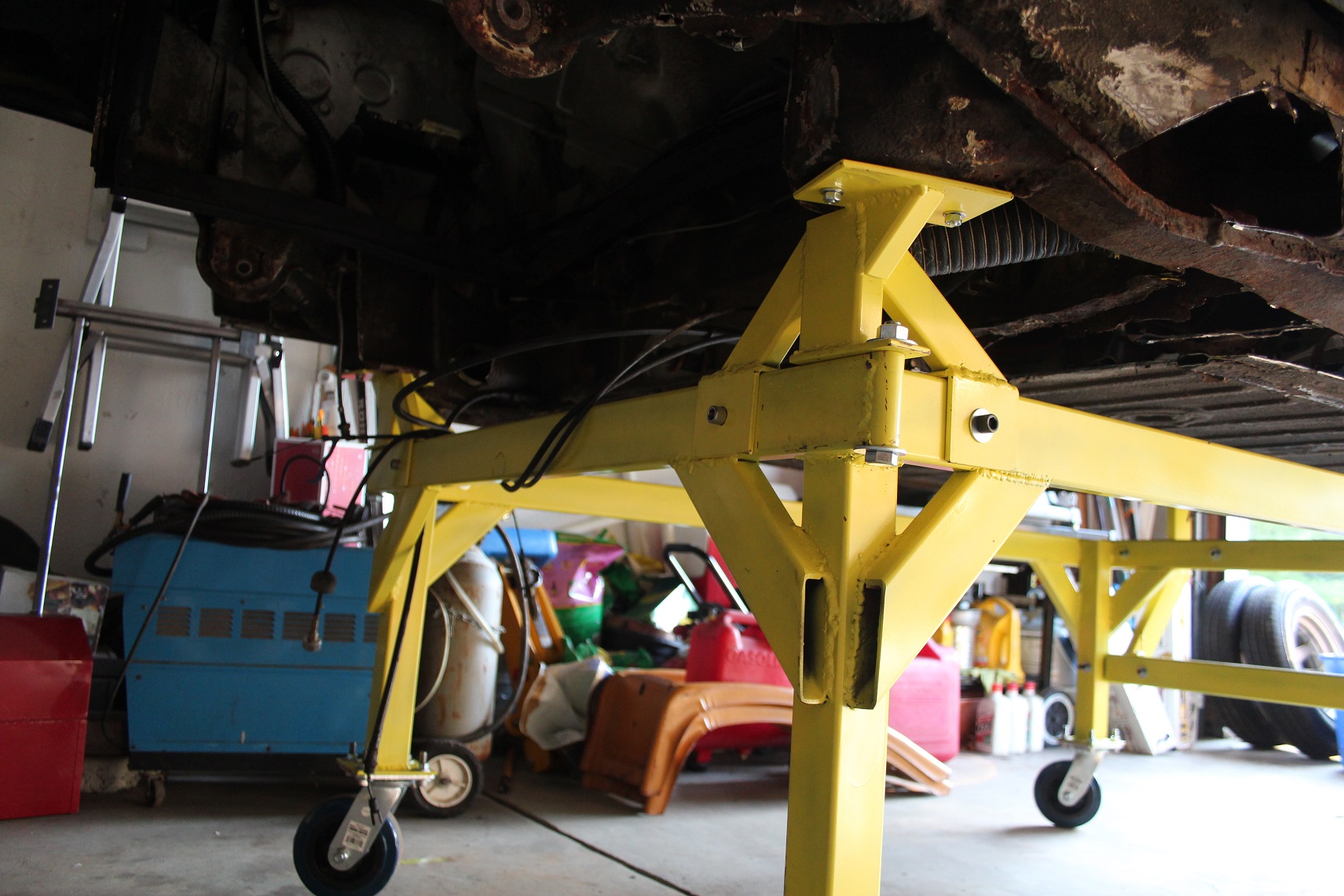

Started out doing a little engine work to get it running, then drove it around a little bit before starting to take it apart. Took the engine out, put it up on a dolly, took out much of the interior and suspension, and this is how it sits now:
Attached Image

Attached Image

Attached Image

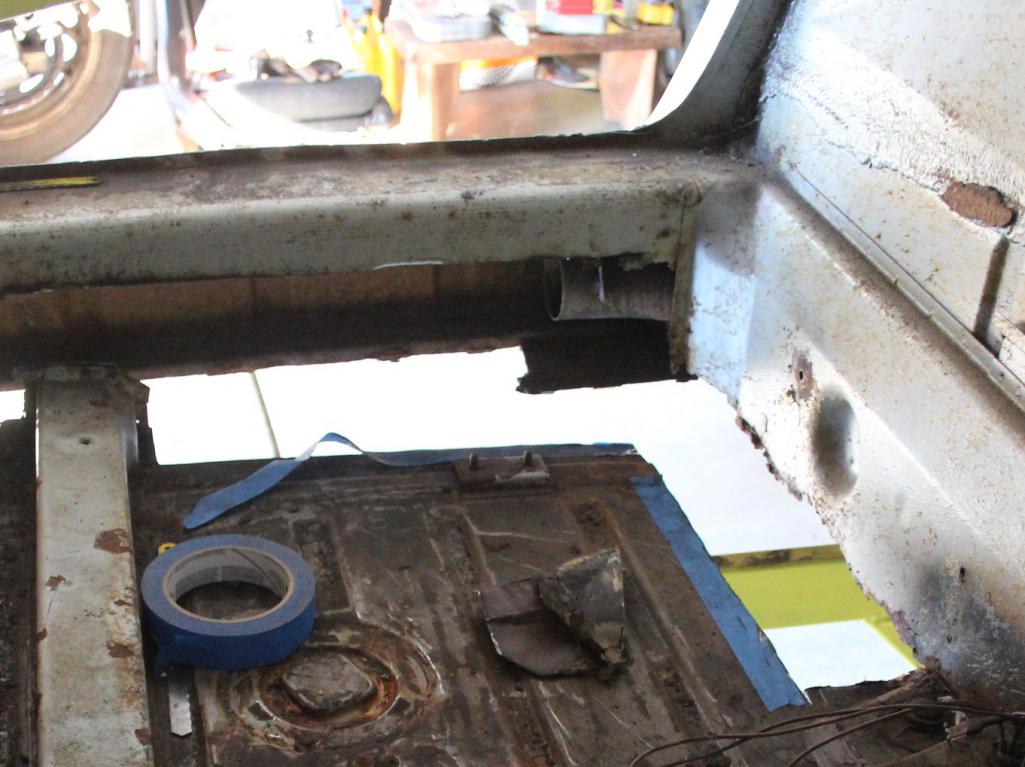

After cleaning out the inside and seeing the rust, it was hard to believe we were driving it at all. These are the first cuts, just straightening out the edges of the rust holes really.
Attached Image

More pics coming soon, I'll be documenting the extent of the damage and forming a battle plan.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TargaToy
post Aug 16 2015, 07:35 PM
Post #2


-NONSOLIS RADIOS SEDIOUIS FULMINA MITTO-
***

Group: Members
Posts: 705
Joined: 26-March 10
From: DelMarVa Peninsula
Member No.: 11,509
Region Association: MidAtlantic Region



Love your dolly setup. Keep the progress reports coming. I'll look forward to following your repairs.

Amazing how much bad crud can lurk below an otherwise really pretty paint job, eh?
User is online!Profile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Aug 16 2015, 08:44 PM
Post #3


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,795
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region

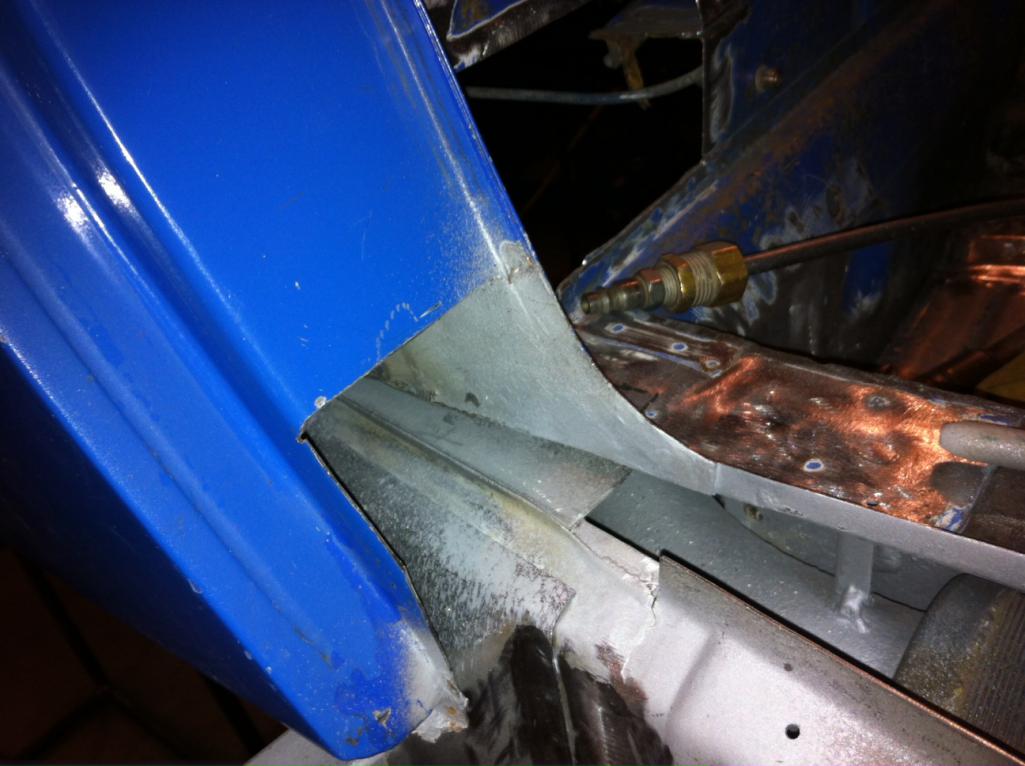

Good bracing. If you end up needing to weld higher than you can reach on the longitudinal I would suggest cutting the door jamb like this. I often see guys cut off the lower quarter panel. I personally don't care to do it that way and don't think it is necessary.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mgp4591
post Aug 16 2015, 09:01 PM
Post #4


914 Guru
*****

Group: Members
Posts: 5,488
Joined: 1-August 12
From: Salt Lake City Ut
Member No.: 14,748
Region Association: Intermountain Region



Thanks for posting your pics- now I don't feel that bad about my rust situation! How's your center tunnel- is it rusted up the sides an inch or two? That's the only piece I could find that RD doesn't sell as their inventory is excellent ... has anyone seen those for sale on any vendor site?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Zimms
post Aug 17 2015, 02:46 AM
Post #5


Senior Member
***

Group: Members
Posts: 1,414
Joined: 11-February 06
From: Michigan
Member No.: 5,565
Region Association: Upper MidWest



QUOTE(TargaToy @ Aug 16 2015, 09:35 PM) *

Love your dolly setup.


(IMG:style_emoticons/default/agree.gif) Nice work
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
thieuster
post Aug 17 2015, 04:27 AM
Post #6


Member
**

Group: Members
Posts: 447
Joined: 31-January 15
From: 275 mls NW from Stuttgart.
Member No.: 18,384
Region Association: Europe



Nice! Don't be tempted to start working on the engine too soon. A restored engine sitting idle in the corner of the workshop for a long period will start deteriorating.

BTW, I love the wheels on your car. What are these?

Menno
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rgalla9146
post Aug 17 2015, 08:32 AM
Post #7


Advanced Member
****

Group: Members
Posts: 4,657
Joined: 23-November 05
From: Paramus NJ
Member No.: 5,176
Region Association: None



QUOTE(thieuster @ Aug 17 2015, 06:27 AM) *

Nice! Don't be tempted to start working on the engine too soon. A restored engine sitting idle in the corner of the workshop for a long period will start deteriorating.

BTW, I love the wheels on your car. What are these?

Menno


VW Super Beetle .... '78-'79 ?
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Claus Graf
post Aug 17 2015, 09:03 AM
Post #8


Member
**

Group: Members
Posts: 51
Joined: 25-November 14
From: Houston, TX
Member No.: 18,154
Region Association: None



Nice dolly. Good Luck with the 914!

I would support the front and rear end by adding more beams to the dolly (and maybe a couple of casters).

I would work on one side at a time while leaving the door installed (on the side you're not working).

Regards

Claus

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
blackmoon
post Aug 17 2015, 09:17 AM
Post #9


Member
**

Group: Members
Posts: 153
Joined: 27-May 08
From: Cal Bay Area
Member No.: 9,106
Region Association: None



nice work, good luck with the restoration, it's all about the journey
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jmitro
post Aug 17 2015, 09:50 AM
Post #10


Senior Member
***

Group: Members
Posts: 713
Joined: 23-July 15
From: Oklahoma
Member No.: 18,986
Region Association: None



love that color.

good luck with your rustoration; I'm just a few hours of work behind you. Removing the engine this week, then start cutting out the rusty parts
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sfrenck
post Aug 17 2015, 09:58 AM
Post #11


Member
**

Group: Members
Posts: 492
Joined: 28-February 10
From: Wilmington, DE
Member No.: 11,411
Region Association: MidAtlantic Region



Shouldn't the door braces form an "X" or a "Z"?

Not saying that the car is going to move since it's bolted to that beefy support frame, but I don't see how a "four-bar brace" keeps the jambs fixed relative to each other (think sagging fence gate without the diagonal brace).
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post Aug 17 2015, 10:24 AM
Post #12


"I got blisters on me fingers"
**********

Group: Members
Posts: 10,976
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest



QUOTE(mgp4591 @ Aug 16 2015, 08:01 PM) *
How's your center tunnel- is it rusted up the sides an inch or two? That's the only piece I could find that RD doesn't sell as their inventory is excellent ... has anyone seen those for sale on any vendor site?


(IMG:style_emoticons/default/idea.gif) I do. (IMG:style_emoticons/default/shades.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mbseto
post Aug 17 2015, 06:28 PM
Post #13


Senior Member
***

Group: Members
Posts: 1,257
Joined: 6-August 14
From: Cincy
Member No.: 17,743
Region Association: North East States



Thanks all for the kind words.

QUOTE(rick 918-S @ Aug 16 2015, 10:44 PM) *

...I would suggest cutting the door jamb like this. I often see guys cut off the lower quarter panel. I personally don't care to do it that way and don't think it is necessary.


Rick;
I was hoping to get away with something like that. But the suspension pylon needs to be removed, and so far as I've seen in searching this site, I'll have to cut the quarter panel. Please correct me if I'm wrong on this because I would really rather not. But look at this:

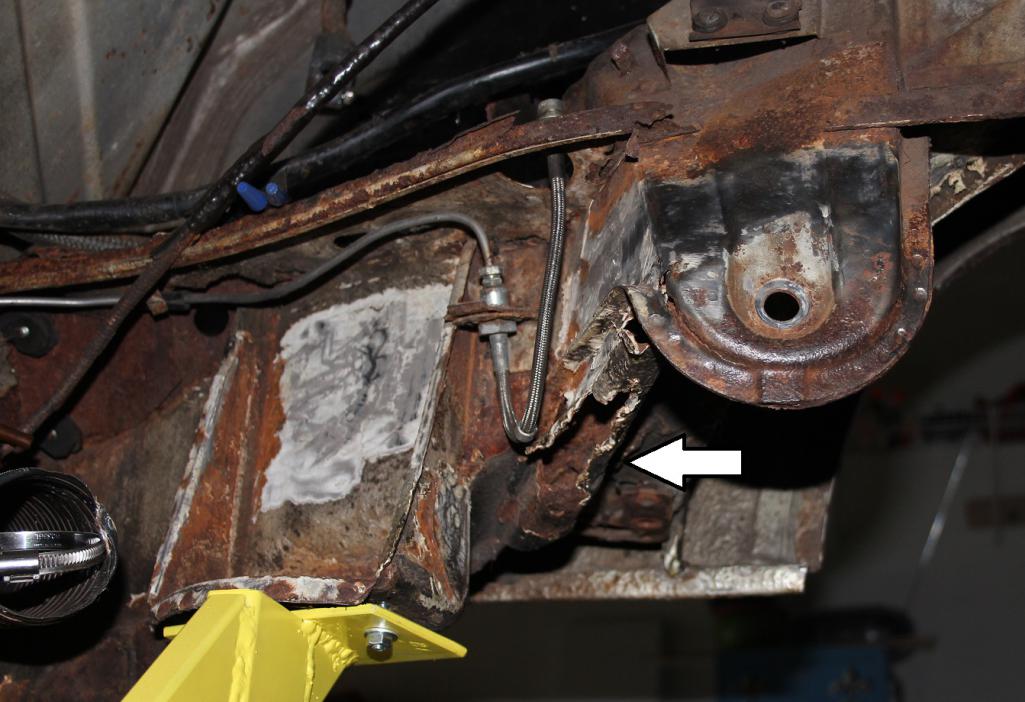

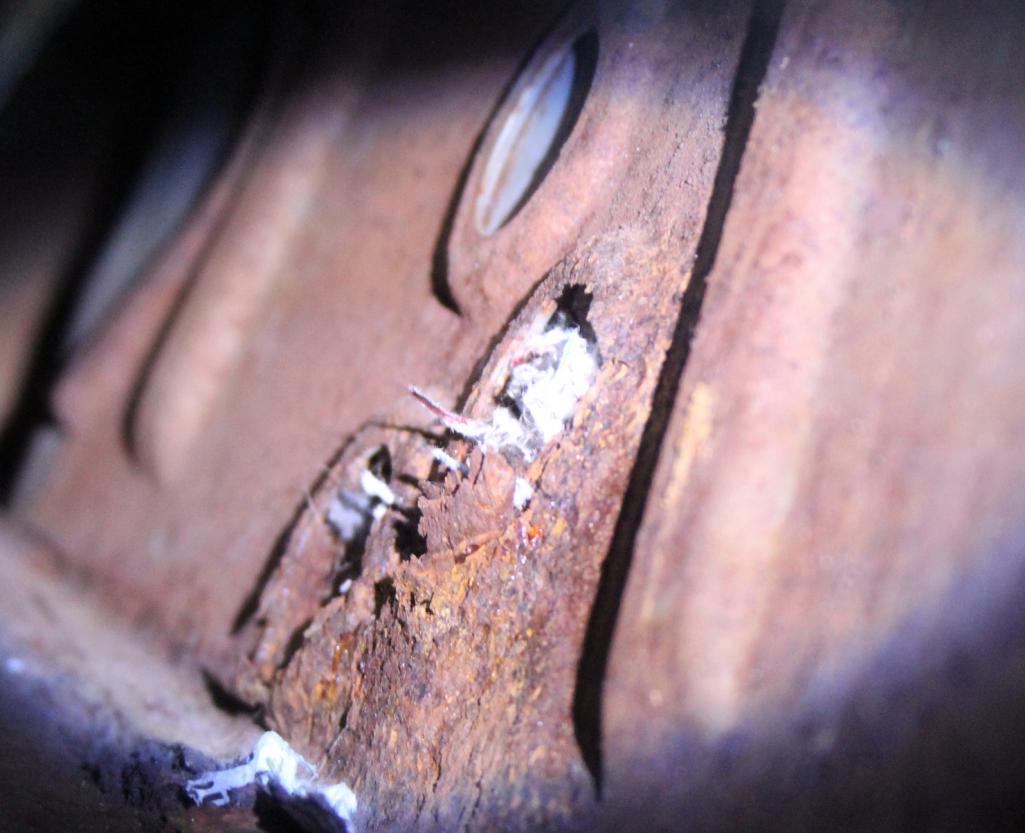

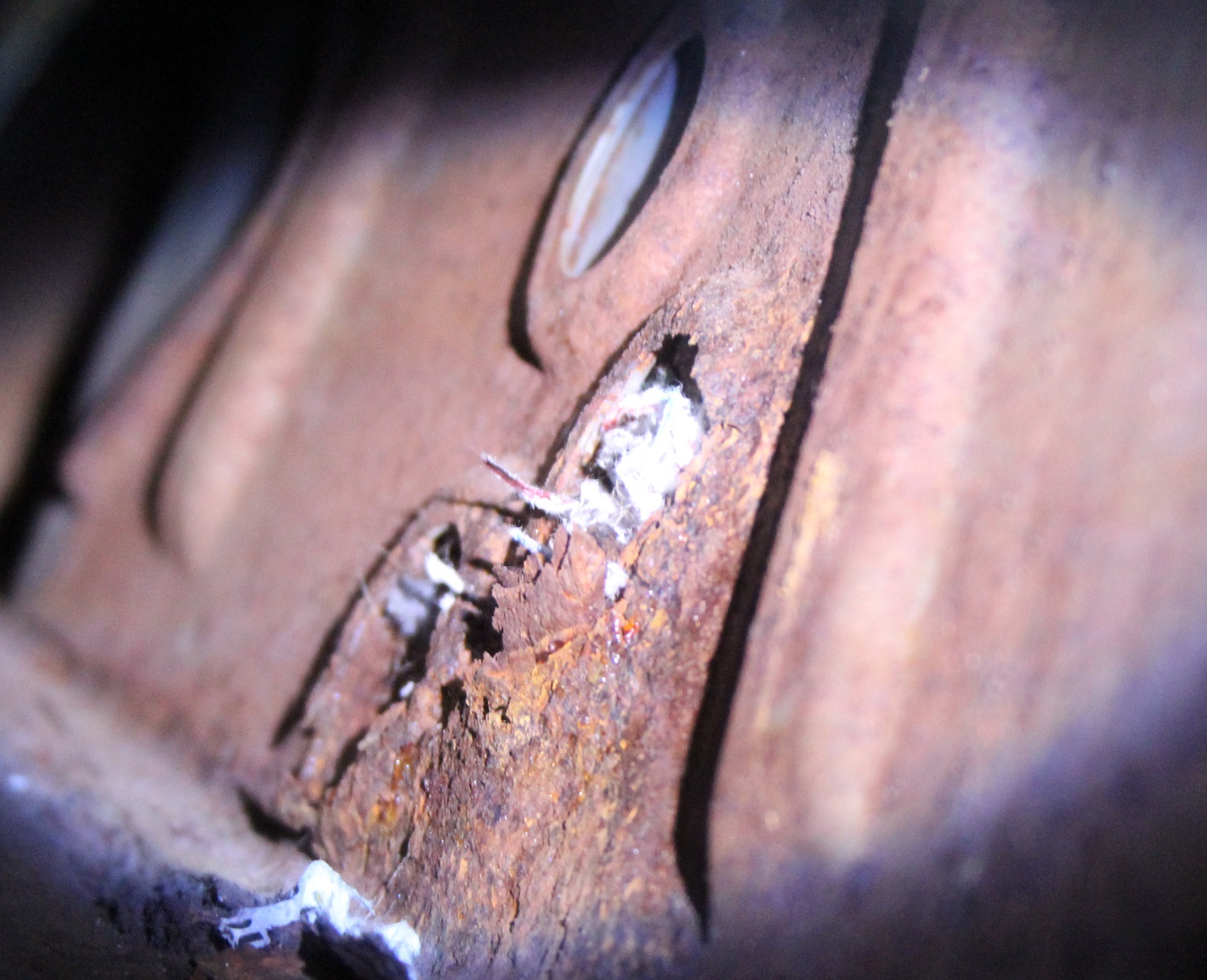

When I poked at this, the hole just kept getting bigger and bigger. Rust and sunflower hulls were pouring out of it. Got a whole bag full.
Attached Image

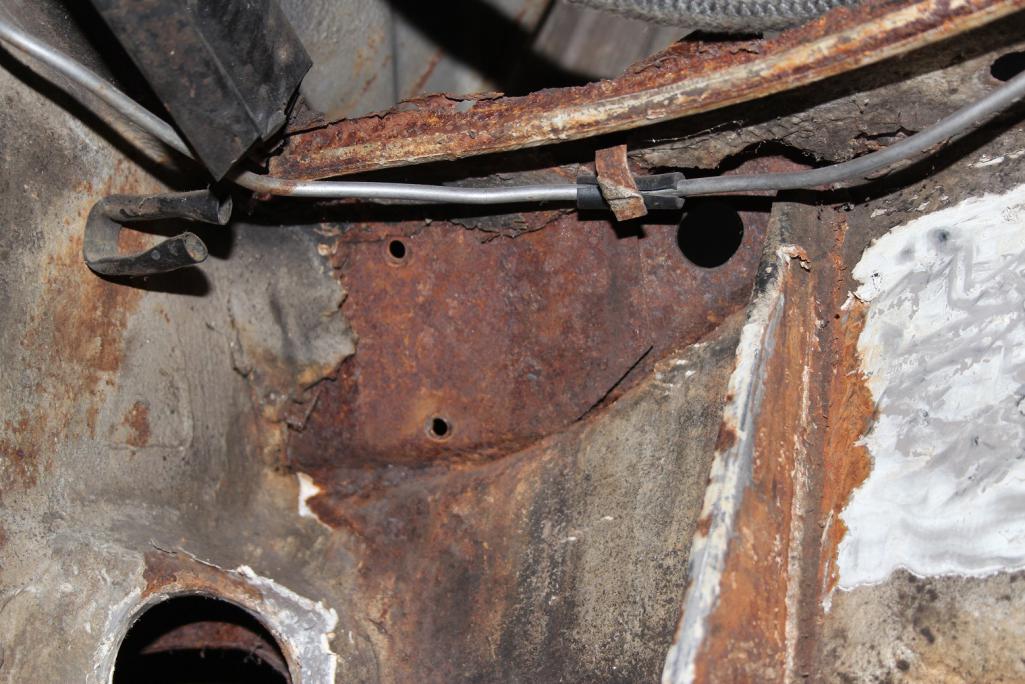

While the outer pylon seems solid, the metal of the long around it is cheese. Cut the long open and this is looking aft and up, inside the long from just aft of the jack point (it looks backwards because it's looking in a mirror). You can see the entrance to the wee beastie's nest.
Attached Image

I'm betting his little skeleton might still be inside the pylon.

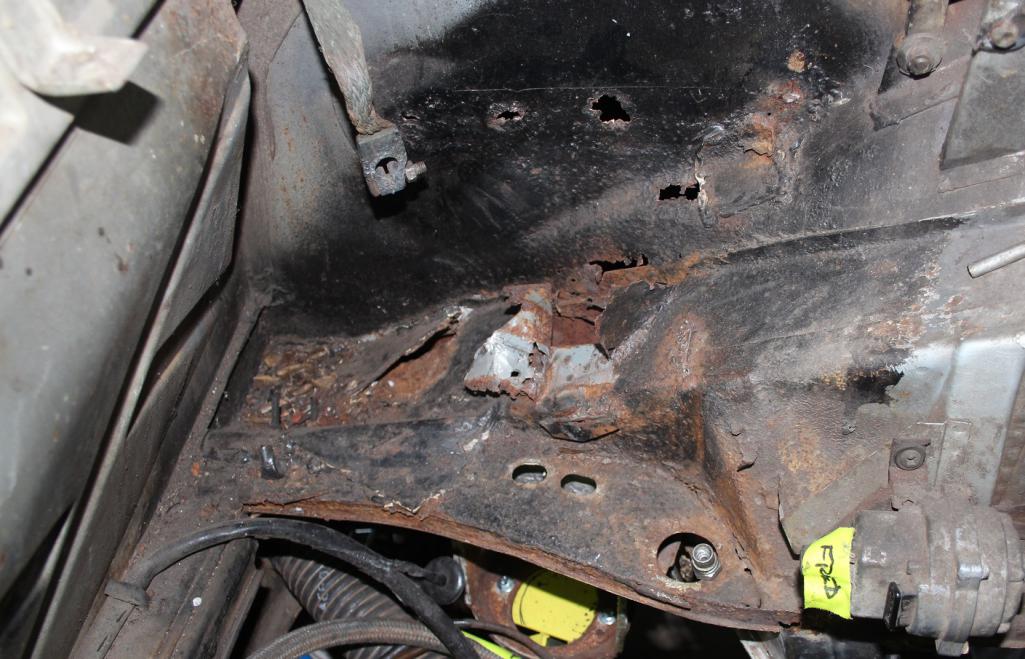

Just for good measure, here's a top down view of my properly hellish hell hole:
Attached Image


User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mbseto
post Aug 17 2015, 06:34 PM
Post #14


Senior Member
***

Group: Members
Posts: 1,257
Joined: 6-August 14
From: Cincy
Member No.: 17,743
Region Association: North East States



QUOTE(rgalla9146 @ Aug 17 2015, 10:32 AM) *

QUOTE(thieuster @ Aug 17 2015, 06:27 AM) *

BTW, I love the wheels on your car. What are these?

VW Super Beetle .... '78-'79 ?


Lemmerz Baja Champion, and yes- Super Beetle, but I think only available in '72-'73? They've really grown on me, but they are narrow. Car's going to be a drifter whether I want to or not.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mbseto
post Aug 17 2015, 06:44 PM
Post #15


Senior Member
***

Group: Members
Posts: 1,257
Joined: 6-August 14
From: Cincy
Member No.: 17,743
Region Association: North East States



QUOTE(sfrenck @ Aug 17 2015, 11:58 AM) *

Shouldn't the door braces form an "X" or a "Z"?

Not saying that the car is going to move since it's bolted to that beefy support frame, but I don't see how a "four-bar brace" keeps the jambs fixed relative to each other (think sagging fence gate without the diagonal brace).


I intended the dolly and the braces to all work together- they will all remain attached so far as possible. Both braces on each side are adjustable to set door gaps.

The plan is to measure frequently and if anything sags during the cutting, I will add bracing before welding.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JoeDees
post Aug 17 2015, 08:29 PM
Post #16


Senior Member
***

Group: Members
Posts: 515
Joined: 10-November 14
From: Northern Kentucky
Member No.: 18,106
Region Association: None



I'll be learning in the near future whether you can replace the inner suspension console without cutting the fender (out with the old and the inner long this coming weekend), but in my prep for the job I have assessed that cutting the outer wheelhouse any higher than the outer suspension console would require cutting the fender. I thanked God when I realized that mine was somehow only rusted on the inner side and down low in the curve.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mbseto
post Oct 3 2015, 07:49 PM
Post #17


Senior Member
***

Group: Members
Posts: 1,257
Joined: 6-August 14
From: Cincy
Member No.: 17,743
Region Association: North East States

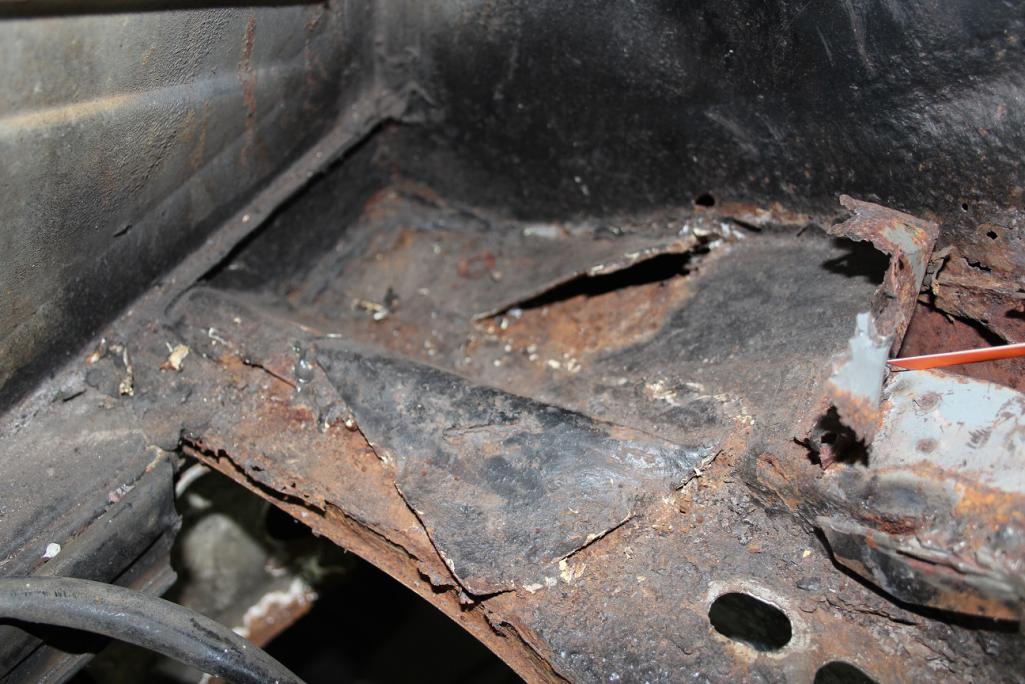

Guess I better update you guys... Some PO welded in some random patches, have to dig them out and find out where the original metal starts. This is the underside of the hell hole:
Attached Image

And from above... Looks like grandma's quilt:
Attached Image

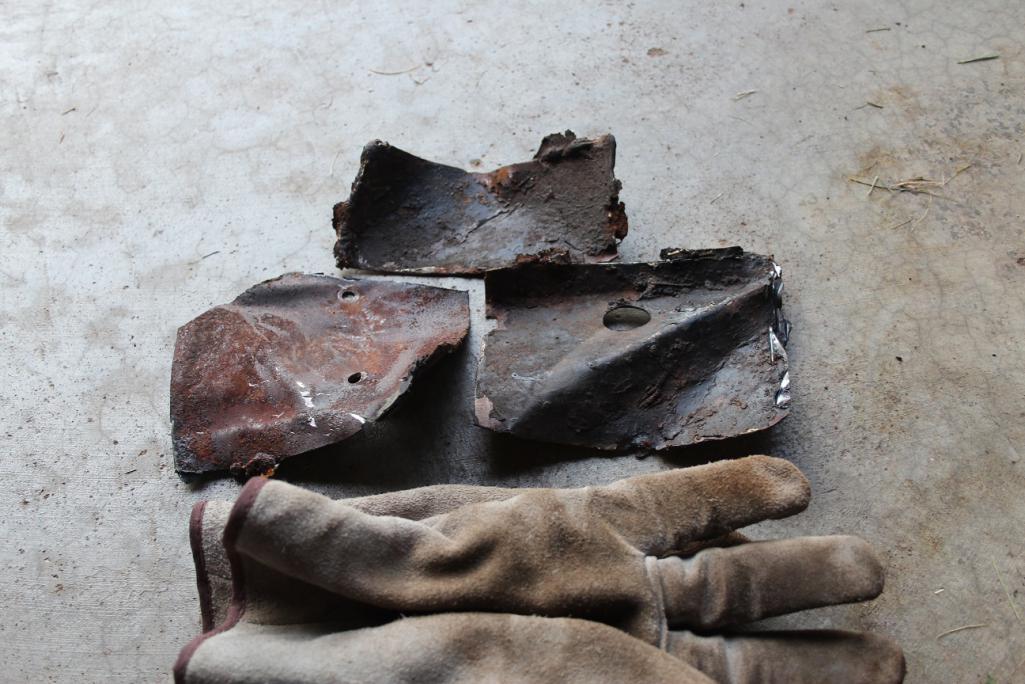

Pulled it all out. This is the PO's "hell hole repair kit"
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mbseto
post Oct 3 2015, 07:57 PM
Post #18


Senior Member
***

Group: Members
Posts: 1,257
Joined: 6-August 14
From: Cincy
Member No.: 17,743
Region Association: North East States

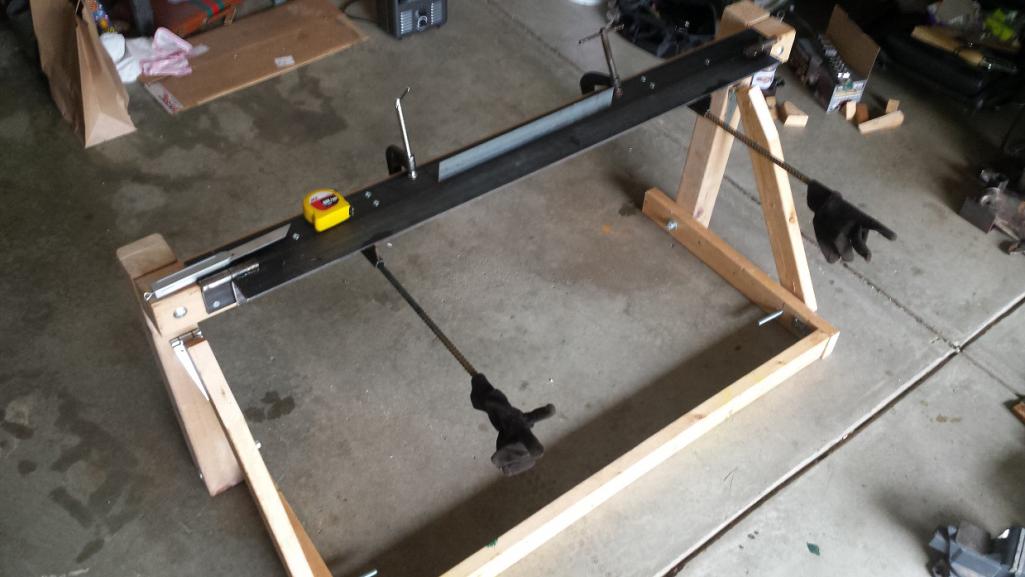

I'm planning on buying a bunch of sheet metal from RD. But to help stay within budget, I made a bending brake- this will be the source of my new inner longs. I've got a pile of 18g, but I have a piece of 12g to test the limits of this thing. If it can handle it, I may just make the inner longs from 12g. No additional stiffening kit required!

Attached Image

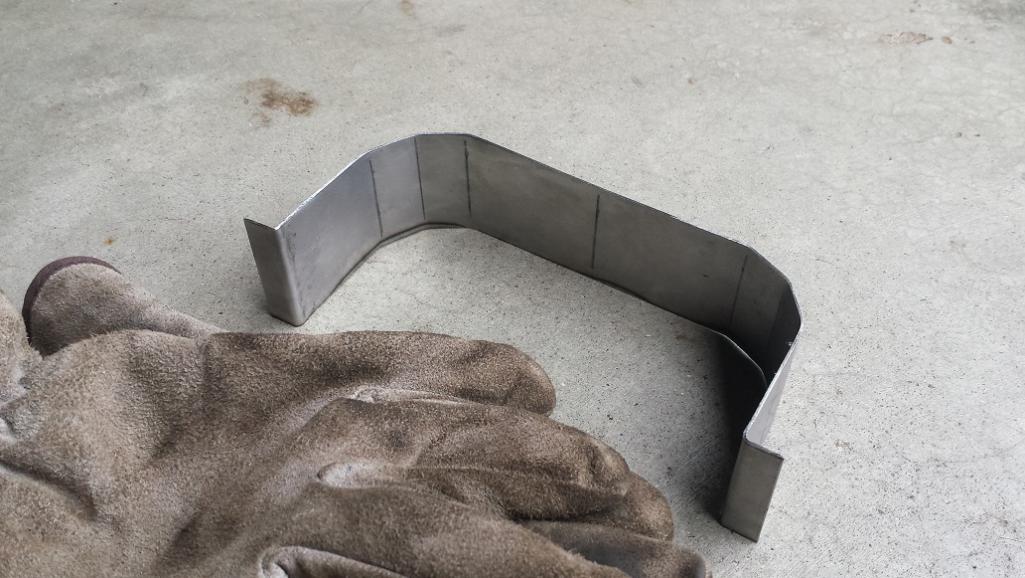

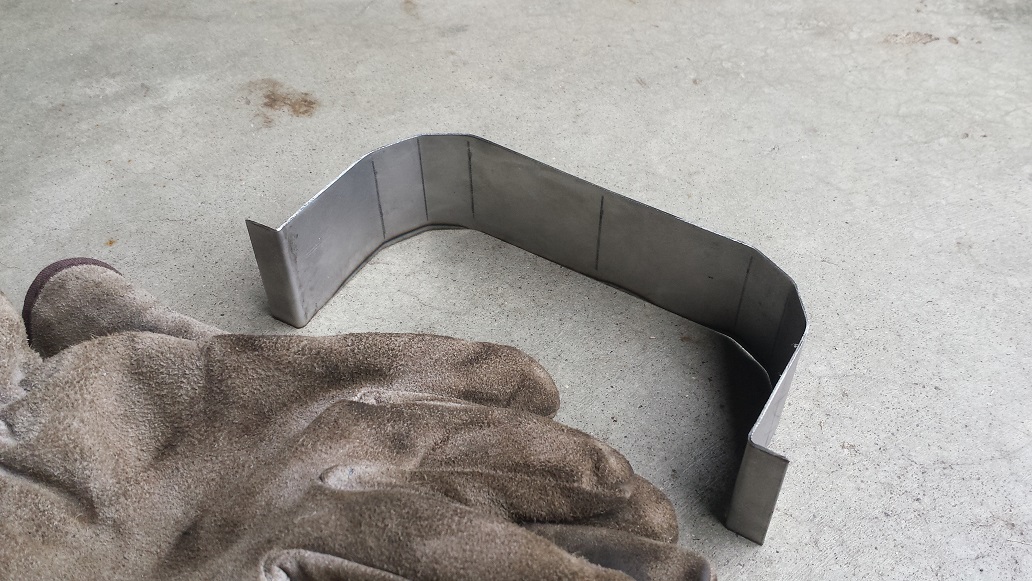

Using test strips to get set up:
Attached Image

Breakfast of champions:
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JoeDees
post Oct 3 2015, 07:57 PM
Post #19


Senior Member
***

Group: Members
Posts: 515
Joined: 10-November 14
From: Northern Kentucky
Member No.: 18,106
Region Association: None



So far in my rustoration I'm not finding a need to cut out the fender. Some stuff may require contortionism, but it seems possible.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mbseto
post Oct 3 2015, 08:09 PM
Post #20


Senior Member
***

Group: Members
Posts: 1,257
Joined: 6-August 14
From: Cincy
Member No.: 17,743
Region Association: North East States



I'm going to try to weld everything from the inside. I'll go as long as I can without cutting the fender. If I get to a point where I have to, I'll take the whole quarter panel off intact.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
