> Muellers Honda V6 914 project, Put 70 miles on this engine swap, now to drop broken motor
Mueller
post Mar 15 2021, 11:00 PM
Post #401


914 Freak!
***************

Group: Members
Posts: 17,146
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None

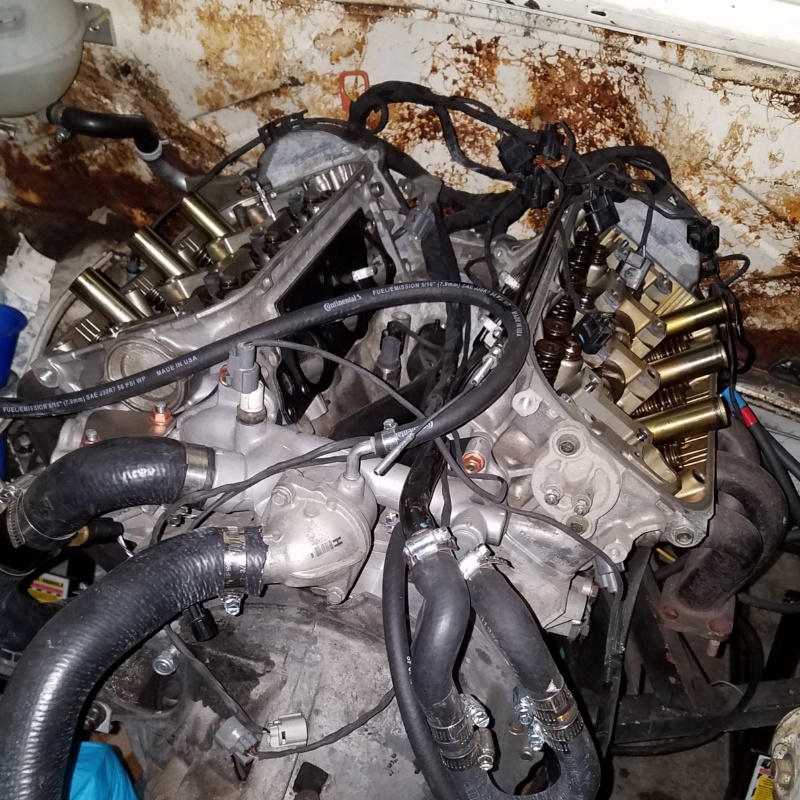

I took off the valve covers and rocker arms with nothing glaringly wrong. So the motor and transmission will be coming out.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chris H.
post Mar 16 2021, 07:32 AM
Post #402


Senior Member
****

Group: Members
Posts: 4,020
Joined: 2-January 03
From: Chicago 'burbs
Member No.: 73
Region Association: Upper MidWest



(IMG:style_emoticons/default/confused24.gif) what happened Mike? Bad noises? High temps?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Mar 16 2021, 11:41 AM
Post #403


914 Freak!
***************

Group: Members
Posts: 17,146
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None



QUOTE(Chris H. @ Mar 16 2021, 06:32 AM) *

(IMG:style_emoticons/default/confused24.gif) what happened Mike? Bad noises? High temps?



I was out driving and pushed the rpms too far I believe.

Strange noise (does not sound like a bad bearing) and it seemed to be running on only half the engine.

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Curbandgutter
post Mar 16 2021, 12:24 PM
Post #404


Senior Member
***

Group: Members
Posts: 564
Joined: 8-March 13
From: Murrieta CA
Member No.: 15,637
Region Association: Southern California



Mueller love how you can handle all of the electrical the way that you do. You're a wizard! Love the sound on that 6. It really does sound like a flat 6. How did it pull? Great job!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chris H.
post Mar 16 2021, 12:41 PM
Post #405


Senior Member
****

Group: Members
Posts: 4,020
Joined: 2-January 03
From: Chicago 'burbs
Member No.: 73
Region Association: Upper MidWest



Just a thought... (IMG:style_emoticons/default/idea.gif)

From Wikipedia:

"One unique feature of some J-family engine models is Honda's Variable Cylinder Management (VCM) system. Initially, the system turns off one bank of cylinders under light loads, turning the V6 into a straight-3. Some versions were able to turn off one bank of cylinders or one cylinder on opposing banks, allowing for three-cylinder use under light loads and four-cylinder use under medium loads. "

Maybe VCM system is stuck on.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Mar 16 2021, 04:24 PM
Post #406


914 Freak!
***************

Group: Members
Posts: 17,146
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None



Chris, the later motors have that feature.

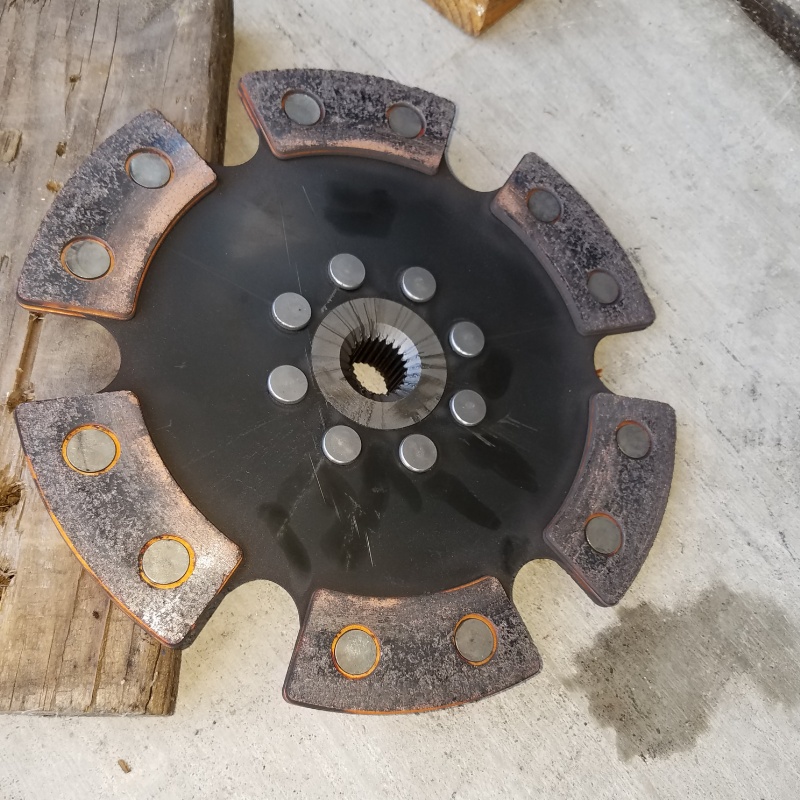

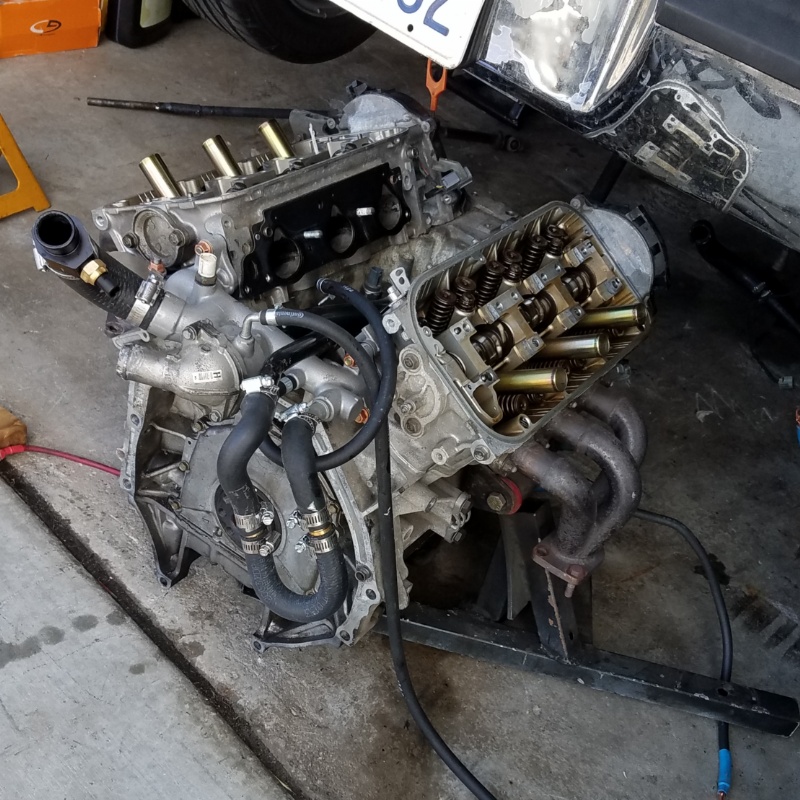

Motor is out, is that style of clutch plate a friendly type for street use?
Seems to be on or off for me.

Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mike Bellis
post Mar 16 2021, 08:33 PM
Post #407


Resident Electrician
*****

Group: Members
Posts: 8,343
Joined: 22-June 09
From: Midlothian TX
Member No.: 10,496
Region Association: None



That metallic puck clutch is unforgiving. You should put an organic stock disc in there. I'm running a stock LUK clutch setup on my 1.8t and love it.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chris914n6
post Mar 16 2021, 09:27 PM
Post #408


Jackstands are my life.
****

Group: Members
Posts: 3,271
Joined: 14-March 03
From: Las Vegas, NV
Member No.: 431
Region Association: Southwest Region



Dump the 6 puck springless racing disc.

I don't know if a stock 914 disc will hold but you want that style. Kennedy might be the better place to go. They will ask if it's 9 inch (bus 228mm iirc) vs 215mm so measure first.

Mine is a Sport Kevlar from Clutchmasters good for 320hp or so but I planned ahead for a turbo... 20 years ago (IMG:style_emoticons/default/rolleyes.gif)

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Andyrew
post Mar 17 2021, 11:09 AM
Post #409


Spooling.... Please wait
**********

Group: Members
Posts: 13,376
Joined: 20-January 03
From: Riverbank, Ca
Member No.: 172
Region Association: Northern California



QUOTE(Mike Bellis @ Mar 16 2021, 07:33 PM) *

That metallic puck clutch is unforgiving. You should put an organic stock disc in there. I'm running a stock LUK clutch setup on my 1.8t and love it.

(IMG:style_emoticons/default/agree.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
76-914
post Mar 17 2021, 11:40 AM
Post #410


Repeat Offender & Resident Subaru Antagonist
**********

Group: Members
Posts: 13,394
Joined: 23-January 09
From: Temecula, CA
Member No.: 9,964
Region Association: Southern California



I get the feeling you are (IMG:style_emoticons/default/dead horse.gif) . You know what my recombination would be! (IMG:style_emoticons/default/happy11.gif) Good luck Mike. (IMG:style_emoticons/default/beerchug.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Mueller
post Mar 17 2021, 02:45 PM
Post #411


914 Freak!
***************

Group: Members
Posts: 17,146
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None



QUOTE(76-914 @ Mar 17 2021, 10:40 AM) *

I get the feeling you are (IMG:style_emoticons/default/dead horse.gif) . You know what my recombination would be! (IMG:style_emoticons/default/happy11.gif) Good luck Mike. (IMG:style_emoticons/default/beerchug.gif)



Yea, I keep looking at the Subaru 5 speed transmission sitting next to my car thinking how easy it would be to just grab a Subaru 6 cylinder and go with that.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
horizontally-opposed
post Mar 17 2021, 03:15 PM
Post #412


Advanced Member
****

Group: Members
Posts: 3,428
Joined: 12-May 04
From: San Francisco
Member No.: 2,058
Region Association: None



QUOTE(Mueller @ Mar 17 2021, 01:45 PM) *

QUOTE(76-914 @ Mar 17 2021, 10:40 AM) *

I get the feeling you are (IMG:style_emoticons/default/dead horse.gif) . You know what my recombination would be! (IMG:style_emoticons/default/happy11.gif) Good luck Mike. (IMG:style_emoticons/default/beerchug.gif)



Yea, I keep looking at the Subaru 5 speed transmission sitting next to my car thinking how easy it would be to just grab a Subaru 6 cylinder and go with that.


Agree with everyone on the clutch, and can sure see why a Subaru flat six is appealing from a design and philosophical standpoint.

What's the power delta against the V6, Mike?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Coondog
post Mar 17 2021, 03:17 PM
Post #413


Advanced Member
****

Group: Members
Posts: 2,089
Joined: 24-September 15
From: Apple Valley Calif
Member No.: 19,195
Region Association: Southern California



QUOTE(Mueller @ Mar 17 2021, 01:45 PM) *

QUOTE(76-914 @ Mar 17 2021, 10:40 AM) *

I get the feeling you are (IMG:style_emoticons/default/dead horse.gif) . You know what my recombination would be! (IMG:style_emoticons/default/happy11.gif) Good luck Mike. (IMG:style_emoticons/default/beerchug.gif)



Yea, I keep looking at the Subaru 5 speed transmission sitting next to my car thinking how easy it would be to just grab a Subaru 6 cylinder and go with that.



While I commend you for tackling the road less taken, I have to agree with the Subaru route. We’re all pulling for
you to get your car on the road.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Mar 17 2021, 03:42 PM
Post #414


914 Freak!
***************

Group: Members
Posts: 17,146
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None



QUOTE(horizontally-opposed @ Mar 17 2021, 02:15 PM) *

QUOTE(Mueller @ Mar 17 2021, 01:45 PM) *

QUOTE(76-914 @ Mar 17 2021, 10:40 AM) *

I get the feeling you are (IMG:style_emoticons/default/dead horse.gif) . You know what my recombination would be! (IMG:style_emoticons/default/happy11.gif) Good luck Mike. (IMG:style_emoticons/default/beerchug.gif)



Yea, I keep looking at the Subaru 5 speed transmission sitting next to my car thinking how easy it would be to just grab a Subaru 6 cylinder and go with that.


Agree with everyone on the clutch, and can sure see why a Subaru flat six is appealing from a design and philosophical standpoint.

What's the power delta against the V6, Mike?


From a quick search it looks like about 30hp to 50hp advantage for the Honda motor.

Another option is to part the car out, recoup a few grand and sink that money into our 242 (IMG:style_emoticons/default/smoke.gif) (IMG:style_emoticons/default/screwy.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chris H.
post Mar 17 2021, 03:57 PM
Post #415


Senior Member
****

Group: Members
Posts: 4,020
Joined: 2-January 03
From: Chicago 'burbs
Member No.: 73
Region Association: Upper MidWest



Eh you’ll get a lot less for it parting it out Mike. Any idea what’s wrong with the engine? Is it toast for sure?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
RoadGlue
post Mar 17 2021, 04:11 PM
Post #416


Sonoma County Gear Head
****

Group: Admin
Posts: 2,033
Joined: 8-January 03
From: Santa Rosa, CA
Member No.: 108
Region Association: Northern California



I'd be very inclined to just figure out what went wrong first, and then go from there.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Mar 17 2021, 04:27 PM
Post #417


914 Freak!
***************

Group: Members
Posts: 17,146
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None



QUOTE(Chris H. @ Mar 17 2021, 02:57 PM) *

Eh you’ll get a lot less for it parting it out Mike. Any idea what’s wrong with the engine? Is it toast for sure?


No, I think it is something minor, I think the frustration of working on our 20 year old stove top and oven right now is making me grumpy.

I'm taking this as a sign to fix up the engine compartment and do some welding, there are some holes in the firewall that really need to be addressed properly.


User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dan10101
post Mar 17 2021, 04:46 PM
Post #418


TORQUE-o-holic
***

Group: Members
Posts: 1,140
Joined: 29-April 03
From: Eagle Point, Or
Member No.: 626
Region Association: Pacific Northwest



QUOTE(Mueller @ Mar 17 2021, 02:27 PM) *



No, I think it is something minor, I think the frustration of working on our 20 year old stove top and oven right now is making me grumpy.

I'm taking this as a sign to fix up the engine compartment and do some welding, there are some holes in the firewall that really need to be addressed properly.


I know the frustration. I have parts everywhere.
But hang in there, things will come around.
The good news for my build is that I get to put lower compression pistons in it to handle the boost better. There's always a bright side. Well, most always. (IMG:style_emoticons/default/blink.gif)

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Mar 17 2021, 11:10 PM
Post #419


914 Freak!
***************

Group: Members
Posts: 17,146
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None

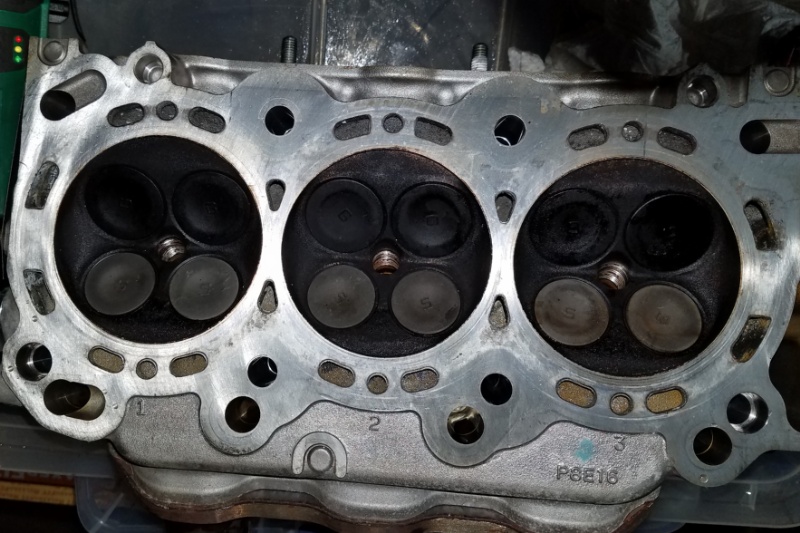

I was going through my tool box tonight and found my compression tester and leak down tester.....after I removed 1 cylinder head already..doh!


This head looks good, no signs of valves kissing the pistons.

The other head is going to be a challenge, 2 of the head bolts are damaged so I'll have to drill the heads off.

All 3 marks for TDC for the cams and crank line up perfectly so I highly doubt the belt jumped.



Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jack Standz
post Mar 18 2021, 12:39 AM
Post #420


Member
**

Group: Members
Posts: 235
Joined: 15-November 19
From: Happy Place (& surrounding area)
Member No.: 23,644
Region Association: None



QUOTE(Mueller @ Mar 18 2021, 12:10 PM) *

I was going through my tool box tonight and found my compression tester and leak down tester.....after I removed 1 cylinder head already..doh!


This head looks good, no signs of valves kissing the pistons.

The other head is going to be a challenge, 2 of the head bolts are damaged so I'll have to drill the heads off.

All 3 marks for TDC for the cams and crank line up perfectly so I highly doubt the belt jumped.



Attached Image


Sorry to hear you're having problems and it seemed to be running well, except for running too hot. But, you will for sure get it sorted out.

I like Centerforce Dual Friction clutches (use with a matching Centerforce pressure plate and balance with everything). On 914s and other mid-engined cars too. Not as harsh as the 6 puck ones, but can handle lots of torque.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
