> Dizzy Rebuilding, How do I take this apart?
bd1308
post Mar 6 2005, 07:31 PM
Post #1


Sir Post-a-lot
*****

Group: Members
Posts: 8,020
Joined: 24-January 05
From: Louisville,KY
Member No.: 3,501

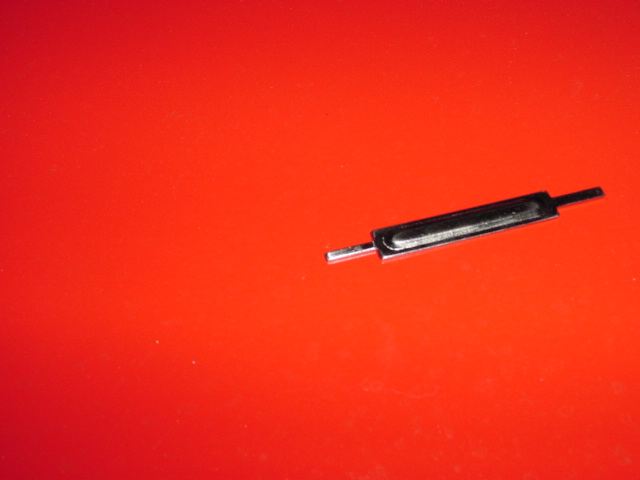

first i need one of these.....i broke mine. It's the thing that you insert into the molex plugs to release the metal things.....


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post

 Reply to this topicStart new topic
Replies(1 - 19)
bd1308
post Mar 6 2005, 07:32 PM
Post #2


Sir Post-a-lot
*****

Group: Members
Posts: 8,020
Joined: 24-January 05
From: Louisville,KY
Member No.: 3,501

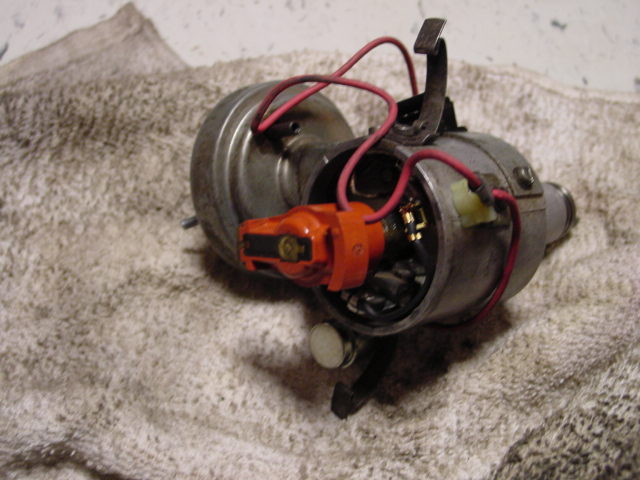

okay....how do i get into the inside of this thing so i can clean everything off and re-grease everything....?


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bd1308
post Mar 6 2005, 07:33 PM
Post #3


Sir Post-a-lot
*****

Group: Members
Posts: 8,020
Joined: 24-January 05
From: Louisville,KY
Member No.: 3,501

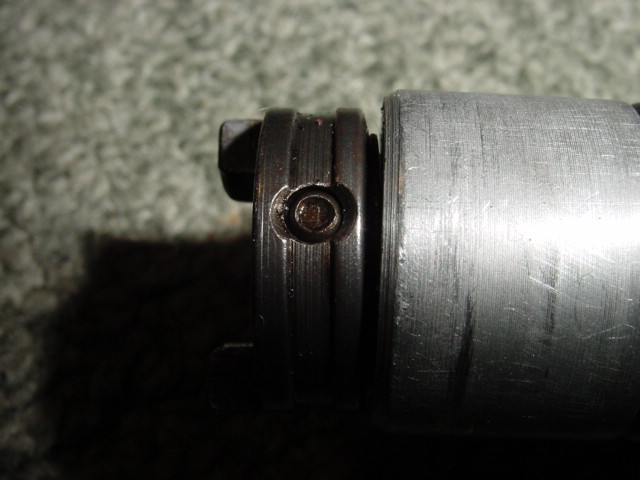

do i need a special tool here?


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dave_Darling
post Mar 6 2005, 07:43 PM
Post #4


914 Idiot
**********

Group: Members
Posts: 14,986
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California
You can fake up the pin-release tool (I thought the Molex-specific one was round?) by grinding down your smallest screwdriver. Or just pick up another pin release tool at Rat Shack (Radio Shack) or nearest equivalent electronics store.

You disassemble the distributor from the top, at least at first. You pull all of the external parts off (e.g., cap/rotor/points/vacuum dashpot), then you start working inside the distributor. The points plate comes out with some magic, or by unscrewing the tab that holds the ball bearing I think. I believe you can get in to some of the guts of the dizzy from there. For the rest, you drive out the pin that holds the drive dog onto the bottom of the shaft. Make sure you get the orientation of the dog & shaft clear so you can reassemble it correctly... Then I think you can slide the shaft out of the distributor body.

I don't think that odd-shaped hole in your photo will do anything for disassembling the distributor.

--DD
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
nebreitling
post Mar 6 2005, 07:45 PM
Post #5


Member Emeritus
****

Group: Members
Posts: 3,314
Joined: 26-March 03
From: San Francisco
Member No.: 478
it's pretty easy, actually...

take it apart from the top, for the most part. mostly just screws and stuff. keep track of the orientation of everything -- it can be a minor PITA to figure it out later.

if you're doing a full 'rebuild', you'll need some circlip pliers. check side to side action of the shaft to see if it needs it. otherwise, just a can of carb cleaner and a toothbrush ought to refresh things niceley.

add a pertonix or crane and ditch those points while you're at it.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
nebreitling
post Mar 6 2005, 07:46 PM
Post #6


Member Emeritus
****

Group: Members
Posts: 3,314
Joined: 26-March 03
From: San Francisco
Member No.: 478
whoop -- ya beat me dave (and as usual, your response was more thoughtful and accurate)... (IMG:http://www.914world.com/bbs2/html/emoticons/beer.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Type 4
post Mar 6 2005, 07:57 PM
Post #7


Member
**

Group: Members
Posts: 412
Joined: 30-September 04
From: Costa Mesa Calif.
Member No.: 2,866
Here is a How To for the dizzy Not a 914 FI but a step by step.
http://www.glenn-ring.com/010/
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bd1308
post Mar 6 2005, 08:03 PM
Post #8


Sir Post-a-lot
*****

Group: Members
Posts: 8,020
Joined: 24-January 05
From: Louisville,KY
Member No.: 3,501
alright dave....i'll give it a try.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bd1308
post Mar 6 2005, 08:08 PM
Post #9


Sir Post-a-lot
*****

Group: Members
Posts: 8,020
Joined: 24-January 05
From: Louisville,KY
Member No.: 3,501
okay anybody have a way to drive this out without fancy tools.....i have a hammer and a philips head screwdriver and maybe a wrench...mihgt have a nail...but no vice.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Joe Ricard
post Mar 6 2005, 08:12 PM
Post #10


CUMONIWANNARACEU
*****

Group: Members
Posts: 6,811
Joined: 5-January 03
From: Gautier, MS
Member No.: 92
Put your tools down and back away from the car.
You need a drift and a soft jaw vice to hold th shaft till while you drift the pin out.

Have you already taken the vacuum can off?
What is the condition of the shaft? does it wobble side to side?
or just up and down?
When you get the point plate off was it all crudy?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bd1308
post Mar 6 2005, 08:12 PM
Post #11


Sir Post-a-lot
*****

Group: Members
Posts: 8,020
Joined: 24-January 05
From: Louisville,KY
Member No.: 3,501

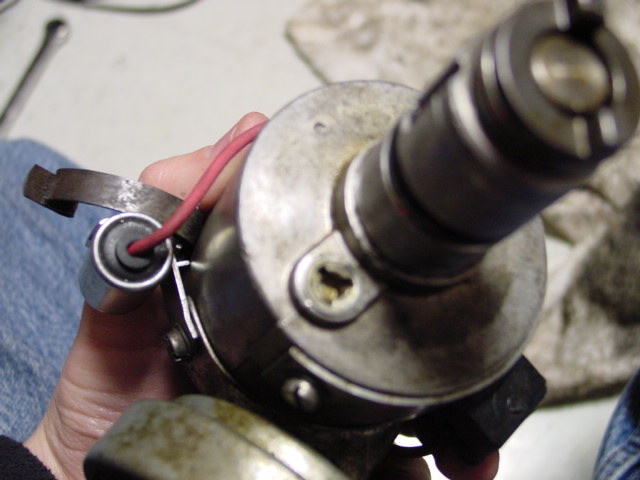

forgot pic


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bd1308
post Mar 6 2005, 09:29 PM
Post #12


Sir Post-a-lot
*****

Group: Members
Posts: 8,020
Joined: 24-January 05
From: Louisville,KY
Member No.: 3,501
got it done....i cleaned everything out with a toothbrush and carb cleaner.....now I am off to the car to see if it works.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bd1308
post Mar 6 2005, 09:58 PM
Post #13


Sir Post-a-lot
*****

Group: Members
Posts: 8,020
Joined: 24-January 05
From: Louisville,KY
Member No.: 3,501
now i finally see the real power of the 2.0.....it ROCKS! the centrifugal advance mechanism was rusted out and didn't work wel at all. I simply took everything apart and then cleaned everything out with a toothbrush and carb cleaner....the dorm people went nuts (SHHHH dont tell them) and everyone on my floor is high....BUT my car runs like a champ
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Joe Ricard
post Mar 7 2005, 09:27 AM
Post #14


CUMONIWANNARACEU
*****

Group: Members
Posts: 6,811
Joined: 5-January 03
From: Gautier, MS
Member No.: 92
Welcome to the real world of owning a 914. Take it apart fix it in the living room (or dorm room) and have it running by Monday to go to work.

(IMG:http://www.914world.com/bbs2/html/emoticons/clap.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bd1308
post Mar 7 2005, 12:33 PM
Post #15


Sir Post-a-lot
*****

Group: Members
Posts: 8,020
Joined: 24-January 05
From: Louisville,KY
Member No.: 3,501
exactly what i did.....now i just need a AAR so i dont have to drill on the gas for a minute or two until the car starts idling (but it does idle at a clean 1000...beautiful) I now have renewed hope for my car!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Joe Ricard
post Mar 7 2005, 02:32 PM
Post #16


CUMONIWANNARACEU
*****

Group: Members
Posts: 6,811
Joined: 5-January 03
From: Gautier, MS
Member No.: 92
So are you goingto still need my 1.7L motor??? I already got the money spent (IMG:http://www.914world.com/bbs2/html/emoticons/rolleyes.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bd1308
post Mar 7 2005, 03:05 PM
Post #17


Sir Post-a-lot
*****

Group: Members
Posts: 8,020
Joined: 24-January 05
From: Louisville,KY
Member No.: 3,501
QUOTE (Joe Ricard @ Mar 7 2005, 02:32 PM)
So are you goingto still need my 1.7L motor??? I already got the money spent (IMG:http://www.914world.com/bbs2/html/emoticons/rolleyes.gif)

well joe....i think not. I thought my problems were more mechanical than electronical, but when i began diving into the ignition side of my car, i learned vast amounts of knowledge and fixed my drivability issues....i just need a AAR now
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post Mar 7 2005, 03:25 PM
Post #18


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,541
Joined: 1-February 03
From: OC
Member No.: 219
Region Association: Southern California
QUOTE (Joe Ricard @ Mar 7 2005, 08:27 AM)
Welcome to the real world of owning a 914. Take it apart fix it in the living room (or dorm room) and have it running by Monday to go to work.

(IMG:http://www.914world.com/bbs2/html/emoticons/clap.gif)

LOL.... ask my roommate about the carb rebuilds i have done in here (IMG:http://www.914world.com/bbs2/html/emoticons/laugh.gif) (IMG:http://www.914world.com/bbs2/html/emoticons/lol2.gif) (IMG:http://www.914world.com/bbs2/html/emoticons/screwy.gif)


also... hogging out gauges with a dremel and building a 904 gauge....aww....the smell of epoxy (IMG:http://www.914world.com/bbs2/html/emoticons/lol2.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post Mar 7 2005, 03:25 PM
Post #19


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,541
Joined: 1-February 03
From: OC
Member No.: 219
Region Association: Southern California
QUOTE (bd1308 @ Mar 7 2005, 02:05 PM)
i just need a AAR now

good luck! (IMG:http://www.914world.com/bbs2/html/emoticons/ohmy.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bd1308
post Mar 7 2005, 03:28 PM
Post #20


Sir Post-a-lot
*****

Group: Members
Posts: 8,020
Joined: 24-January 05
From: Louisville,KY
Member No.: 3,501
aaron, i think somebody here has one.....i think it was scooter311 from the bird forum or something, or maybe it was someone else....or maybe i'll just buy a 1.8 AAR and make that one work.... (IMG:http://www.914world.com/bbs2/html/emoticons/wink.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
