> rear brake tee install pics?, anyone have any?
mightyohm
post Mar 7 2005, 02:30 AM
Post #1


Advanced Member
****

Group: Benefactors
Posts: 2,277
Joined: 16-January 03
From: Seattle, WA
Member No.: 162
Region Association: Pacific Northwest
Anyone have any pics of rear brake tee installs? I want to see how much you have to bend the hardlines and how you did it. I have a nice ATE brake tee off a BMW 2002 that has a mounting hole in it, but I'm not sure I can bend the lines enough to mount it to the firewall where the prop valve used to be. Before I go and make a bracket or something I would like to see what others have done.

Thanks!!

PS: You can remove the prop valve with the engine in the car, it just takes a few minutes. (IMG:http://www.914world.com/bbs2/html/emoticons/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ArtechnikA
post Mar 7 2005, 06:34 AM
Post #2


rich herzog
*****

Group: Members
Posts: 7,390
Joined: 4-April 03
From: Salted Roads, PA
Member No.: 513
Region Association: None
i just replaced the two side hardlines, i think...
i couldn't see how to make the factory lines longer.
it was a long time ago, i just don't recall.
also, it's a /6, and that might make a difference.
my opinion is just go get new hardlines and replace the rear flex hoses while you're at it...

(i also replaced the hardline from the center tunnel through the bulkhead to the Tee, since the fitting got buggered removing the prop valve. THAT job is a stone b!tch and i even bought the factory hardline, which i had naively hoped would have the proper bends. nope - it's just has the proper length, you still need to figure the bends and fish it through the bulkhead...)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
URY914
post Mar 7 2005, 07:20 AM
Post #3


I built the lightest 914 in the history of mankind.
****************************************************************************************************

Group: Members
Posts: 126,214
Joined: 3-February 03
From: Jacksonville, FL
Member No.: 222
Region Association: None
I installed a T with mouting hole and didn't have to change the lines. Just carefully bend them around. Don't have a picture now (at work) but I could take one tonight and post it. I didn't actually mount it, it just hangs there by the brake lines.

Paul
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
d914
post Mar 7 2005, 07:21 AM
Post #4


Advanced Member
****

Group: Members
Posts: 2,349
Joined: 12-July 03
From: Atlanta, ga
Member No.: 904
Region Association: South East States
same as above
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
skline
post Mar 7 2005, 07:53 AM
Post #5


Born to Drive
*****

Group: Members
Posts: 7,910
Joined: 26-December 02
From: Costa Mesa, CA
Member No.: 17
Region Association: Southern California
Like they said, when I put mine in I was replacing all the hard lines in the car. It was much easier that way.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
CptTripps
post Mar 7 2005, 07:56 AM
Post #6


:: Punch and Pie ::
****

Group: Members
Posts: 3,585
Joined: 26-December 04
From: Tuscaloosa, AL and Akron, OH
Member No.: 3,342
Region Association: Upper MidWest
If I'm doing BMW Brakes in the front, and Stock 914s in the rear, with a 19mm master, can I use a T in the rear instead of the prop valve?

I'm going to be replacing all the hard-lines anyway...while I'm there???
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ArtechnikA
post Mar 7 2005, 08:02 AM
Post #7


rich herzog
*****

Group: Members
Posts: 7,390
Joined: 4-April 03
From: Salted Roads, PA
Member No.: 513
Region Association: None
QUOTE (CptTripps @ Mar 7 2005, 08:56 AM)
I'm going to be replacing all the hard-lines anyway...while I'm there???

As Long As you're on the As Long As path... IMO you should consider adding an adjustable bias valve, such as one of the Tilton units (there are others...)

they're not *that* expensive and you only have to bleed the brakes for the one installation...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
URY914
post Mar 7 2005, 08:05 AM
Post #8


I built the lightest 914 in the history of mankind.
****************************************************************************************************

Group: Members
Posts: 126,214
Joined: 3-February 03
From: Jacksonville, FL
Member No.: 222
Region Association: None
QUOTE (CptTripps @ Mar 7 2005, 05:56 AM)
If I'm doing BMW Brakes in the front, and Stock 914s in the rear, with a 19mm master, can I use a T in the rear instead of the prop valve?

I'm going to be replacing all the hard-lines anyway...while I'm there???

I would think so. but why replace the lines? They don't wear out, take some steel wool and clean them up real nice.

Paul
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mightyohm
post Mar 7 2005, 11:22 AM
Post #9


Advanced Member
****

Group: Benefactors
Posts: 2,277
Joined: 16-January 03
From: Seattle, WA
Member No.: 162
Region Association: Pacific Northwest
Paul, I would love to see pics of your setup. Are you worried about the tee bouncing around and fatiguing the lines?

I forget who it was on PP that was talking about mounting the tee to the firewall using a 1" spacer and one of the existing prop valve threaded holes. It sounds like a great idea but I think the lines would have to be bent significantly to make it work.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
URY914
post Mar 7 2005, 11:30 AM
Post #10


I built the lightest 914 in the history of mankind.
****************************************************************************************************

Group: Members
Posts: 126,214
Joined: 3-February 03
From: Jacksonville, FL
Member No.: 222
Region Association: None
QUOTE (jkeyzer @ Mar 7 2005, 09:22 AM)
Paul, I would love to see pics of your setup. Are you worried about the tee bouncing around and fatiguing the lines?

I don't think the T will move much but I plan on tie-wrapping it to the firewall. Nuts and nots are SOOOO heavy. (IMG:http://www.914world.com/bbs2/html/emoticons/biggrin.gif)

It would take 100 years to fatigue thru the line IMO.

Paul
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Series9
post Mar 7 2005, 11:51 AM
Post #11


Lesbians taste like chicken.
*****

Group: Members
Posts: 5,446
Joined: 22-August 04
From: DeLand, FL
Member No.: 2,602
Region Association: South East States

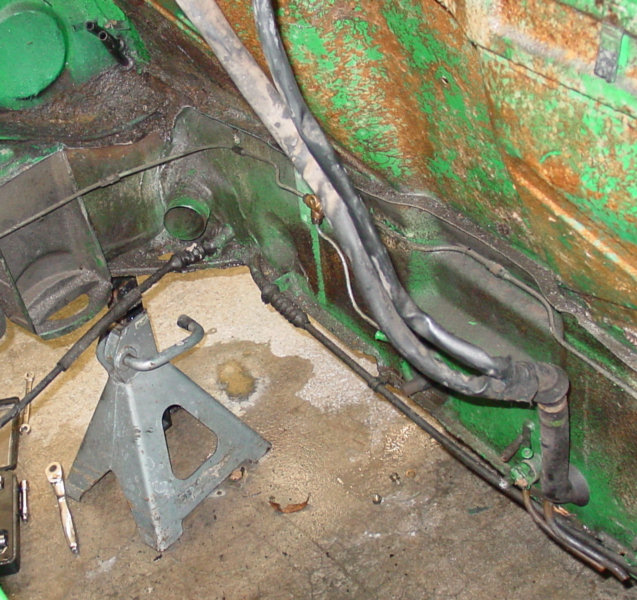

This may not help, because I ran all new lines, but here's mine:


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JoeSharp
post Mar 7 2005, 12:29 PM
Post #12


In Irvine, Ca. May 15-18
****

Group: Members
Posts: 3,947
Joined: 9-July 03
From: DeLand, Florida
Member No.: 898
Region Association: South East States
Joe: You do that just to embarass us, don't You.
(IMG:http://www.914world.com/bbs2/html/emoticons/biggrin.gif) Joe
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
URY914
post Mar 7 2005, 12:31 PM
Post #13


I built the lightest 914 in the history of mankind.
****************************************************************************************************

Group: Members
Posts: 126,214
Joined: 3-February 03
From: Jacksonville, FL
Member No.: 222
Region Association: None
Forget it. I'm not posting pics of my car now. (IMG:http://www.914world.com/bbs2/html/emoticons/rolleyes.gif)

Paul
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Series9
post Mar 7 2005, 12:33 PM
Post #14


Lesbians taste like chicken.
*****

Group: Members
Posts: 5,446
Joined: 22-August 04
From: DeLand, FL
Member No.: 2,602
Region Association: South East States
QUOTE (Joe Sharp @ Mar 7 2005, 11:29 AM)
Joe: You do that just to embarass us, don't You.
(IMG:http://www.914world.com/bbs2/html/emoticons/biggrin.gif) Joe

Just trying to help..... (IMG:http://www.914world.com/bbs2/html/emoticons/cool.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Series9
post Mar 7 2005, 12:36 PM
Post #15


Lesbians taste like chicken.
*****

Group: Members
Posts: 5,446
Joined: 22-August 04
From: DeLand, FL
Member No.: 2,602
Region Association: South East States
QUOTE (URY914 @ Mar 7 2005, 10:30 AM)
I plan on tie-wrapping it to the firewall.

What firewall? (IMG:http://www.914world.com/bbs2/html/emoticons/laugh.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bondo
post Mar 7 2005, 12:45 PM
Post #16


Practicing my perpendicular parking
****

Group: Members
Posts: 4,277
Joined: 19-April 03
From: Los Osos, CA
Member No.: 587
Region Association: Central California

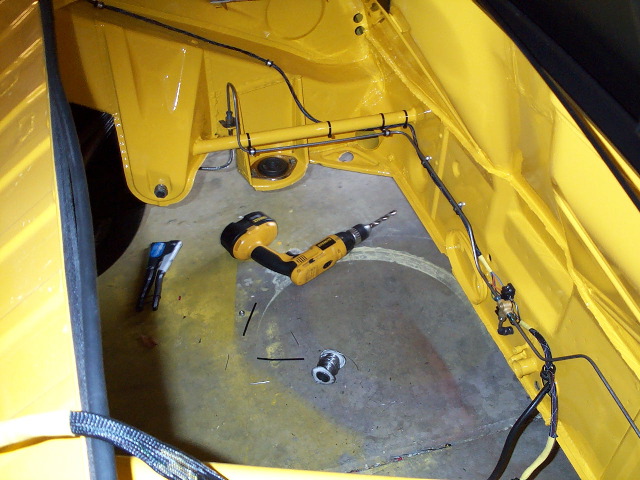

This is the best pic I've got. I can't go take a better one because I removed all the lines in preparation for the soda blasting.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JoeSharp
post Mar 7 2005, 12:45 PM
Post #17


In Irvine, Ca. May 15-18
****

Group: Members
Posts: 3,947
Joined: 9-July 03
From: DeLand, Florida
Member No.: 898
Region Association: South East States
Beautiful work Joe.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SpecialK
post Mar 7 2005, 04:48 PM
Post #18


aircraft surgeon
****

Group: Benefactors
Posts: 3,211
Joined: 15-March 04
From: Pacific, MO
Member No.: 1,797
QUOTE (Joe Sharp @ Mar 7 2005, 10:45 AM)
Beautiful work Joe.

(IMG:http://www.914world.com/bbs2/html/emoticons/agree.gif)

VERY nice!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
John2kx
post Mar 7 2005, 04:57 PM
Post #19


Senior Member
***

Group: Members
Posts: 502
Joined: 22-August 03
From: Augusta, Ga.
Member No.: 1,066

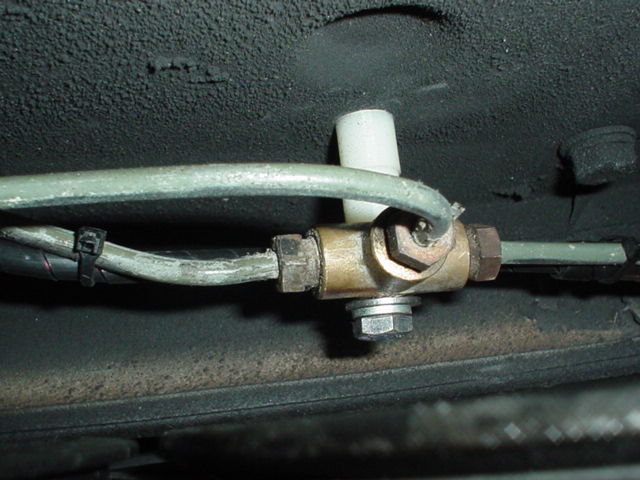

I thought this pic might come in handy someday. Used the factory lines and installed a plastic spacer to fill gap where prop. valve mounted to bulkhead.

John


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Mar 7 2005, 05:40 PM
Post #20


Resident German
*************************

Group: Admin
Posts: 42,199
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
my TEE ...
stock lines, just needed a bit of careful bending ...

(IMG:http://www.914world.com/bbs2/html/emoticons/boldblue.gif) Andy

(IMG:http://www.sirandy.com/pix/914/2003.04.14/IMGP1714.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
