> Throttle body, Throttle body, Throttle body,
Teknon
post Mar 8 2005, 02:12 PM
Post #1


The more I learn the dumber i think I am
**

Group: Members
Posts: 357
Joined: 10-August 04
From: Denver, Colorado
Member No.: 2,505
Region Association: Rocky Mountains
I picked up a bunch of parts and am trying to sort them out. I'm doing pretty good except for the throttle bodies.

I need to find out what these go to.

022 133 067 42mm 5 pins
022 133 067A 45mm 3 pins
039 133 067 45mm 4 pins

I've search the net for two hours.

Help (IMG:http://www.914world.com/bbs2/html/emoticons/sad.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mattillac
post Mar 8 2005, 02:52 PM
Post #2


robots!
***

Group: Members
Posts: 536
Joined: 27-October 04
From: vallejo,ca
Member No.: 3,020
(IMG:http://www.914world.com/bbs2/html/emoticons/thisthreadisworthlesswithoutpics.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Teknon
post Mar 8 2005, 03:07 PM
Post #3


The more I learn the dumber i think I am
**

Group: Members
Posts: 357
Joined: 10-August 04
From: Denver, Colorado
Member No.: 2,505
Region Association: Rocky Mountains

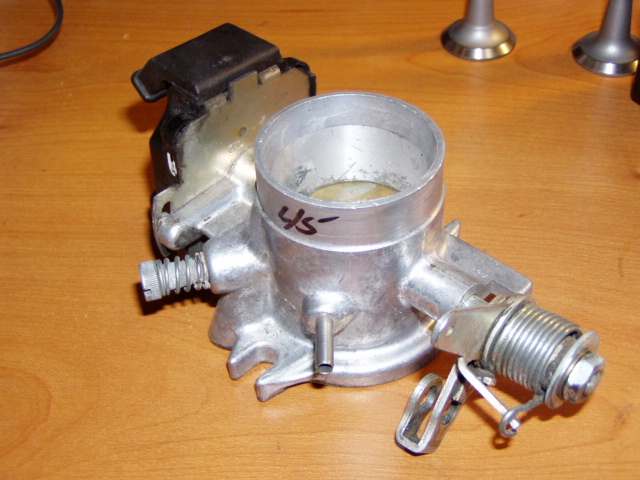

039 133 067 45mm 5 pin


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Teknon
post Mar 8 2005, 03:09 PM
Post #4


The more I learn the dumber i think I am
**

Group: Members
Posts: 357
Joined: 10-August 04
From: Denver, Colorado
Member No.: 2,505
Region Association: Rocky Mountains

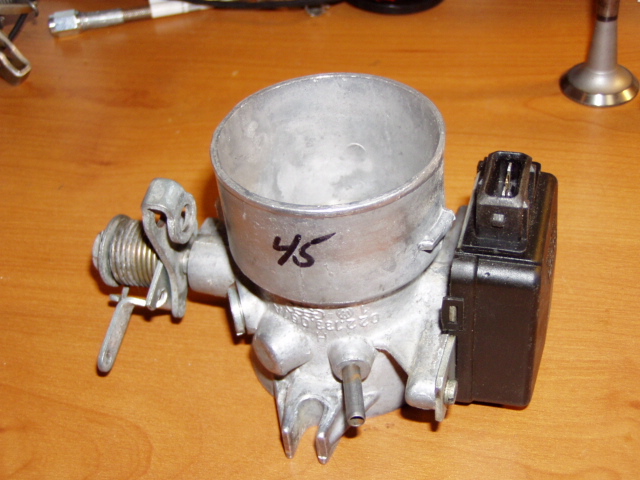

022 133 067A 45mm 3 pin


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Teknon
post Mar 8 2005, 03:10 PM
Post #5


The more I learn the dumber i think I am
**

Group: Members
Posts: 357
Joined: 10-August 04
From: Denver, Colorado
Member No.: 2,505
Region Association: Rocky Mountains

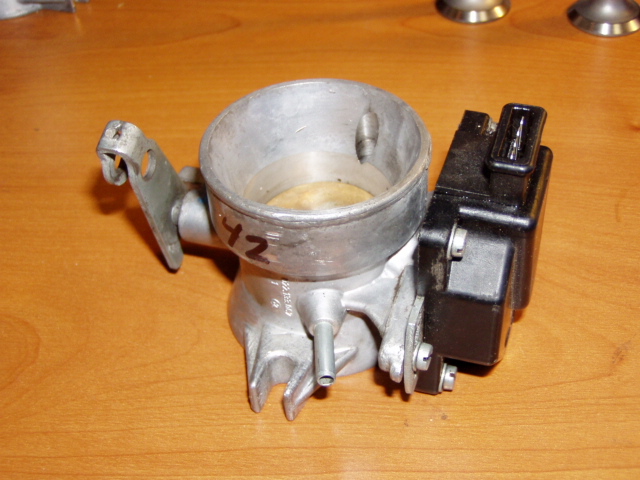

022 133 067 42mm 4 pin


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dave_Darling
post Mar 8 2005, 03:10 PM
Post #6


914 Idiot
***************

Group: Members
Posts: 15,161
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California
I believe the first is 1.7; the second is 1.8; I know the third is 2.0. The 039 part number means 2.0. To me, three pins means 1.8 TB.

--DD
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Teknon
post Mar 8 2005, 03:53 PM
Post #7


The more I learn the dumber i think I am
**

Group: Members
Posts: 357
Joined: 10-August 04
From: Denver, Colorado
Member No.: 2,505
Region Association: Rocky Mountains
QUOTE (Dave_Darling @ Mar 8 2005, 03:10 PM)
I believe the first is 1.7; the second is 1.8; I know the third is 2.0.  The 039 part number means 2.0.  To me, three pins means 1.8 TB.

--DD

Thanks again Dave. We all definitely have to make you a golden 914 award.

(IMG:http://www.914world.com/bbs2/html/emoticons/smilie_pokal.gif) (IMG:http://www.914world.com/bbs2/html/emoticons/smilie_pokal.gif) (IMG:http://www.914world.com/bbs2/html/emoticons/smilie_pokal.gif) (IMG:http://www.914world.com/bbs2/html/emoticons/smilie_pokal.gif) (IMG:http://www.914world.com/bbs2/html/emoticons/smilie_pokal.gif) (IMG:http://www.914world.com/bbs2/html/emoticons/smilie_pokal.gif) (IMG:http://www.914world.com/bbs2/html/emoticons/smilie_pokal.gif) (IMG:http://www.914world.com/bbs2/html/emoticons/smilie_pokal.gif) (IMG:http://www.914world.com/bbs2/html/emoticons/smilie_pokal.gif) (IMG:http://www.914world.com/bbs2/html/emoticons/smilie_pokal.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TheCabinetmaker
post Mar 8 2005, 04:03 PM
Post #8


I drive my car everyday
*****

Group: Members
Posts: 8,336
Joined: 8-May 03
From: Tulsa, Ok.
Member No.: 666
Not to dispute the wisdom of DD, buuuuutttt, The first pic looks to be from a 75 or 76 because of the extra return spring. I beleive that is a 2.0L from those years. Just went and checked mine. 022 133 067--75 2.0L
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Teknon
post Mar 8 2005, 04:31 PM
Post #9


The more I learn the dumber i think I am
**

Group: Members
Posts: 357
Joined: 10-August 04
From: Denver, Colorado
Member No.: 2,505
Region Association: Rocky Mountains
QUOTE (vsg914 @ Mar 8 2005, 04:03 PM)
Not to dispute the wisdom of DD, buuuuutttt, The first pic looks to be from a 75 or 76 because of the extra return spring. I beleive that is a 2.0L from those years. Just went and checked mine. 022 133 067--75 2.0L

Curt, How many pin connectors are on your 022 133 067 ???? Is there an A after the numbers. Thanks for the info. (IMG:http://www.914world.com/bbs2/html/emoticons/ohmy.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TheCabinetmaker
post Mar 8 2005, 04:51 PM
Post #10


I drive my car everyday
*****

Group: Members
Posts: 8,336
Joined: 8-May 03
From: Tulsa, Ok.
Member No.: 666
5 pins. No A
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dave_Darling
post Mar 8 2005, 04:57 PM
Post #11


914 Idiot
***************

Group: Members
Posts: 15,161
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California
Hey, Curt--all of the 2.0s except for the early 73s have the extra return spring.

If there's only one vacuum fitting on it (the one we see in the pic), it's a 74+ throttle body. If there are two, it could be mid-73 through 76; not all of the 74+ cars were missing the vacuum advance fitting.

Any time you see a part with a VW part number starting "039", it's for a 2.0 liter. Almost always it's for an engine or engine-related part.

--DD
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TheCabinetmaker
post Mar 8 2005, 05:09 PM
Post #12


I drive my car everyday
*****

Group: Members
Posts: 8,336
Joined: 8-May 03
From: Tulsa, Ok.
Member No.: 666
I concede. Dave has spoken. but it is a 2L right?

Oh yeah, I wanna see ya at MUSR. I owe ya a 6 of newkie brown from last year.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SLITS
post Mar 8 2005, 05:27 PM
Post #13


"This Utah shit is HARSH!"
**********

Group: Benefactors
Posts: 13,602
Joined: 22-February 04
From: SoCal Mountains ...
Member No.: 1,696
Region Association: None
PET 6 shows the numbers, except they all end in 62 not 67

Bosch CD doesn't recognize any of the numbers

VW/AUDI EKT...numbers aren't even close

What about numbers from the TPS itself...the black thingy?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dave_Darling
post Mar 9 2005, 11:46 AM
Post #14


914 Idiot
***************

Group: Members
Posts: 15,161
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California
QUOTE (vsg914 @ Mar 8 2005, 03:09 PM)
I concede. Dave has spoken. but it is a 2L right?

Definitely. It even has the correct flange on the bottom to bolt down onto the top of the plenum; the other two have a different shape that bolts up to the side of the plenum.

QUOTE
Oh yeah, I wanna see ya at MUSR. I owe ya a 6 of newkie brown from last year.


I don't think that's going to happen, sadly. (See my "Guess What" post for the reason...) I hope you enjoyed the Newkie! (IMG:http://www.914world.com/bbs2/html/emoticons/smile.gif)

--DD
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Allan
post Mar 9 2005, 11:57 AM
Post #15


Teenerless Weenie
*****

Group: Members
Posts: 8,373
Joined: 5-July 04
From: Western Mesopotamia
Member No.: 2,304
Region Association: Southern California
I have the first one on my motor. (Well sort of, it's on the floor close to my motor) '76 2.0.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Mar 9 2005, 02:34 PM
Post #16


Resident German
*************************

Group: Admin
Posts: 42,205
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE (vsg914 @ Mar 8 2005, 02:03 PM)
Not to dispute the wisdom of DD, buuuuutttt

dave was talking about the order in which they were listed in the first post, you're talking about the order of the pictures he posted.
simple mis-communication here ...

dave's right (if you look at the order in which they were listed in the first post)
(IMG:http://www.914world.com/bbs2/html/emoticons/wink.gif) Andy
User is online!Profile CardPM
Go to the top of the page
+Quote Post
mattillac
post Mar 9 2005, 03:56 PM
Post #17


robots!
***

Group: Members
Posts: 536
Joined: 27-October 04
From: vallejo,ca
Member No.: 3,020
QUOTE (Teknon @ Mar 8 2005, 01:07 PM)
039 133 067 45mm 5 pin

that looks the same as the TB on my 1975 2.0 fi d-jet, if that helps at all.
