Who Really Knows the Wiper Switch?, Need help identifying where part goes. |
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
Who Really Knows the Wiper Switch?, Need help identifying where part goes. |
ChrisFix |
Mar 12 2005, 02:24 PM
Post
#1
|
Member Group: Members Posts: 173 Joined: 3-March 05 From: Chapel Hill, NC Member No.: 3,707 |

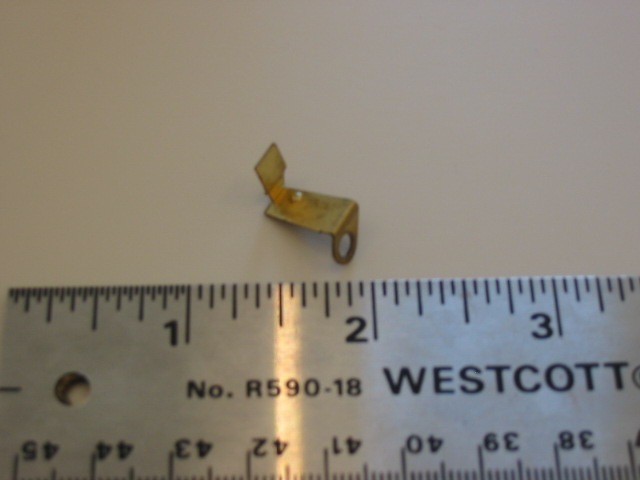

I was trying to replace the windshield washer hoses that connect to the wiper switch, and this small priece fell out of the switch assembly when I was taking a washer hose off. I didn't see where it came from, so don't know where it goes. Anybody out there know the intimate details of the switch assembly. Additional switch photos to follow.
Thanks! Attached image(s) |
ChrisFix |
Mar 12 2005, 02:25 PM
Post
#2
|
Member Group: Members Posts: 173 Joined: 3-March 05 From: Chapel Hill, NC Member No.: 3,707 |
Wiper switch side of switch assembly...
Attached image(s) |
ChrisFix |
Mar 12 2005, 02:27 PM
Post
#3
|
Member Group: Members Posts: 173 Joined: 3-March 05 From: Chapel Hill, NC Member No.: 3,707 |
Overall side view of assembly...
Attached image(s) |
ChrisFix |
Mar 12 2005, 02:28 PM
Post
#4
|
Member Group: Members Posts: 173 Joined: 3-March 05 From: Chapel Hill, NC Member No.: 3,707 |
Front of assembly...
Attached image(s) |
ChrisFix |
Mar 12 2005, 02:45 PM
Post
#5
|
Member Group: Members Posts: 173 Joined: 3-March 05 From: Chapel Hill, NC Member No.: 3,707 |
Some more trial and error and I found where it goes. Here is a pic just incase anyone else ever has the same problem. It provides ground to the column.
Attached image(s) |
markb |
Mar 12 2005, 05:15 PM
Post
#6
|
914less :( Group: Members Posts: 5,449 Joined: 22-January 03 From: Nipomo, CA Member No.: 180 Region Association: Central California |
Thanks! I've got one sitting on my toolbox from pulling a switch apart last week. Now I can put it back in. (IMG:http://www.914world.com/bbs2/html/emoticons/biggrin.gif)
|
ChrisFix |
Mar 12 2005, 06:33 PM
Post
#7
|
Member Group: Members Posts: 173 Joined: 3-March 05 From: Chapel Hill, NC Member No.: 3,707 |
I'm glad that someone else good use that info. In case it isn't clear from the photo, the connector sits just above the opening on the left side of the assembly (where the washer tubes connect). The upper left screw (one of the four skinny ones that hold the assembly in) passes through the hole of the connector to keep in in place.
|
