> Tool for adjusting the trigger-points of Bosch D-Jetronic, - suitable for all car brands with D-Jetronic and Bosch distributor
nordfisch
post Dec 12 2015, 12:50 PM
Post #1


Member
**

Group: Members
Posts: 86
Joined: 11-December 15
From: Germany
Member No.: 19,451
Region Association: None



I once misadjusted a trigger-points-set believing in this would solve the problems of my car... the unit was still functional afterwards, but I didn't believe in it's reliability anymore.
I found this device many years later in my cellar, decided to readjust it and therefore did some re-engineering.
The result was a tool you can control and readjust your trigger-points-set with.

The trigger-points themselves don't show any wear. But the fibre rubbing blocks are being grinded down when gliding on the distributor-camshaft, especially when this has become rusty or the original small amount of grease has been gone away.

You can adjust even heavy worn trigger-points without any electrical function to the original values by using the tool, that simulates the bottom of the distributor-camshaft.
The lifetime of the trigger-point-unit can be prolonged about two additive times this way.

This new version is designed to work with the new trigger-points-sets with the plastic hoods covering the points, too.
The tool has been well approved in four continents now - no reason to change anything on it in the future.

You need a lathe to produce the tool by yourself.
Registered users will get a figure - free for non-commercial use only -
completed with the dimensions, on request.
I don't want this figure to be published in a forum anymore.

D-Jetronic is my hobby and I have no financial interest, but not everyone has a lathe to produce it by himself, therefore I have some ready-produced tools in stock most of the time.
I can ship the tool worldwide for $ 20.-, shipment included.

For further information / questions / additions post to this forum or contact me via PM.

How to use the tool for adjusting the Trigger-points of the D-Jetronic

The model-specific flute (notch) of the tool has to be pushed into the noses of the base-plate of the points-set or the base-plate itself.
This flute centers the tool to the same position as it were in the distributor. This allows exact and symmetric adjustment.

Because there exist base-plates in three different thicknesses, the matching flute has to be chosen (figure below!):

1 - On the top a flute for Volkswagen, Porsche...?
2 - On the bottom a flute for base-plates-sets with 3 'noses' (Opel, Volvo, Lancia, Fiat, Citroën, Mercedes - R6, BMW, ...?)
3 - On the second position from bottom a flute for Mercedes – V8

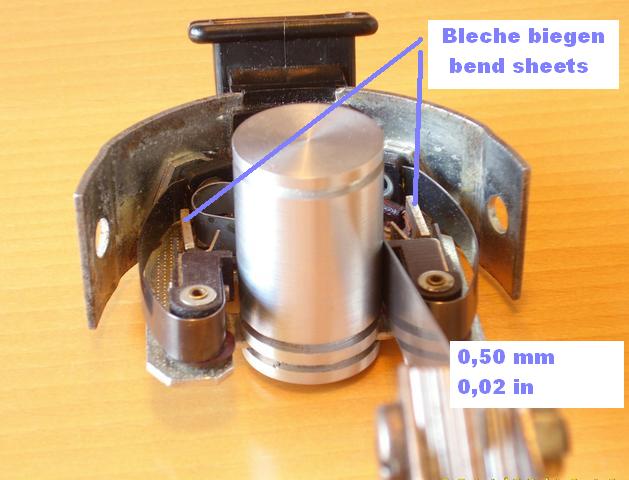

The figure below shows the tool in position (points set type '2').
Attached Image

1. Adjust space between tool and fibre rubbing blocks to 0.02 in (0,50 mm) in this position by bending the sheets of the anvil-plate with flat-nose pliers, checking with a feeler-gauge.

2. By inserting a feeler-gauge of 0.04 in (1,00 mm) instead you can check the points in fully-opened situation. The points gap will be 0.03 in (0,75 mm) if correctly adjusted.

Adjusting the points has to be approved with sense, power and skillfulness. I used flat-nose-pliers and after some trying out got exact adjustments.

You have to take care of the following:

1. The tool has to be pushed into the the trigger-unit all the way up to the stop. Some turning the tool and trying again may help, perhaps a little grease will help. The tool has to fit exactly, therefore the tolerance is minimized.

2. The anvil-plate of the points is mounted insulated, therefore may have some tolerance towards the base-plate. After adjusting one side of the trigger-points-pair, you have to control the opposite side. Maybe you have to re-adjust this a couple of times.

But: The D-Jetronic is not a direct injection system. You need not try to adjust the points too precisely. Adjustment to 0.02 in is the optimal value cause then all possible tolerances are adjusted to the average. Even new original trigger points have some tolerance, as I found out.

Take care the points are absolutely clean, no grease or oil remains between them.
Control the distributor-camshaft isn't rusty or worn-out, scratched
You essentially have to grease the fibre rubbing blocks by applying a very small amount of points cam grease when re-installing the trigger-point-unit also.

You use this tool at your own risk. It has not been approved by the OEM. Using the tool, you accept this term.

(Tool Ver 3.1Xen © 10/2014)

Norbert Fischer
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Dec 12 2015, 07:51 PM
Post #2


914 Wiring Harnesses
*****

Group: Members
Posts: 8,548
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None



Hi Norbert, I would like to order one of these tools. Let me know how to pay you (send me an email or PM through this forum). Many thanks.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
nordfisch
post Dec 13 2015, 06:51 AM
Post #3


Member
**

Group: Members
Posts: 86
Joined: 11-December 15
From: Germany
Member No.: 19,451
Region Association: None



QUOTE(Jeff Bowlsby @ Dec 13 2015, 02:51 AM) *

Hi Norbert, I would like to order one of these tools. Let me know how to pay you (send me an email or PM through this forum). Many thanks.

Hi Jeff,
you could transfer the money via PayPal.
I then need your full postal adress.
The customs have never been a problem up to this time, shipment will last about 10 days in normal times. But now is Christmas time, postal services maybe overcharged.
Send you a PM.

Regards
Norbert
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Dec 13 2015, 12:13 PM
Post #4


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None



PM me a PayPal address as well. I'll take one.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post Dec 13 2015, 12:22 PM
Post #5


Advanced Member
****

Group: Members
Posts: 4,731
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None



Nice! I'd like one too. Please PM a Paypal address.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jmalone
post Dec 13 2015, 06:27 PM
Post #6


Member
**

Group: Members
Posts: 119
Joined: 3-July 09
From: reno,NV
Member No.: 10,529
Region Association: Northern California



Thanks for doing this. I would like one as well. Please send me your PayPal info.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DRPHIL914
post Dec 14 2015, 07:58 AM
Post #7


Dr. Phil
*****

Group: Members
Posts: 5,769
Joined: 9-December 09
From: Bluffton, SC
Member No.: 11,106
Region Association: South East States



This is excellent since the original OEM points are now no longer available!!
I'll take one as well
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
BillC
post Dec 14 2015, 09:42 AM
Post #8


Senior Member
***

Group: Members
Posts: 549
Joined: 24-April 15
From: Silver Spring, MD
Member No.: 18,667
Region Association: MidAtlantic Region



This is a great idea. I would also like to order one. Please send me a PM with your paypal info. Thanks!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
nordfisch
post Dec 16 2015, 07:17 AM
Post #9


Member
**

Group: Members
Posts: 86
Joined: 11-December 15
From: Germany
Member No.: 19,451
Region Association: None



Hi,
I now shipped all the tools.
Would like to get informed, when they arrive.

Best Wishes and a Merry Christmas (IMG:style_emoticons/default/santa_smiley.gif) from Germany

Norbert
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DRPHIL914
post Dec 16 2015, 07:19 AM
Post #10


Dr. Phil
*****

Group: Members
Posts: 5,769
Joined: 9-December 09
From: Bluffton, SC
Member No.: 11,106
Region Association: South East States



QUOTE(nordfisch @ Dec 16 2015, 08:17 AM) *

Hi,
I now shipped all the tools.
Would like to get informed, when they arrive.

Best Wishes and a Merry Christmas (IMG:style_emoticons/default/santa_smiley.gif) from Germany

Norbert

Norbert,

I just sent you payment for mine, sorry I forgot to do this last night, but you should have funds in your account as we speak!! thanks

Dr. Phil
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ndfrigi
post Dec 16 2015, 11:06 AM
Post #11


Advanced Member
****

Group: Members
Posts: 2,933
Joined: 21-August 11
From: Orange County
Member No.: 13,474
Region Association: Southern California



Hi Norbert, do you still have 1 set of this tool?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
pilothyer
post Dec 16 2015, 12:16 PM
Post #12


Member
***

Group: Members
Posts: 838
Joined: 21-May 08
From: N. Alabama
Member No.: 9,080
Region Association: South East States



If you have more, I would love to have one...........Jerry
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ssuperflyoldguy
post Dec 23 2015, 11:14 AM
Post #13


Member
**

Group: Members
Posts: 173
Joined: 15-November 15
From: NorCal - East Bay Baby!
Member No.: 19,364
Region Association: None



I would like one also, I'll send you a request via pm. Thanks for making this up, really appreciate.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
BillC
post Dec 24 2015, 06:26 AM
Post #14


Senior Member
***

Group: Members
Posts: 549
Joined: 24-April 15
From: Silver Spring, MD
Member No.: 18,667
Region Association: MidAtlantic Region



Mine arrived last night, and it's very nice. Thanks! (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
liebe
post Dec 24 2015, 06:45 AM
Post #15


Newbie
*

Group: Members
Posts: 17
Joined: 10-April 12
From: Spain/Houston
Member No.: 14,357
Region Association: None




Norbert i would also like one too please
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
nordfisch
post Jan 13 2016, 01:00 PM
Post #16


Member
**

Group: Members
Posts: 86
Joined: 11-December 15
From: Germany
Member No.: 19,451
Region Association: None



Hi,
two users informed me they did not receive the tools I shipped last year immediately after having received the payment up to this time.

I can't track the letters I ship as 'Priority Mail'.

Maybe they are still at the customs, maybe they got lost in Germany...

Please inform me if you didn't receive the tool you ordered and paid, too

Regards
Norbert Fischer
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post Jan 13 2016, 01:05 PM
Post #17


"I got blisters on me fingers"
**********

Group: Members
Posts: 10,156
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest



PM sent
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Old Yella
post Jan 13 2016, 05:54 PM
Post #18


Old Yella
**

Group: Members
Posts: 158
Joined: 2-July 13
From: Canberra Australia
Member No.: 16,086
Region Association: Southwest Region



Bet they'll arrive, takes forever from Europe sometimes.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DRPHIL914
post Jan 13 2016, 09:33 PM
Post #19


Dr. Phil
*****

Group: Members
Posts: 5,769
Joined: 9-December 09
From: Bluffton, SC
Member No.: 11,106
Region Association: South East States



Got mine, thank you!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Jan 14 2016, 04:28 AM
Post #20


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None



Got mine awhile back. Took me a minute to remember what the heck I ordered.
User is offlineProfile CardPM
