> Side shift bushing issue, Has anyone else run into this?
-JR-
post Feb 12 2016, 02:08 PM
Post #1


Life goes faster at 150MPH
**

Group: Members
Posts: 276
Joined: 12-May 04
From: Victoria BC Canada
Member No.: 2,055
I'm in the process of cleaning up a few things on my 75 teen.

One of the jobs was to fix up a sloppy tail shift bushing, THIS ONE.
(IMG:http://www.914world.com/bbs2/uploads_offsite/shop.914rubber.com-2055-1455307717.1.jpeg)

I purchased a new one from my friends at AutoAtlanta. They inform me I did in fact order the correct one.

When I installed this bushing into my side shifter housing it fits loose both on the trans and the shift rod.

I've inspected the opening for signs of wear, but it looks to be in good shape and not worn, plus the old bushing did fit tight in the hole.

Measuring the transmission opening I get 22mm but the bushing is just a hair under 21mm.

I've been advised that I must have had a custom bushing installed. My car is very original and the bushing I cut out looked very old. The bushing I removed looked more like the FIREWALL BUSHING with no "castle" like fingers, it was just one solid ring.

Anyone have an idea what I'm running into?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
brant
post Feb 12 2016, 02:31 PM
Post #2


914 Wizard
**********

Group: Members
Posts: 11,939
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains
your running into the last owners custom bushing...

make it from oil impregnated brass
make it custom to fit the wear in your shift rod, and wear in your transmission shift console.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
ChrisFoley
post Feb 12 2016, 02:53 PM
Post #3


I am Tangerine Racing
*****

Group: Members
Posts: 7,981
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None
Just JB weld the new bushing in place so it doesn't move around.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
-JR-
post Feb 12 2016, 05:47 PM
Post #4


Life goes faster at 150MPH
**

Group: Members
Posts: 276
Joined: 12-May 04
From: Victoria BC Canada
Member No.: 2,055
Anyone know the bushing dimensions for the firewall bushing...

914-424-224-03

I'm taking a guess that this one might be what was installed in the transmission.

thanks!

-JR-
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bretth
post Feb 12 2016, 06:25 PM
Post #5


Senior Member
***

Group: Members
Posts: 899
Joined: 23-June 15
From: Central TX
Member No.: 18,882
Region Association: Southwest Region
The subject of the post is side shift bushing but in your post you call it a tail shift bushing. Maybe is the wrong one? 75 is side shift of course though i haven't even taken mine apart yet.

Brett
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mikey914
post Feb 12 2016, 08:42 PM
Post #6


The rubber man
**********

Group: Members
Posts: 12,767
Joined: 27-December 04
From: Hillsboro, OR
Member No.: 3,348
Region Association: None

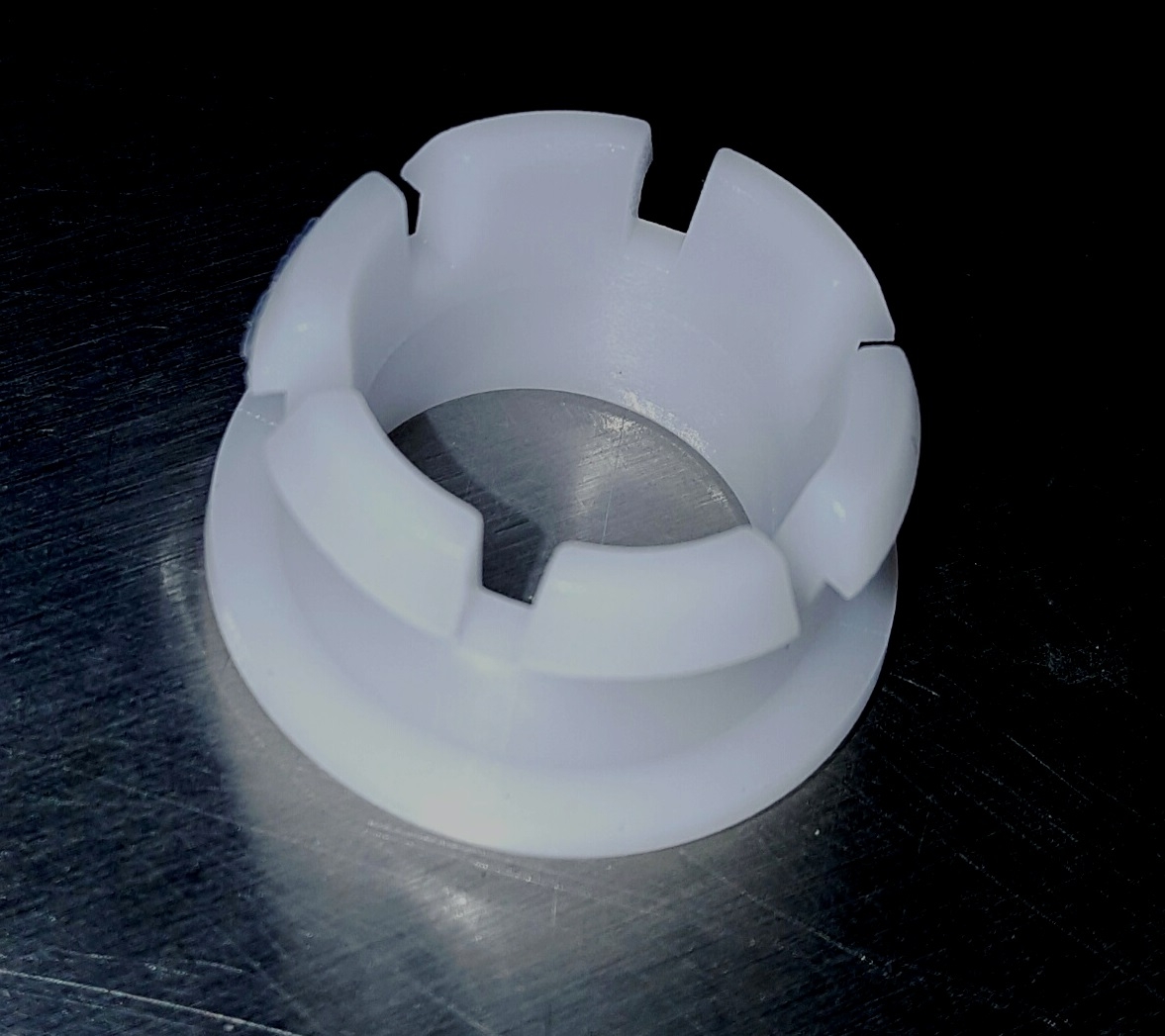

This what you are looking for? It's part # 914.424.224.02

AT $2.99!!!

http://shop.914rubber.com/Late-side-shifte...m?categoryId=-1


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Feb 12 2016, 09:23 PM
Post #7


Custom Member
***************

Group: Members
Posts: 24,705
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
They all fit loose.
I made custom bronze ones for mine that are tight.
Plastic ones don't fit
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
larryM
post Feb 12 2016, 10:15 PM
Post #8


emoze
***

Group: Members
Posts: 891
Joined: 1-January 03
From: mid- California
Member No.: 65
Region Association: Northern California
QUOTE(r_towle @ Feb 12 2016, 07:23 PM) *

I made custom bronze ones for mine that are tight.


X2 -my bronze ones have been in since early '90s - no slop
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
-JR-
post Feb 13 2016, 12:06 AM
Post #9


Life goes faster at 150MPH
**

Group: Members
Posts: 276
Joined: 12-May 04
From: Victoria BC Canada
Member No.: 2,055
QUOTE(Mikey914 @ Feb 12 2016, 06:42 PM) *

This what you are looking for? It's part # 914.424.224.02

AT $2.99!!!

http://shop.914rubber.com/Late-side-shifte...m?categoryId=-1

Thanks! Not sure if you noticed but I stole the parts diagram picture from your site to use at the top of this post!

That's the part number I have.

If you have one on hand, could I persuade you to measure the transmission hole size it needs? I'm talking about the outer captured area and not the inner diameter, if that makes sense.

I still can't believe my trans was worn so bad that someone machined out the opening larger. The car is a garage kept 60K mile unit. I find it much easier to believe the Chinese replacement is just a poor copy.

Thanks again.

BTW - Love your site, lots of goodies I need there, but until the Canadian peso improves I'm going to hold off.

-JR-
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Larmo63
post Feb 13 2016, 12:41 AM
Post #10


Advanced Member
****

Group: Members
Posts: 4,267
Joined: 3-March 14
From: San Clemente, Ca
Member No.: 17,068
Region Association: Southern California
Use the common (eBay) bronze one in the rear console, and use the Tangerine bushing at the firewall.

Easy peasy.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
cary
post Feb 13 2016, 09:02 AM
Post #11


Advanced Member
****

Group: Members
Posts: 3,900
Joined: 26-January 04
From: Sherwood Oregon
Member No.: 1,608
Region Association: Pacific Northwest
What Lawrence said.
That's the arrangement that I have on my white car.

http://www.gprparts.com/ShopforOEAccesorie...ALL&mode=PA
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dave_Darling
post Feb 13 2016, 11:06 AM
Post #12


914 Idiot
***************

Group: Members
Posts: 15,148
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California
The hole in the flange wears larger over the years. It's an interesting solution to machine it larger and use a different bushing, but it doesn't sound like it was working all that well.

The rod also wears and gets a "neck" in it, which can make for more slop. The fix for that involves either building up the rod with weld and machining or filing it down, or machining it down and putting a sleeve on it.

--DD
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
-JR-
post Feb 13 2016, 12:00 PM
Post #13


Life goes faster at 150MPH
**

Group: Members
Posts: 276
Joined: 12-May 04
From: Victoria BC Canada
Member No.: 2,055
QUOTE(Larmo63 @ Feb 12 2016, 10:41 PM) *

Use the common (eBay) bronze one in the rear console, and use the Tangerine bushing at the firewall.

Easy peasy.


Love that setup, but that bushing apparently won't fit my Trans. Once I've confirmed my Trans has been machined, then I'd prefer a custom bushing in place of gluing one in.

Thanks!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TheCabinetmaker
post Feb 13 2016, 04:25 PM
Post #14


I drive my car everyday
*****

Group: Members
Posts: 8,335
Joined: 8-May 03
From: Tulsa, Ok.
Member No.: 666
The shift console most likely has not been machined. Most of them are a little bigger that they were new. Especially if it's been greasy at one time. Grease and dirt combined equal a sanding medium.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
-JR-
post Feb 14 2016, 10:16 PM
Post #15


Life goes faster at 150MPH
**

Group: Members
Posts: 276
Joined: 12-May 04
From: Victoria BC Canada
Member No.: 2,055
QUOTE(The Cabinetmaker @ Feb 13 2016, 02:25 PM) *

The shift console most likely has not been machined. Most of them are a little bigger that they were new. Especially if it's been greasy at one time. Grease and dirt combined equal a sanding medium.

I get that, but my old bushing fit tight. So tight that the surfaces were clean when I removed it.

Once I have a second opinion on the bushing or transmission hole size, then I'll move forward.

Thanks!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
porschetub
post Feb 14 2016, 11:55 PM
Post #16


Advanced Member
****

Group: Members
Posts: 4,791
Joined: 25-July 15
From: New Zealand
Member No.: 18,995
Region Association: None
QUOTE(r_towle @ Feb 13 2016, 04:23 PM) *

They all fit loose.
I made custom bronze ones for mine that are tight.
Plastic ones don't fit


How do you make a bronze bush fit and hold in the housing? fitted replacement plastic one and its a poor fit ,don't know but is the genuine one a better fit ?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
-JR-
post Feb 18 2016, 12:29 AM
Post #17


Life goes faster at 150MPH
**

Group: Members
Posts: 276
Joined: 12-May 04
From: Victoria BC Canada
Member No.: 2,055
Got my digital caliper running.

The first bushing I tried, non-OEM, measured up with a console hole diameter of 20.22-20.30mm.

Digging around my boxes for another part I stumbled on a OEM Porsche bushing I must have bought a few years back. PN 914-424-224-02

It measures 20.85mm outside diameter.

That's .5m larger for the Porsche one. It fits much better on my console but unfortunately it's still not good enough for me.

My console hole measures up at 21.3mm diameter. Almost big enough for the Patrick bushing.

Might just order that one up and be done with it until I put my Vellios 915 transmission in.

-JR-
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
