> Repa seat belts
Biggles
post May 9 2016, 05:38 AM
Post #1


Member
**

Group: Members
Posts: 153
Joined: 5-September 13
From: UK
Member No.: 16,353
Region Association: England



Hi
Does anyone have a photo of how the early style ('69-71) repa seat belt labels looked both left and right? It's the shoulder ones I need.
Thanks
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
toolguy
post May 12 2016, 02:53 PM
Post #2


Senior Member
***

Group: Members
Posts: 1,224
Joined: 2-April 11
From: San Diego / El Cajon
Member No.: 12,889
Region Association: Southern California

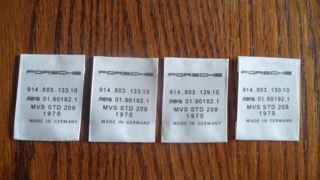

You mean like these. .
They are sewn on with a single stitch left to right,
located on the 'backside' of the belt just under the top fold over at the attachment plate


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Biggles
post May 13 2016, 01:26 PM
Post #3


Member
**

Group: Members
Posts: 153
Joined: 5-September 13
From: UK
Member No.: 16,353
Region Association: England



QUOTE(toolguy @ May 12 2016, 09:53 PM) *

You mean like these. .
They are sewn on with a single stitch left to right,
located on the 'backside' of the belt just under the top fold over at the attachment plate


thanks but aren't they the lap strap ones ?

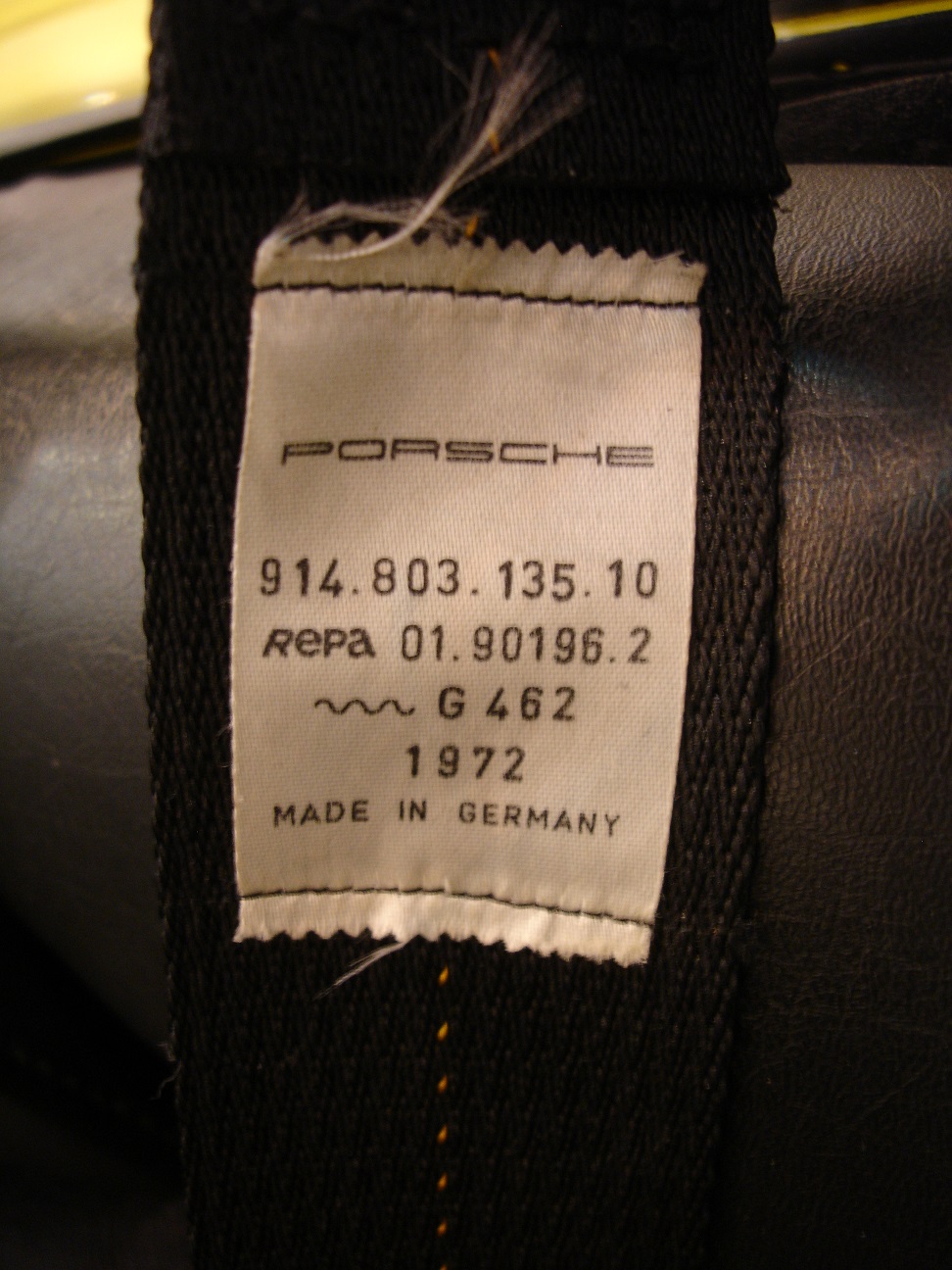

Ive since found an image off a 72 car but not sure if they were the same both sides ?


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
toolguy
post May 14 2016, 11:08 AM
Post #4


Senior Member
***

Group: Members
Posts: 1,224
Joined: 2-April 11
From: San Diego / El Cajon
Member No.: 12,889
Region Association: Southern California




Those are the 4 labels for early non-retractable belts. . the shoulder straps share the same number side to side. . the Lap Belts have separate numbers because they are side specific due to the red release lever positions.

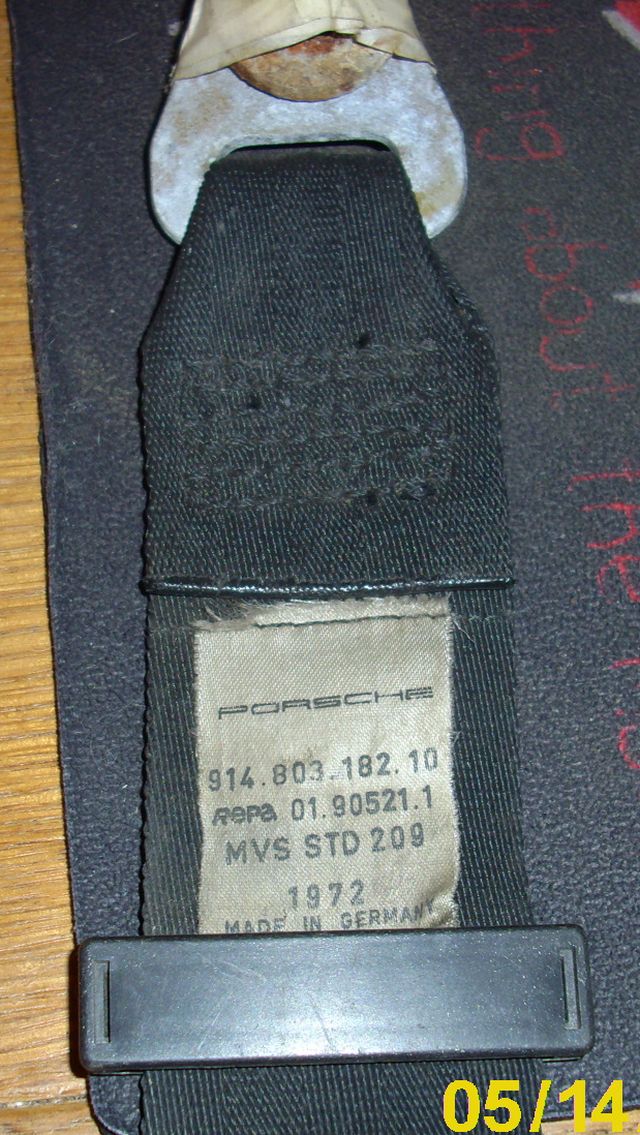

Here is what I have for retractable belts. this is on the lower frame rail mount end for the across shoulder retractable belt


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Biggles
post May 14 2016, 03:04 PM
Post #5


Member
**

Group: Members
Posts: 153
Joined: 5-September 13
From: UK
Member No.: 16,353
Region Association: England



QUOTE(toolguy @ May 14 2016, 06:08 PM) *

Those are the 4 labels for early non-retractable belts. . the shoulder straps share the same number side to side. . the Lap Belts have separate numbers because they are side specific due to the red release lever positions.

Here is what I have for retractable belts. this is on the lower frame rail mount end for the across shoulder retractable belt


Hi, thanks. I can't really see your first image too well but it looks like the two identical ones read 914 803 133 10 which I can't find in the PET catalogue ? And why would it be different to the one I saw in the picture 914 803 135 10 , with the G 462 ref below ?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
toolguy
post May 14 2016, 04:47 PM
Post #6


Senior Member
***

Group: Members
Posts: 1,224
Joined: 2-April 11
From: San Diego / El Cajon
Member No.: 12,889
Region Association: Southern California



You have to look for individual listing for 914-6 or 70-71 914 USA version. . the picture in the parts book only shows the later belts, but early ones are listed in the listings

The belt you have posted has the center yellow strip. . USA belts did not have that stripe.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Biggles
post May 15 2016, 02:15 AM
Post #7


Member
**

Group: Members
Posts: 153
Joined: 5-September 13
From: UK
Member No.: 16,353
Region Association: England



ok thanks for your help.

sounds like i've got the right one as mine are european with the stripe.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
vramani
post Feb 27 2018, 12:26 PM
Post #8


Newbie
*

Group: Members
Posts: 1
Joined: 21-February 18
From: Houston
Member No.: 21,913
Region Association: Southwest Region



Toolguy can you call me need to know the source to order the tags please. Are you using the the Shaw guy in CA?
