> Emergency Brake Light - where is it?
orbit398
post Jun 10 2016, 10:22 AM
Post #1


Member
**

Group: Members
Posts: 139
Joined: 29-April 15
From: League city, Texas
Member No.: 18,681
Region Association: Southwest Region
I have an early '74 model (production number 144). I have the warning light switch that triggers the emergency brake light when the handle is lifted but there is no wire in the channel by the seat to hook up the switch. I have no idea what light is supposed to come on in the dash somewhere. Can anyone let me know by a pic? Also a wiring diagram or helpful notes would be apprecited so I can tie into an existing wire, if I can find it.

thanks
User is offlineProfile CardPM
Go to the top of the page
+Quote Post

 Reply to this topicStart new topic
Replies(1 - 9)
worn
post Jun 10 2016, 10:55 AM
Post #2


can't remember
****

Group: Members
Posts: 3,156
Joined: 3-June 11
From: Madison, WI
Member No.: 13,152
Region Association: Upper MidWest
QUOTE(orbit398 @ Jun 10 2016, 08:22 AM) *

I have an early '74 model (production number 144). I have the warning light switch that triggers the emergency brake light when the handle is lifted but there is no wire in the channel by the seat to hook up the switch. I have no idea what light is supposed to come on in the dash somewhere. Can anyone let me know by a pic? Also a wiring diagram or helpful notes would be apprecited so I can tie into an existing wire, if I can find it.

thanks

Wire should be brown with white stripe. Will run on or in the horizontal rib that strengthens the floor. Probably glued under carpet padding if you don't see it. You should be seeing a red light on the fuel gauge. It is activated by the flasher relay.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
orbit398
post Jun 10 2016, 11:05 AM
Post #3


Member
**

Group: Members
Posts: 139
Joined: 29-April 15
From: League city, Texas
Member No.: 18,681
Region Association: Southwest Region
QUOTE(worn @ Jun 10 2016, 11:55 AM) *

QUOTE(orbit398 @ Jun 10 2016, 08:22 AM) *

I have an early '74 model (production number 144). I have the warning light switch that triggers the emergency brake light when the handle is lifted but there is no wire in the channel by the seat to hook up the switch. I have no idea what light is supposed to come on in the dash somewhere. Can anyone let me know by a pic? Also a wiring diagram or helpful notes would be apprecited so I can tie into an existing wire, if I can find it.

thanks

Wire should be brown with white stripe. Will run on or in the horizontal rib that strengthens the floor. Probably glued under carpet padding if you don't see it. You should be seeing a red light on the fuel gauge. It is activated by the flasher relay.



thanks but I have had the car done to the bones. No wire in the cross member but may be able to find it under the console. Now I know what to look for.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dave_Darling
post Jun 10 2016, 11:47 AM
Post #4


914 Idiot
**********

Group: Members
Posts: 14,986
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California
The brake warning light is also activated by the switch in the master cylinder. When that switch detects a major pressure differential between the front and rear brake circuits, it grounds out and the light in the combo gauge will start blinking.

--DD
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
malcolm2
post Jun 10 2016, 11:54 AM
Post #5


Advanced Member
****

Group: Members
Posts: 2,745
Joined: 31-May 11
From: Nashville
Member No.: 13,139
Region Association: South East States

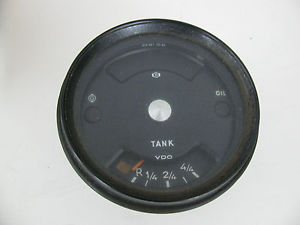

Big half moon window in the top half of the far left gauge. Fuel on the bottom, brake warning on top.

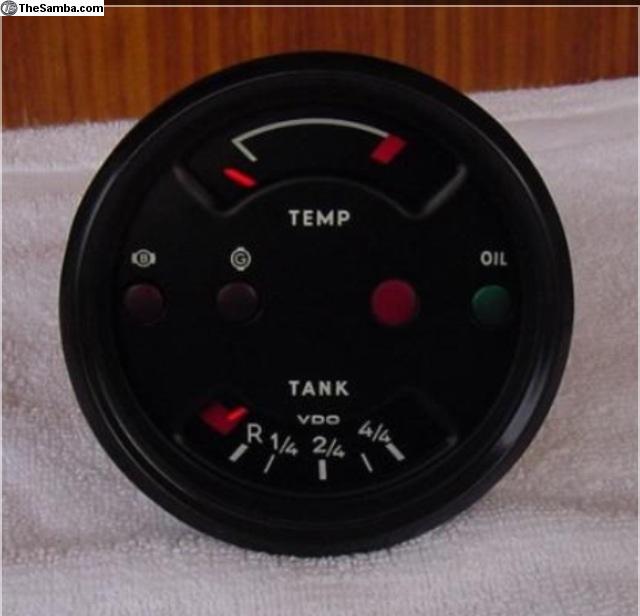

If you have a combo gauge with fuel on the btm and temp on the top the small red light on the left (at 9o'clock) of this same gauge is the brake warning light.

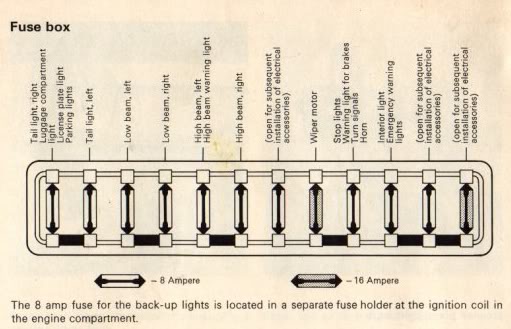

fourth fuse holder from the right.... it says warning light for brakes. is there a brn/wht wire on one side of that fuse? follow it, splice wire to it and connect it to the little spring button switch under the hand brake.

Attached ImageAttached ImageAttached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914_7T3
post May 7 2019, 05:13 PM
Post #6


Please forgive me, I'm new to all of this!
***

Group: Members
Posts: 1,853
Joined: 3-April 17
From: Los Angeles, CA
Member No.: 20,991
Region Association: Southern California
QUOTE(Dave_Darling @ Jun 10 2016, 10:47 AM) *

The brake warning light is also activated by the switch in the master cylinder. When that switch detects a major pressure differential between the front and rear brake circuits, it grounds out and the light in the combo gauge will start blinking.

--DD


@Dave_Darling Is that the case on a '73 as I am in the same boat with no wire to be found and am currently in the process of reinstalling the E-Brake.

Will need to verify with @ValcoOscar if he recalls there being a wire when we disassembled in Oct 2017. (IMG:style_emoticons/default/w00t.gif) Yikes its been a long time!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
76-914
post May 7 2019, 05:24 PM
Post #7


Repeat Offender & Resident Subaru Antagonist
**********

Group: Members
Posts: 13,502
Joined: 23-January 09
From: Temecula, CA
Member No.: 9,964
Region Association: Southern California
Look inside the channel. They will only stick out a few inches and easily drop back into the channel when moved or bumped. I looked for a long time before I decided to dig around inside the channel with a coat hanger and snagged it. It will connects in the tunnel.
EDIT: I just read where you state there is no wire in the channel. No problem. Run a new one. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post May 7 2019, 05:30 PM
Post #8


Resident German
*************************

Group: Admin
Posts: 41,644
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
The brown/white wire for the handbrake switch should come out of the main center tunnel loom near the rear firewall and run behind the backpad and around the back of the drivers seat to the handbrake handle.

http://www.914world.com/bbs2/index.php?s=&...st&p=180983

(IMG:style_emoticons/default/idea.gif)

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914_7T3
post May 7 2019, 06:08 PM
Post #9


Please forgive me, I'm new to all of this!
***

Group: Members
Posts: 1,853
Joined: 3-April 17
From: Los Angeles, CA
Member No.: 20,991
Region Association: Southern California
QUOTE(76-914 @ May 7 2019, 04:24 PM) *

Look inside the channel. They will only stick out a few inches and easily drop back into the channel when moved or bumped. I looked for a long time before I decided to dig around inside the channel with a coat hanger and snagged it. It will connects in the tunnel.
EDIT: I just read where you state there is no wire in the channel. No problem. Run a new one. (IMG:style_emoticons/default/beerchug.gif)


@76-914 Thanks, I will look again now that I know what I'm looking for. Will update the thread once I get in there.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914_7T3
post May 8 2019, 08:42 PM
Post #10


Please forgive me, I'm new to all of this!
***

Group: Members
Posts: 1,853
Joined: 3-April 17
From: Los Angeles, CA
Member No.: 20,991
Region Association: Southern California
QUOTE(914_7T3 @ May 7 2019, 05:08 PM) *

QUOTE(76-914 @ May 7 2019, 04:24 PM) *

Look inside the channel. They will only stick out a few inches and easily drop back into the channel when moved or bumped. I looked for a long time before I decided to dig around inside the channel with a coat hanger and snagged it. It will connects in the tunnel.
EDIT: I just read where you state there is no wire in the channel. No problem. Run a new one. (IMG:style_emoticons/default/beerchug.gif)


@76-914 Thanks, I will look again now that I know what I'm looking for. Will update the thread once I get in there.


Found it!

(IMG:style_emoticons/default/first.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
