> FS: GROUP BUY 914-6 Single Motor Mount
maddog
post Jun 25 2016, 09:15 AM
Post #1


Member
**

Group: Members
Posts: 200
Joined: 19-May 03
From: Grand Rapids Michigan
Member No.: 710
Region Association: None

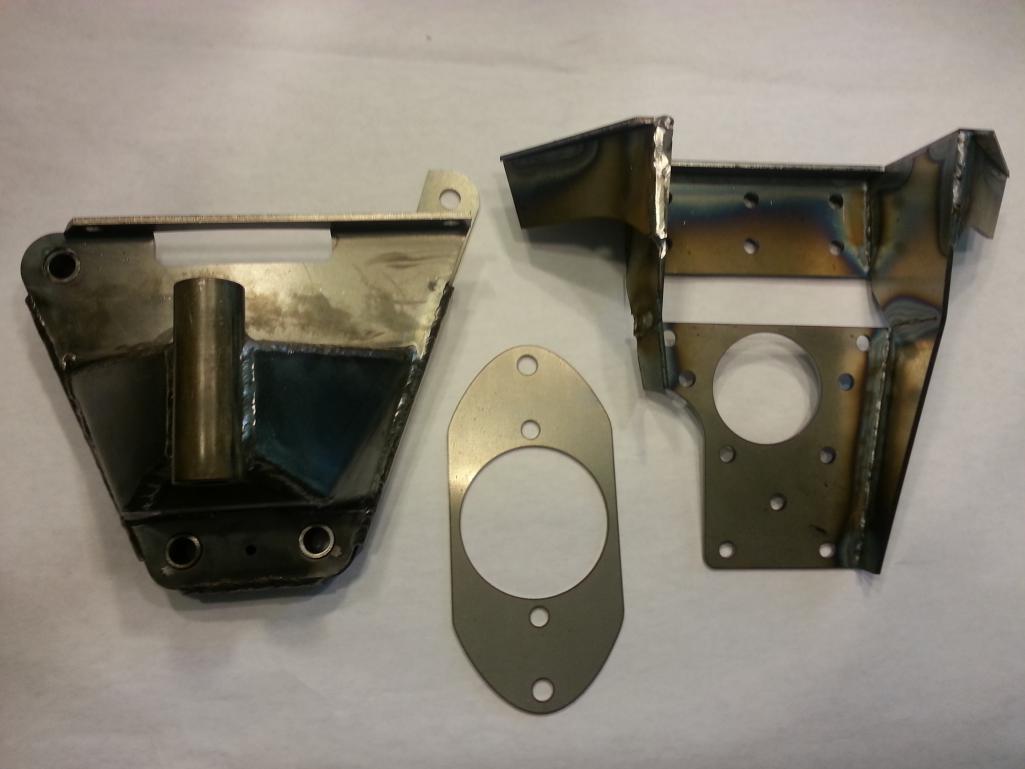

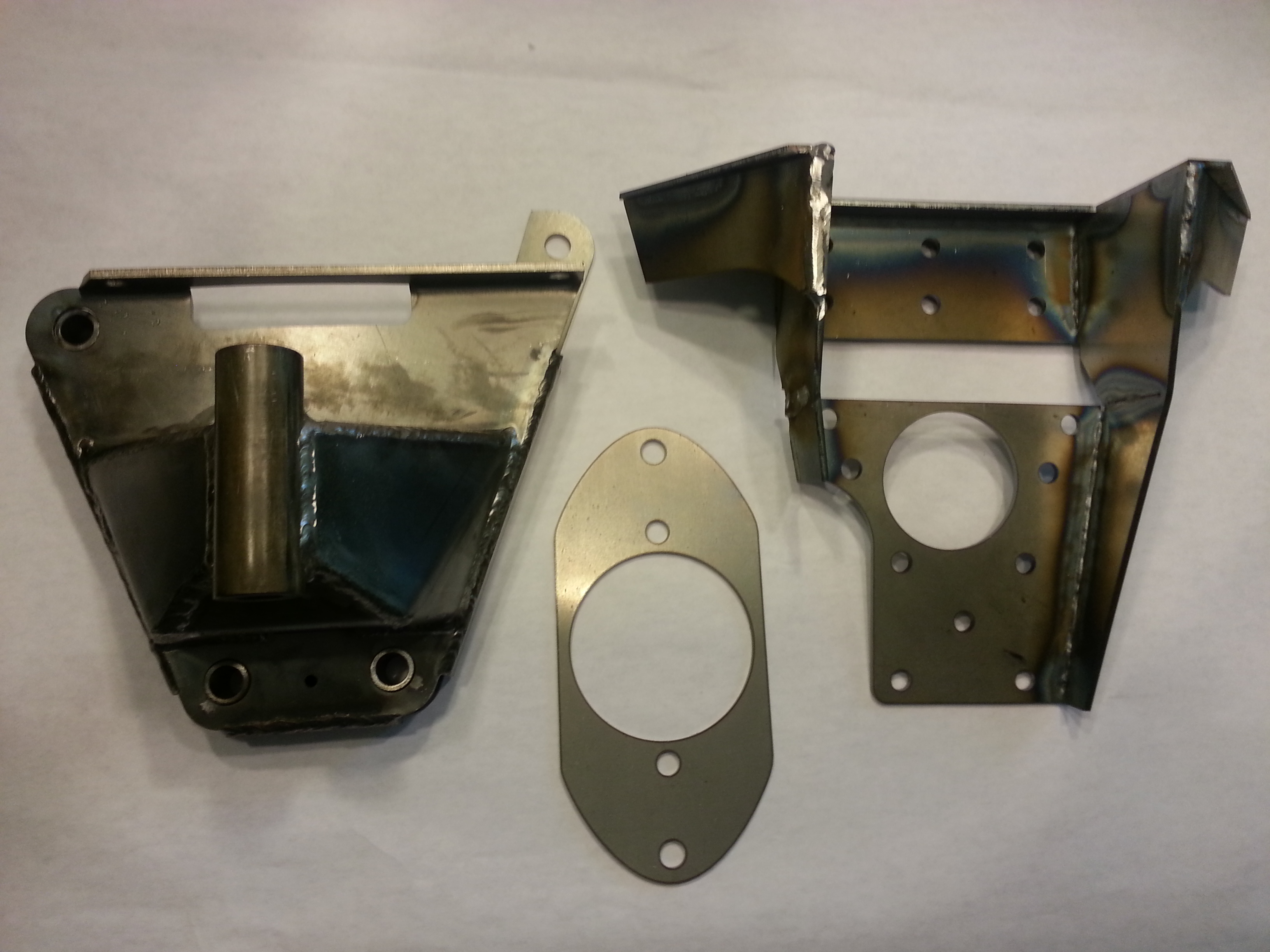

914-6 OEM replica motor mount designed by Original Customs and manufactured by Maddogs Motor Sports. This mount will fit up to the 3.2 liter flat six and works with early and late cars. BE AWARE that the mount uses the WEVO 911 Sport mount that is sold separately. The retail price on my website is $350, I have 10 available so here is the price breakdown:

5 buyers $300 shipped

here is the group buy status so far:

1. Colingreene
2. Flyer86d
3. Mastercylinder
4. Raynekat
5. 914outlaw
6. Mikey914

this group buy will close this Friday August 19 for the $300 price. Those that are on the list so far pm me your paypal emails and I will paypal invoice you. These are ready to ship so as soon as I receive payment they will ship UPS ground.



Attached Image

This wiring is on a 75/76 chassis. 70-74 cars will route MUCH better. The hole in the shelf was moved towards the center of the car in the late bodies.
Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Jun 25 2016, 11:30 AM
Post #2


914 Guru
*****

Group: Members
Posts: 6,802
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest

This is a great deal for folks. I just made 3 sets for myself and 1 member and I wouldn't even consider selling them for this price.. Nice job
User is online!Profile CardPM
Go to the top of the page
+Quote Post
colingreene
post Jun 29 2016, 03:18 PM
Post #3


Senior Member
***

Group: Members
Posts: 729
Joined: 17-October 13
From: Southern California
Member No.: 16,526
Region Association: Southern California
I am in for one for T.Hartline.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
flyer86d
post Jun 29 2016, 06:04 PM
Post #4


Member
**

Group: Members
Posts: 419
Joined: 12-January 11
From: Corea, Maine
Member No.: 12,585
Region Association: North East States
Can the engine mount portion be used with a stock -6 chassis mount? Reason, I would like a seperate engine mount for the hot rod motor and keep the stock with the original.

Charlie
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
maddog
post Jun 30 2016, 05:57 AM
Post #5


Member
**

Group: Members
Posts: 200
Joined: 19-May 03
From: Grand Rapids Michigan
Member No.: 710
Region Association: None

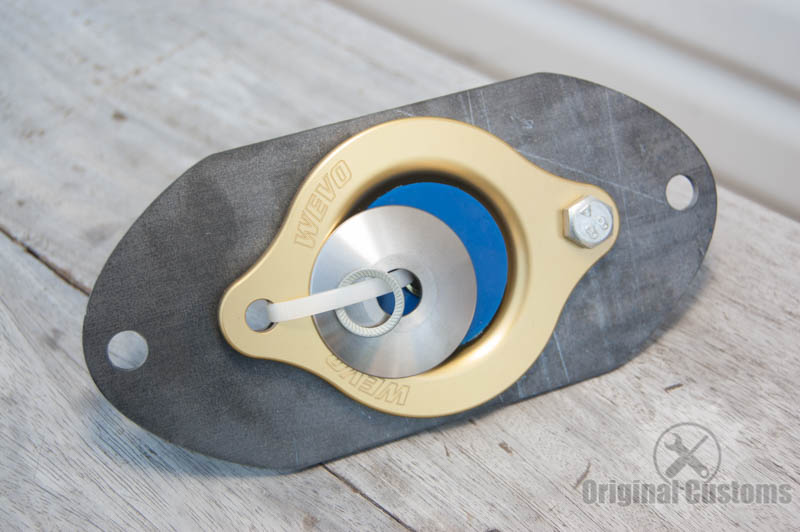

Charlie, I believe it can, LukeM is using the WEVO mount and plate in place of his stock rubber mount and had to put a 6mm shim because the wevo is shorter than the stock one so I think you would be ok? Maybe Mark D can confirm this?

QUOTE(flyer86d @ Jun 29 2016, 04:04 PM) *

Can the engine mount portion be used with a stock -6 chassis mount? Reason, I would like a seperate engine mount for the hot rod motor and keep the stock with the original.

Charlie
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Jun 30 2016, 11:26 AM
Post #6


914 Guru
*****

Group: Members
Posts: 6,802
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
QUOTE(maddog @ Jun 30 2016, 03:57 AM) *

Charlie, I believe it can, LukeM is using the WEVO mount and plate in place of his stock rubber mount and had to put a 6mm shim because the wevo is shorter than the stock one so I think you would be ok? Maybe Mark D can confirm this?

QUOTE(flyer86d @ Jun 29 2016, 04:04 PM) *

Can the engine mount portion be used with a stock -6 chassis mount? Reason, I would like a seperate engine mount for the hot rod motor and keep the stock with the original.

Charlie




I would agree it should be no problem if it were setup for the stock rubber mount or the wevo it should work just fine for you. As I said I am knee deep in making some for friends and family ☺ and having looked at factory stuff I am confident it will work for your needs
User is online!Profile CardPM
Go to the top of the page
+Quote Post
raynekat
post Jun 30 2016, 01:29 PM
Post #7


Advanced Member
****

Group: Members
Posts: 2,153
Joined: 30-December 14
From: Coeur d'Alene, Idaho
Member No.: 18,263
Region Association: Pacific Northwest
Curious with all of these aftermarket engine mounts, it seems like the snorkel that runs the back end wiring is always in a bind, contorted, twisted, etc.

Is this a problem?

I've got the other style 914-6 engine mount (Velios type) and I'm working this out as we go.

How to get the snorkel to smoothly and nicely get past these non factory engine mounts.....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Luke M
post Jun 30 2016, 05:17 PM
Post #8


Senior Member
***

Group: Members
Posts: 1,368
Joined: 8-February 05
From: WNY
Member No.: 3,574
Region Association: North East States
[quote name='maddog' date='Jun 30 2016, 04:57 AM' post='2365813']
Charlie, I believe it can, LukeM is using the WEVO mount and plate in place of his stock rubber mount and had to put a 6mm shim because the wevo is shorter than the stock one so I think you would be ok? Maybe Mark D can confirm this?

[quote name='flyer86d' post='2365659' date='Jun 29 2016, 04:04 PM']
Can the engine mount portion be used with a stock -6 chassis mount? Reason, I would like a seperate engine mount for the hot rod motor and keep the stock with the original.

Charlie


You will need a 6 mm spacer if you are planning on using a Wevo mount/adapter plate with a factory 914-6 firewall and engine mount.

I purchased the Wevo mount and adapter plate from Dave/Mark.
I noticed right away that there was a height difference between the factory rubber mount and the Wevo. I measured the two side by side and the Wevo was 6 mm shorter then the factory 6 part. I plan on making up a 6 mm spacer that would go between the lower side of the Wevo mount and the top of the factory 6 engine mount. That should fix the height problem. I do not know if Mark added the 6 mm difference on his engine side mount? That would be a question that he would need to answer. Hope this helps out the factory 6 guys looking to replace a worn out/damaged rubber engine mount.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
flyer86d
post Jun 30 2016, 05:36 PM
Post #9


Member
**

Group: Members
Posts: 419
Joined: 12-January 11
From: Corea, Maine
Member No.: 12,585
Region Association: North East States
OK, thanks for the input. Based on that, add me to the list for one. I only need the engine portion but I will purchase the whole thing and add the firewall piece to my collection of parts to build another one.

Charlie
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
maddog
post Jul 13 2016, 08:11 AM
Post #10


Member
**

Group: Members
Posts: 200
Joined: 19-May 03
From: Grand Rapids Michigan
Member No.: 710
Region Association: None
here is the group buy status so far:

1. Colingreene
2. Flyer86d
3. Mastercylinder
4. Raynekat
5. 914outlaw
6. Mikey914

see original post above
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
raynekat
post Jul 13 2016, 05:45 PM
Post #11


Advanced Member
****

Group: Members
Posts: 2,153
Joined: 30-December 14
From: Coeur d'Alene, Idaho
Member No.: 18,263
Region Association: Pacific Northwest
I'd need a better pic of how the snorkel weaves through this new mount before I'd be a buyer and join the group.

Most of the after market mounts don't make it easy for the snorkel and wiring to get from the tunnel into the engine compartment.

Plus is it certain the factory rubber mount and upper/lower plates fit with this new mount? ...in case you don't want to go the Wevo route?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Jul 14 2016, 12:28 PM
Post #12


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None

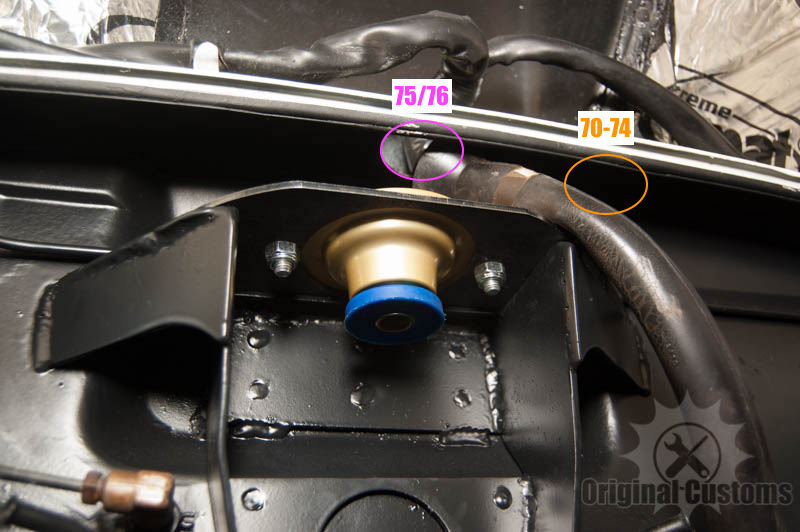

Raynekat, what year is your car?

70-74 are just like the original 914-6 and they won't interfere.


75-76 cars have the snorkel in the location pictured above and you have to make adjustments or run it like the picture above.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MasterCylinder
post Jul 23 2016, 02:42 PM
Post #13


Newbie
*

Group: Members
Posts: 7
Joined: 5-November 15
From: California
Member No.: 19,335
Region Association: Southern California
I will take one.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
raynekat
post Jul 23 2016, 03:36 PM
Post #14


Advanced Member
****

Group: Members
Posts: 2,153
Joined: 30-December 14
From: Coeur d'Alene, Idaho
Member No.: 18,263
Region Association: Pacific Northwest
QUOTE(McMark @ Jul 14 2016, 11:28 AM) *

Raynekat, what year is your car?

70-74 are just like the original 914-6 and they won't interfere.


75-76 cars have the snorkel in the location pictured above and you have to make adjustments or run it like the picture above.


Mine is a 1971.

Guess I need to know if the factory rubber mount with the 2 sandwich plates will work with your two pieces?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Jul 23 2016, 04:23 PM
Post #15


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
That's what it was designed to work with. Let me just confirm one measurement first though. I'll respond tomorrow.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Jul 24 2016, 09:53 AM
Post #16


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
Confirmed the measurement. Should work just fine with a stock mount.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
raynekat
post Jul 26 2016, 01:25 PM
Post #17


Advanced Member
****

Group: Members
Posts: 2,153
Joined: 30-December 14
From: Coeur d'Alene, Idaho
Member No.: 18,263
Region Association: Pacific Northwest
OK, then put me down as part of the group buy. I'll be trading in that other mount that you PM'd me about. I'll hang on to mine until the group buy is official.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
maddog
post Jul 28 2016, 06:22 AM
Post #18


Member
**

Group: Members
Posts: 200
Joined: 19-May 03
From: Grand Rapids Michigan
Member No.: 710
Region Association: None
QUOTE(raynekat @ Jul 26 2016, 11:25 AM) *

OK, then put me down as part of the group buy. I'll be trading in that other mount that you PM'd me about. I'll hang on to mine until the group buy is official.


PM'd you
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
maddog
post Aug 3 2016, 05:00 AM
Post #19


Member
**

Group: Members
Posts: 200
Joined: 19-May 03
From: Grand Rapids Michigan
Member No.: 710
Region Association: None
(IMG:style_emoticons/default/icon_bump.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
forrestkhaag
post Aug 8 2016, 04:41 PM
Post #20


Senior Member
***

Group: Members
Posts: 935
Joined: 21-April 14
From: Scottsdale, Arizona
Member No.: 17,273
Region Association: Southwest Region
(IMG:style_emoticons/default/icon_bump.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
