 Need picture of center seat light connections. |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
| carcus |
 Aug 2 2016, 09:51 PM
Post
#1
|
|
Member  Group: Members Posts: 223 Joined: 16-March 16 From: Colorado Springs Member No.: 19,760 Region Association: Rocky Mountains  |
Car had a partial rewire, the old center light was working but when they took it out it split in half. Now I have a replacement light but the connections might have been changed when the mechanic rewired some things. I know it has 2 rear spades near the prong, and one in the front. My wiring has to prongs together on the front prong and one on the rear with a open prong. I know it is 3 connections, but pulled the light not and cant find a 3rd wire. I can take a picture to show you guys what I am talking about
|
   |

|
  |
Replies(1 - 6)
| JeffBowlsby |
Aug 2 2016, 10:23 PM
Post
#2
|
|
914 Wiring Harnesses Group: Members Posts: 8,510 Joined: 7-January 03 From: San Ramon CA Member No.: 104 Region Association: None
|
Look at the wiring schematic for your model year.
Teach a man to fish... |
 |
|
| carcus |
Aug 8 2016, 01:46 PM
Post
#3
|
|
Member Group: Members Posts: 223 Joined: 16-March 16 From: Colorado Springs Member No.: 19,760 Region Association: Rocky Mountains |
QUOTE(Jeff Bowlsby @ Aug 2 2016, 10:23 PM)  Look at the wiring schematic for your model year. Teach a man to fish... Thought it would be easy enough for someone to pop the seat light out and take a pic. |
|
|
|
| porschetub |
Aug 8 2016, 04:40 PM
Post
#4
|
|
Advanced Member Group: Members Posts: 4,701 Joined: 25-July 15 From: New Zealand Member No.: 18,995 Region Association: None |

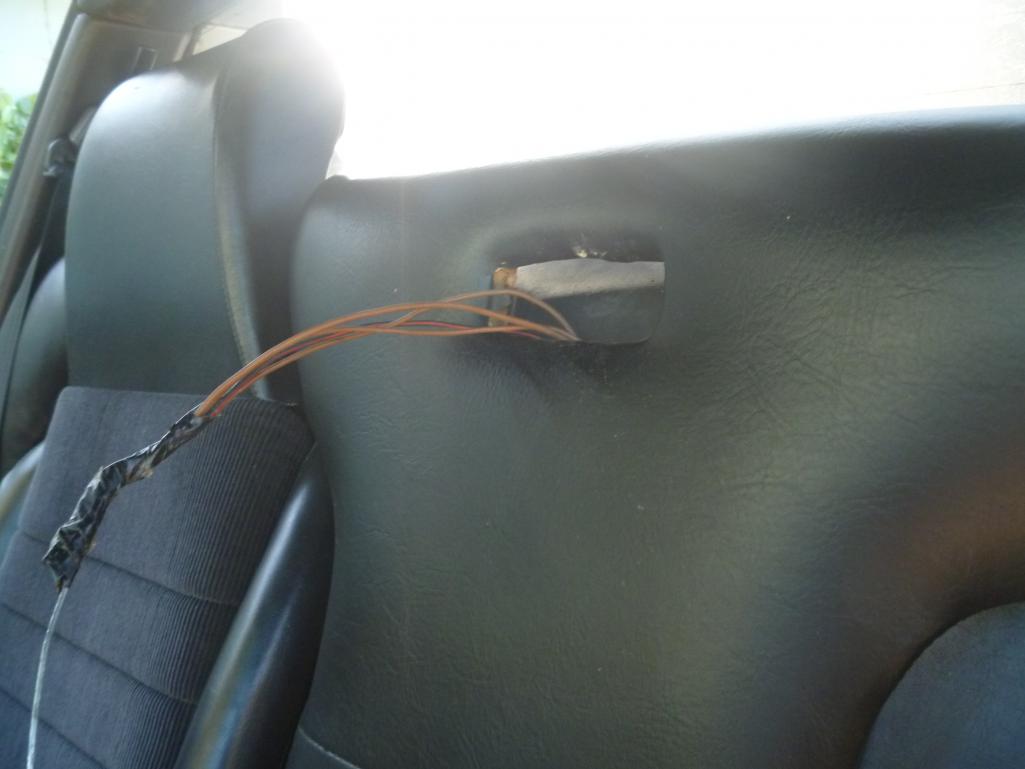

Had same issue and to quote Jeff I fished them out with a piece of wire.
Try fitting an LED festoon lamp makes a world of difference.  |
|
|
|
| malcolm2 |
Aug 8 2016, 08:57 PM
Post
#5
|
|
Advanced Member Group: Members Posts: 2,745 Joined: 31-May 11 From: Nashville Member No.: 13,139 Region Association: South East States
|
should not be hard to figure out. the light is ON.... OFF.... or switched (2 wires, one from each door).
Off does not have a wire. look closely at the light fixture switch and choose a connection, and test it. Use a VOM to check which wire at the light has continuity with your door switches. |
|
|
|
| Garland |
Aug 8 2016, 10:09 PM
Post
#6
|
|
Restoration Fanatic Group: Members Posts: 1,329 Joined: 8-January 04 From: ......Michigan...... Member No.: 1,535 Region Association: Upper MidWest
|

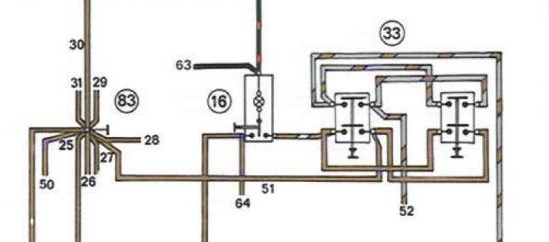

16 is the light, 83 is a ground, 33 door switches, #64 12v on. #63 ground.
 |
|
|
|
| carcus |
Aug 8 2016, 11:10 PM
Post
#7
|
|
Member Group: Members Posts: 223 Joined: 16-March 16 From: Colorado Springs Member No.: 19,760 Region Association: Rocky Mountains |
QUOTE(Garland @ Aug 8 2016, 10:09 PM) 16 is the light, 83 is a ground, 33 door switches, #64 12v on. #63 ground. Thanks guys, I ripped out the seats and got it all fixed. Only works on the center position and now does not work when the door opens. I think that is the door pin that activates it. Only turns on in the always on up switch, but happy I got it to work. Posting what I did today with my new to me interior in another thread. |
|
|
|
|
