> Anyone have access to a 917 engine for reverse engineering or a few dimensions here and there?, Local Bay Area even better!
Mueller
post Oct 12 2016, 12:11 PM
Post #1


914 Freak!
***************

Group: Members
Posts: 17,155
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
I know it is a long shot.

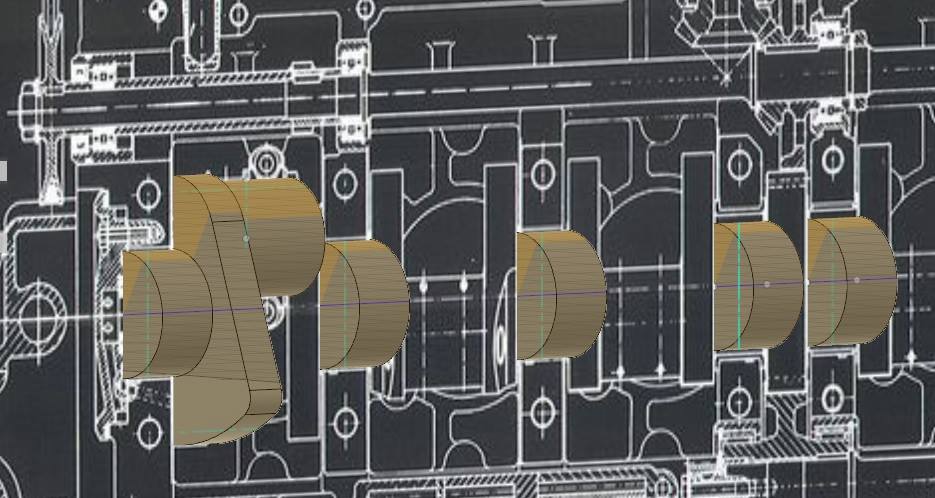

I have started to model up a 4.5 liter 12 cylinder 917 engine. I am using a few drawings I have found online and pictures. For scaling purposes I have used some known dimensions like the stroke (66mm in this case)

There are some components that would be nice to get better dimensions from such as bearings which if they shared 911 bearings that wouldn't be too difficult to obtain the numbers needed.

The final goal is to have a 3D model so that anyone could print or machine a scale version of this engine for their own enjoyment!


Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Catorse
post Oct 12 2016, 01:15 PM
Post #2


Member
**

Group: Members
Posts: 194
Joined: 27-August 15
From: Los Angeles
Member No.: 19,106
Region Association: Southwest Region
Well shit, why didn't you just ask. Got two 917s sitting in the garage right here next to the teener (IMG:style_emoticons/default/lol-2.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
7TPorsh
post Oct 12 2016, 01:53 PM
Post #3


7T Porsh
****

Group: Members
Posts: 2,691
Joined: 27-March 06
From: Glendale Ca
Member No.: 5,782
Region Association: Southern California
Maybe talk to this guy...


https://www.youtube.com/watch?v=p1wpi2o1Q2o
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
damesandhotrods
post Oct 12 2016, 02:03 PM
Post #4


Senior Member
***

Group: Members
Posts: 568
Joined: 26-September 10
From: Santa Cruz California
Member No.: 12,218
Region Association: Northern California
From what I remember reading the 908 flat 8 and the 917 flat 12 were both 911 flat 6 based…
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Oct 12 2016, 02:07 PM
Post #5


914 Freak!
***************

Group: Members
Posts: 17,155
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
QUOTE(damesandhotrods @ Oct 12 2016, 01:03 PM) *

From what I remember reading the 908 flat 8 and the 917 flat 12 were both 911 flat 6 based…



That would make sense, easy to find a torn down or broken 911 parts.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Oct 12 2016, 02:15 PM
Post #6


914-6 GT in waiting
***************

Group: Members
Posts: 19,970
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
962 yes, 917 not yet...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
davesprinkle
post Oct 12 2016, 08:07 PM
Post #7


Senior Member
***

Group: Members
Posts: 720
Joined: 13-October 04
From: Berkeley, CA
Member No.: 2,943
Region Association: None
QUOTE(damesandhotrods @ Oct 12 2016, 01:03 PM) *

From what I remember reading the 908 flat 8 and the 917 flat 12 were both 911 flat 6 based…

Yeah, I thought that, too, until I saw the 908 flat-8 on the Rothsport dyno. Completely different. DOHC, to start with...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Oct 12 2016, 08:35 PM
Post #8


Resident German
*************************

Group: Admin
Posts: 42,257
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
Just weld together two 2.2L /6 engines. That should get you close ...
(IMG:style_emoticons/default/smash.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
wndsnd
post Oct 12 2016, 08:49 PM
Post #9


You wanted a horse, but got a goat. Nobody wants a goat....
****

Group: Members
Posts: 2,861
Joined: 12-February 12
From: North Shore, MA
Member No.: 14,124
Region Association: North East States
I think Towle has one in his barn behind a few 911's, Beatles, and 356's.

(IMG:style_emoticons/default/mad.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
gms
post Oct 12 2016, 08:51 PM
Post #10


Advanced Member
****

Group: Members
Posts: 2,723
Joined: 12-March 04
From: Chicagoland
Member No.: 1,785
Region Association: Upper MidWest
ask this guy
PORSCHE 917 ENGINE ANIMATION
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Catorse
post Oct 13 2016, 08:35 AM
Post #11


Member
**

Group: Members
Posts: 194
Joined: 27-August 15
From: Los Angeles
Member No.: 19,106
Region Association: Southwest Region
Mueller,

Honestly though I am really serious about one day buying one of the 917 replica cars from RCR (look them up). Mostly, people put 911 flat 6 in them, but how awesome would it be to make a flat 12.

Let us know what you find!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914fahrer
post Oct 13 2016, 09:26 AM
Post #12


Member
**

Group: Members
Posts: 103
Joined: 12-November 14
From: Berlin/Germany
Member No.: 18,115
Region Association: Germany

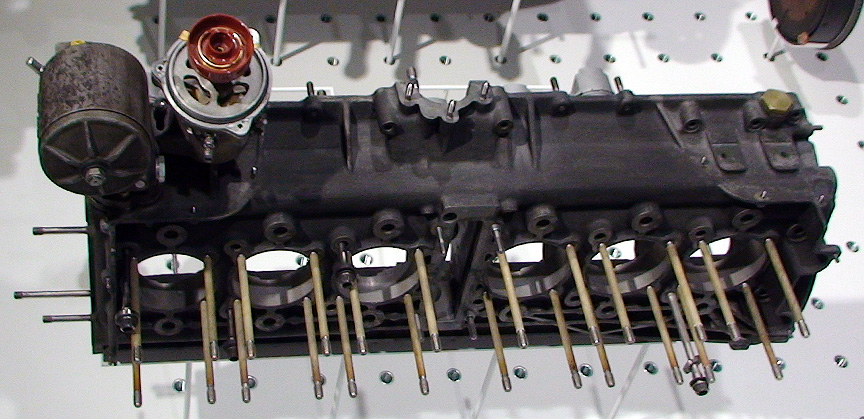

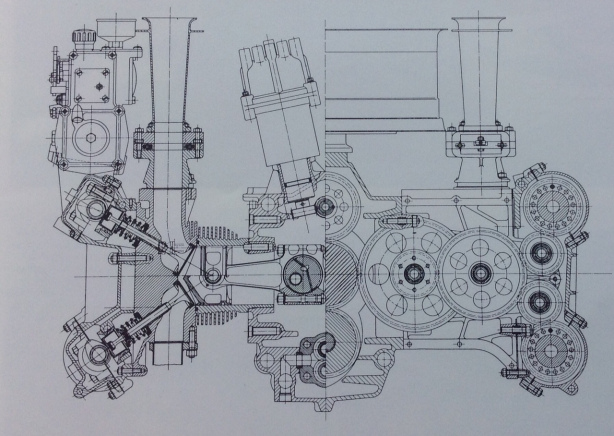

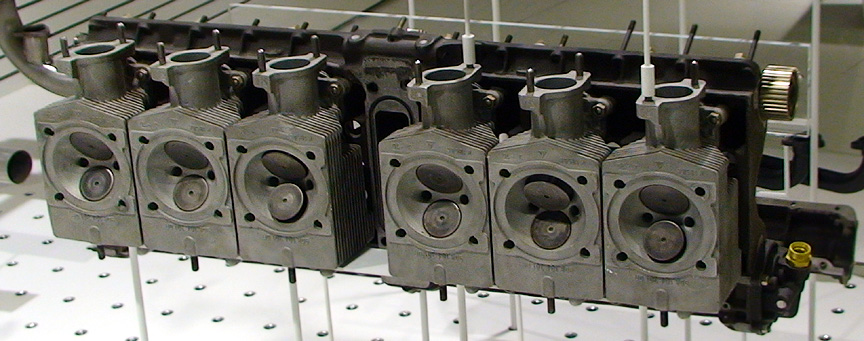

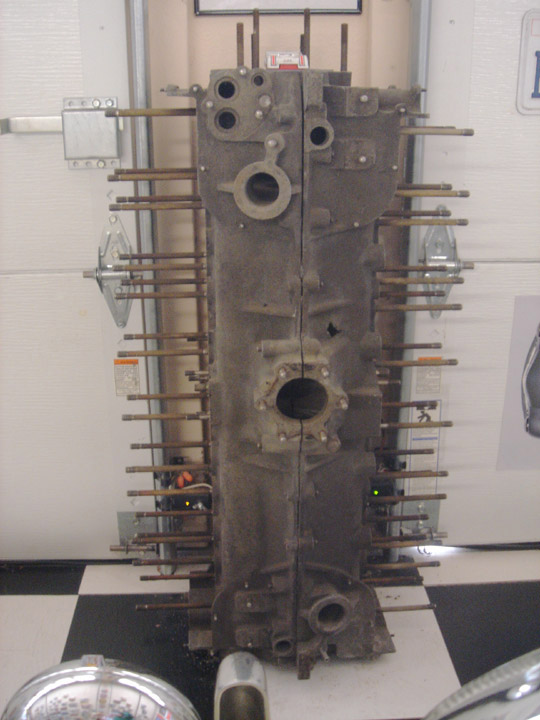

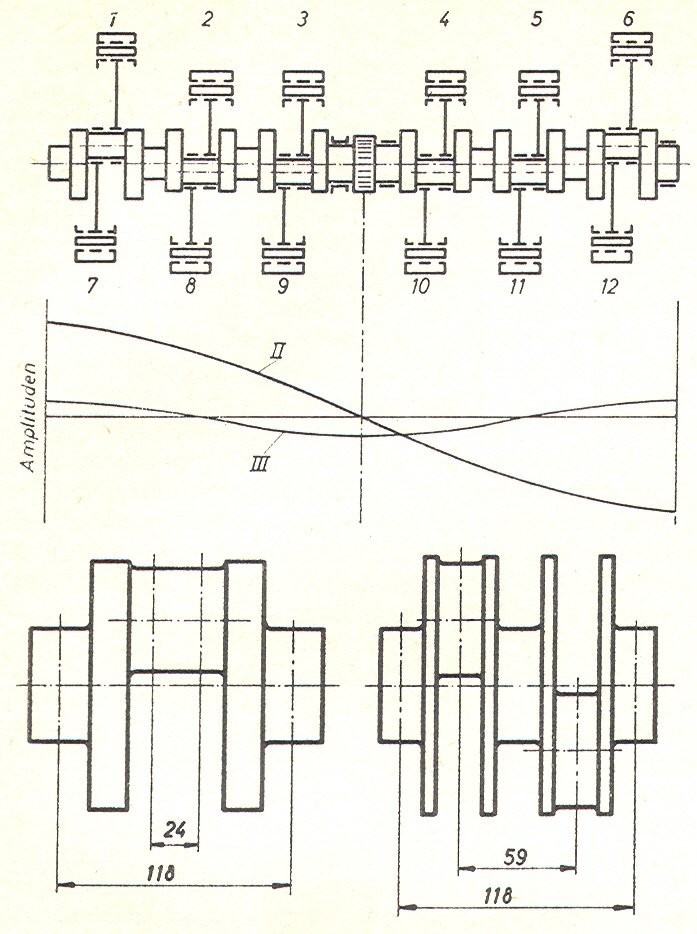

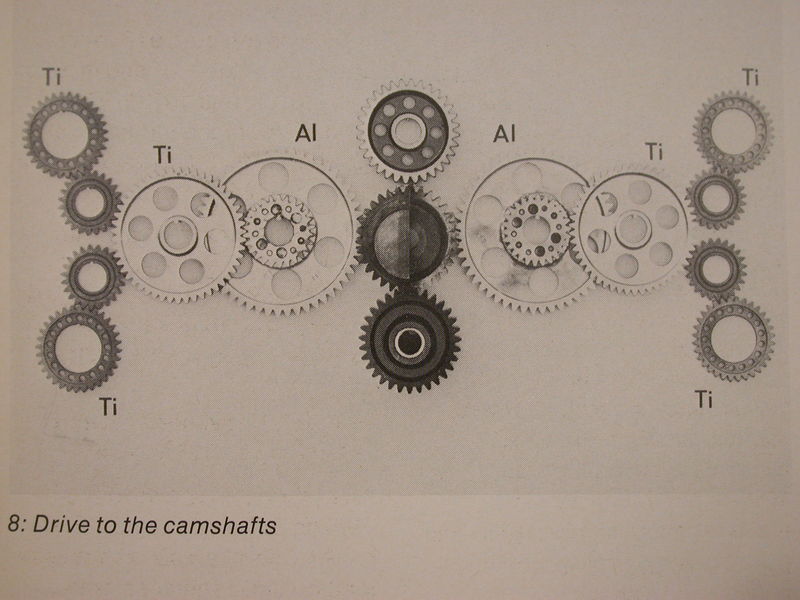

My pictures
Attached Image

Attached Image

Attached Image

Attached Image

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dave_Darling
post Oct 13 2016, 06:13 PM
Post #13


914 Idiot
***************

Group: Members
Posts: 15,204
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California
One of the attendees of the old MUSR had a 917 crankcase sitting in his garage... I'm pretty sure he was able to clean the drool off of it after I left...

--DD
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
horizontally-opposed
post Oct 14 2016, 08:47 PM
Post #14


Advanced Member
****

Group: Members
Posts: 3,456
Joined: 12-May 04
From: San Francisco
Member No.: 2,058
Region Association: None
Canepa has a few of those engines in the shop, at least 2-3 in cars, and I think they'll be building/rebuilding one soon...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jcd914
post Oct 15 2016, 12:45 PM
Post #15


Advanced Member
****

Group: Members
Posts: 2,096
Joined: 7-February 08
From: Sacramento, CA
Member No.: 8,684
Region Association: Northern California
You could talk to Rich or Jerry at Jerry Wood's Enterprise in Campbell CA.

Last time I was there (15 yrs ago) they had at least 2 917 Engines and a 917 undergoing restoration.

Jim
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Oct 15 2016, 08:12 PM
Post #16


914 Freak!
***************

Group: Members
Posts: 17,155
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
Thanks Pete and Jim.

I would think with the brain power and resources Canapa has they would have a solid model of one of their motors already. (theirs or a customers)
And if they did I highly doubt they'd share since it would been done on the clock!

I'm not really anyone important to let into a shop to grab those numbers so I am not sure how I'd approach such an outfit, I'm just a guy in a garage with a small dream (IMG:style_emoticons/default/smile.gif)

Maybe I'll scan my Type IV motor 1st, then I might be taken a little more seriously.

I did scan this suspension part a few years back, pretty crude but the technology has gotten better and cheaper....hmmm, maybe I need some "investors", haha



https://www.youtube.com/watch?v=FuTcyWqfqvI
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Oct 22 2016, 03:51 PM
Post #17


914 Freak!
***************

Group: Members
Posts: 17,155
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None

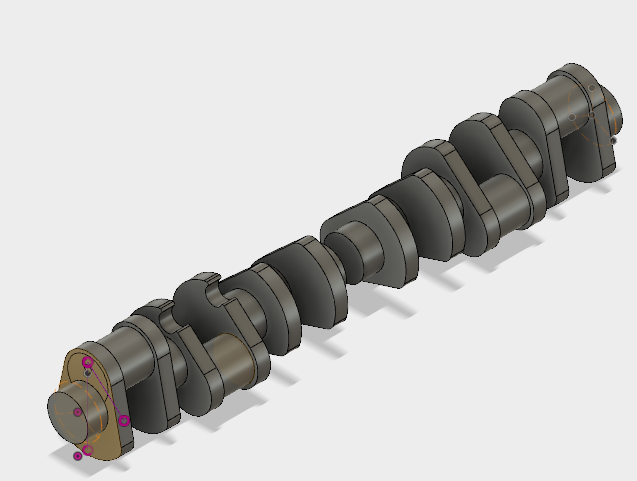

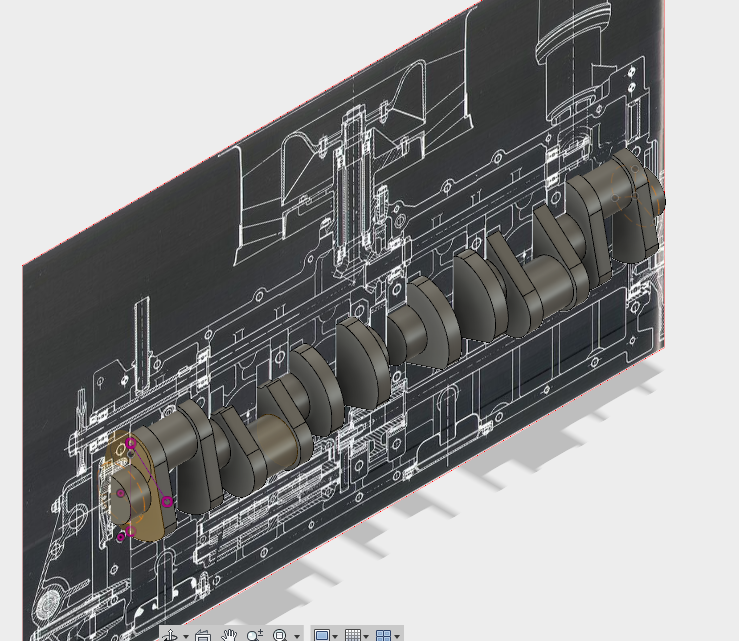

Small world, turns out a fellow Volvo nut works at Canepa, I'm going to see if he can snap some detailed pictures for me. Worse case is no, we'll see.


Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Catorse
post Oct 22 2016, 06:09 PM
Post #18


Member
**

Group: Members
Posts: 194
Joined: 27-August 15
From: Los Angeles
Member No.: 19,106
Region Association: Southwest Region
I phone Alfing Crankshafts in Germany, the original manufacturer of the 917 crank. They told me they would consider making new cranks but they would need to be ordered directly from Porsche. I asked for a drawing of the crank, to which they answered once again I'd need to talk to Porsche....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Oct 23 2016, 09:03 AM
Post #19


914 Freak!
***************

Group: Members
Posts: 17,155
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
QUOTE(Catorse @ Oct 22 2016, 05:09 PM) *

I phone Alfing Crankshafts in Germany, the original manufacturer of the 917 crank. They told me they would consider making new cranks but they would need to be ordered directly from Porsche. I asked for a drawing of the crank, to which they answered once again I'd need to talk to Porsche....



Great research finding the OEM!


Are there improvements to be made such as material change or bearing size? (Smaller 2" SBC or Honda bearings?)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Catorse
post Oct 23 2016, 10:42 AM
Post #20


Member
**

Group: Members
Posts: 194
Joined: 27-August 15
From: Los Angeles
Member No.: 19,106
Region Association: Southwest Region
QUOTE(Mueller @ Oct 23 2016, 08:03 AM) *

QUOTE(Catorse @ Oct 22 2016, 05:09 PM) *

I phone Alfing Crankshafts in Germany, the original manufacturer of the 917 crank. They told me they would consider making new cranks but they would need to be ordered directly from Porsche. I asked for a drawing of the crank, to which they answered once again I'd need to talk to Porsche....



Great research finding the OEM!


Are there improvements to be made such as material change or bearing size? (Smaller 2" SBC or Honda bearings?)


Yeah it was quite a hunt. Somone posted a pic of a crank with this symbol on it, really grainy, finally started googling the letters until I found ALFING. Like hitting gold!

I don't think bearings are an issue. You can always have them made, and at the end of the day if you are making a repro 917 engine it's a one off anyways....
User is offlineProfile CardPM
