2.0L engine Tin diagram? |
Boomingbeetle |
Nov 4 2016, 02:44 PM
Post
#1
|
Member Group: Members Posts: 118 Joined: 1-November 16 From: Orange County Member No.: 20,556 Region Association: Southern California |

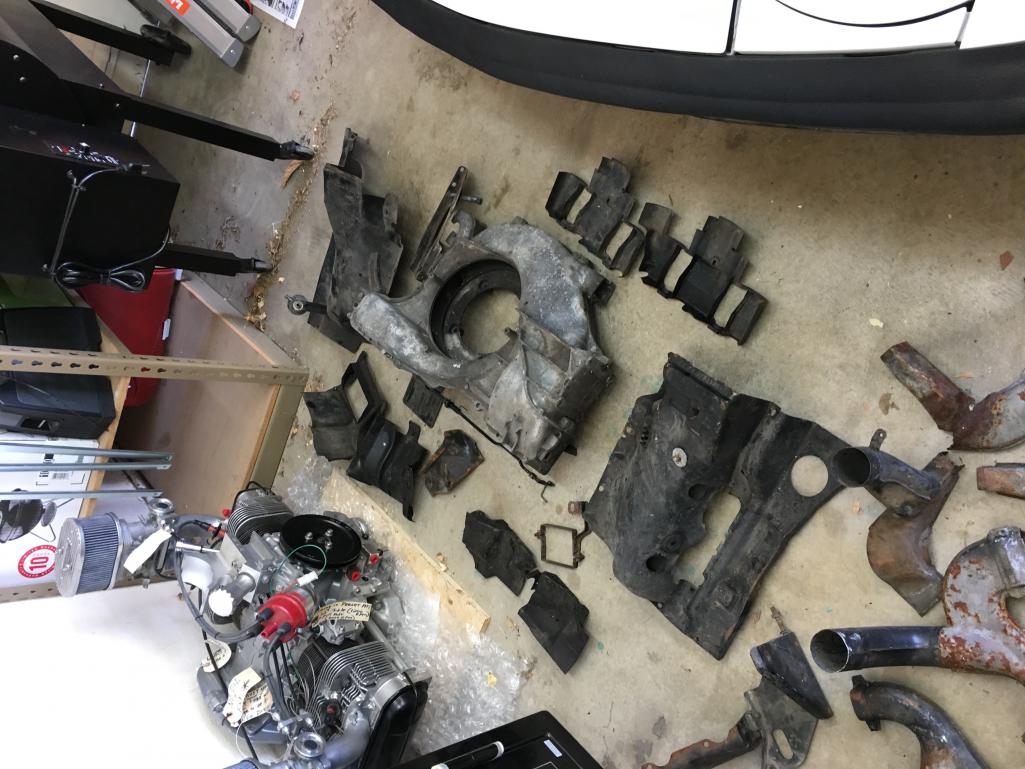

I am gathering up engine tin to install on a long block, but I'm not sure what I am missing. Diagrams are not as easy to find as the type one. I want to get all pieces powder coated at once. Here are some pictures of what I have. Not pictured- oil cooler, thermostat, fan pully, and the piece that goes above the flywheel.
|
Boomingbeetle |
Nov 4 2016, 02:46 PM
Post
#2
|
Member Group: Members Posts: 118 Joined: 1-November 16 From: Orange County Member No.: 20,556 Region Association: Southern California |
|
euro911 |
Nov 4 2016, 03:22 PM
Post
#3
|
Retired & living the dream. God help me if I wake up! Group: Members Posts: 8,849 Joined: 2-December 06 From: So.Cal. & No.AZ (USA) Member No.: 7,300 Region Association: Southern California |
Items I don't see in your pix (or the list of parts you state you have)
There are two pieces across the front of motor, attaching to the fan housing and cylinder top tins (IMG:http://www.914world.com/bbs2/uploads/post-7300-1474145778.jpg) There are also two warm air guide plates that attach under the push rod tubes not shown. A lot of folks don't run them, but if you want a correct complete set, you will need those too ... |
bdstone914 |
Nov 4 2016, 03:28 PM
Post
#4
|
bdstone914 Group: Members Posts: 4,522 Joined: 8-November 03 From: Riverside CA Member No.: 1,319 |
Items I don't see in your pix (or the list of parts you state you have) There are two pieces across the front of motor, attaching to the fan housing and cylinder top tins (IMG:http://www.914world.com/bbs2/uploads/post-7300-1474145778.jpg) There are also two warm air guide plates that attach under the push rod tubes not shown. A lot of folks don't run them, but if you want a correct complete set, you will need those too ... Mark, You are correct that the warm air guides are not there. To the OP: Are you using the late 75-76 heat exchangers or earlier ones? You have both early and late J tubes in the picture. The warm air guides are different for early and late heat exchangers. I should have either set. You are much better off with the early heat exchangers. What exhaust are you going to use? That affects which heat exchangers are used. You can download the whole Porsche PET catalogs here: http://www.porsche.com/usa/accessoriesands...partscatalogue/ |
barefoot |
Nov 4 2016, 03:41 PM
Post
#5
|
Senior Member Group: Members Posts: 1,274 Joined: 19-March 13 From: Charleston SC Member No.: 15,673 Region Association: South East States |
The PET is you friend, look at illustrations 115-00 & 115-05 for engine tin
bits 914petE.pdf ( 3.58mb ) Number of downloads: 520 |
Boomingbeetle |
Nov 4 2016, 05:33 PM
Post
#6
|
Member Group: Members Posts: 118 Joined: 1-November 16 From: Orange County Member No.: 20,556 Region Association: Southern California |
To the OP: Are you using the late 75-76 heat exchangers or earlier ones? You have both early and late J tubes in the picture. The warm air guides are different for early and late heat exchangers. I should have either set. You are much better off with the early heat exchangers. What exhaust are you going to use? That affects which heat exchangers are used. You can download the whole Porsche PET catalogs here: http://www.porsche.com/usa/accessoriesands...partscatalogue/ Is that Bruce? Now I recognize you. I bought a pair of seat height adjuster mounts from you at the swap meet a few weeks ago at your shop. I'm not going to run exchangers at all, I haven't purchased an exhaust yet, but it will have headers (IMG:style_emoticons/default/smile.gif). If it's chilly, I'll put on a sweater! I'd gladly trade all the heater components for the tin I am missing (the front piece in the photo, and the piece above the flywheel) |
Boomingbeetle |
Nov 4 2016, 05:36 PM
Post
#7
|
Member Group: Members Posts: 118 Joined: 1-November 16 From: Orange County Member No.: 20,556 Region Association: Southern California |
Items I don't see in your pix (or the list of parts you state you have) There are two pieces across the front of motor, attaching to the fan housing and cylinder top tins (IMG:http://www.914world.com/bbs2/uploads/post-7300-1474145778.jpg) There are also two warm air guide plates that attach under the push rod tubes not shown. A lot of folks don't run them, but if you want a correct complete set, you will need those too ... I do have the guide plates, they are installed in the motor already. I do not have the piece you show |
euro911 |
Nov 4 2016, 05:56 PM
Post
#8
|
Retired & living the dream. God help me if I wake up! Group: Members Posts: 8,849 Joined: 2-December 06 From: So.Cal. & No.AZ (USA) Member No.: 7,300 Region Association: Southern California |
Items I don't see in your pix (or the list of parts you state you have) Put on your glasses Mark. The top tins a next to the fan shroud. The under cylinder tins are there. You are correct that the warm air guides are not there.There are two pieces across the front of motor, attaching to the fan housing and cylinder top tins (IMG:http://www.914world.com/bbs2/uploads/post-7300-1474145778.jpg) There are also two warm air guide plates that attach under the push rod tubes not shown. A lot of folks don't run them, but if you want a correct complete set, you will need those too ... I see you found YOUR glasses and edited your original post, Brucey (IMG:style_emoticons/default/slap.gif) (IMG:style_emoticons/default/poke.gif) (IMG:style_emoticons/default/welcome.png) Boom ... nice looking motor you're building up (IMG:style_emoticons/default/thumb3d.gif) |
Boomingbeetle |
Nov 4 2016, 06:16 PM
Post
#9
|
Member Group: Members Posts: 118 Joined: 1-November 16 From: Orange County Member No.: 20,556 Region Association: Southern California |
(IMG:style_emoticons/default/welcome.png) Boom ... nice looking motor you're building up (IMG:style_emoticons/default/thumb3d.gif) Mark, I've built a few in my day but I can't take credit for this one. I bought it as is, never installed from a project that stalled out and the owner needed to sell. It was built for a 356, so there are a few things I needed to swap. |
bdstone914 |
Nov 4 2016, 08:34 PM
Post
#10
|
bdstone914 Group: Members Posts: 4,522 Joined: 8-November 03 From: Riverside CA Member No.: 1,319 |
Is that Bruce? Now I recognize you. I bought a pair of seat height adjuster mounts from you at the swap meet a few weeks ago at your shop. I'm not going to run exchangers at all, I haven't purchased an exhaust yet, but it will have headers (IMG:style_emoticons/default/smile.gif). If it's chilly, I'll put on a sweater! I'd gladly trade all the heater components for the tin I am missing (the front piece in the photo, and the piece above the flywheel) [/quote] Yes it is me. I dont need more heater tin. I will have to check for the front tin parts. Nor sure if Mark has the ones he pictured or was just oosting a picture to show the missing parts. Bruce |
euro911 |
Nov 4 2016, 09:15 PM
Post
#11
|
Retired & living the dream. God help me if I wake up! Group: Members Posts: 8,849 Joined: 2-December 06 From: So.Cal. & No.AZ (USA) Member No.: 7,300 Region Association: Southern California |
Yeah, pic was from a previous F/S ad. I sold most of my 'spare' tins earlier in the year. I'll look around to see if I have any more hiding somewhere, but I doubt it.
|
Drex |
Sep 15 2023, 05:01 AM
Post
#12
|
Member Group: Members Posts: 170 Joined: 1-December 22 From: Guthrie Center, Iowa Member No.: 27,003 Region Association: None |
hello
in the 914PetE PDF above all the illustrations say year is 76 does this apply to all 914s or is there a different PET for 1971? thanks D rex |
Dave_Darling |
Sep 15 2023, 05:10 AM
Post
#13
|
914 Idiot Group: Members Posts: 14,986 Joined: 9-January 03 From: Silicon Valley / Kailua-Kona Member No.: 121 Region Association: Northern California |
The PET should contain all years. There will be an application column denoting what car type (914, 914-6) or what engine size (1.7, 1,8, 1.8V, 2.0) and in some cases a note about what year or VIN range the part is for.
--DD |
