(IMG:http://www.914world.com/bbs2/html/emoticons/biggrin.gif) I am going to post this on my other thread also--just wanted to get max exposure for those that are scratching their heads on how to mount the racing buckets--

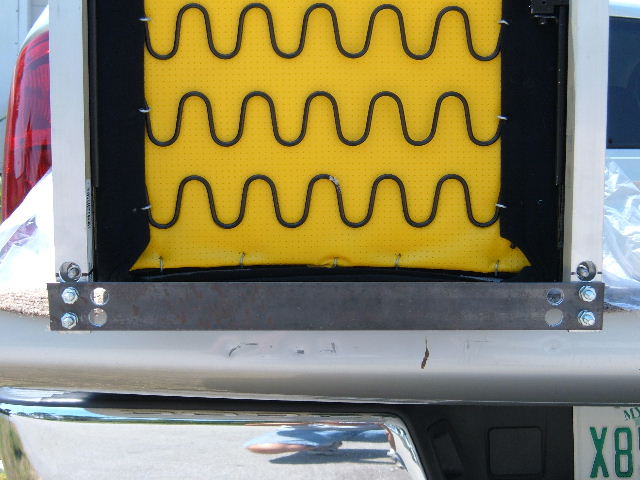

As you can see from the pics--the sport seat mounts are wider than the original 914 mounts. So after I made my new mounts to adapt the sliders which came with the seats--I simply made a cross bar of flat steel, measured, albeit roughly, and then bolted them into the original 914 pan mounts--- This set up gives me to proper ride height for my frame--the box tube is 1X1 inch. The pass side is going to be 3/4 inch higher than my side. I am not using the original pan mounts--For my size I could, but I like that little extra headroom. Attached image(s) |
jwalters |
Apr 23 2005, 03:41 PM
Post
#2
|
Sooo Close....... Group: Members Posts: 1,677 Joined: 14-May 04 From: Huntsville, AL Member No.: 2,068 Region Association: Europe |
Attached image(s) |
jwalters |
Apr 23 2005, 03:45 PM
Post
#3
|
Sooo Close....... Group: Members Posts: 1,677 Joined: 14-May 04 From: Huntsville, AL Member No.: 2,068 Region Association: Europe |
Attached image(s) |
jwalters |
Apr 23 2005, 03:47 PM
Post
#4
|
Sooo Close....... Group: Members Posts: 1,677 Joined: 14-May 04 From: Huntsville, AL Member No.: 2,068 Region Association: Europe |
(IMG:http://www.914world.com/bbs2/html/emoticons/biggrin.gif)
All mounted and ready to go--I have got 50% of my interior done today--from nothing in it at all, to the point you see here, including making the mounts, and a few runs to the store to get other things, I would be done today with it were it not for the fact of me having to stop. Right now I am beat--going to go (IMG:http://www.914world.com/bbs2/html/emoticons/beer.gif) Have a goodin---J Attached image(s) |
xsboost90 |
Apr 23 2005, 08:14 PM
Post
#5
|
Senior Member Group: Members Posts: 1,393 Joined: 2-August 04 From: cincinnati Member No.: 2,432 |
cool, thats pretty much what i was thinking of doing exactly. WHat did you mount the front to, bolt all the way through or weld in a nut or something?
|
