> Oh joy....engine wiring harness fun begins, starting to wire up the LINK fuel inject
Mueller
post May 4 2005, 09:08 AM
Post #41


914 Freak!
***************

Group: Members
Posts: 17,155
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
QUOTE
Nice Pics, BTW.


putting the camera on a tri-pod helps...too much coffee normally (IMG:http://www.914world.com/bbs2/html/emoticons/wacko.gif)

glad the laptop(s) are working, hate to see them go to waste....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post May 4 2005, 04:56 PM
Post #42


914 Freak!
***************

Group: Members
Posts: 17,155
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
James or anyone else:

any real difference between the ceramic resistors and the aluminum bodied resistors other than heat dissipation being better with the aluminum bodied units???
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
lapuwali
post May 4 2005, 05:32 PM
Post #43


Not another one!
****

Group: Benefactors
Posts: 4,526
Joined: 1-March 04
From: San Mateo, CA
Member No.: 1,743
Not that I know of, no. Resistors are basically just resistors. Ohms, tolerance, and power rating are all that matter. I suppose the Al units might be smaller for a given power rating, which would be useful in some cases.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post May 4 2005, 05:39 PM
Post #44


914 Freak!
***************

Group: Members
Posts: 17,155
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
QUOTE (lapuwali @ May 4 2005, 04:32 PM)
Not that I know of, no. Resistors are basically just resistors. Ohms, tolerance, and power rating are all that matter. I suppose the Al units might be smaller for a given power rating, which would be useful in some cases.

thanks...I picked up the ceramic style at Frys for .99 cents instead of the aluminum ones at $5 each @ R and D Electronics..........I'll mount them on a heatsink I pulled out of an old Pentium workstation
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post May 4 2005, 06:10 PM
Post #45


914 Freak!
***************

Group: Members
Posts: 17,155
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None

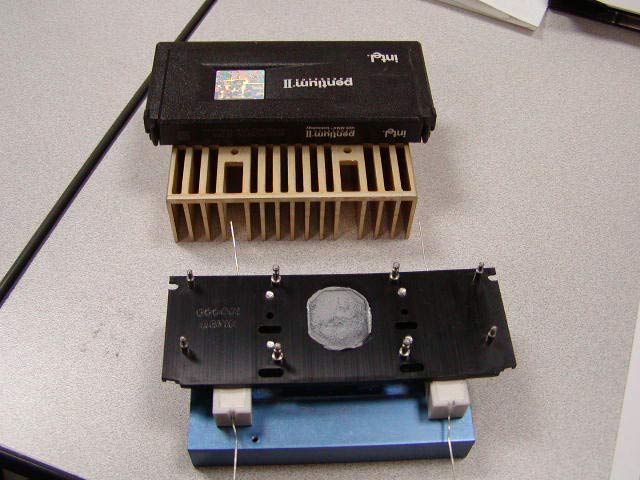

now I know why I don't throw too many things away....for the resistors, I need heatsinks.....threw away a few Pentium II systems but took a few items out of the case before being tossed:

The blue one houses the 2 resistors I need for my fuel injection.........


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post May 4 2005, 06:11 PM
Post #46


914 Freak!
***************

Group: Members
Posts: 17,155
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None

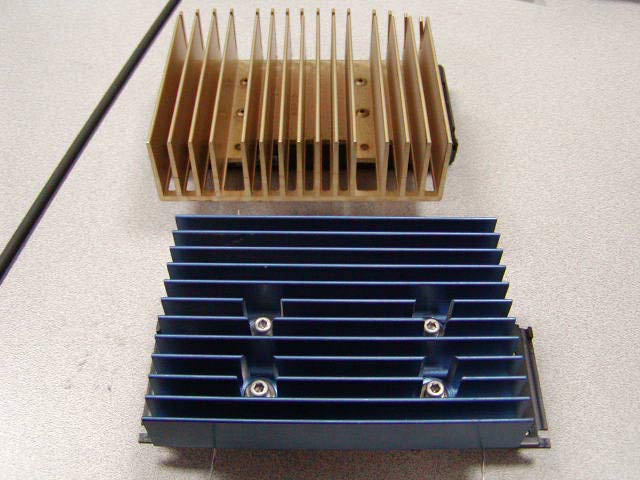

bottom view, I still need to figure out how I will mount this in the car...no heatsink grease on the parts yet....


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post May 4 2005, 06:15 PM
Post #47


Professional Tinkerer
***************

Group: Retired Admin
Posts: 24,548
Joined: 1-February 03
From: Corona, CA
Member No.: 219
Region Association: Southern California
thats a lot of heatsync....

where are you going to put it all? (IMG:http://www.914world.com/bbs2/html/emoticons/ohmy.gif) (IMG:http://www.914world.com/bbs2/html/emoticons/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Britain Smith
post May 4 2005, 07:11 PM
Post #48


Nano Member
****

Group: Members
Posts: 2,354
Joined: 27-February 03
From: Hillsboro, OR
Member No.: 364
On the topic of heat sinks, where can I get some nice panel mount type connectors? I want to use them on the firewall of my car so that I can put all the electronics inside the car and be able to just plug it in. I would like to be able to remove the ECU from the inside of the car and plug it into the engine directly when the engine is on a dyno. I would probably need to connectors, each with about 20 pins.

-Britain
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post May 4 2005, 07:13 PM
Post #49


914 Freak!
***************

Group: Members
Posts: 17,155
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
QUOTE (Britain Smith @ May 4 2005, 06:11 PM)
On the topic of heat sinks, where can I get some nice panel mount type connectors? I want to use them on the firewall of my car so that I can put all the electronics inside the car and be able to just plug it in. I would like to be able to remove the ECU from the inside of the car and plug it into the engine directly when the engine is on a dyno. I would probably need to connectors, each with about 20 pins.

-Britain

Mouser, Digikey....Jasons storage shed (IMG:http://www.914world.com/bbs2/html/emoticons/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TimT
post May 4 2005, 07:18 PM
Post #50


retired
****

Group: Members
Posts: 4,033
Joined: 18-February 03
From: Wantagh, NY
Member No.: 313
Britain look on page one of this thread, there is a pic of a 26 pin weatherpac connector Im using on my 911. Just one plug pulled, a few hoses and the engine is out.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post May 4 2005, 07:27 PM
Post #51


914 Freak!
***************

Group: Members
Posts: 17,155
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
Weatherpack

I cannot find any connectors with more than 6 pins???
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Britain Smith
post May 4 2005, 07:27 PM
Post #52


Nano Member
****

Group: Members
Posts: 2,354
Joined: 27-February 03
From: Hillsboro, OR
Member No.: 364
Where did you get it?

I really want a panel mount connector that can mount to the firewall. Kinda like the ones on the bottom of this picture.

(IMG:http://www.v8914.com/Images/Big/Wiring3.jpg)

-Britain
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TimT
post May 4 2005, 07:33 PM
Post #53


retired
****

Group: Members
Posts: 4,033
Joined: 18-February 03
From: Wantagh, NY
Member No.: 313
Oh duh, brainfart, Clewett sells that 26 pin connector.

Britain, the connectors in your pic can be sourced from MoTec or EFI Technology. I haven forgotten the trade name for those connectors, but they are Mil-spec aircraft connectors..
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post May 4 2005, 07:46 PM
Post #54


914 Freak!
***************

Group: Members
Posts: 17,155
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
QUOTE (TimT @ May 4 2005, 06:33 PM)
Oh duh, brainfart, Clewett sells that 26 pin connector.

Britain, the connectors in your pic can be sourced from MoTec or EFI Technology. I haven forgotten the trade name for those connectors, but they are Mil-spec aircraft connectors..

Think those might be Deutsch brand connectors???

Deutsch Connectors
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post May 26 2005, 03:23 PM
Post #55


914 Freak!
***************

Group: Members
Posts: 17,155
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
ditched the stock relay board....had to come up with a "cheap" solution for the 14 pin and 12 pin connector (IMG:http://www.914world.com/bbs2/html/emoticons/smile.gif)

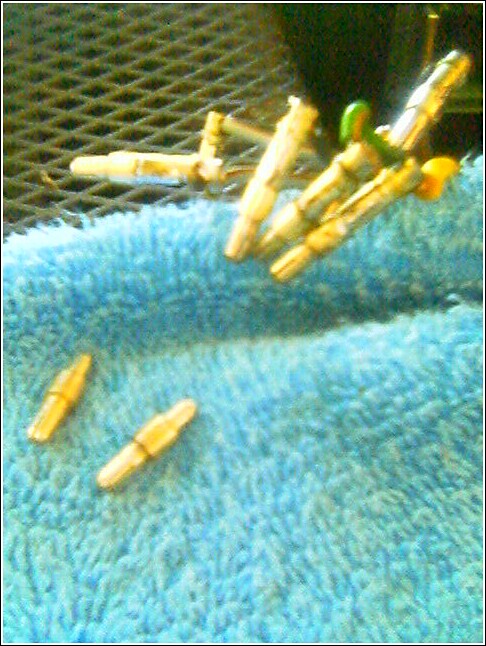

I ended up drilling the pins out of the relay board...


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post May 26 2005, 03:25 PM
Post #56


914 Freak!
***************

Group: Members
Posts: 17,155
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None

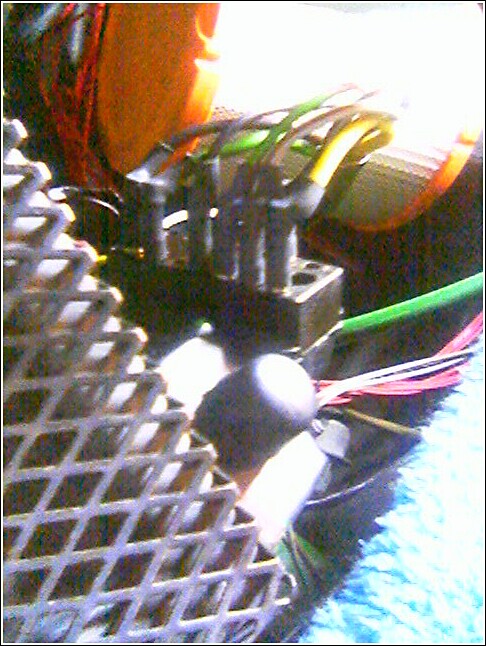

i then soldered them to female sockets from the 12pin connector and placed them in the correct socket of the 14pin connector...




Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
