> Throttle Pedal Bracket bent !!, stuck pedal, no rev limiter..
9144me
post May 4 2005, 12:52 PM
Post #1


Newbie
*

Group: Members
Posts: 17
Joined: 2-February 05
From: NY/NJ
Member No.: 3,550



The title basically says it all.

I picked up my car yesterday and trailered it home. When I first played with the car i pulled on the pedal because I thought it didn't return fully. Anyhow the linkage popped off because it doesn't allowmovement in the reverse direction unlike most cars. So I popped it back on and all seemed ok, even though I didn't start the car.

When I brought the car home i noticed the bracket is bent to the right and the ball joints don't line up. So I bent it back to the left and hooked the two linkages (one for the pedal and one going through the tunnel).

Took the car for a noisy drive around the neighborhood and floored it. The bracket bent to the right again and got stuck under a piece of sheet metal or something. No rev limiter so i cut the engine as soon as possible. The engine is ok, drove ok afterwards.

Any someone post pictures of how this is supposed to be aligned? Do I have to replace the pedal cluster?

PLEASE HELP! Thanks! (IMG:http://www.914world.com/bbs2/html/emoticons/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
davep
post May 4 2005, 01:03 PM
Post #2


914 Historian
*****

Group: Benefactors
Posts: 5,214
Joined: 13-October 03
From: Burford, ON, N0E 1A0
Member No.: 1,244
Region Association: Canada



Sounds like the pedal is broken. The hinge is supposed to limit motion fore and aft. If the metal inside is rotted, then the pedal can twist as well. If so, it must be replaced. The pedal is also supposed to have a return string action. I f you have a new one you will see what I mean. This supplements the return spring in the engine compartment. When they break it can be fun as you found out. The other problem can be the throttle and clutch cables wrapping around each other. Whenever you work on them, be sure they do not interfere or there will be problems. Also, check the firewall under the engine where the cables come out. If the tubes are loose, you will have major problems. When they are loose on the firewall, they have also broken free inside the tunnel. Time for surgery.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
9144me
post May 4 2005, 01:06 PM
Post #3


Newbie
*

Group: Members
Posts: 17
Joined: 2-February 05
From: NY/NJ
Member No.: 3,550



The pedal is fine. It returns normally and does not twist.

The bracket bent for some reason, maybe because something isn't aligned correctly. Maybe because it was bent once and is weakened.

I just realized while taking off the distributor cap that I have a rev limiting rotor. That definetely saved me!

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
URY914
post May 4 2005, 02:12 PM
Post #4


I built the lightest 914 in the history of mankind.
****************************************************************************************************

Group: Members
Posts: 124,053
Joined: 3-February 03
From: Jacksonville, FL
Member No.: 222
Region Association: None



No, NO, No, here is what happening.

The gas pedal has the rod behind it and the other end of the rod connects to a bracket. The bracket has a shaft that it pivots on and this shaft is pressed into the bracket. The shaft has come loose from the bracket. Happened on mine. I welded the shaft to the bracket.

I have pics at home that I'll post tonight.

Paul

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
9144me
post May 4 2005, 02:23 PM
Post #5


Newbie
*

Group: Members
Posts: 17
Joined: 2-February 05
From: NY/NJ
Member No.: 3,550



Ohh ok, that is possible.

I will check to see if that is what happened. What has to be removed to fix this? The entire cluster?

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
lapuwali
post May 4 2005, 02:41 PM
Post #6


Not another one!
****

Group: Benefactors
Posts: 4,526
Joined: 1-March 04
From: San Mateo, CA
Member No.: 1,743



QUOTE (9144me @ May 4 2005, 12:23 PM)
Ohh ok, that is possible.

I will check to see if that is what happened. What has to be removed to fix this? The entire cluster?

It would be easier to remove the cluster. This is not difficult at all. While you're there, you'll probably want to rebuild the whole cluster. There's an article on Pelican's site describing this process. Doing a search here will also give more info. Don't use the roll pin in the rebuild kit. Use a better pin or a bolt.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post May 4 2005, 02:47 PM
Post #7


914 Freak!
***************

Group: Members
Posts: 17,150
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None



do you have the floor board that covers the pedal cluster?

the board has an adjustible throttle stop built into for a reason.....

this an aftermarket unit pictured

(IMG:http://www.914world.com/bbs2/uploads/post-4-1065575333.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
URY914
post May 4 2005, 02:58 PM
Post #8


I built the lightest 914 in the history of mankind.
****************************************************************************************************

Group: Members
Posts: 124,053
Joined: 3-February 03
From: Jacksonville, FL
Member No.: 222
Region Association: None



The shaft has a cotter pin in it and has the small bushings around it. I was able to get the bracket out without taking the entire cluster out. (But I don't have much left around my pedals)

The shaft is about 1/4" in dia. but the bracket may hit the tunnel before the shaft clears the cluster body so you can get it out.

Paul
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
URY914
post May 4 2005, 06:40 PM
Post #9


I built the lightest 914 in the history of mankind.
****************************************************************************************************

Group: Members
Posts: 124,053
Joined: 3-February 03
From: Jacksonville, FL
Member No.: 222
Region Association: None

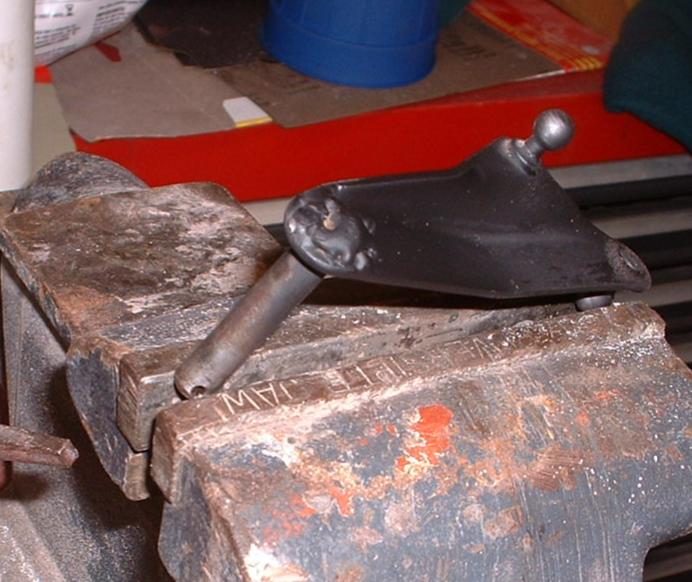

pic one:

Broken...


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
URY914
post May 4 2005, 06:40 PM
Post #10


I built the lightest 914 in the history of mankind.
****************************************************************************************************

Group: Members
Posts: 124,053
Joined: 3-February 03
From: Jacksonville, FL
Member No.: 222
Region Association: None

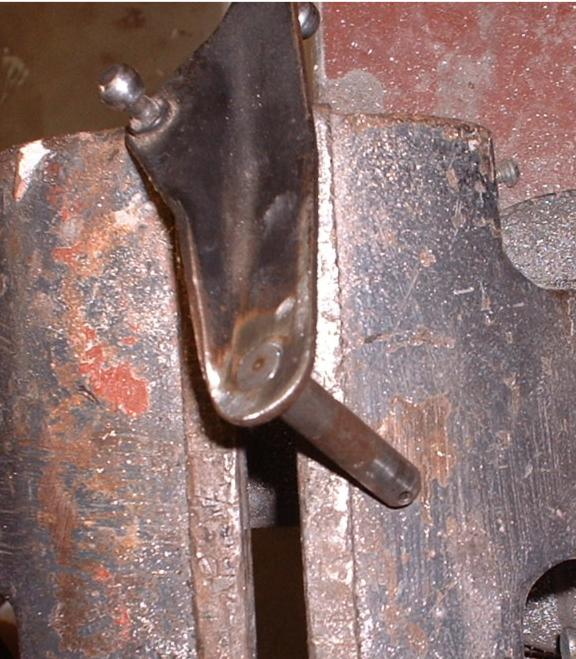

pic 2:
