> Electrical..., Yes more electrical questions..
Seelenfan
post Mar 29 2017, 08:53 PM
Post #1


Newbie
*

Group: Members
Posts: 41
Joined: 12-February 17
From: Phoenix AZ
Member No.: 20,836
Region Association: Southwest Region



I know you guys probably get tired of electrical questions.. I have been reading and searching. But can find the answers..

It's a 73. I know the year can make a difference..

I don't have power at my brake pedal switch. The switch works as I tested it with my multimeter. I attached my meter to the lead with 2 wires and poked the fuse panel. (Batt disconnected) it gets continuety on 8 out of 12 fuses.. this is confusing to me. So I checked the other wire that plugs into the switch, same results..

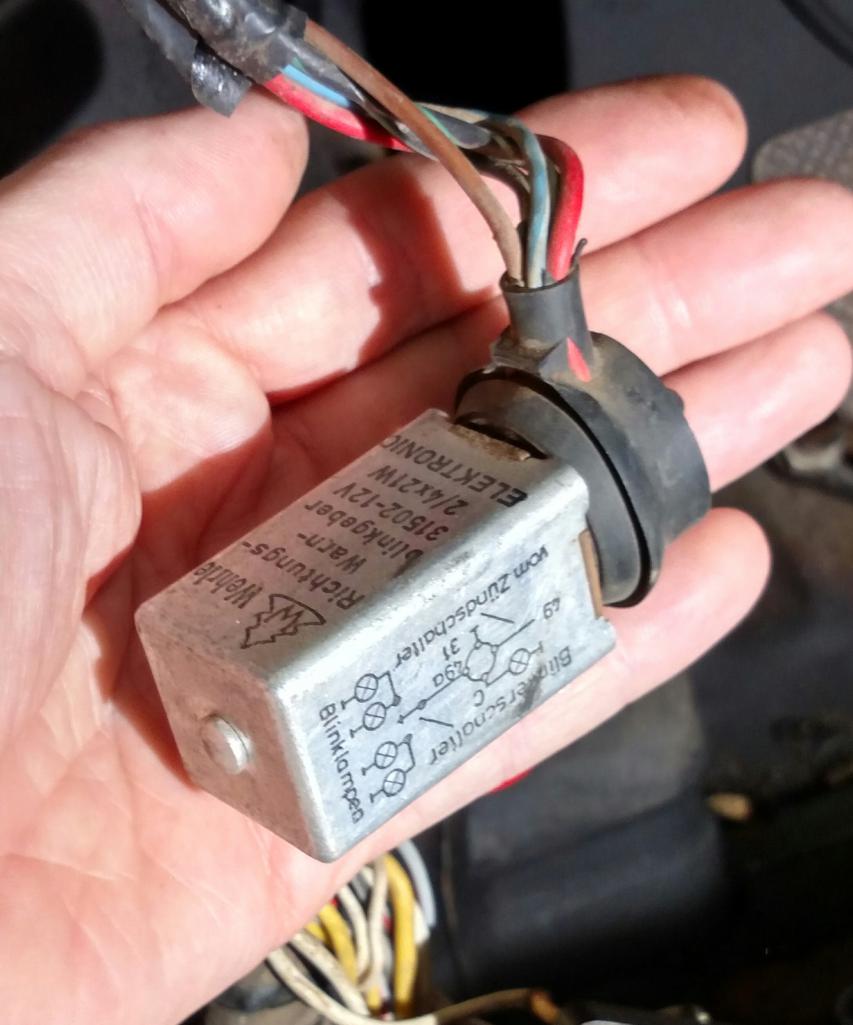

Attached is a pic of a relay stuffed in the dash. This buzzes. Is it supposed to buzz? I thought the buzzer was saposed to be under the pass seat.

All 4 round 5 pin relays on the back of the fuse panel are good. I tested them in a known good plug.

Another issue is that I have power to # 3 4 5 6 7 8 9 10 11 12 with the key on and headlights on. But no power to #1 or 2. Headlights come up, light up but no high beam.. so where does #1 and 2 get it's power from?


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jcd914
post Mar 29 2017, 10:52 PM
Post #2


Advanced Member
****

Group: Members
Posts: 2,090
Joined: 7-February 08
From: Sacramento, CA
Member No.: 8,684
Region Association: Northern California



Brake light switch should get power from fuse S9 via a black and yellow wire.
Fuse S9 get power from the ignition switch via a black wire.

The relay you picture is the flasher relay.

Jim

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jcd914
post Mar 29 2017, 10:57 PM
Post #3


Advanced Member
****

Group: Members
Posts: 2,090
Joined: 7-February 08
From: Sacramento, CA
Member No.: 8,684
Region Association: Northern California



And fuse S1 & S2 are your high beam fuses, it will only have power when headlights are on and high/low relay is switch to high beams.

I'm in the middle of wiring work on my 914 right now.
(Yes Rob, I'm working on my car)

Jim
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ConeDodger
post Mar 29 2017, 11:15 PM
Post #4


Apex killer!
***************

Group: Members
Posts: 23,997
Joined: 31-December 04
From: Tahoe Area
Member No.: 3,380
Region Association: Northern California



QUOTE(jcd914 @ Mar 30 2017, 01:57 AM) *

And fuse S1 & S2 are your high beam fuses, it will only have power when headlights are on and high/low relay is switch to high beams.

I'm in the middle of wiring work on my 914 right now.
(Yes Rob, I'm working on my car)

Jim


(IMG:style_emoticons/default/lol-2.gif) (IMG:style_emoticons/default/laugh.gif) (IMG:style_emoticons/default/av-943.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jcd914
post Mar 29 2017, 11:51 PM
Post #5


Advanced Member
****

Group: Members
Posts: 2,090
Joined: 7-February 08
From: Sacramento, CA
Member No.: 8,684
Region Association: Northern California

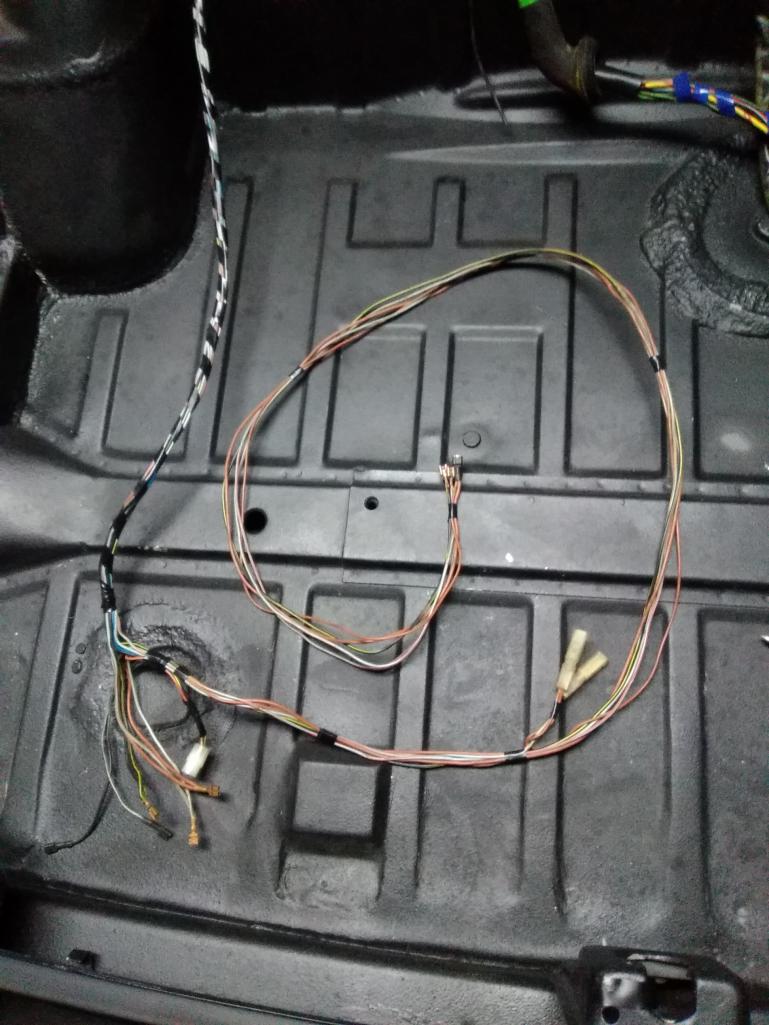

My harness had a short and I had melted wires and poor repairs all wrapped heavely in electrical tape.
