Gearbox input shaft seal installation? |
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
Gearbox input shaft seal installation? |
falcor75 |
Apr 1 2017, 07:51 AM
Post
#1
|
Senior Member Group: Members Posts: 1,579 Joined: 22-November 12 From: Sweden Member No.: 15,176 Region Association: Scandinavia |

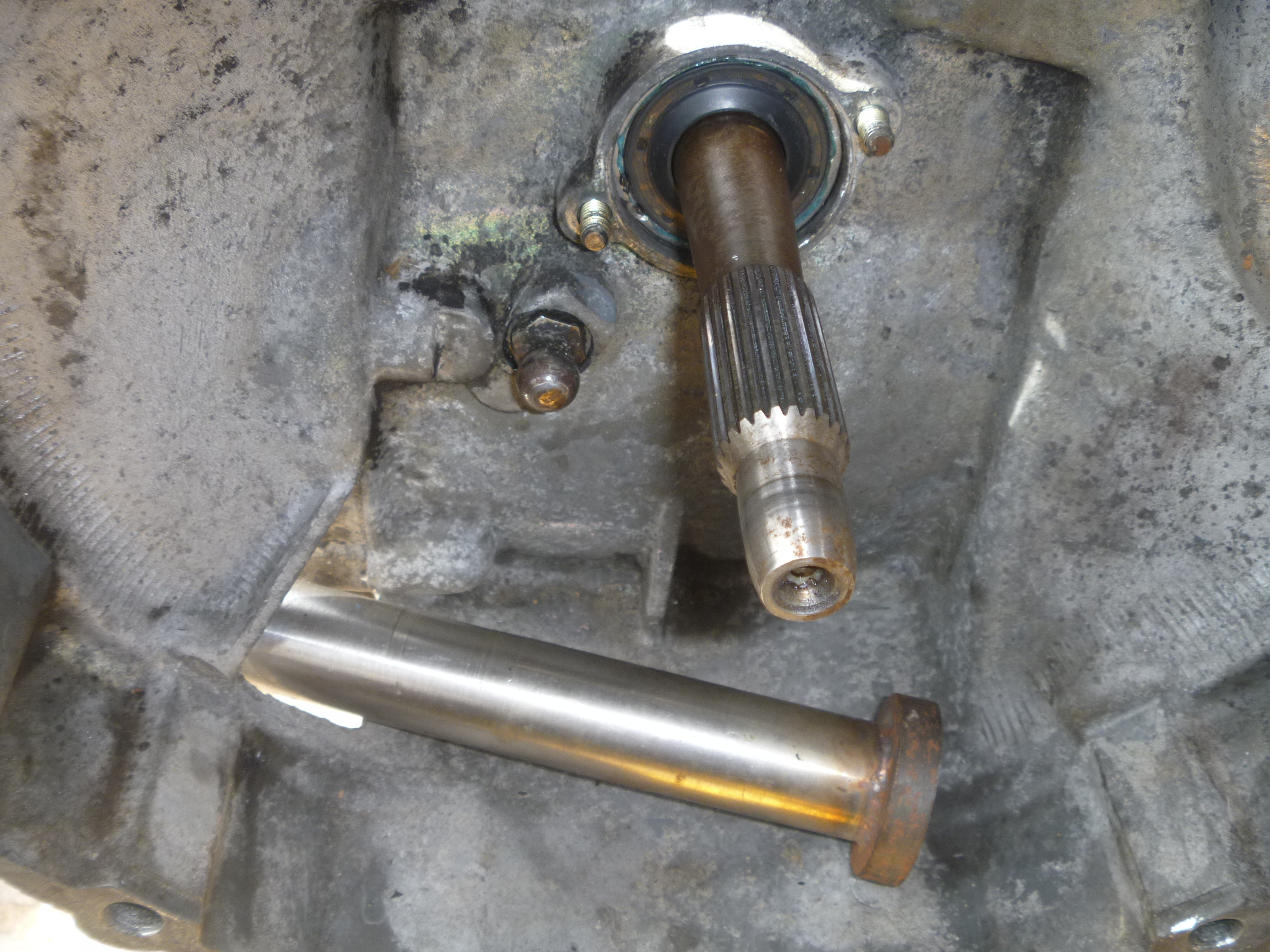

How deep should it be installed? Flush with the outer flange or flush with the inner flanfe??
|
falcor75 |
Apr 1 2017, 07:52 AM
Post
#2
|
Senior Member Group: Members Posts: 1,579 Joined: 22-November 12 From: Sweden Member No.: 15,176 Region Association: Scandinavia |
|
forrestkhaag |
Apr 1 2017, 09:41 AM
Post
#3
|
Senior Member Group: Members Posts: 935 Joined: 21-April 14 From: Scottsdale, Arizona Member No.: 17,273 Region Association: Southwest Region |

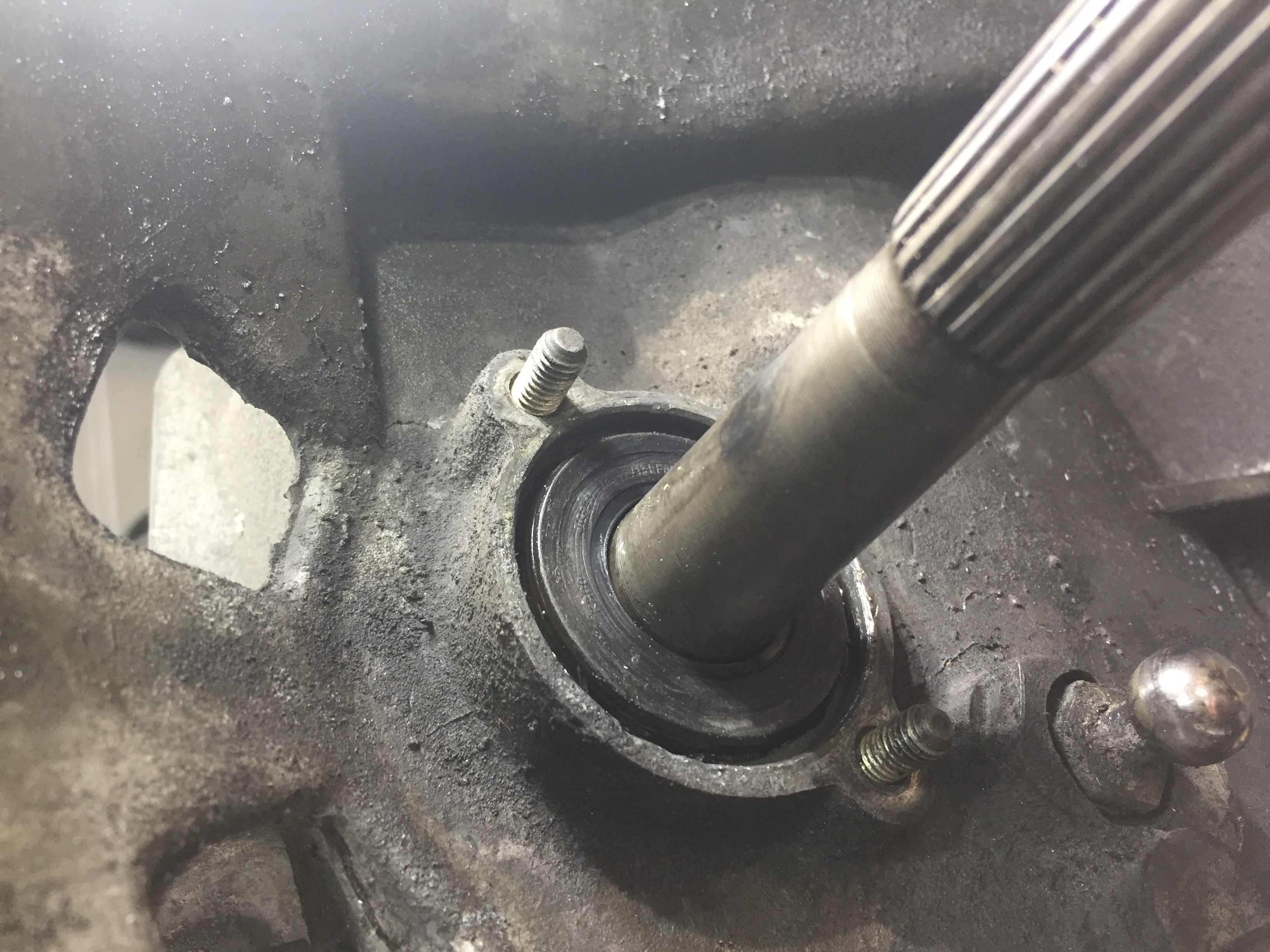

In order to seal properly, (and I just did mine a week or two ago - and it doesn't leak... for now...) I used a smooth pipe long enough to straddle the shaft and tapped it "home" to mate the seal with the inner case area. If memory serves me, it went in another eighth inch from where your picture shows it to be. Someone else may have a different experience.
(IMG:style_emoticons/default/beerchug.gif) Attached image(s) |
BeatNavy |
Apr 1 2017, 10:11 AM
Post
#4
|
Certified Professional Scapegoat Group: Members Posts: 2,924 Joined: 26-February 14 From: Easton, MD Member No.: 17,042 Region Association: MidAtlantic Region |
The primary goal is to just get the seal deep enough so that it doesn't interfere with the tube when mounted back onto the case. The way you check that: if the seal's opening starts to distort at any point while you're installing that tube, the seal needs to go deeper. If it does not distort, and the tube mounts cleanly then, in the words of Dr. Evil "you're golden, be happy."
Stock seals had a shoulder that sat on the lip of the opening, but most replacements do not, I believe. |
porschetub |
Apr 1 2017, 01:57 PM
Post
#5
|
Advanced Member Group: Members Posts: 4,697 Joined: 25-July 15 From: New Zealand Member No.: 18,995 Region Association: None |
|
mtndawg |
Apr 1 2017, 04:08 PM
Post
#6
|
Member Group: Members Posts: 413 Joined: 26-January 09 From: Granite Bay, Ca Member No.: 9,985 Region Association: None |
The primary goal is to just get the seal deep enough so that it doesn't interfere with the tube when mounted back onto the case. The way you check that: if the seal's opening starts to distort at any point while you're installing that tube, the seal needs to go deeper. If it does not distort, and the tube mounts cleanly then, in the words of Dr. Evil "you're golden, be happy." Stock seals had a shoulder that sat on the lip of the opening, but most replacements do not, I believe. Are those seals available that have the shoulder? |
BeatNavy |
Apr 1 2017, 05:05 PM
Post
#7
|
Certified Professional Scapegoat Group: Members Posts: 2,924 Joined: 26-February 14 From: Easton, MD Member No.: 17,042 Region Association: MidAtlantic Region |
The primary goal is to just get the seal deep enough so that it doesn't interfere with the tube when mounted back onto the case. The way you check that: if the seal's opening starts to distort at any point while you're installing that tube, the seal needs to go deeper. If it does not distort, and the tube mounts cleanly then, in the words of Dr. Evil "you're golden, be happy." Stock seals had a shoulder that sat on the lip of the opening, but most replacements do not, I believe. Are those seals available that have the shoulder? Not that I am aware. 914sixer (Mark) had found a stash of NOS and generously offered those last year pretty reasonably, but I think he's all sold out. Maybe there's another source out there somewhere. You can search. P/N 113-311-113-B. |
914Sixer |
Apr 1 2017, 09:26 PM
Post
#8
|
914 Guru Group: Members Posts: 8,870 Joined: 17-January 05 From: San Angelo Texas Member No.: 3,457 Region Association: Southwest Region |
I can add a picture of what the seal looks like. I might have one. Mark at 914Rubber has one. He had planned to make them a some point.
|
BeatNavy |
Apr 2 2017, 08:00 AM
Post
#9
|
Certified Professional Scapegoat Group: Members Posts: 2,924 Joined: 26-February 14 From: Easton, MD Member No.: 17,042 Region Association: MidAtlantic Region |
Here's a couple of pics of the type Mark got ahold of last year. The nice new one on the left has a lip - compare to the nasty old one on the right which does not. Mine is about to serve its purpose in life as I'm putting a tranny back together over the next couple of days.
Another. You can almost SEE how excited this seal is as it eagerly awaits installation. |
falcor75 |
Apr 22 2017, 10:08 AM
Post
#10
|
Senior Member Group: Members Posts: 1,579 Joined: 22-November 12 From: Sweden Member No.: 15,176 Region Association: Scandinavia |
Well I got a pretty obvious signal from the gearbox that I didnt put the seal in deep enough for the conical inner lip to mate to the input shaft, blue drips on the garagefloor.
So I pulled the gearbox out and will try again tomorrow. Luckily I ordered a few extra seals since they were quite cheap. (IMG:http://www.914world.com/bbs2/uploads_offsite/matsgarage.com-15176-1492877335.1.jpg) Left one is an Elring Klinger that I got from a Swedish Porsche parts dealer. The right one is a Kaco brand that I got from the closest Porsche dealership. The last one I put in was the Kaco brand. Now I'm thinking of using the Elring instead. (IMG:http://www.914world.com/bbs2/uploads_offsite/matsgarage.com-15176-1492877336.2.jpg) Elring left, Kaco right. (IMG:http://www.914world.com/bbs2/uploads_offsite/matsgarage.com-15176-1492877337.3.jpg) Elring is the smooth one and Kaco is the ribbed one. The only other difference that wont show in pictures is that if I pinch the inner lip of the Kaco brand its much stiffer than the Elring which is more pliable. So tomorrow I'll pop one in and drive it in deeper than last time when it just cleared the guide tube. Any other advice? Lube or dry outside? |
dangrouche |
Apr 22 2017, 10:22 AM
Post
#11
|
dangrouche Group: Members Posts: 550 Joined: 1-May 04 From: San Francisco Bay Area Member No.: 2,012 Region Association: None |
I would always smear of lube to prevent tearing of the dry rubber against the tranny metal. getting it in even and square is the challenge, I am thinking a properly sized socket....
|
falcor75 |
Apr 22 2017, 10:50 AM
Post
#12
|
Senior Member Group: Members Posts: 1,579 Joined: 22-November 12 From: Sweden Member No.: 15,176 Region Association: Scandinavia |
I made a tool that will work, lasercut a washer that just fits the seal from a 5 mm plate at work and then welded that to a suitable sized steel pipe. I dont have a picture of it available but I'll take one tomorrow....
|
Bartlett 914 |
Apr 22 2017, 05:02 PM
Post
#13
|
Advanced Member Group: Members Posts: 2,214 Joined: 30-August 05 From: South Elgin IL Member No.: 4,707 Region Association: Upper MidWest |
Well I got a pretty obvious signal from the gearbox that I didnt put the seal in deep enough for the conical inner lip to mate to the input shaft, blue drips on the garagefloor. So I pulled the gearbox out and will try again tomorrow. Luckily I ordered a few extra seals since they were quite cheap. (IMG:http://www.914world.com/bbs2/uploads_offsite/matsgarage.com-15176-1492877335.1.jpg) Left one is an Elring Klinger that I got from a Swedish Porsche parts dealer. The right one is a Kaco brand that I got from the closest Porsche dealership. The last one I put in was the Kaco brand. Now I'm thinking of using the Elring instead. (IMG:http://www.914world.com/bbs2/uploads_offsite/matsgarage.com-15176-1492877336.2.jpg) Elring left, Kaco right. (IMG:http://www.914world.com/bbs2/uploads_offsite/matsgarage.com-15176-1492877337.3.jpg) Elring is the smooth one and Kaco is the ribbed one. The only other difference that wont show in pictures is that if I pinch the inner lip of the Kaco brand its much stiffer than the Elring which is more pliable. So tomorrow I'll pop one in and drive it in deeper than last time when it just cleared the guide tube. Any other advice? Lube or dry outside? Always lubricate a shaft seal. Use the same oil as you are sealing out. Inside and out. I have seen where grease is used. This works for awhile but later prevents oil from lubricating the lip at the point of contact. The result is a worn groove on the shaft and a leak. Lubricate the shaft before inserting also. |
TheCabinetmaker |
Apr 23 2017, 07:50 AM
Post
#14
|
I drive my car everyday Group: Members Posts: 8,300 Joined: 8-May 03 From: Tulsa, Ok. Member No.: 666 |
You must clean and smooth the inside of the case. I use emory cloth to insure there are no nicks or imperfections in the seating surface.
|
falcor75 |
Apr 23 2017, 08:42 AM
Post
#15
|
Senior Member Group: Members Posts: 1,579 Joined: 22-November 12 From: Sweden Member No.: 15,176 Region Association: Scandinavia |
Car is back together and testdriven around 20 km. Will see if it leaks again if so Im turning it over to a pro.
|
