 does anyone have a roller in northern va?, i need to test fit an engine cradle. |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
| jimkelly |
 Jun 21 2017, 06:48 AM
Post
#1
|
|
Delaware USA  Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region  |

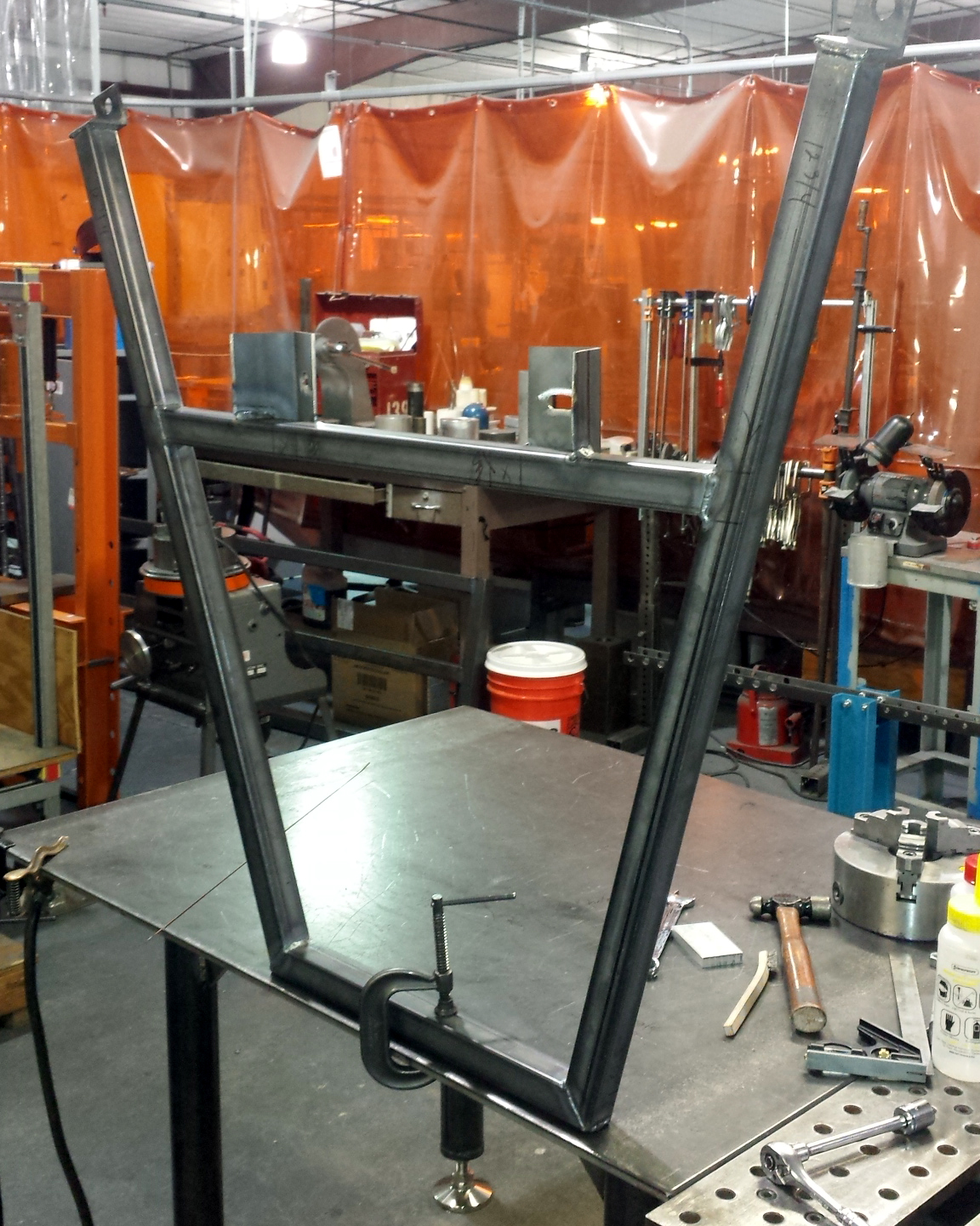

i need to text fit this suby engine/trans cradle so i can determine where to place the trans hanger sections and orient it properly.
Attached thumbnail(s)
|
   |

|
  |
Replies(1 - 10)
| BeatNavy |
Jun 21 2017, 06:59 AM
Post
#2
|
|
Certified Professional Scapegoat Group: Members Posts: 2,924 Joined: 26-February 14 From: Easton, MD Member No.: 17,042 Region Association: MidAtlantic Region
|
Jim, I've got a '75 body up on a cart in my garage you're welcome to use as a guide. I'm missing one piece of engine shelving, as I haven't got around to that body section yet, but I would think it would work for your purposes.
If you're over at Rod's, I'm just down the road (if you remember). |
|
|
|
| jimkelly |
Jun 21 2017, 08:05 AM
Post
#3
|
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |
rob, of course, thanks.
all the crazy avatars and screen names mixes the hell out of me and the region of my brain responsible for membering stuff : ) does your car have engine and trans mounts installed? Attached image(s)
|
|
|
|
| BeatNavy |
Jun 21 2017, 09:18 AM
Post
#4
|
|
Certified Professional Scapegoat Group: Members Posts: 2,924 Joined: 26-February 14 From: Easton, MD Member No.: 17,042 Region Association: MidAtlantic Region
|
QUOTE(jimkelly @ Jun 21 2017, 10:05 AM)  does your car have engine and trans mounts installed? Ach! I have 3/4 of what you need. I have both trans mounts installed, but one of the engine mounts has yet to be installed as I replaced that upper wheelhouse (but have not yet put the mount back on). I DO have the mount I'm going to use (lying around somewhere), so if you think we can clamp it in place for this purpose we can try that. |
|
|
|
| jimkelly |
Jun 21 2017, 11:37 AM
Post
#5
|
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |
hum, should be still doable.
sample pic from under engine bay. Attached image(s)
|
|
|
|
| jimkelly |
Jun 21 2017, 08:41 PM
Post
#6
|
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |
working on a jig.
Attached thumbnail(s)
|
|
|
|
| jimkelly |
Jun 22 2017, 11:26 AM
Post
#7
|
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |
got wooden jig set up for get rear mount points in place.
once i get this tacked up, i will take over to rob's to see how it fits to car. i did have to hog out the front mount holes about a 1/4 inch outward on both, this is because my cross bar was a bit short and i had to weld a decent gap which must have pulled the whole cradle tight inward. Attached thumbnail(s)
|
|
|
|
| jimkelly |
Jun 22 2017, 05:17 PM
Post
#8
|
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |
pic
Attached thumbnail(s)
|
|
|
|
| BeatNavy |
Jun 22 2017, 06:42 PM
Post
#9
|
|
Certified Professional Scapegoat Group: Members Posts: 2,924 Joined: 26-February 14 From: Easton, MD Member No.: 17,042 Region Association: MidAtlantic Region
|
Looks good, Jim. My tub will be excited to be useful for something other than being a place for me to throw my crap (IMG:style_emoticons/default/smile.gif)
|
|
|
|
| jimkelly |
Jun 22 2017, 06:55 PM
Post
#10
|
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |
looks good though i wish it were DEAD NUTS/SPOT ON measurement wise (IMG:style_emoticons/default/smile.gif)
if i did not spend the past hour with rod drinking RONIN at crooked run brewery, i'd be at your house fitting my cradle (IMG:style_emoticons/default/beer.gif) Attached image(s)
|
|
|
|
| BeatNavy |
Jun 22 2017, 07:05 PM
Post
#11
|
|
Certified Professional Scapegoat Group: Members Posts: 2,924 Joined: 26-February 14 From: Easton, MD Member No.: 17,042 Region Association: MidAtlantic Region
|
QUOTE(jimkelly @ Jun 22 2017, 08:55 PM) looks good though i wish it were DEAD NUTS/SPOT ON measurement wise (IMG:style_emoticons/default/smile.gif) if i did not spend the past hour with rod drinking RONIN at crooked run brewery, i'd be at your house fitting my cradle (IMG:style_emoticons/default/beer.gif) I like crooked run (IMG:style_emoticons/default/beerchug.gif) Especially with live music and tacos. |
|
|
|
|
