> Rebuilding Throttle Bodies, New service. No more sticky throttle!
Bartlett 914
post Jul 17 2017, 06:22 PM
Post #1


Advanced Member
****

Group: Members
Posts: 2,213
Joined: 30-August 05
From: South Elgin IL
Member No.: 4,707
Region Association: Upper MidWest



Recently I got tired of my sticky uneven throttle body. I was stuck in construction traffic and inching forward became almost impossible. I decided to repair mine. The throttle body shaft has no bearing. It is steel against aluminum. In time the round hole becomes an oval one. This makes the throttle plate operate erratically. It even sticks when in the closed position.

I made a setup in my machine shop to repair these. I accurately locate the shaft hole and boar it to fit an oilite bushing. I have done a dozen of these so far. In my car, the difference was incredible. I expected the operation off idle to be improved which it did but I also found the operation was smoother through the operating range.

I decided I could offer this as a service. In this, I will clean the body and install the new bushings. This operation requires special machining in order to keep things aligned properly. At this point, I am not plating anything. I am only cleaning the steel components. I may offer plated parts later but not at this time. I will need a core in exchange for one I send out or I can repair yours but there will be a delay in doing this. There are some that have 2 ports and some with only one. Some have a built in return spring and the other does not. You can see the differences in the ones pictured.

If you are interested in this service, My starting price is $125.00 plus shipping

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914Sixer
post Jul 17 2017, 06:26 PM
Post #2


914 Guru
*****

Group: Members
Posts: 8,845
Joined: 17-January 05
From: San Angelo Texas
Member No.: 3,457
Region Association: Southwest Region



Sounds like a great deal! (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
GaroldShaffer
post Jul 17 2017, 09:09 PM
Post #3


You bought another 914?
*****

Group: Benefactors
Posts: 7,617
Joined: 27-June 03
From: Portage, IN
Member No.: 865
Region Association: None



QUOTE(Bartlett 914 @ Jul 17 2017, 07:22 PM) *

Recently I got tired of my sticky uneven throttle body. I was stuck in construction traffic and inching forward became almost impossible. I decided to repair mine. The throttle body shaft has no bearing. It is steel against aluminum. In time the round hole becomes an oval one. This makes the throttle plate operate erratically. It even sticks when in the closed position.

I made a setup in my machine shop to repair these. I accurately locate the shaft hole and boar it to fit an oilite bushing. I have done a dozen of these so far. In my car, the difference was incredible. I expected the operation off idle to be improved which it did but I also found the operation was smoother through the operating range.

I decided I could offer this as a service. In this, I will clean the body and install the new bushings. This operation requires special machining in order to keep things aligned properly. At this point, I am not plating anything. I am only cleaning the steel components. I may offer plated parts later but not at this time. I will need a core in exchange for one I send out or I can repair yours but there will be a delay in doing this. There are some that have 2 ports and some with only one. Some have a built in return spring and the other does not. You can see the differences in the ones pictured.

If you are interested in this service, My starting price is $125.00 plus shipping

Attached Image


(IMG:style_emoticons/default/smilie_pokal.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
euro911
post Jul 17 2017, 09:34 PM
Post #4


Retired & living the dream. God help me if I wake up!
*****

Group: Members
Posts: 8,845
Joined: 2-December 06
From: So.Cal. & No.AZ (USA)
Member No.: 7,300
Region Association: Southern California



Nice. Have you thought about doing this with Weber carbs too?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dave_Darling
post Jul 17 2017, 10:03 PM
Post #5


914 Idiot
**********

Group: Members
Posts: 14,974
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California



The late Mike Cooley also provided this service. He pressed Oilite bushings in and reamed to fit. He did a number of them, but it wasn't enough to keep him busy, so eventually he sold off the tooling. When people started asking him to do more of them, he tried with the wrong tooling--and it didn't work very well.

Glad to see someone is providing this service again!

--DD
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
burton73
post Jul 17 2017, 10:16 PM
Post #6


burton73
****

Group: Members
Posts: 3,461
Joined: 2-January 07
From: Los Angeles
Member No.: 7,414
Region Association: Southern California



Harry Bieker of Bicker engineering did Webbers but it took forever to get them back but his work was tops. He had lots of special jigs. Drilled bushings out and then pressed new ones in and fit new shafts.

Bob B
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Bartlett 914
post Jul 17 2017, 10:21 PM
Post #7


Advanced Member
****

Group: Members
Posts: 2,213
Joined: 30-August 05
From: South Elgin IL
Member No.: 4,707
Region Association: Upper MidWest



QUOTE(euro911 @ Jul 17 2017, 10:34 PM) *

Nice. Have you thought about doing this with Weber carbs too?

I am sure I could. Let's see where this goes first
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Jul 18 2017, 09:44 AM
Post #8


914 Freak!
***************

Group: Retired Admin
Posts: 20,177
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None



Definitely interested. But I need plated parts, so I'll disassemble mine and include pre-plated hardware to reinstall. (IMG:style_emoticons/default/smilie_pokal.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Bartlett 914
post Jul 18 2017, 10:30 AM
Post #9


Advanced Member
****

Group: Members
Posts: 2,213
Joined: 30-August 05
From: South Elgin IL
Member No.: 4,707
Region Association: Upper MidWest



QUOTE(McMark @ Jul 18 2017, 10:44 AM) *

Definitely interested. But I need plated parts, so I'll disassemble mine and include pre-plated hardware to reinstall. (IMG:style_emoticons/default/smilie_pokal.gif)

Hi Mark

If interested in this, please include any plated parts so I can make sure all fits smoothly. Plating will be available in the not too distant future
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Shadowfax
post Jul 18 2017, 12:09 PM
Post #10


Show us the meaning of haste
***

Group: Members
Posts: 509
Joined: 19-January 15
Member No.: 18,340
Region Association: South East States



Very interested in this service. I can send it to you when you're ready - just let me know. Thanks!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
solex
post Jul 19 2017, 08:09 AM
Post #11


Senior Member
***

Group: Members
Posts: 789
Joined: 12-January 05
From: Long Island, NY
Member No.: 3,439
Region Association: North East States



I'm interested as well, do you offer core service so my car is not down during the process?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Jul 19 2017, 08:28 AM
Post #12


914 Freak!
***************

Group: Retired Admin
Posts: 20,177
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None

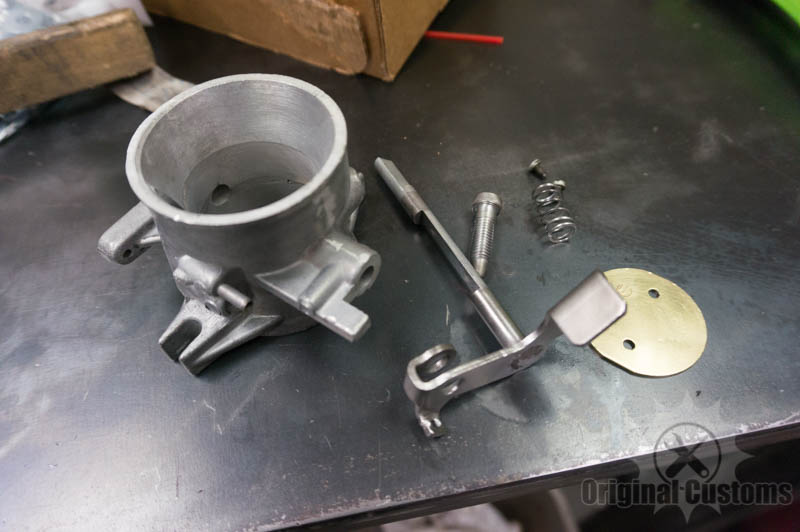

Got a spare TB stripped down. Wire brushed all the steel parts. Ready for zinc plating. Polished the throttle plate for fun. And soda blasted the body. Once I get the steel back then it'll head your way. It actually feels like it's in pretty good shape, but I'll send it along anyway and wait for your assessment. (IMG:style_emoticons/default/smilie_pokal.gif)


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Bartlett 914
post Jul 19 2017, 08:40 AM
Post #13


Advanced Member
****

Group: Members
Posts: 2,213
Joined: 30-August 05
From: South Elgin IL
Member No.: 4,707
Region Association: Upper MidWest



QUOTE(solex @ Jul 19 2017, 09:09 AM) *

I'm interested as well, do you offer core service so my car is not down during the process?

I can do that!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Bartlett 914
post Jul 19 2017, 08:44 AM
Post #14


Advanced Member
****

Group: Members
Posts: 2,213
Joined: 30-August 05
From: South Elgin IL
Member No.: 4,707
Region Association: Upper MidWest



QUOTE(McMark @ Jul 19 2017, 09:28 AM) *

Got a spare TB stripped down. Wire brushed all the steel parts. Ready for zinc plating. Polished the throttle plate for fun. And soda blasted the body. Once I get the steel back then it'll head your way. It actually feels like it's in pretty good shape, but I'll send it along anyway and wait for your assessment. (IMG:style_emoticons/default/smilie_pokal.gif)

Hi Mark

That look really nice. I realized more people are going to expect a better finish that what I pictured. My camera does seem to make things look worse than they are. I have started to glass bead blast the parts. They are looking better. I am also replacing the nut with a silver colored zinc plated nut. I am also replacing the 2 washers with Stainless steel ones. These are also silver but will never corrode and are very smooth. I am looking into plating.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
solex
post Jul 19 2017, 09:41 AM
Post #15


Senior Member
***

Group: Members
Posts: 789
Joined: 12-January 05
From: Long Island, NY
Member No.: 3,439
Region Association: North East States



QUOTE(Bartlett 914 @ Jul 19 2017, 10:40 AM) *

QUOTE(solex @ Jul 19 2017, 09:09 AM) *

I'm interested as well, do you offer core service so my car is not down during the process?

I can do that!



Let me know what needs to be done. I have a 75' throttle body with a built in return spring.

I also seem to remember someone offering to open up the throat with a larger throttle plate, does this offer any performance enhancement?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Bartlett 914
post Jul 19 2017, 11:44 AM
Post #16


Advanced Member
****

Group: Members
Posts: 2,213
Joined: 30-August 05
From: South Elgin IL
Member No.: 4,707
Region Association: Upper MidWest



QUOTE(solex @ Jul 19 2017, 10:41 AM) *

QUOTE(Bartlett 914 @ Jul 19 2017, 10:40 AM) *

QUOTE(solex @ Jul 19 2017, 09:09 AM) *

I'm interested as well, do you offer core service so my car is not down during the process?

I can do that!



Let me know what needs to be done. I have a 75' throttle body with a built in return spring.

I also seem to remember someone offering to open up the throat with a larger throttle plate, does this offer any performance enhancement?

I am planning on making this available also
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
solex
post Jul 19 2017, 01:46 PM
Post #17


Senior Member
***

Group: Members
Posts: 789
Joined: 12-January 05
From: Long Island, NY
Member No.: 3,439
Region Association: North East States



QUOTE(Bartlett 914 @ Jul 19 2017, 01:44 PM) *

QUOTE(solex @ Jul 19 2017, 10:41 AM) *

QUOTE(Bartlett 914 @ Jul 19 2017, 10:40 AM) *

QUOTE(solex @ Jul 19 2017, 09:09 AM) *

I'm interested as well, do you offer core service so my car is not down during the process?

I can do that!



Let me know what needs to be done. I have a 75' throttle body with a built in return spring.

I also seem to remember someone offering to open up the throat with a larger throttle plate, does this offer any performance enhancement?

I am planning on making this available also




Mark or Anyone does modification this make an appreciable difference with a stock euro piston 2.0L with SS heat exchanges and Bursch exhaust.

thanks
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Bartlett 914
post Jul 19 2017, 02:15 PM
Post #18


Advanced Member
****

Group: Members
Posts: 2,213
Joined: 30-August 05
From: South Elgin IL
Member No.: 4,707
Region Association: Upper MidWest



QUOTE(solex @ Jul 19 2017, 02:46 PM) *

QUOTE(Bartlett 914 @ Jul 19 2017, 01:44 PM) *

QUOTE(solex @ Jul 19 2017, 10:41 AM) *

QUOTE(Bartlett 914 @ Jul 19 2017, 10:40 AM) *

QUOTE(solex @ Jul 19 2017, 09:09 AM) *

I'm interested as well, do you offer core service so my car is not down during the process?

I can do that!



Let me know what needs to be done. I have a 75' throttle body with a built in return spring.

I also seem to remember someone offering to open up the throat with a larger throttle plate, does this offer any performance enhancement?

I am planning on making this available also




Mark or Anyone does modification this make an appreciable difference with a stock euro piston 2.0L with SS heat exchanges and Bursch exhaust.

thanks

I have no idea but I did do a calculation on this. The TB is 45mm. A 10% in area (2.0L to a 2.2L) it needs to be 47.5mm
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
euro911
post Jul 19 2017, 07:06 PM
Post #19


Retired & living the dream. God help me if I wake up!
*****

Group: Members
Posts: 8,845
Joined: 2-December 06
From: So.Cal. & No.AZ (USA)
Member No.: 7,300
Region Association: Southern California



QUOTE(Bartlett 914 @ Jul 19 2017, 07:44 AM) *
Hi Mark

That look really nice. I realized more people are going to expect a better finish that what I pictured. My camera does seem to make things look worse than they are. I have started to glass bead blast the parts. They are looking better. I am also replacing the nut with a silver colored zinc plated nut. I am also replacing the 2 washers with Stainless steel ones. These are also silver but will never corrode and are very smooth. I am looking into plating.
Need to be vigilant with thorough cleaning when bead blasting anything that will introduce particles into a motor's internals. Glass beads will destroy a motor's internals.

May I suggest soda blasting as Mark has done? I've seen motors destroyed due to captured, then dislodged glass beads.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Whip618
post Jul 19 2017, 07:25 PM
Post #20


Newbie
*

Group: Members
Posts: 6
Joined: 8-December 15
From: Albuquerque
Member No.: 19,448
Region Association: None



QUOTE(Bartlett 914 @ Jul 19 2017, 02:15 PM) *

QUOTE(solex @ Jul 19 2017, 02:46 PM) *

QUOTE(Bartlett 914 @ Jul 19 2017, 01:44 PM) *

QUOTE(solex @ Jul 19 2017, 10:41 AM) *

QUOTE(Bartlett 914 @ Jul 19 2017, 10:40 AM) *

QUOTE(solex @ Jul 19 2017, 09:09 AM) *

I'm interested as well, do you offer core service so my car is not down during the process?

I can do that!


Let me know what needs to be done. I have a 75' throttle body with a built in return spring.

I also seem to remember someone offering to open up the throat with a larger throttle plate, does this offer any performance enhancement?

I am planning on making this available also




Mark or Anyone does modification this make an appreciable difference with a stock euro piston 2.0L with SS heat exchanges and Bursch exhaust.

thanks

I have no idea but I did do a calculation on this. The TB is 45mm. A 10% in area (2.0L to a 2.2L) it needs to be 47.5mm


Of the almost three hundred throttle bodies I have machined only a few customers have asked to bore the throttle body casting larger than was necessary to clean up the grooves left from the throttle plate wearing down into the bore and the opinion in almost all cases was that the extra overbore did not contribute a great deal to performance, my goal in re-machining these throttle bodies is to provide a very smooth and long lived assembly that will give the driver a sense of driving a different car by having a stable idle and eliminating the sticky throttle.

Phil
