> Need 3.2 conversion electrical help
mepstein
post Aug 13 2017, 12:20 PM
Post #1


914-6 GT in waiting
***************

Group: Members
Posts: 19,238
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
I can't get my fuel pump to run unless I jumper the plug for the DME relay. The car starts and runs with the connection jumped but the fuel pump then runs all the time. Just want to know where to look and what to do.
I'm very electrically challenged so you might need to really dumb it down for me. Thanks
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Steve
post Aug 13 2017, 01:06 PM
Post #2


914 Guru
*****

Group: Members
Posts: 5,569
Joined: 14-June 03
From: Orange County, CA
Member No.: 822
Region Association: Southern California
You did try another dme relay? Otherwise the Bentley 911 Carrera manual is what I used to wire and trouble shoot my conversion.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Aug 13 2017, 01:21 PM
Post #3


Jerry
*****

Group: Members
Posts: 6,973
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
I had a similar problem on my 930. Engine would run, then lose power. Sometimes it wouldn't start. The pump wasn't running. I traced it to the relay (not sure if 930 calls it DME) not making contact. I took it apart to find a smaller relay inside with some circuitry. Pulled the smaller relay off and found the contacts were barely making contact and sometimes wouldn't. Bent the relay contacts and haven't had any issues for 2 years.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Aug 13 2017, 01:30 PM
Post #4


914-6 GT in waiting
***************

Group: Members
Posts: 19,238
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
Tried 4 new relays. One was solid state.
Flummoxed.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
porschetub
post Aug 13 2017, 01:36 PM
Post #5


Advanced Member
****

Group: Members
Posts: 4,697
Joined: 25-July 15
From: New Zealand
Member No.: 18,995
Region Association: None
The solder joints can also fail on them too,pop the cover off and have a look,could just be the contacts as Spoke mentioned,normally they are pretty reliable.
If you have to buy a new one don't buy it on price...URO part one is about half what a decent one is worth (IMG:style_emoticons/default/lol-2.gif) .
Nice to have it running eh (IMG:style_emoticons/default/beer.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Aug 13 2017, 01:45 PM
Post #6


914-6 GT in waiting
***************

Group: Members
Posts: 19,238
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
QUOTE(porschetub @ Aug 13 2017, 03:36 PM) *

The solder joints can also fail on them too,pop the cover off and have a look,could just be the contacts as Spoke mentioned,normally they are pretty reliable.
If you have to buy a new one don't buy it on price...URO part one is about half what a decent one is worth (IMG:style_emoticons/default/lol-2.gif) .
Nice to have it running eh (IMG:style_emoticons/default/beer.gif)

They are all new and none are uro.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Aug 13 2017, 02:04 PM
Post #7


Jerry
*****

Group: Members
Posts: 6,973
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
QUOTE(mepstein @ Aug 13 2017, 03:30 PM) *

Tried 4 new relays. One was solid state.
Flummoxed.


Doesn't sound like it's the relay. Are the schematics online somewhere? I'd like to help but would need the schematics to follow the electrons. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Aug 13 2017, 02:11 PM
Post #8


Jerry
*****

Group: Members
Posts: 6,973
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
QUOTE(mepstein @ Aug 13 2017, 02:20 PM) *

I jumper the plug for the DME relay.

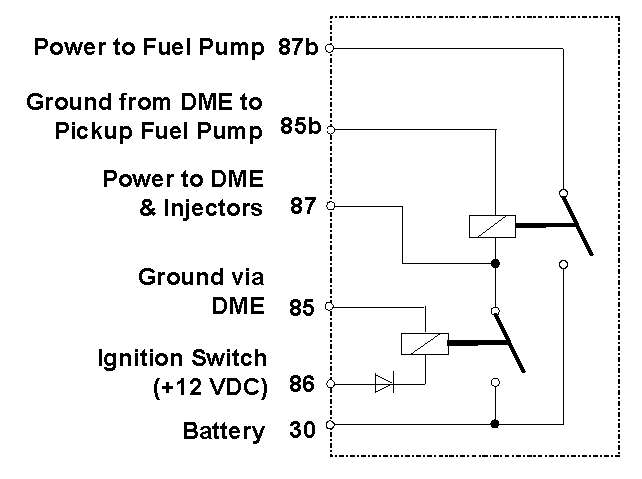

Which pins are you jumpering? I see this DME relay schematic online:

Is this the correct schematic?


Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Aug 13 2017, 02:14 PM
Post #9


Jerry
*****

Group: Members
Posts: 6,973
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
Some tests with your voltmeter:

put a small wire in the socket at 85b then install the relay.

Turn the car on or crank and measure 85b to ground. I think it should be 0V.

Put a small wire in the socket at 87 then install the relay.

Turn the car on or crank and measure 87 to ground. Should be 12V.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Steve
post Aug 13 2017, 03:34 PM
Post #10


914 Guru
*****

Group: Members
Posts: 5,569
Joined: 14-June 03
From: Orange County, CA
Member No.: 822
Region Association: Southern California
This manual is awesome!!
Attached Image


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Steve
post Aug 13 2017, 03:36 PM
Post #11


914 Guru
*****

Group: Members
Posts: 5,569
Joined: 14-June 03
From: Orange County, CA
Member No.: 822
Region Association: Southern California
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Steve
post Aug 13 2017, 03:42 PM
Post #12


914 Guru
*****

Group: Members
Posts: 5,569
Joined: 14-June 03
From: Orange County, CA
Member No.: 822
Region Association: Southern California
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jim912928
post Aug 13 2017, 06:38 PM
Post #13


Senior Member
***

Group: Members
Posts: 1,485
Joined: 8-January 04
From: Granger, IN
Member No.: 1,536
Region Association: Upper MidWest
I hate wiring...do you have the red wire (fuel pump) coming out of the dme harness going straight to the fuel pump? It should and just put an inline fuse to protect it (25A).

Here is the link for my 3.2 wiring:

http://www.914world.com/bbs2/index.php?sho...7&hl=wiring
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Aug 13 2017, 06:42 PM
Post #14


914-6 GT in waiting
***************

Group: Members
Posts: 19,238
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
QUOTE(jim912928 @ Aug 13 2017, 08:38 PM) *

I hate wiring...do you have the red wire (fuel pump) coming out of the dme harness going straight to the fuel pump? It should and just put an inline fuse to protect it (25A).

Yes. Did all that. Thanks
Got tied up today but will work on this tomorrow.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Aug 13 2017, 07:20 PM
Post #15


Jerry
*****

Group: Members
Posts: 6,973
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
Looks like a pretty simple circuit:

1) Ignition key provides power to 86; 85 is ground thus top relay should turn on.
2) With top relay on, battery voltage from 30 connects to 87; 87 should be 12V.
3) 87 is also top of bottom relay coil; 85b from DME must be grounded to power bottom relay; bottom relay provides path from battery (pin 30) to 87b.

Tests:
Jam a small wire in plug for 87, install relay, turn ignition on, test 87 to ground; measure 12V

Once 87 verified at 12V:
Jam a small wire in plug for 85b, install relay, turn ignition on and/or crank the engine, test 85b to ground; measure 0V. DME should provide ground at 85b. If not, the issue is with the DME.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Aug 13 2017, 08:30 PM
Post #16


914-6 GT in waiting
***************

Group: Members
Posts: 19,238
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
I know the dme is good. Runs fine in other cars.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Steve
post Aug 13 2017, 09:24 PM
Post #17


914 Guru
*****

Group: Members
Posts: 5,569
Joined: 14-June 03
From: Orange County, CA
Member No.: 822
Region Association: Southern California
Do what Spoke suggested and put an ohm Meter on pin 20 of the dme. It should be grounded while cranking the starter. If it's not then something else connected to the DME is causing the problem. Have to troubleshoot each sensor / inputs on the DME to figure it out. I have had lots of interesting problems with my injection that I used the Bentley manual to trouble shoot.
Motor won't start after installing for the first time
- turns out it was a pinched fuel line under tank which doubled the fuel pressure
Car sat for 3 years and wouldn't start (rustoration)
-Pelican guy's on there 911 forum recommended unplugging the injectors one at a time. After unplugging the last one it started and ran on 5 cylinders. Shut motor off and plugged it back in and now it runs fine on all six cylinders for over two years now.
The flywheel sensors are also known causing no start issues. Some people replace them and get rebuilt injectors when they overhaul the engine.
Otherwise mine runs great and I have not had any problems besides the above.
Not bad for 33 year old original motor with a bazillion miles on it!!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Aug 13 2017, 09:46 PM
Post #18


914-6 GT in waiting
***************

Group: Members
Posts: 19,238
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
QUOTE(Steve @ Aug 13 2017, 11:24 PM) *

Do what Spoke suggested and put an ohm Meter on pin 20 of the dme. It should be grounded while cranking the starter. If it's not then something else connected to the DME is causing the problem. Have to troubleshoot each sensor / inputs on the DME to figure it out. I have had lots of interesting problems with my injection that I used the Bentley manual to trouble shoot.
Motor won't start after installing for the first time
- turns out it was a pinched fuel line under tank which doubled the fuel pressure
Car sat for 3 years and wouldn't start (rustoration)
-Pelican guy's on there 911 forum recommended unplugging the injectors one at a time. After unplugging the last one it started and ran on 5 cylinders. Shut motor off and plugged it back in and now it runs fine on all six cylinders for over two years now.
The flywheel sensors are also known causing no start issues. Some people replace them and get rebuilt injectors when they overhaul the engine.
Otherwise mine runs great and I have not had any problems besides the above.
Not bad for 33 year old original motor with a bazillion miles on it!!

Remember, i did say my car starts, I need to figure out why the fuel pump wont run unless I remove the dme relay and jump it with a wire. But I will follow all the advise you guys have given me and report back. As always, I appreciate the help.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
shoguneagle
post Aug 13 2017, 10:02 PM
Post #19


shoguneagle
***

Group: Members
Posts: 1,180
Joined: 3-January 03
From: CA, OR, AZ (CAZOR); New Mexico
Member No.: 84
Region Association: Northern California
Do not over look the DME Relay socket itself; shorted, bad spade connectors, etc. particularly the pins you are jumping and the fuel pump runs.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Aug 14 2017, 07:02 AM
Post #20


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
If you've tried the DME in other cars and they run....
And you've tried multiple DME Relays and none work....

That only leaves the wiring itself and the AFM.

Disconnect the DME wiring.
Pull the DME Relay.
Multimeter on Ohms, test between DME pin 20 and Relay pin 85b.


If that works tests good (0 ohms)...
The fuel pump only runs when the AFM flapper is open. So get access to the air filter side of the AFM, turn the key on (everything reconnected), and push the door open. That SHOULD turn on the pump. If it doesn't, the wiring between the AFM and the DME may be suspect, or the AFM contacts inside may be suspect.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
