> Need Help On 6 Manual Throttle Please, Pics would be really great!
Lucky9146
post Oct 31 2017, 09:19 PM
Post #1


Always Wanted A Bigger Go Cart
***

Group: Members
Posts: 1,663
Joined: 22-September 14
From: Poway California
Member No.: 17,942
Region Association: Southern California

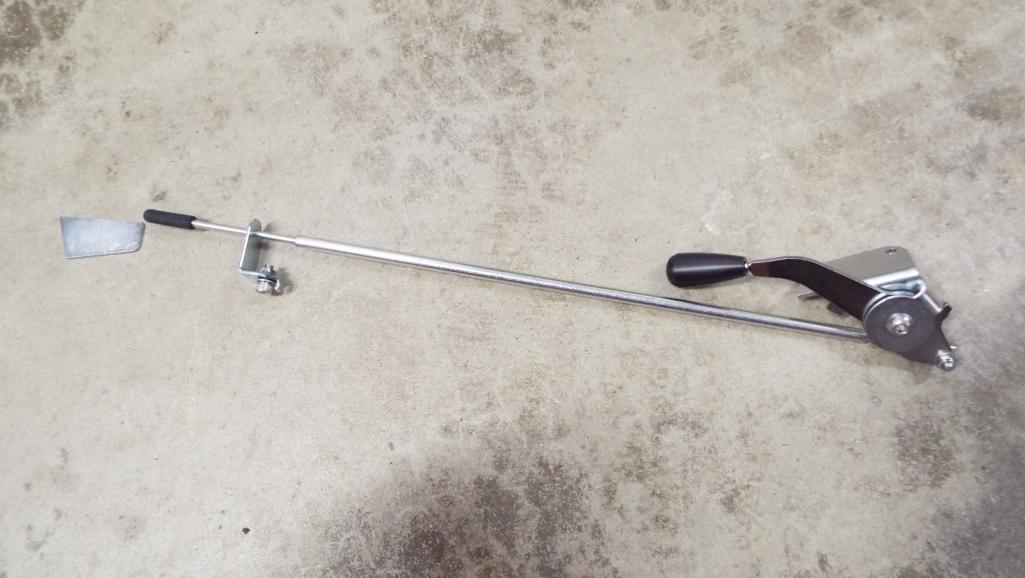

Received my Manual throttle assembly from 914 Rubber and it looks great! But no specific instruction regarding the “Shark Fin” and I have not seen a real one up close. I understand where and how the lever and rod go that's no problem.

Did some poking around here on the site (IMG:style_emoticons/default/type.gif) where I thought I might see pictures but I did not see the small “shark fin” and how and where exactly it goes on the gas pedal. (IMG:style_emoticons/default/idea.gif)

Does anybody have a good picture of the "Shark Fin" installed either real original 914-6 or 914 Rubber version?

Of course I had just got all the pedal cables hooked up and adjusted when I received the assembly not understanding how the hand throttle actually worked. I’m thinking the whole pedal assembly has to come out. (IMG:style_emoticons/default/confused24.gif)
“Shark Fin” is on the far left. Thanks!
(IMG:style_emoticons/default/white914.jpg)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mikey914
post Oct 31 2017, 09:35 PM
Post #2


The rubber man
**********

Group: Members
Posts: 12,738
Joined: 27-December 04
From: Hillsboro, OR
Member No.: 3,348
Region Association: None



You for a install without welding, you can drill 2 holes in the edge of the throttle arm to the outside section then use 2 bolts and nuts to attach. You can weld it later when you get a chance to remove. Use the holes you have drilled as a template to drill the fin. Do one at a time to make sure they align. You can add washers to get more grip, but will need slightly longer bolts. Lock nuts recommended.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
raynekat
post Nov 1 2017, 12:47 AM
Post #3


Advanced Member
****

Group: Members
Posts: 2,165
Joined: 30-December 14
From: Coeur d'Alene, Idaho
Member No.: 18,263
Region Association: Pacific Northwest



Here's the "shark fin" welded on to the pedal throttle arm.
Clear as mud? (IMG:style_emoticons/default/smile.gif)

Attached Image

And yes....likely easier to take the whole pedal assembly out to do this.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
porschetub
post Nov 1 2017, 02:13 AM
Post #4


Advanced Member
****

Group: Members
Posts: 4,739
Joined: 25-July 15
From: New Zealand
Member No.: 18,995
Region Association: None



QUOTE(Lucky9146 @ Nov 1 2017, 04:19 PM) *

Received my Manual throttle assembly from 914 Rubber and it looks great! But no specific instruction regarding the “Shark Fin” and I have not seen a real one up close. I understand where and how the lever and rod go that's no problem.

Did some poking around here on the site (IMG:style_emoticons/default/type.gif) where I thought I might see pictures but I did not see the small “shark fin” and how and where exactly it goes on the gas pedal. (IMG:style_emoticons/default/idea.gif)

Does anybody have a good picture of the "Shark Fin" installed either real original 914-6 or 914 Rubber version?

Of course I had just got all the pedal cables hooked up and adjusted when I received the assembly not understanding how the hand throttle actually worked. I’m thinking the whole pedal assembly has to come out. (IMG:style_emoticons/default/confused24.gif)
“Shark Fin” is on the far left. Thanks!
(IMG:style_emoticons/default/white914.jpg)
Attached Image


Jim,good description of the shape (IMG:style_emoticons/default/biggrin.gif) ,I mounted this plate with one bolt and moved it once till contact with the rod ,the bolt out and plug welded the hole .
Every "6" on carbs should have one of these ,very handy for quick start up,I do 2-3 pumps on the pedal with the lever on full travel,mine starts straight up.

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Lucky9146
post Nov 1 2017, 10:52 AM
Post #5


Always Wanted A Bigger Go Cart
***

Group: Members
Posts: 1,663
Joined: 22-September 14
From: Poway California
Member No.: 17,942
Region Association: Southern California



QUOTE(raynekat @ Oct 31 2017, 11:47 PM) *

Here's the "shark fin" welded on to the pedal throttle arm.
Clear as mud? (IMG:style_emoticons/default/smile.gif)

Attached Image

And yes....likely easier to take the whole pedal assembly out to do this.


Thank you, (IMG:style_emoticons/default/beerchug.gif) thank you (IMG:style_emoticons/default/beerchug.gif) , thank you (IMG:style_emoticons/default/beerchug.gif) ! A picture is worth a thousand words.
I would have certainly have put it upside down having no clue which way the shark was swimming, but your picture says it all! (IMG:style_emoticons/default/first.gif)
(IMG:style_emoticons/default/white914.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Lucky9146
post Nov 1 2017, 11:01 AM
Post #6


Always Wanted A Bigger Go Cart
***

Group: Members
Posts: 1,663
Joined: 22-September 14
From: Poway California
Member No.: 17,942
Region Association: Southern California



QUOTE(porschetub @ Nov 1 2017, 01:13 AM) *

QUOTE(Lucky9146 @ Nov 1 2017, 04:19 PM) *

Received my Manual throttle assembly from 914 Rubber and it looks great! But no specific instruction regarding the “Shark Fin” and I have not seen a real one up close. I understand where and how the lever and rod go that's no problem.

Did some poking around here on the site (IMG:style_emoticons/default/type.gif) where I thought I might see pictures but I did not see the small “shark fin” and how and where exactly it goes on the gas pedal. (IMG:style_emoticons/default/idea.gif)

Does anybody have a good picture of the "Shark Fin" installed either real original 914-6 or 914 Rubber version?

Of course I had just got all the pedal cables hooked up and adjusted when I received the assembly not understanding how the hand throttle actually worked. I’m thinking the whole pedal assembly has to come out. (IMG:style_emoticons/default/confused24.gif)
“Shark Fin” is on the far left. Thanks!
(IMG:style_emoticons/default/white914.jpg)
Attached Image


Jim,good description of the shape (IMG:style_emoticons/default/biggrin.gif) ,I mounted this plate with one bolt and moved it once till contact with the rod ,the bolt out and plug welded the hole .
Every "6" on carbs should have one of these ,very handy for quick start up,I do 2-3 pumps on the pedal with the lever on full travel,mine starts straight up.


Can't take credit for the term "Shark Fin" it came from Scott at 914 Rubber when I called looking for help. Plan to do the same as you on install. Thanks for chiming in.
(IMG:style_emoticons/default/beerchug.gif) (IMG:style_emoticons/default/white914.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
horizontally-opposed
post Nov 1 2017, 11:08 AM
Post #7


Advanced Member
****

Group: Members
Posts: 3,453
Joined: 12-May 04
From: San Francisco
Member No.: 2,058
Region Association: None



This looks like a great product, and I am very interested.

Curious, however, on why the kit requires welding the shark fin onto the crank, and then presumably having said crank restored and replated? Why not make that an option? I am guessing a lot of customers would happily pay for it? In fact, I'd rather have that and the rod assembly without the kit's lever—as I already have one of those.

As always, however, 914rubber's contribution to the hobby is more than appreciated. How great that this kit exists at all?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Lucky9146
post Nov 1 2017, 11:25 AM
Post #8


Always Wanted A Bigger Go Cart
***

Group: Members
Posts: 1,663
Joined: 22-September 14
From: Poway California
Member No.: 17,942
Region Association: Southern California



QUOTE(horizontally-opposed @ Nov 1 2017, 10:08 AM) *

This looks like a great product, and I am very interested.

Curious, however, on why the kit requires welding the shark fin onto the crank, and then presumably having said crank restored and replated? Why not make that an option? I am guessing a lot of customers would happily pay for it? In fact, I'd rather have that and the rod assembly without the kit's lever—as I already have one of those.

As always, however, 914rubber's contribution to the hobby is more than appreciated. How great that this kit exists at all?


Agree! I was surprised at what I received as the picture on 914 Rubber did not show the "Shark Fin" or mention there was welding involved, or drilling and bolting, as the case may be. Also agree it would have been great to have the thing all ready to install. Perhaps in the future.
(IMG:style_emoticons/default/white914.jpg)
Picture from 914 Rubber site.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SixerJ
post Nov 1 2017, 11:34 AM
Post #9


Member
**

Group: Members
Posts: 448
Joined: 24-June 13
From: UK
Member No.: 16,042
Region Association: England



Here you go, I tucked the corner of the wood template into the leaver on the point where the flange changes direction

I assume 914 rubbers fin is exactly the same dim / shape. Looks very similar

Real fin has a dimple for strength / held on with a couple of small spotwelds

All dims in MM, dimension to the other fins corner is 55mm

Attached Image

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
gandalf_025
post Nov 1 2017, 11:48 AM
Post #10


Senior Member
***

Group: Members
Posts: 1,472
Joined: 25-June 09
From: North Shore, Massachusetts
Member No.: 10,509
Region Association: North East States



here it is on a complete assembly.

Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
rgalla9146
post Nov 1 2017, 11:57 AM
Post #11


Advanced Member
****

Group: Members
Posts: 4,657
Joined: 23-November 05
From: Paramus NJ
Member No.: 5,176
Region Association: None



QUOTE(SixerJ @ Nov 1 2017, 01:34 PM) *

Here you go, I tucked the corner of the wood template into the leaver on the point where the flange changes direction

I assume 914 rubbers fin is exactly the same dim / shape. Looks very similar

Real fin has a dimple for strength / held on with a couple of small spotwelds

All dims in MM, dimension to the other fins corner is 55mm

Attached Image


Perfect illustration.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
horizontally-opposed
post Nov 1 2017, 12:38 PM
Post #12


Advanced Member
****

Group: Members
Posts: 3,453
Joined: 12-May 04
From: San Francisco
Member No.: 2,058
Region Association: None



Bruce Anderson used to talk about how he loved to use the hand throttle in his 914-6 as cruise control on long trips. While my car starts up cold pretty nicely, my last trip to LA got me thinking about adding this upgrade...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Larmo63
post Nov 1 2017, 12:49 PM
Post #13


Advanced Member
****

Group: Members
Posts: 4,267
Joined: 3-March 14
From: San Clemente, Ca
Member No.: 17,068
Region Association: Southern California



Just for kicks, this is my set up. Genuine 914-6 set-up in the tunnel and on the pedal. I used a 911 lever for it, and there is a knob Porsche made that says "Throttle" for my type of lever too. I think Eric Shea's car has one....?

Attached Image

It is good for cold starts, and it does work for "cruise control."
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mikey914
post Nov 1 2017, 01:03 PM
Post #14


The rubber man
**********

Group: Members
Posts: 12,738
Joined: 27-December 04
From: Hillsboro, OR
Member No.: 3,348
Region Association: None



Here's the drawing I have.
We colorized if on the site to try to make it more clear. Matt may have some pics, nit sure if he has completed the install yet.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Lucky9146
post Nov 1 2017, 01:47 PM
Post #15


Always Wanted A Bigger Go Cart
***

Group: Members
Posts: 1,663
Joined: 22-September 14
From: Poway California
Member No.: 17,942
Region Association: Southern California



QUOTE(SixerJ @ Nov 1 2017, 10:34 AM) *

Here you go, I tucked the corner of the wood template into the leaver on the point where the flange changes direction

I assume 914 rubbers fin is exactly the same dim / shape. Looks very similar

Real fin has a dimple for strength / held on with a couple of small spotwelds

All dims in MM, dimension to the other fins corner is 55mm

Attached Image


Thank you most helpful! (IMG:style_emoticons/default/beerchug.gif) This REALLY is what is needed! (IMG:style_emoticons/default/smilie_pokal.gif)
(IMG:style_emoticons/default/white914.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Lucky9146
post Nov 1 2017, 01:55 PM
Post #16


Always Wanted A Bigger Go Cart
***

Group: Members
Posts: 1,663
Joined: 22-September 14
From: Poway California
Member No.: 17,942
Region Association: Southern California



QUOTE(Larmo63 @ Nov 1 2017, 11:49 AM) *

Just for kicks, this is my set up. Genuine 914-6 set-up in the tunnel and on the pedal. I used a 911 arm for it, and there is a knob Porsche made that says "Throttle" for my type of lever too. I think Eric Shea's car has one....?

Attached Image

It is good for cold starts, and it does work for "cruise control."



Cruise control (IMG:style_emoticons/default/idea.gif) Nice! Thanks for the pic
As an aside isn't the carpet suppose to be over the shifter base? I have an original tunnel carpet with a slit in the front the hand throttle lever comes out of. Just asking.
(IMG:style_emoticons/default/smile.gif)
(IMG:style_emoticons/default/white914.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Larmo63
post Nov 1 2017, 03:13 PM
Post #17


Advanced Member
****

Group: Members
Posts: 4,267
Joined: 3-March 14
From: San Clemente, Ca
Member No.: 17,068
Region Association: Southern California



I like the look of the shifter bolted over the carpet. The stock carpet over the shifter looks so sloppy. Just my preference.

I'm Teutonic.

I'm weird.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Lucky9146
post Nov 1 2017, 03:29 PM
Post #18


Always Wanted A Bigger Go Cart
***

Group: Members
Posts: 1,663
Joined: 22-September 14
From: Poway California
Member No.: 17,942
Region Association: Southern California



QUOTE(Larmo63 @ Nov 1 2017, 02:13 PM) *

I like the look of the shifter bolted over the carpet. The stock carpet over the shifter looks so sloppy. Just my preference.

I'm Teutonic.

I'm weird.


Good point! not that your weird but that it does look "sloppy" and could be improved.
(IMG:style_emoticons/default/white914.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Nov 1 2017, 05:44 PM
Post #19


914 Guru
*****

Group: Members
Posts: 7,307
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest



Just send me the fins and I will weld them on quickly no charge for those that want it..

I am actually disappointed I didn't know this before as I will be adding this and already replated my parts .. Darn
User is online!Profile CardPM
Go to the top of the page
+Quote Post
horizontally-opposed
post Nov 1 2017, 06:41 PM
Post #20


Advanced Member
****

Group: Members
Posts: 3,453
Joined: 12-May 04
From: San Francisco
Member No.: 2,058
Region Association: None



QUOTE(mb911 @ Nov 1 2017, 04:44 PM) *

Just send me the fins and I will weld them on quickly no charge for those that want it..

I am actually disappointed I didn't know this before as I will be adding this and already replated my parts .. Darn


You're a good dude, Ben.

Just noticing the strengthening "rib" on the factory piece, likely due to the way the rod operates. Curious if that pressure has been dealt with in the new piece?

Seriously, good on those who worked to make this product happen!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post

2 Pages V  1 2 >
Reply to this topicStart new topic
1 User(s) are reading this topic (1 Guests and 0 Anonymous Users)
0 Members:





- Lo-Fi Version Time is now: 4th December 2024 - 10:27 AM
