Oil Lines.., What Sizes do I have? |
DougC |
Jun 7 2005, 09:40 AM
Post
#1
|
Senior Member Group: Members Posts: 949 Joined: 6-July 04 From: Dallas, TX Member No.: 2,307 |

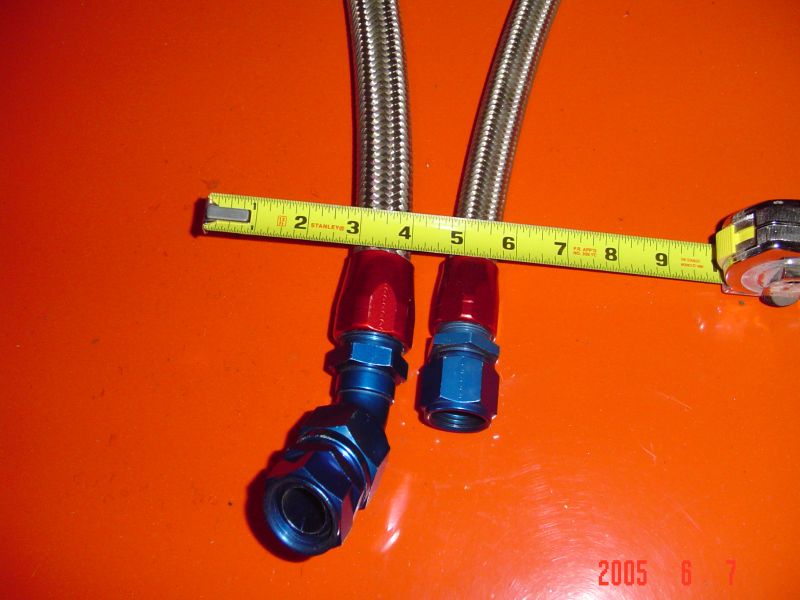

Can someone say for sure what size oil lines I have here? I need to buy a couple of AN straight end connectors (if anyone has some for sale) and don't want to guess. The larger one on the left will be going to the engine mounted oil cooler from the tank and the other is the scavenging side to the tank (sorry, this is for a six if it's not obvious). Could the large one be AN-16 which is optimum, right?
Doug C Attached image(s) |
Joe Bob |
Jun 7 2005, 09:49 AM
Post
#2
|
Retired admin, banned a few times Group: Members Posts: 17,427 Joined: 24-December 02 From: Boulder CO Member No.: 5 Region Association: None |
What's the outside diameter of the fittings?
Get that and call either BAT Inc or Pegasus....if you have a local specialty hot rod marine shop. they ususally have that stuff in stock. |
ArtechnikA |
Jun 7 2005, 12:09 PM
Post
#3
|
rich herzog Group: Members Posts: 7,390 Joined: 4-April 03 From: Salted Roads, PA Member No.: 513 Region Association: None |
since the 'big' one is 1" on the outside of the braid i'd guess it's AN-12 (nominal OD is 15/16").
-16 would be 1-5/32" OD. here's a sizing chart for you: Earl's Perform-O-Flex Hose the small one looks like -10 ... |
DougC |
Jun 7 2005, 12:29 PM
Post
#4
|
Senior Member Group: Members Posts: 949 Joined: 6-July 04 From: Dallas, TX Member No.: 2,307 |
Thanks for that chart it will come in handy. 12 & 10 are my guess but wanted to be sure. So, what is the -16 recommended for again, was it external cooler back to tank?
Doug C |
ArtechnikA |
Jun 7 2005, 12:38 PM
Post
#5
|
||
rich herzog Group: Members Posts: 7,390 Joined: 4-April 03 From: Salted Roads, PA Member No.: 513 Region Association: None |
there are plausible arguments for why each of the lines should be -16... i have allowed myself to be convinced that if you're only doing one, it should be the inlet line from the tank to the pressure pump - with an internal anti-collapse support. that's the shortest one too - the line from the tank to the external connection on the bottom of the oil cooler. oil starvation to the pressure pump is very bad. another reasonable compromise might be to run AN-16 to (and from) the thermostat, on the theory that if oil is being bypassed at the thermostat it's cold and thick and pressure restrictions should be minimised. that'd leave you with possibility of running AN-12 lines to and from the front cooler, and any oil getting past the thermostat should be hot and thin. since it's also your longest run, restrictions are bad, but since it's your longest run, it's also your most expensive. partly it comes down to what ports you have at the cooler. probably no point running -16 lines to a cooler with -12 ports... |
||
DougC |
Jun 7 2005, 01:00 PM
Post
#6
|
Senior Member Group: Members Posts: 949 Joined: 6-July 04 From: Dallas, TX Member No.: 2,307 |
Very good info, Thanks! So - there's no problem in reducing an AN-16 (or -12 for that matter) to this adapter? (It'll be attached to the cooler).... It's smaller than the larger of my two lines. AND I don't know the thread count but I assume it's AN.
Doug C |
DougC |
Jun 7 2005, 01:01 PM
Post
#7
|
Senior Member Group: Members Posts: 949 Joined: 6-July 04 From: Dallas, TX Member No.: 2,307 |
oops, forgot the picture.
Doug C Attached image(s) |
ArtechnikA |
Jun 7 2005, 01:10 PM
Post
#8
|
rich herzog Group: Members Posts: 7,390 Joined: 4-April 03 From: Salted Roads, PA Member No.: 513 Region Association: None |
don't ass-u-me and the thread count is not helpful. IIRC, 45-degree SAE fittings (naturally...) use the same sizes but the flare angles are NOT compatible with AN's 37-deg. find a KNOWN AN male fitting and compare flare angles.
that fitting looked awful small... if the ID of the fitting is smaller than AN-12's nominal ID, it's not gonna flow enough oil... i'm confused on what you're doing with adapters and such - what is the actual connection to the cooler - and what kind of cooler is it? and while you may be able to get adapters, stepping down from big lines to teeny ports is not going to get you the effect you need... |
DougC |
Jun 7 2005, 01:51 PM
Post
#9
|
Senior Member Group: Members Posts: 949 Joined: 6-July 04 From: Dallas, TX Member No.: 2,307 |
Here's a better pic of the adapter.. I'll be using it to attach the AN (prob -12) hose from the oil tank to the on board oil cooler, as you can see in the pic. I will be using a 90degree AN fitting to connect the two.
Doug C Attached image(s) |
DougC |
Jun 7 2005, 01:53 PM
Post
#10
|
Senior Member Group: Members Posts: 949 Joined: 6-July 04 From: Dallas, TX Member No.: 2,307 |
BTW, I just set that thing on top of the stock (unmodified) slip-on cooler in-let, in the picture.
Doug C |
ArtechnikA |
Jun 7 2005, 02:01 PM
Post
#11
|
||
rich herzog Group: Members Posts: 7,390 Joined: 4-April 03 From: Salted Roads, PA Member No.: 513 Region Association: None |
okay - just so we're clear... that -is- the suction line to the inlet of the pressure pump. it kinda looks like it might have something to do with the oil cooler, but the oil cooler is just a fancy mounting bracket for the little pipe that runs under the cooler that connects that fitting to the inlet of the pressure pump. and before you commit to attaching a straight bumg to the cooler and using a 90* fitting, v-e-r-y carefully measure the amount of clearance available. and have a look in a couple of the other threads going on right now about /6 cooler fittings - because there is VERY LITTLE clearance bewtwen the cooler outlet and the suspension in that area. that's the big reason why people use angled weld fittings. the OEM 914.6 cooler is different from the 911 cooler for this very reason... |
||
ArtechnikA |
Jun 7 2005, 02:04 PM
Post
#12
|
rich herzog Group: Members Posts: 7,390 Joined: 4-April 03 From: Salted Roads, PA Member No.: 513 Region Association: None |
914.6 cooler
Attached image(s) |
John |
Jun 7 2005, 02:06 PM
Post
#13
|
member? what's a member? Group: Members Posts: 3,393 Joined: 30-January 04 From: Evansville, IN (SIRPCA) Member No.: 1,615 Region Association: None |
(IMG:http://www.914world.com/bbs2/html/emoticons/agree.gif)
You should look at a 90degree weld fitting for the oil cooler mod. There are several pics of the oil cooler mod on the site. Do a search and many should appear. |
