> Travis' 72 914-6 Conversion
TravisNeff
post Nov 4 2018, 11:46 AM
Post #201


914 Guru
*****

Group: Members
Posts: 5,082
Joined: 20-March 03
From: Mesa, AZ
Member No.: 447
Region Association: Southwest Region
From the measurements and me pretending that I understand math - no support should be required at all.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914forme
post Nov 4 2018, 06:43 PM
Post #202


Times a wastin', get wrenchin'!
****

Group: Members
Posts: 3,896
Joined: 24-July 04
From: Dayton, Ohio
Member No.: 2,388
Region Association: None
If you want to be sure just look up the specs on the manufacture's site.

Example Aeroquip
FC363-12
Cover Material Stainless Steel Braid
Dash Size 12
Hose Family Teflon
Max Temperature © 204
Max Temperature (F) 400
Min Temperature © -54
Min Temperature (F) -65
Operating Pressure (PSI) 1100
Operating Pressure (bar) 76
Product Line Aeroquip
Tube Material Teflon
Agency Listings: Government Specification FDA, USCG/MMT
Burst Pressure (bar) 303
Burst Pressure (psi) 4400
Description Convoluted PTFE-Nonconductive tube
Family Hose
General Application Chemical, food, water and waste handling, and various transfer applications
Hose Base Number FC363
Inside Diameter (in) 0.81
Inside Diameter (mm) 20.6
Min Bend Radius (in) 3.75
Min Bend Radius (mm) 95.3
Min Kink Radius (in) 2
Min Kink Radius (mm) 50.8
Outside Diameter (in) 1.06
Outside Diameter (mm) 26.9
Reinforcement Material Stainless steel single wire braid cover
Vacuum (inHg) 28
Vacuum (kpa) 94.8
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TravisNeff
post Nov 11 2018, 06:10 PM
Post #203


914 Guru
*****

Group: Members
Posts: 5,082
Joined: 20-March 03
From: Mesa, AZ
Member No.: 447
Region Association: Southwest Region

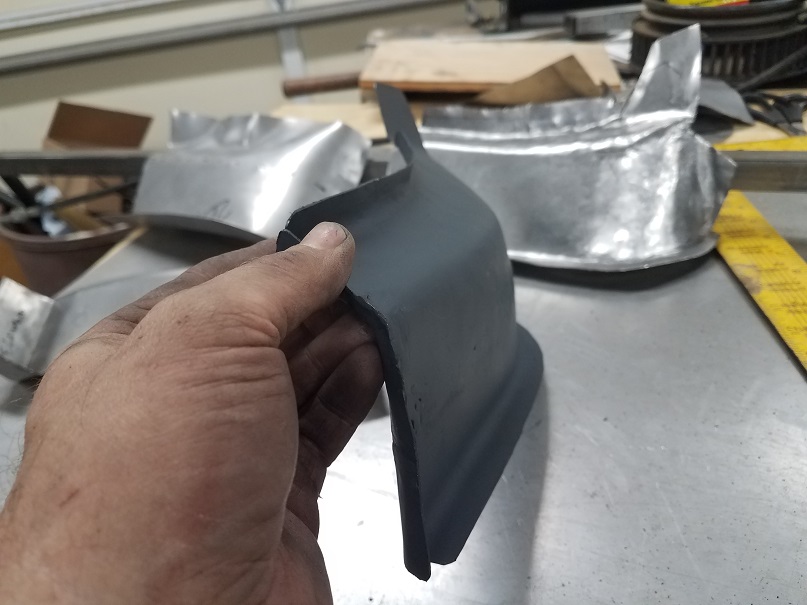

Made me a thingamadoodle Harder to make than I thought. Not sure how much I like it, oh well it was something to do this weekend.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Nov 11 2018, 06:29 PM
Post #204


914 Wizard
**********

Group: Members
Posts: 10,418
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
Looks great..
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bbrock
post Nov 11 2018, 06:45 PM
Post #205


914 Guru
*****

Group: Members
Posts: 5,269
Joined: 17-February 17
From: Montana
Member No.: 20,845
Region Association: Rocky Mountains
QUOTE(TravisNeff @ Nov 11 2018, 05:10 PM) *

Made me a thingamadoodle Harder to make than I thought. Not sure how much I like it, oh well it was something to do this weekend.


Got any progress pics on that one? That's a pretty complex shape. Can't recall you sport and English wheel. Curious how you tackled it. Nice work, as usual.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TravisNeff
post Nov 11 2018, 08:12 PM
Post #206


914 Guru
*****

Group: Members
Posts: 5,082
Joined: 20-March 03
From: Mesa, AZ
Member No.: 447
Region Association: Southwest Region
Its a bit horrific. I did it in 20 gauge as I have a 1/4 sheet of it lying around and need to find a way to use it.

I tried doing it in one piece and gave up. I did 2 pieces each with a 90 degree flange and stretched them to make the initial curve and welded them together. I put a dolly in a vice and then spent all day beating the hell out of it to get the shape I was after, then used the shrinking disk to help smooth it out.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TravisNeff
post Nov 11 2018, 08:15 PM
Post #207


914 Guru
*****

Group: Members
Posts: 5,082
Joined: 20-March 03
From: Mesa, AZ
Member No.: 447
Region Association: Southwest Region
QUOTE(sixnotfour @ Nov 11 2018, 05:29 PM) *

Looks great..

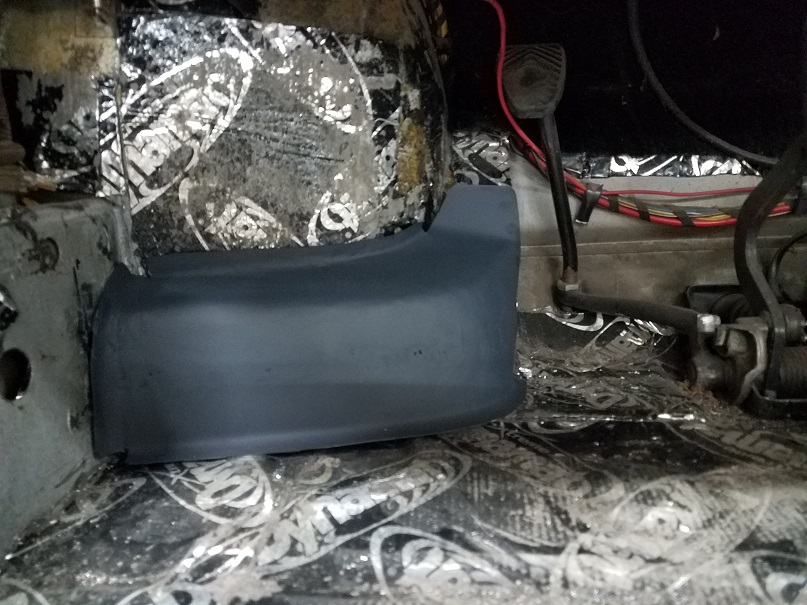

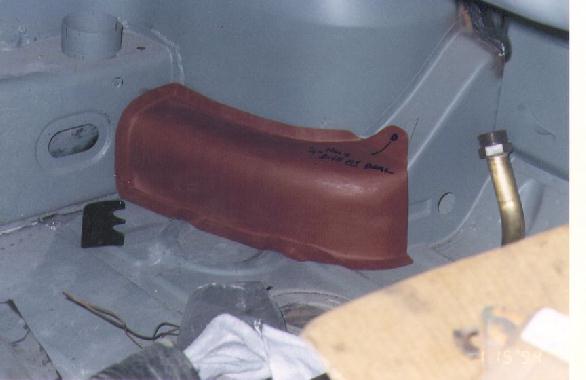

I used the pic from your car as inspiration.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TravisNeff
post Nov 11 2018, 08:37 PM
Post #208


914 Guru
*****

Group: Members
Posts: 5,082
Joined: 20-March 03
From: Mesa, AZ
Member No.: 447
Region Association: Southwest Region
Here are some profile shots. Its mostly there and a little body filler and it will look good. I tried welding some pinholes and after beating on it so much it turned into swiss cheese from the heat. Its not structural, so good enough I guess.

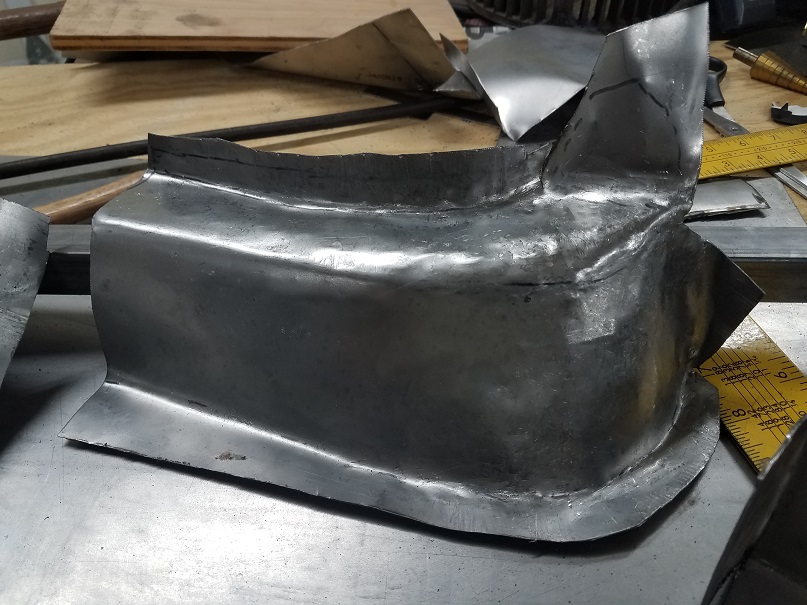

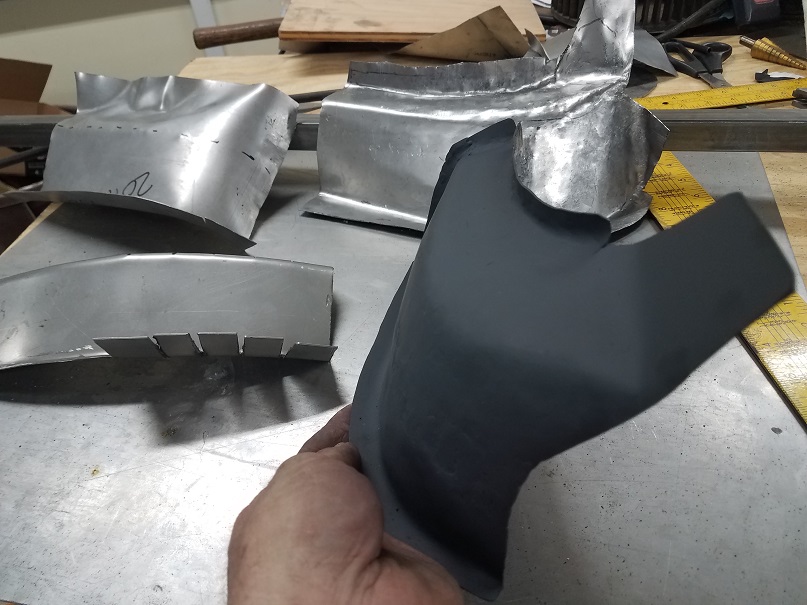

Also, a pic of the one I tried to make out of a single sheet of metal


Attached image(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Nov 11 2018, 08:48 PM
Post #209


914 Wizard
**********

Group: Members
Posts: 10,418
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
wow ..mine was the easy button...Great Job Travis

glue some perlon on it it will be good
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bbrock
post Nov 11 2018, 08:51 PM
Post #210


914 Guru
*****

Group: Members
Posts: 5,269
Joined: 17-February 17
From: Montana
Member No.: 20,845
Region Association: Rocky Mountains
Awesome work! Thanks for sharing the details.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TravisNeff
post Nov 11 2018, 09:13 PM
Post #211


914 Guru
*****

Group: Members
Posts: 5,082
Joined: 20-March 03
From: Mesa, AZ
Member No.: 447
Region Association: Southwest Region
Thanks guys, it means a lot coming from you two.

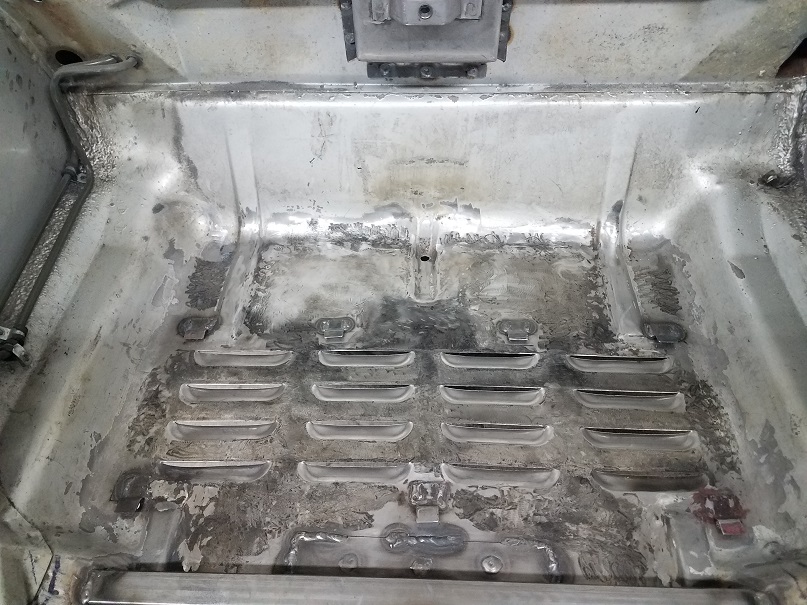

I forgot I did some more work this weekend. I got my shinking disk and shinky dinked the floor. Of course I went overboard but I was seriously entertained for the day.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bbrock
post Nov 11 2018, 09:26 PM
Post #212


914 Guru
*****

Group: Members
Posts: 5,269
Joined: 17-February 17
From: Montana
Member No.: 20,845
Region Association: Rocky Mountains
QUOTE(TravisNeff @ Nov 11 2018, 08:13 PM) *

Thanks guys, it means a lot coming from you two.

I forgot I did some more work this weekend. I got my shinking disk and shinky dinked the floor. Of course I went overboard but I was seriously entertained for the day.


Is that the coolest tool or what?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bbrock
post Nov 11 2018, 09:38 PM
Post #213


914 Guru
*****

Group: Members
Posts: 5,269
Joined: 17-February 17
From: Montana
Member No.: 20,845
Region Association: Rocky Mountains
BTW, hows the rigidity of the 20ga piece after it is formed? I am interested in your fabbing technique because have a secret project I want to try on my project in a couple months that requires similar compound curves. I'm going to try my hand at flow forming and was thinking of even going to 22ga things easier. If the flow forming doesn't work, I'll probably need to piece it together. I need to get a sandbag and some better beating hammers to have those in the arsenal too. I just love this stuff. Don't have a clue what I'm doing, but it sure is fun.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TravisNeff
post Nov 11 2018, 09:49 PM
Post #214


914 Guru
*****

Group: Members
Posts: 5,082
Joined: 20-March 03
From: Mesa, AZ
Member No.: 447
Region Association: Southwest Region
The shrinking disk is like magic!

After putting in the flanges, and the J bend it is pretty stout. When I started you could bend it pretty easily by hand.

If I get courageous enough towards the end of the project I think I will try to replicate the GT shroud in 20g steel. I'll need to get a bead roller and figure out how to use it first.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Nov 12 2018, 06:36 AM
Post #215


914 Guru
*****

Group: Members
Posts: 6,819
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest

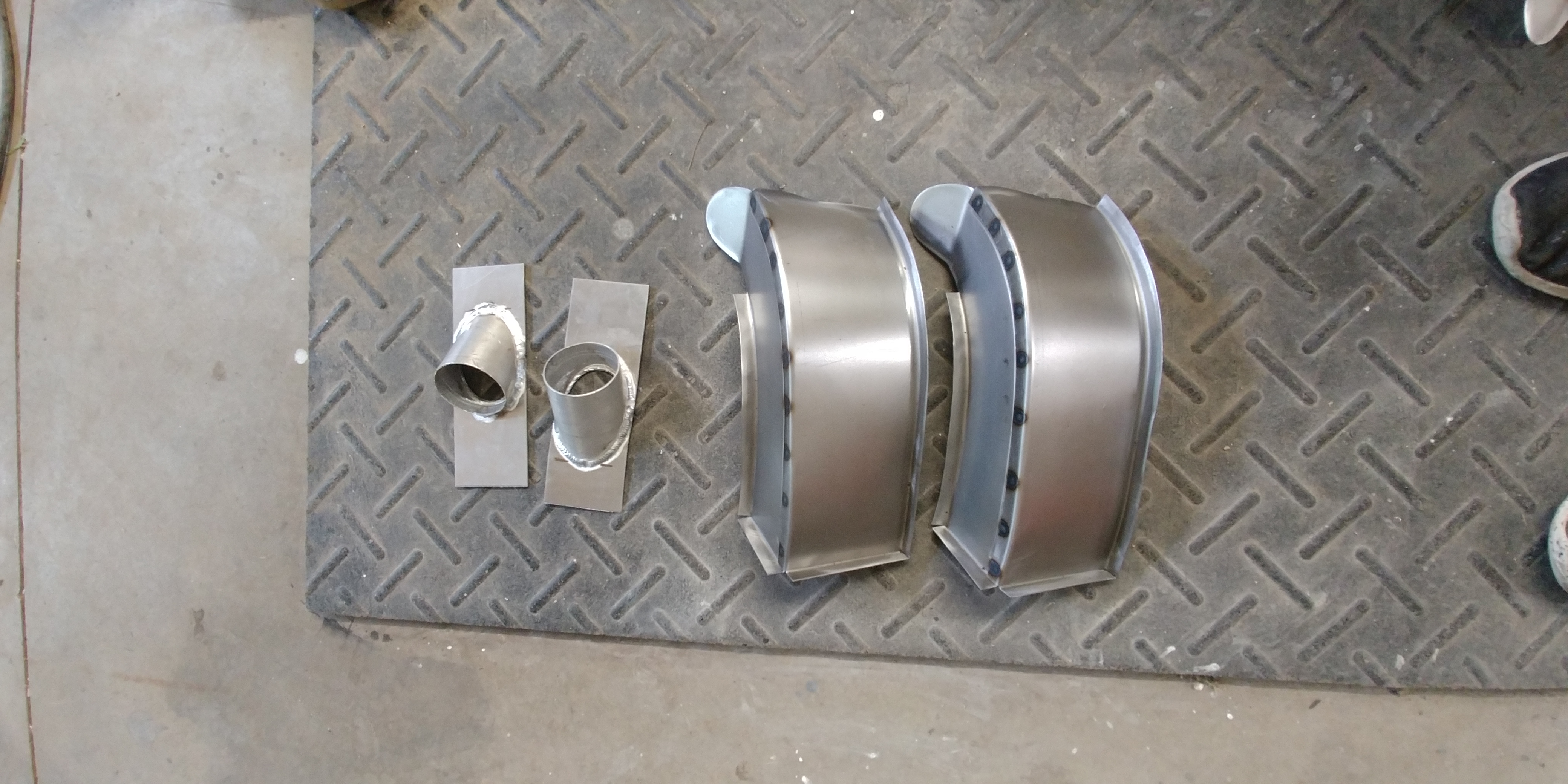

The time spent on it is also what I experienced and this went with this as it's basically the same just without the huge radius that I felt didn't really matter.. That's what I ended up selling..

Btw looks very good.Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TravisNeff
post Nov 12 2018, 08:04 AM
Post #216


914 Guru
*****

Group: Members
Posts: 5,082
Joined: 20-March 03
From: Mesa, AZ
Member No.: 447
Region Association: Southwest Region
I see now why you made these the way that you did. The radius curve is a non functional detail and hard to pull off. While the ones you made do appear to be bigger. When looking at mine as I was making it, I see it is about the same size. Having a flat vs rounded shape along the top gives a different illusion.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Nov 12 2018, 10:11 AM
Post #217


914 Wizard
**********

Group: Members
Posts: 10,418
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
having one in my GT ...I can say the larger radius makes for a nice dead pedal kinda feeling for my foot.. (IMG:style_emoticons/default/rolleyes.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TravisNeff
post Nov 12 2018, 10:30 AM
Post #218


914 Guru
*****

Group: Members
Posts: 5,082
Joined: 20-March 03
From: Mesa, AZ
Member No.: 447
Region Association: Southwest Region

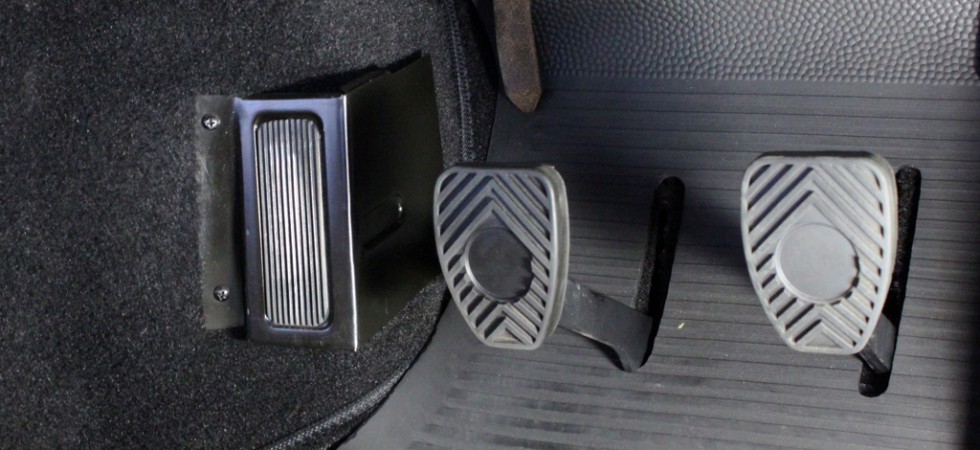

You've started something..


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Nov 12 2018, 11:28 AM
Post #219


914 Guru
*****

Group: Members
Posts: 6,819
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
QUOTE(TravisNeff @ Nov 12 2018, 06:04 AM) *

I see now why you made these the way that you did. The radius curve is a non functional detail and hard to pull off. While the ones you made do appear to be bigger. When looking at mine as I was making it, I see it is about the same size. Having a flat vs rounded shape along the top gives a different illusion.

(IMG:style_emoticons/default/agree.gif)

I just could justify spending more time on them and make it so people would actually buy them.. At 100 some odd dollars was still a challenge.. I may mod mine for a dead pedal in the future..
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Nov 12 2018, 11:33 AM
Post #220


914 Wizard
**********

Group: Members
Posts: 10,418
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
QUOTE
You've started something..



should only take a couple of hours ....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
