Hi all
I have what I believe is a "charley Bar" front 22mm sway bar. The bar itself is splined and the short arms are splined to match. Any way, I'm looking for some bushings. Any leads appreciated. andy  |
   |

|
| mgphoto |
Sep 1 2018, 05:17 PM
Post
#2
|
|
"If there is a mistake it will find me" Group: Members Posts: 1,375 Joined: 1-April 09 From: Los Angeles, CA Member No.: 10,225 Region Association: Southern California |
Porsche dealers have them, used on 911’s.
|
|
|
|
| bdstone914 |
Sep 1 2018, 09:17 PM
Post
#3
|
|
bdstone914 Group: Members Posts: 5,039 Joined: 8-November 03 From: Riverside CA Member No.: 1,319 |
QUOTE(mgphoto @ Sep 1 2018, 04:17 PM)  Porsche dealers have them, used on 911’s. I don't think you will find then in 19mm with Porsche. Stock were 15mm. Those pictured are polygraphite. |
|
|
|
| mepstein |
Sep 1 2018, 09:29 PM
Post
#4
|
|
914-6 GT in waiting Group: Members Posts: 19,966 Joined: 19-September 09 From: Landenberg, PA/Wilmington, DE Member No.: 10,825 Region Association: MidAtlantic Region
|

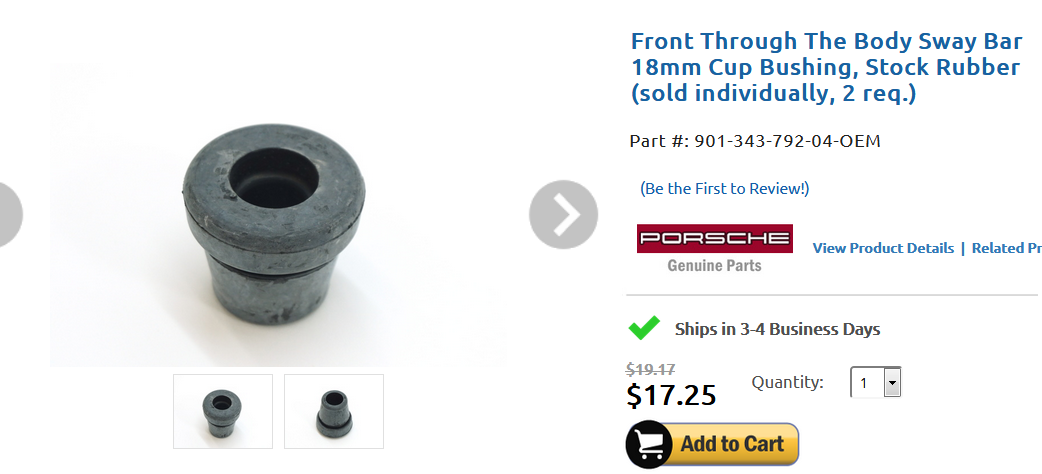

I think you want part # 90134379204 Early 911 turbo
|
|
|
|
| bdstone914 |
Sep 2 2018, 07:43 AM
Post
#5
|
|
bdstone914 Group: Members Posts: 5,039 Joined: 8-November 03 From: Riverside CA Member No.: 1,319 |
QUOTE(mepstein @ Sep 1 2018, 08:29 PM) I think you want part # 90134379204 Early 911 turbo That shows to be a 18mm bushing. Not sure it will would for a 19mm bar. Might be able to make it work by grinding the inside with an abrasive drum bit. Seems to come without a slit. Attached thumbnail(s)
|
|
|
|
| 914andy |
Sep 2 2018, 09:23 AM
Post
#6
|
|
Member Group: Members Posts: 61 Joined: 23-December 11 From: Nashville tn Member No.: 13,929 Region Association: None
|

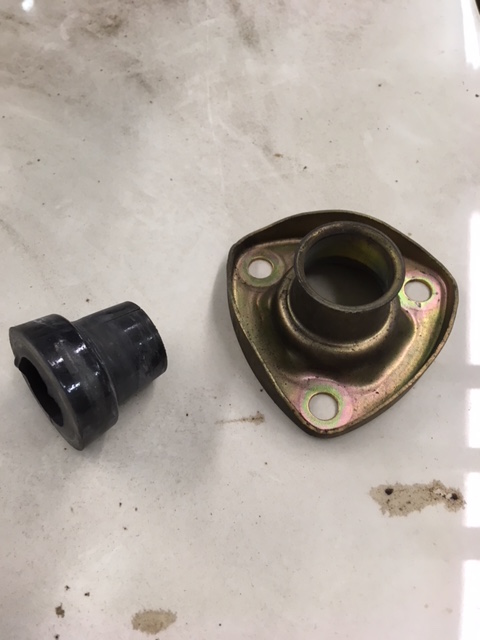

forgot to say that the bushings I have are some sort of hard
material. They are not rubber. andy |
|
|
|
| 914werke |
Sep 2 2018, 12:03 PM
Post
#7
|
|
"I got blisters on me fingers" Group: Members Posts: 11,295 Joined: 22-March 03 From: USofA Member No.: 453 Region Association: Pacific Northwest
|
Get the rubber vers & put a slit in it.
|
|
|
|
| bdstone914 |
Sep 2 2018, 01:02 PM
Post
#8
|
|
bdstone914 Group: Members Posts: 5,039 Joined: 8-November 03 From: Riverside CA Member No.: 1,319 |
QUOTE(914werke @ Sep 2 2018, 11:03 AM) Get the rubber vers & put a slit in it. I see that he has a 21mm bar so I wonder if the wall thickness of the bushing for the 18 mm will be too thick. |
|
|
|
| 914forme |
Sep 2 2018, 03:57 PM
Post
#9
|
|
Times a wastin', get wrenchin'! Group: Members Posts: 3,896 Joined: 24-July 04 From: Dayton, Ohio Member No.: 2,388 Region Association: None
|
have them machined out of Delrin (IMG:style_emoticons/default/confused24.gif)
|
|
|
|
| RickS |
Sep 2 2018, 09:48 PM
Post
#10
|
|
Senior Member Group: Members Posts: 1,408 Joined: 17-April 06 From: 'False City', WA Member No.: 5,880 Region Association: None |
Have them machined from Teflon. No insane squeaking like....uh...Delrin.
|
|
|
|
|
