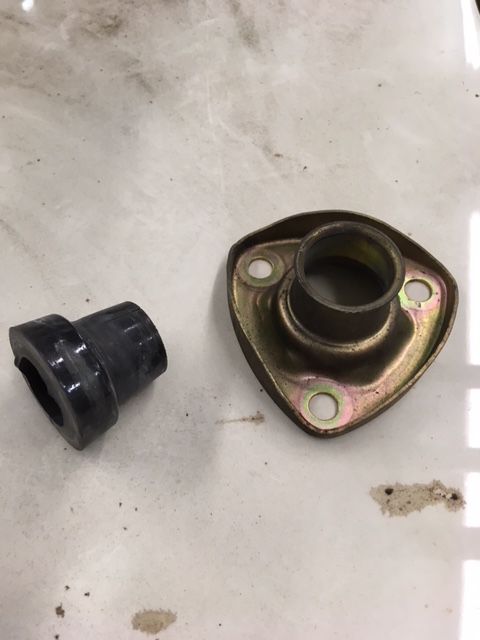

Hi all I have what I believe is a "charley Bar" front 22mm sway bar. The bar itself is splined and the short arms are splined to match. Any way, I'm looking for some bushings. Any leads appreciated. andyClick to view attachment
mgphoto
Sep 1 2018, 05:17 PM
Porsche dealers have them, used on 911’s.
bdstone914
Sep 1 2018, 09:17 PM
QUOTE(mgphoto @ Sep 1 2018, 04:17 PM)
Porsche dealers have them, used on 911’s.
I don't think you will find then in 19mm with Porsche. Stock were 15mm. Those pictured are polygraphite.
mepstein
Sep 1 2018, 09:29 PM
I think you want part # 90134379204 Early 911 turbo
bdstone914
Sep 2 2018, 07:43 AM
QUOTE(mepstein @ Sep 1 2018, 08:29 PM)
I think you want part # 90134379204 Early 911 turbo
That shows to be a 18mm bushing. Not sure it will would for a 19mm bar. Might be able to make it work by grinding the inside with an abrasive drum bit. Seems to come without a slit.
914andy
Sep 2 2018, 09:23 AM
forgot to say that the bushings I have are some sort of hard material. They are not rubber. andy
914werke
Sep 2 2018, 12:03 PM
Get the rubber vers & put a slit in it.
bdstone914
Sep 2 2018, 01:02 PM
QUOTE(914werke @ Sep 2 2018, 11:03 AM)
Get the rubber vers & put a slit in it.
I see that he has a 21mm bar so I wonder if the wall thickness of the bushing for the 18 mm will be too thick.
914forme
Sep 2 2018, 03:57 PM
have them machined out of Delrin
RickS
Sep 2 2018, 09:48 PM
Have them machined from Teflon. No insane squeaking like....uh...Delrin.
