> Fuel pump wires, Location
trojanhorsepower
post Nov 23 2018, 02:46 PM
Post #1


Senior Member
***

Group: Members
Posts: 877
Joined: 21-September 03
From: Marion, NC
Member No.: 1,179
Region Association: None
Believe it or not, I cant seem to find them in my harness. Not that they aren't there, I just don't know what they look like. So my understanding is that on a 73 the pump is located under the engine shelf, but all the wires go into the engine bay via the snorkel, so do the pump wires pass back down through the engine shelf?..
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jcd914
post Nov 23 2018, 03:11 PM
Post #2


Advanced Member
****

Group: Members
Posts: 2,095
Joined: 7-February 08
From: Sacramento, CA
Member No.: 8,684
Region Association: Northern California
They run along the top of the engine shelf with the battery wires.
They go down through the engine shelf over by the hell hole.

Jim
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Nov 23 2018, 03:18 PM
Post #3


914 Wiring Harnesses & Beekeeper
*****

Group: Members
Posts: 8,927
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
Where are you looking for them within the harness?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
trojanhorsepower
post Nov 23 2018, 06:54 PM
Post #4


Senior Member
***

Group: Members
Posts: 877
Joined: 21-September 03
From: Marion, NC
Member No.: 1,179
Region Association: None

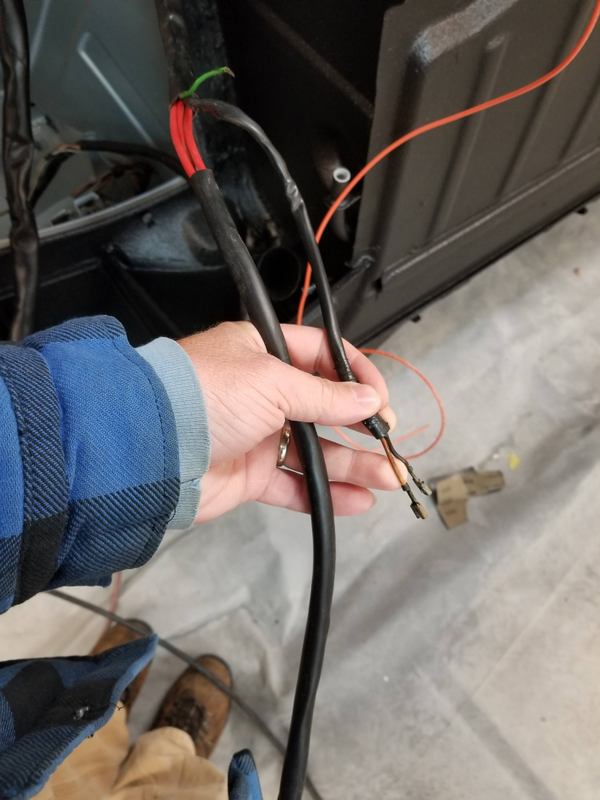

OK, so maybe these two?

Attached Image

Two largish red wires in this bundle might be batter cables?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
yellowporky
post Nov 23 2018, 07:03 PM
Post #5


Member
**

Group: Members
Posts: 431
Joined: 18-October 09
From: Martinez, Ca.
Member No.: 10,948
Region Association: Northern California
looks like them
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
clapeza
post Nov 23 2018, 07:04 PM
Post #6


Member
**

Group: Members
Posts: 229
Joined: 7-February 11
From: South GA
Member No.: 12,677
Region Association: South East States
I couldn't find mine either. A previous owner of my '70 had some hell hole work done AND did a carb conversion, so my stock FI pump was long gone. It was replaced with a Facet rattle-box pump, wired directly off the distributor!

I could never find the original wire, so I ended up connecting into the factory multi-connector plug at the relay board.
The relay board diagram that's on this site will show you which pin to use.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
trojanhorsepower
post Nov 23 2018, 07:27 PM
Post #7


Senior Member
***

Group: Members
Posts: 877
Joined: 21-September 03
From: Marion, NC
Member No.: 1,179
Region Association: None
Thanks all!
Now I just need to figure out how to get my new wire through the snorkel to relocate the pump in the front.....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
trojanhorsepower
post Nov 23 2018, 08:11 PM
Post #8


Senior Member
***

Group: Members
Posts: 877
Joined: 21-September 03
From: Marion, NC
Member No.: 1,179
Region Association: None
Any idea what the little green wire with the black stripe is for?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
yellowporky
post Nov 23 2018, 08:48 PM
Post #9


Member
**

Group: Members
Posts: 431
Joined: 18-October 09
From: Martinez, Ca.
Member No.: 10,948
Region Association: Northern California

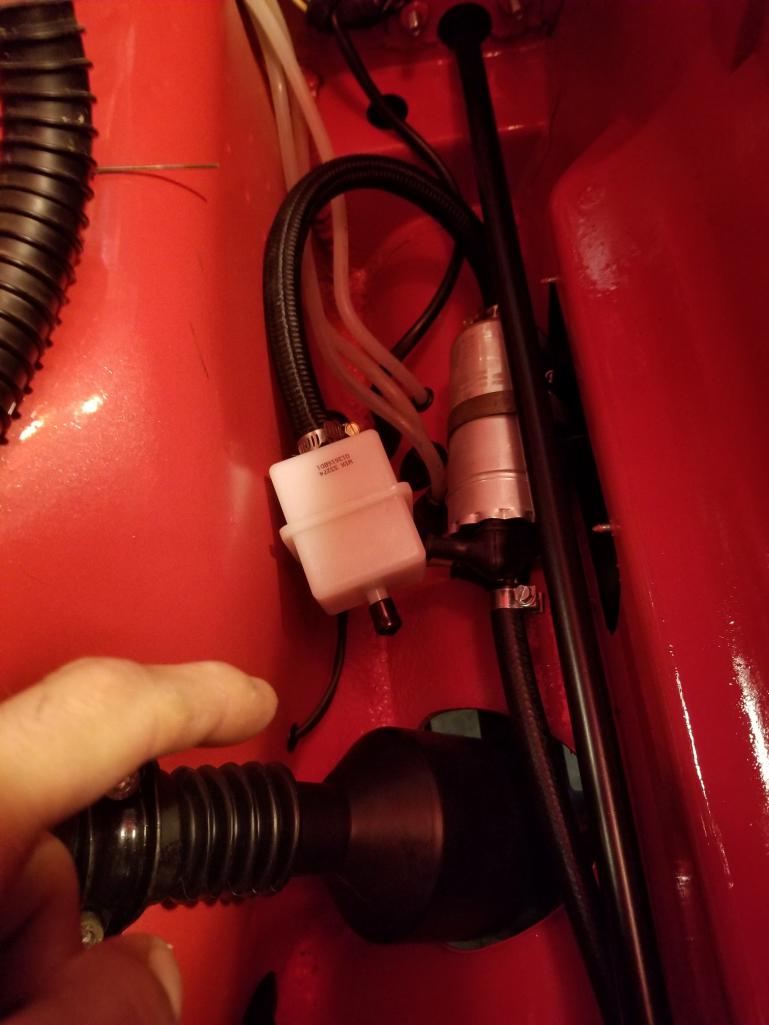

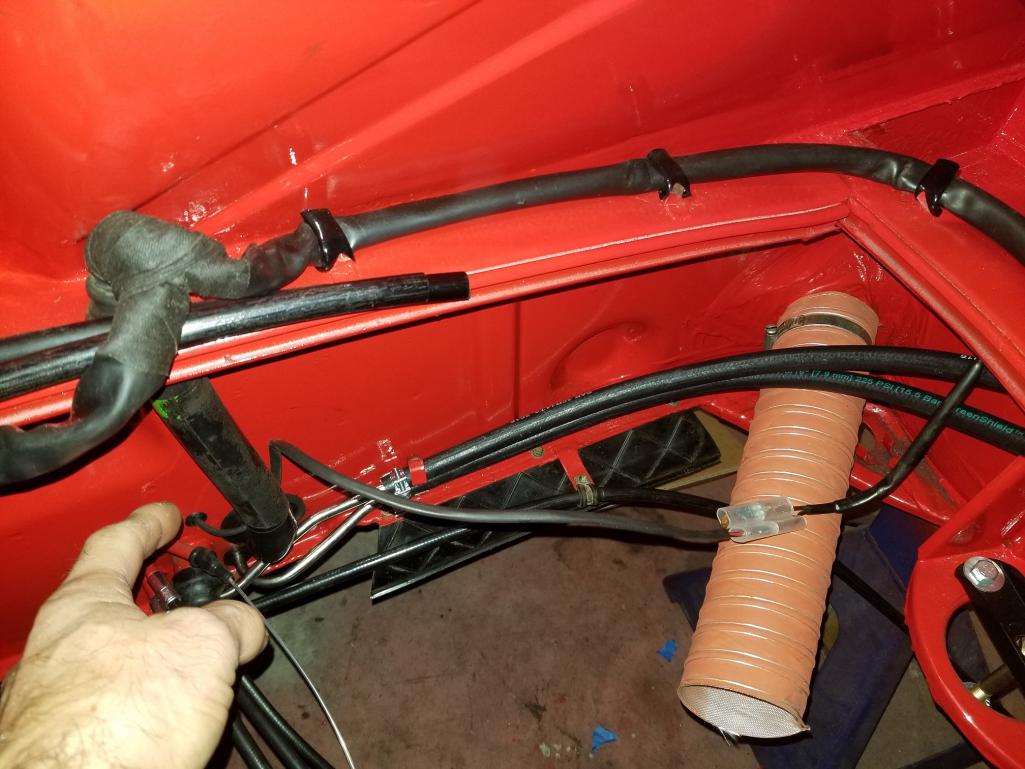

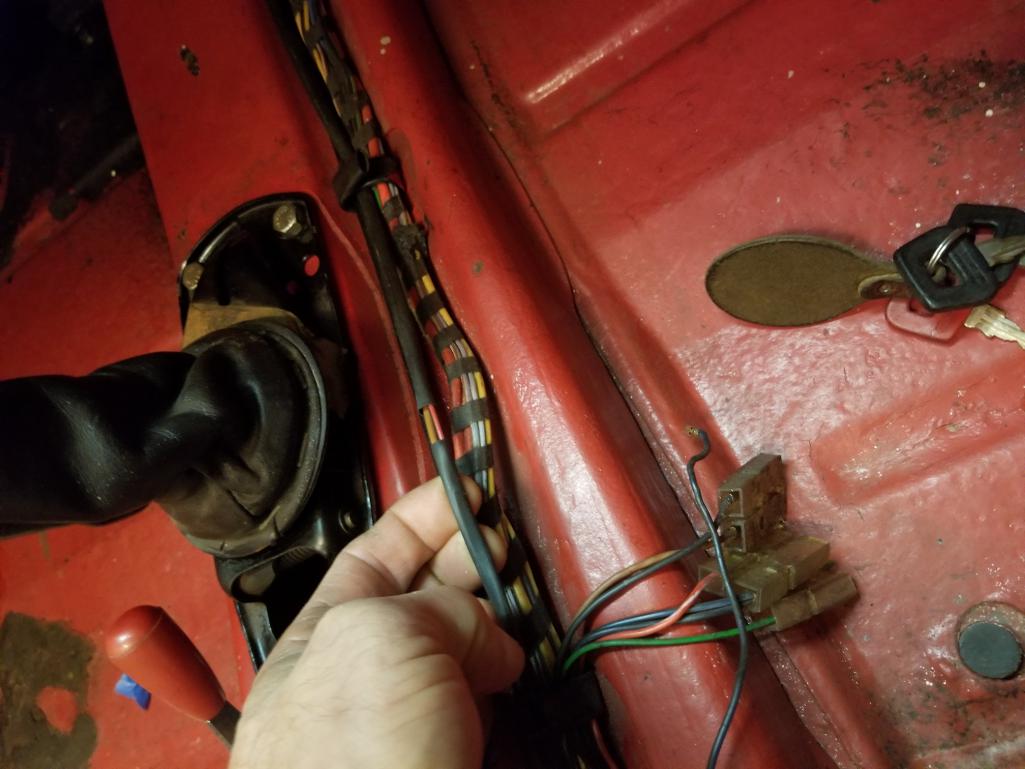

I just did mine on my 73 last week. Here is what i came up with. You can see the 2 spade connectors that i used to connect to the original harness and then extended with 14 gauge wire to the front trunk. Yes i will be securing the wires in the engine compartment.
Hope this gives you some ideas
Attached Image
Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Nov 23 2018, 09:00 PM
Post #10


914 Wiring Harnesses & Beekeeper
*****

Group: Members
Posts: 8,927
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
The late cars required a 12ga wire and ground to the front for the FP.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
trojanhorsepower
post Nov 23 2018, 09:07 PM
Post #11


Senior Member
***

Group: Members
Posts: 877
Joined: 21-September 03
From: Marion, NC
Member No.: 1,179
Region Association: None
Looks good. Did you notch out the base of the snorkel to make room for the new wires? Dang it. Now I have to pull the 14 awg wire I already ran and replace it with a 12 ga....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
yellowporky
post Nov 23 2018, 09:22 PM
Post #12


Member
**

Group: Members
Posts: 431
Joined: 18-October 09
From: Martinez, Ca.
Member No.: 10,948
Region Association: Northern California
i guess i will re run 12 gauge wire now.
No i did not notch the snorkel
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
trojanhorsepower
post Nov 23 2018, 10:47 PM
Post #13


Senior Member
***

Group: Members
Posts: 877
Joined: 21-September 03
From: Marion, NC
Member No.: 1,179
Region Association: None
Ah, i see now, you ran it in through another hole beside the snorkel and added another grommet. It looked so good i thought it was factory.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
barefoot
post Nov 24 2018, 07:23 AM
Post #14


Senior Member
***

Group: Members
Posts: 1,382
Joined: 19-March 13
From: Charleston SC
Member No.: 15,673
Region Association: South East States
QUOTE(JeffBowlsby @ Nov 23 2018, 10:00 PM) *

The late cars required a 12ga wire and ground to the front for the FP.


The late cars with the front mounted pumps had wires in the harness in the front
(Black with red bands for power and brown ground)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
trojanhorsepower
post Nov 25 2018, 03:59 PM
Post #15


Senior Member
***

Group: Members
Posts: 877
Joined: 21-September 03
From: Marion, NC
Member No.: 1,179
Region Association: None
So what about the little green wire with the black stripe poking out with the pump wires?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Nov 25 2018, 04:09 PM
Post #16


914 Wiring Harnesses & Beekeeper
*****

Group: Members
Posts: 8,927
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
QUOTE(trojanhorsepower @ Nov 25 2018, 01:59 PM) *

So what about the little green wire with the black stripe poking out with the pump wires?


That single green/black stripe wire is for the oil temp sender on the later cars. It goes to the center console connection.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Nov 25 2018, 04:11 PM
Post #17


Resident German
*************************

Group: Admin
Posts: 42,227
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(trojanhorsepower @ Nov 25 2018, 01:59 PM) *

So what about the little green wire with the black stripe poking out with the pump wires?

Oil temp sender going from the bottom of the engine (taco plate) to the front of the center tunnel where you can connect a gauge if you have the center console.

There's another thread about it on the front page right now:
http://www.914world.com/bbs2/index.php?showtopic=334716

Also, all the wires and their colors are described in detail in the wiring diagrams ...
(IMG:style_emoticons/default/shades.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
trojanhorsepower
post Dec 1 2018, 04:18 PM
Post #18


Senior Member
***

Group: Members
Posts: 877
Joined: 21-September 03
From: Marion, NC
Member No.: 1,179
Region Association: None
Got it. Now how long should it be. The wire is about 2" right now....
