trojanhorsepower
Nov 23 2018, 02:46 PM
Believe it or not, I cant seem to find them in my harness. Not that they aren't there, I just don't know what they look like. So my understanding is that on a 73 the pump is located under the engine shelf, but all the wires go into the engine bay via the snorkel, so do the pump wires pass back down through the engine shelf?..
jcd914
Nov 23 2018, 03:11 PM
They run along the top of the engine shelf with the battery wires.
They go down through the engine shelf over by the hell hole.
Jim
JeffBowlsby
Nov 23 2018, 03:18 PM
Where are you looking for them within the harness?
trojanhorsepower
Nov 23 2018, 06:54 PM
OK, so maybe these two?

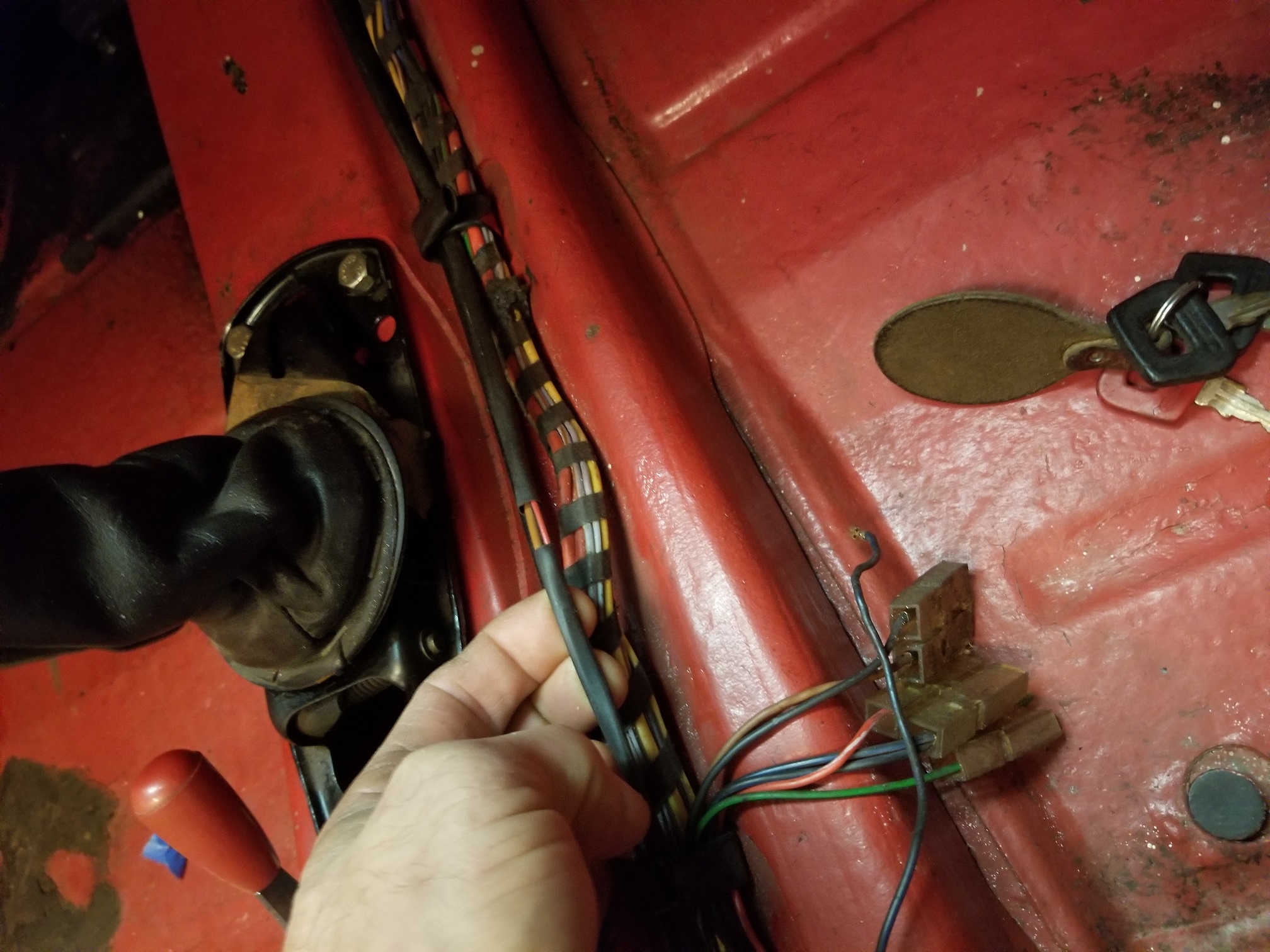

Click to view attachment Two largish red wires in this bundle might be batter cables?
yellowporky
Nov 23 2018, 07:03 PM
looks like them
clapeza
Nov 23 2018, 07:04 PM
I couldn't find mine either. A previous owner of my '70 had some hell hole work done AND did a carb conversion, so my stock FI pump was long gone. It was replaced with a Facet rattle-box pump, wired directly off the distributor!
I could never find the original wire, so I ended up connecting into the factory multi-connector plug at the relay board.
The relay board diagram that's on this site will show you which pin to use.
trojanhorsepower
Nov 23 2018, 07:27 PM
Thanks all!
Now I just need to figure out how to get my new wire through the snorkel to relocate the pump in the front.....
trojanhorsepower
Nov 23 2018, 08:11 PM
Any idea what the little green wire with the black stripe is for?
yellowporky
Nov 23 2018, 08:48 PM

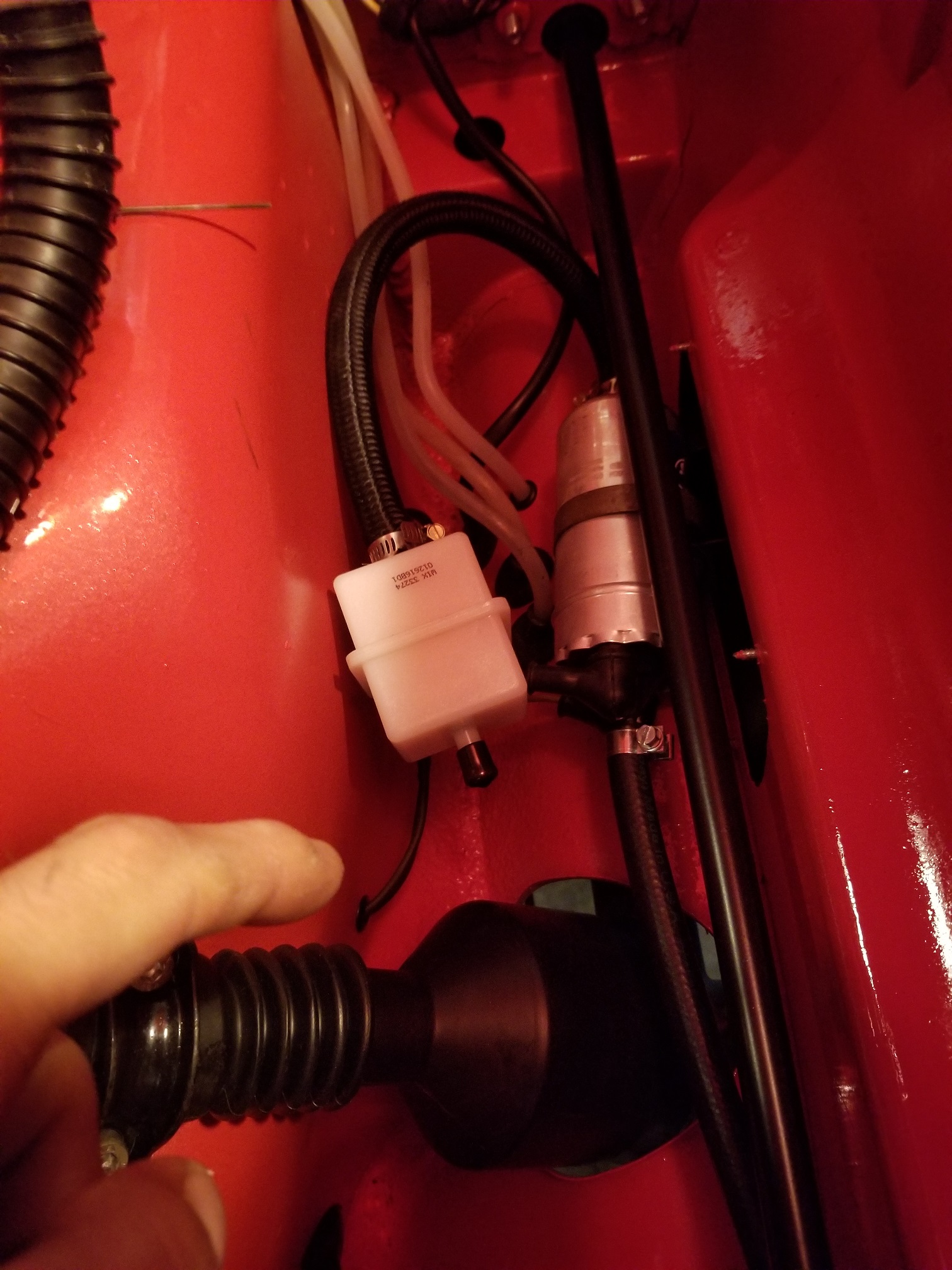

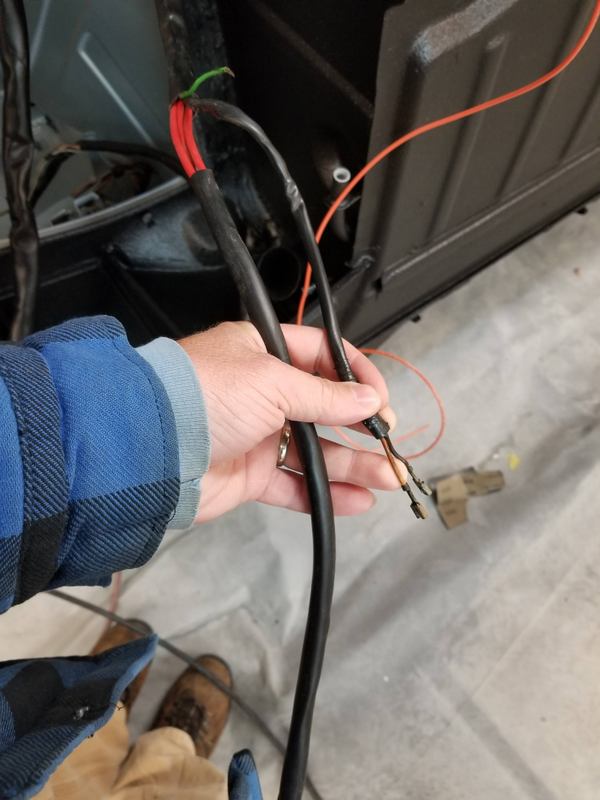

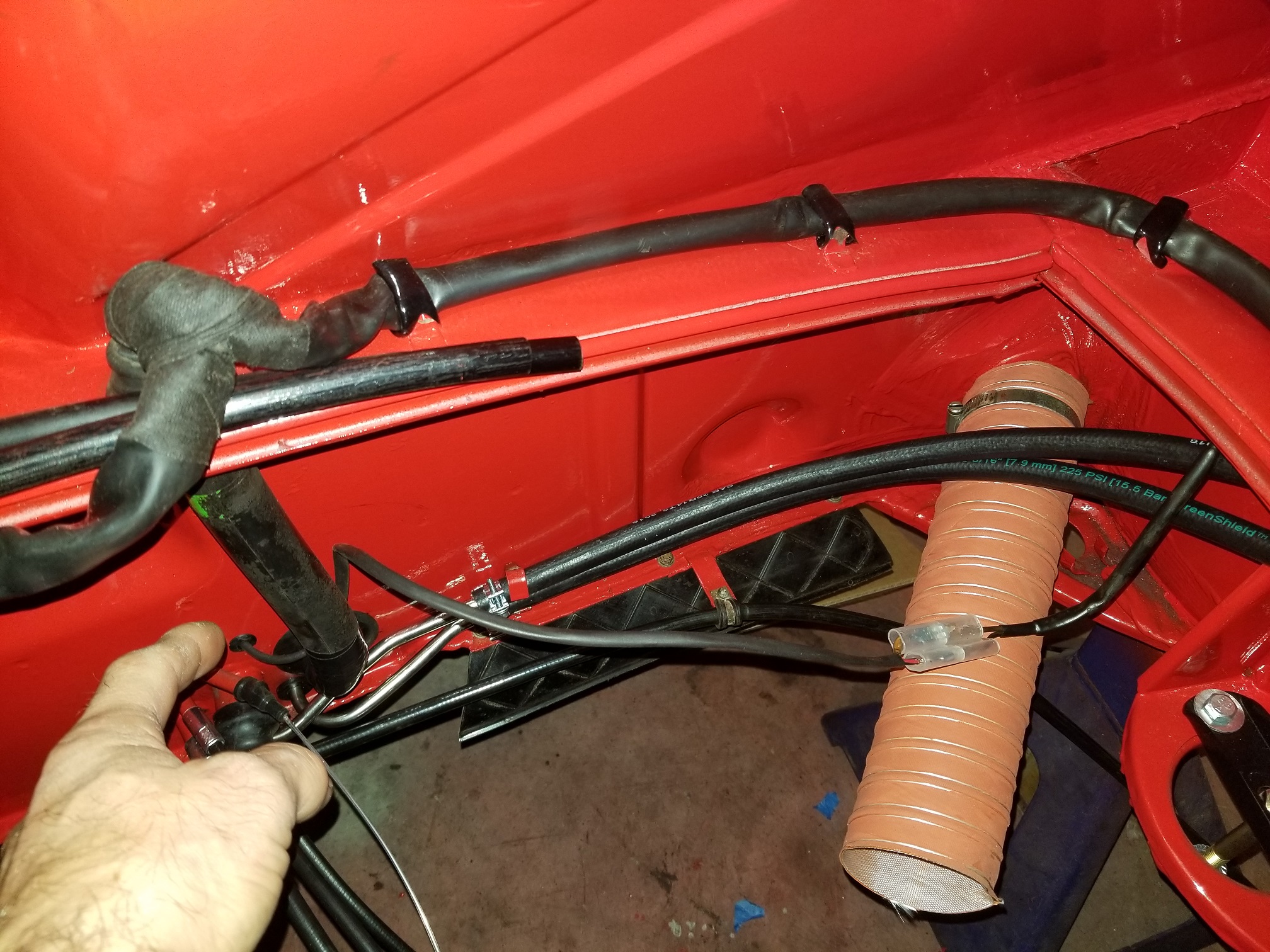

I just did mine on my 73 last week. Here is what i came up with. You can see the 2 spade connectors that i used to connect to the original harness and then extended with 14 gauge wire to the front trunk. Yes i will be securing the wires in the engine compartment.
Hope this gives you some ideas
Click to view attachmentClick to view attachmentClick to view attachment
JeffBowlsby
Nov 23 2018, 09:00 PM
The late cars required a 12ga wire and ground to the front for the FP.
trojanhorsepower
Nov 23 2018, 09:07 PM
Looks good. Did you notch out the base of the snorkel to make room for the new wires? Dang it. Now I have to pull the 14 awg wire I already ran and replace it with a 12 ga....
yellowporky
Nov 23 2018, 09:22 PM
i guess i will re run 12 gauge wire now.
No i did not notch the snorkel
trojanhorsepower
Nov 23 2018, 10:47 PM
Ah, i see now, you ran it in through another hole beside the snorkel and added another grommet. It looked so good i thought it was factory.
barefoot
Nov 24 2018, 07:23 AM
QUOTE(JeffBowlsby @ Nov 23 2018, 10:00 PM)
The late cars required a 12ga wire and ground to the front for the FP.
The late cars with the front mounted pumps had wires in the harness in the front
(Black with red bands for power and brown ground)
trojanhorsepower
Nov 25 2018, 03:59 PM
So what about the little green wire with the black stripe poking out with the pump wires?
JeffBowlsby
Nov 25 2018, 04:09 PM
QUOTE(trojanhorsepower @ Nov 25 2018, 01:59 PM)
So what about the little green wire with the black stripe poking out with the pump wires?
That single green/black stripe wire is for the oil temp sender on the later cars. It goes to the center console connection.
SirAndy
Nov 25 2018, 04:11 PM
QUOTE(trojanhorsepower @ Nov 25 2018, 01:59 PM)
So what about the little green wire with the black stripe poking out with the pump wires?
Oil temp sender going from the bottom of the engine (taco plate) to the front of the center tunnel where you can connect a gauge if you have the center console.
There's another thread about it on the front page right now:
http://www.914world.com/bbs2/index.php?showtopic=334716Also, all the wires and their colors are described in detail in the wiring diagrams ...
trojanhorsepower
Dec 1 2018, 04:18 PM
Got it. Now how long should it be. The wire is about 2" right now....
