 Need help installing heater boxes and hoses from HEs, Can't find information on how to hook up heat. |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
| buck toenges |
 Feb 7 2019, 09:16 PM
Post
#1
|
|
Senior Member  Group: Members Posts: 553 Joined: 25-November 03 From: Fort wayne In Member No.: 1,388 Region Association: None
 |
I am starting to hooks up all the hoses, heater boxes, elbows, heating air supplies and such for a 2.0L engine. 1973 version. The workshop manual doesn't have any info. Can you help me come up with a game plan on how to install all this stuff. Got the engine and heat exchangers in.
Attached thumbnail(s)
|
   |

|
  |
Replies(1 - 10)
| 914_7T3 |
Feb 7 2019, 09:35 PM
Post
#2
|
|
Please forgive me, I'm new to all of this! Group: Members Posts: 1,853 Joined: 3-April 17 From: Los Angeles, CA Member No.: 20,991 Region Association: Southern California
|

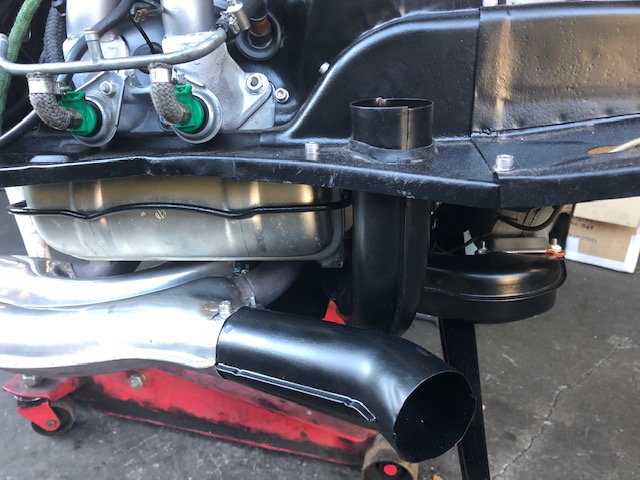

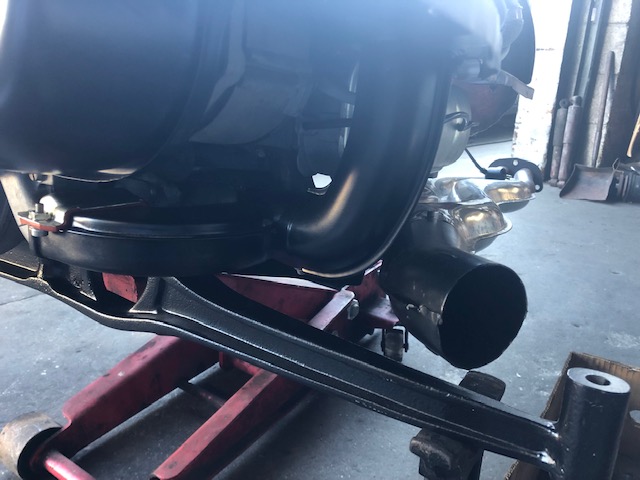

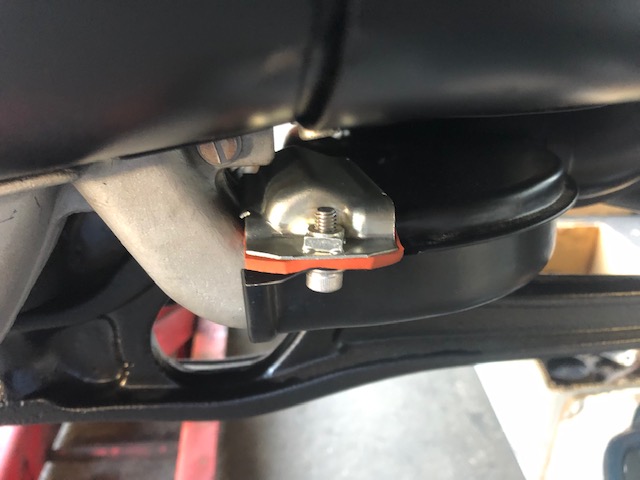

Not sure if these are helpful, but recently snapped these pics at the shop where my drivetrain is being reinstalled.
     |
|
|
|
| Olympic 914 |
Feb 8 2019, 07:20 AM
Post
#3
|
|
Group: Members Posts: 1,672 Joined: 7-July 11 From: Pittsburgh PA Member No.: 13,287 Region Association: North East States
|

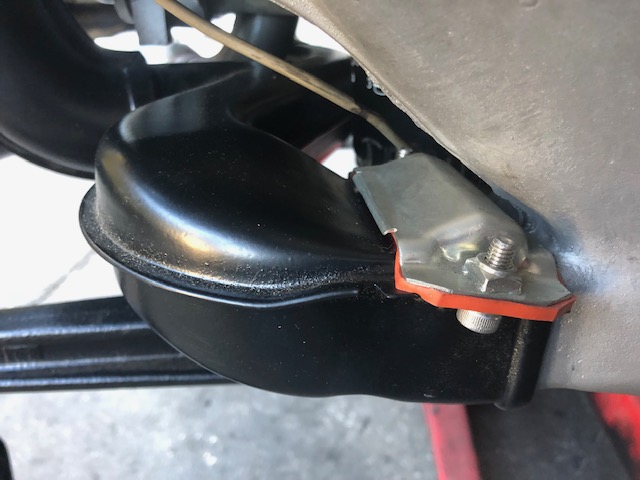

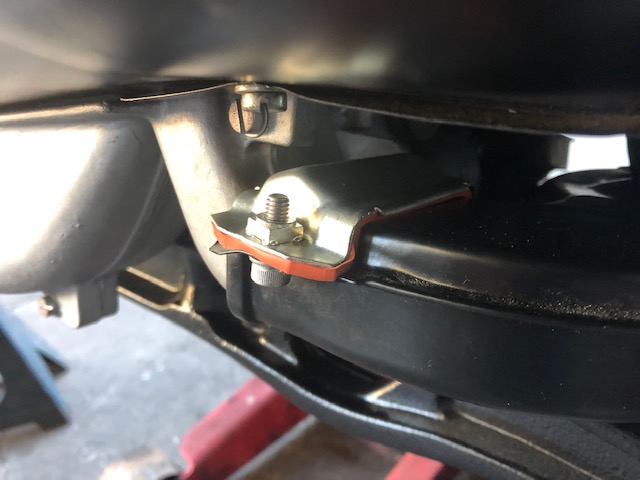

I just did this yesterday.

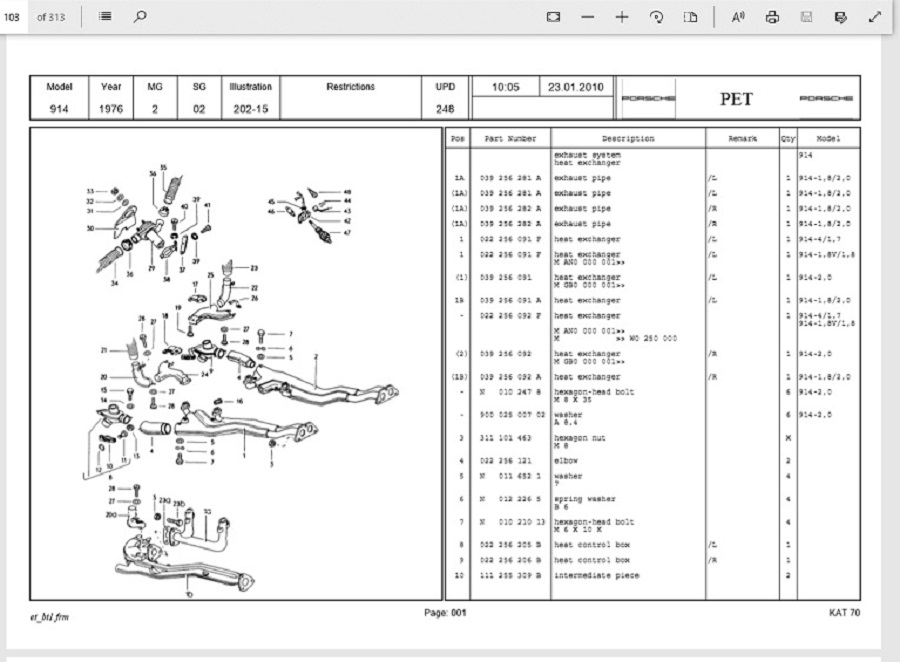

As shown in pictures above.. You definitely want to use the allen bolts on those parts. it is a real pain to try getting a socket between the engine bar to tighten those. Also when you mount the heater control boxes be careful not to slide them up too far on the curved pipes or they won't open and you won't get any heat.... Don't ask how I know. maybe this diagram will be helpful  |
|
|
|
| sdoolin |
Feb 8 2019, 08:33 AM
Post
#4
|
|
Member Group: Members Posts: 359 Joined: 1-May 14 From: LouKY Member No.: 17,299 Region Association: None |

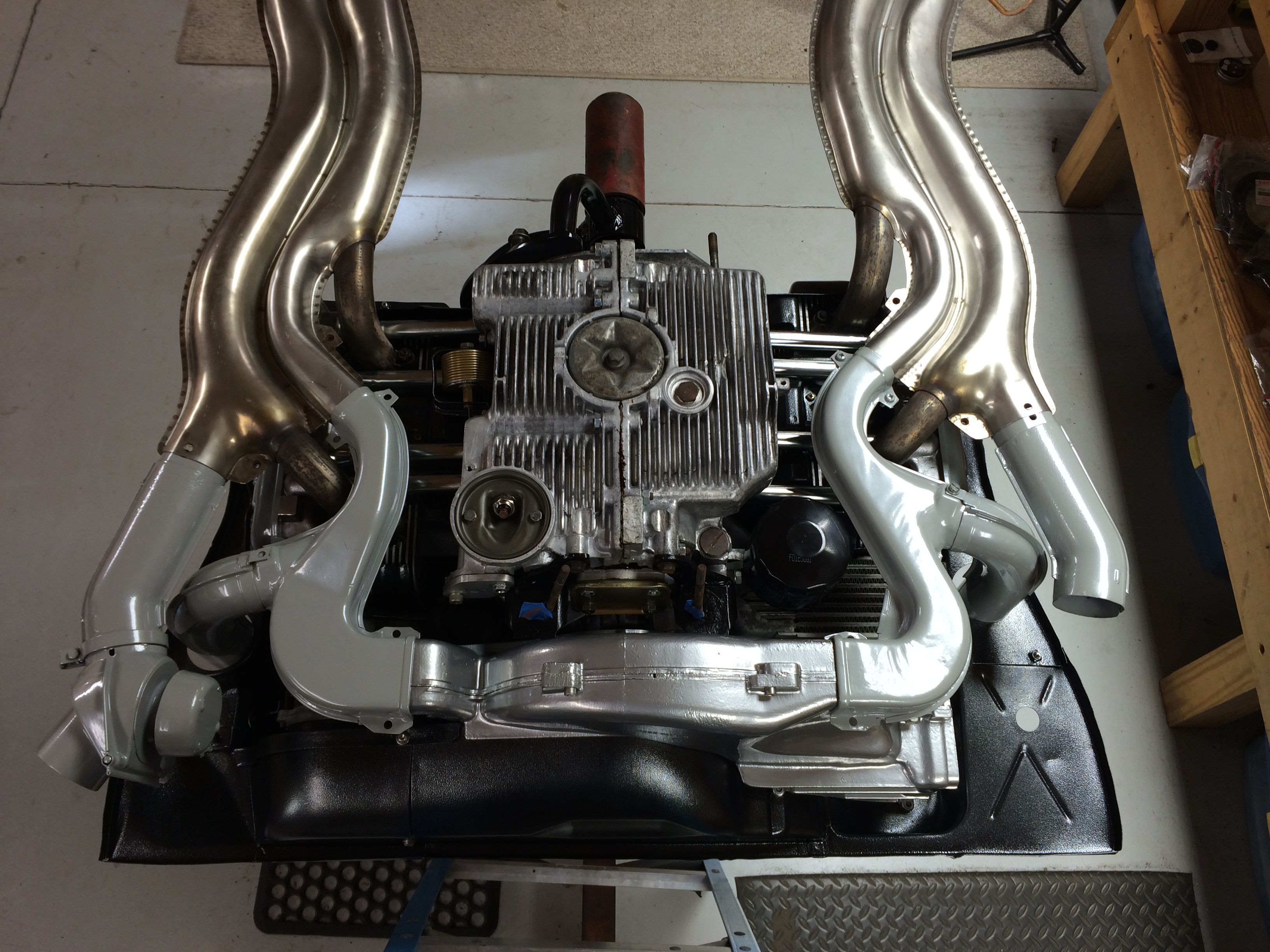

Maybe this will help?
 |
|
|
|
| sdoolin |
Feb 8 2019, 08:36 AM
Post
#5
|
|
Member Group: Members Posts: 359 Joined: 1-May 14 From: LouKY Member No.: 17,299 Region Association: None |

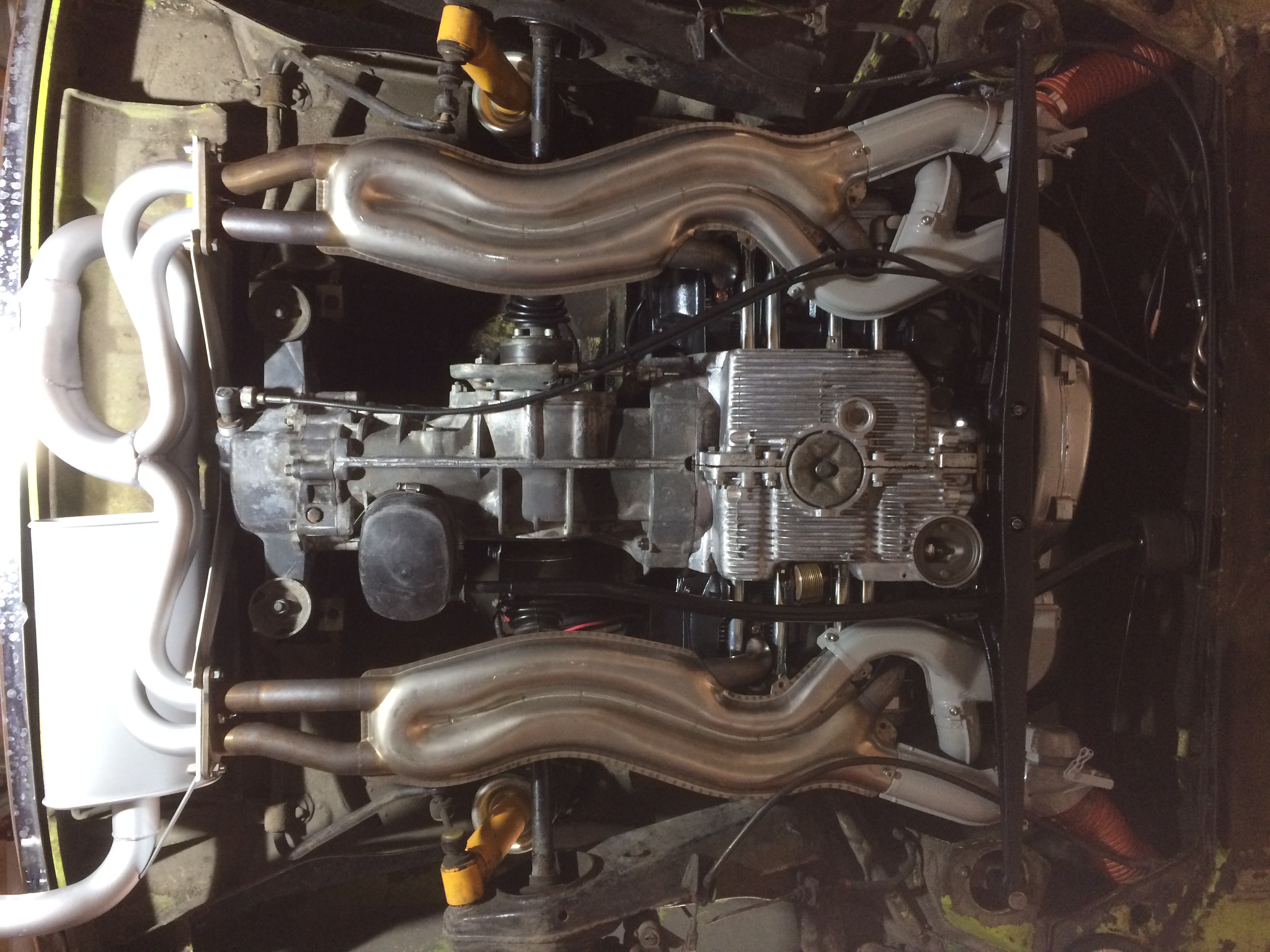

Or this?
 |
|
|
|
| 930cabman |
Jun 5 2021, 03:52 PM
Post
#6
|
|
Advanced Member Group: Members Posts: 3,105 Joined: 12-November 20 From: Buffalo Member No.: 24,877 Region Association: North East States
|
Thinking out loud, our 914/4 will never use the heating function, why would we not close off the rectangular outlets in the aluminum fan housing and divert additional cooling air over the cylinders?
Thanks |
|
|
|
| Mark Henry |
Jun 5 2021, 04:02 PM
Post
#7
|
|
that's what I do! Group: Members Posts: 20,065 Joined: 27-December 02 From: Port Hope, Ontario Member No.: 26 Region Association: Canada |
QUOTE(930cabman @ Jun 5 2021, 05:52 PM)  Thinking out loud, our 914/4 will never use the heating function, why would we not close off the rectangular outlets in the aluminum fan housing and divert additional cooling air over the cylinders? Thanks There was a lot of debate about this in the early mid 2000's, Jake Raby did some temp tests and found leaving them off and open actually cooled better. The other thought was to smooth over the interior duct openings and the common opinion was to block them off the traditional way. My opinion is to build the engine properly so it doesn't overheat to start with. (IMG:style_emoticons/default/biggrin.gif) |
|
|
|
| dt4 |
Jul 4 2021, 01:31 AM
Post
#8
|
|
Senior Member Group: Members Posts: 503 Joined: 26-May 19 From: England Member No.: 23,161 Region Association: England
|
QUOTE(914_7T3 @ Feb 8 2019, 04:35 AM) Not sure if these are helpful, but recently snapped these pics at the shop where my drivetrain is being reinstalled. Hi where can I get the red rubber seals that are used in the branch pipe clamps? thanks |
|
|
|
| bdstone914 |
Jul 4 2021, 04:06 AM
Post
#9
|
|
bdstone914 Group: Members Posts: 4,528 Joined: 8-November 03 From: Riverside CA Member No.: 1,319 |
QUOTE(914_7T3 @ Feb 7 2019, 08:35 PM) Not sure if these are helpful, but recently snapped these pics at the shop where my drivetrain is being reinstalled. Jeffery, Your warm air elbows appear to be install 180 degrees off. Look at the orher pictures with the flapper boxes and red hoses installed. @914_7T3 |
|
|
|
| bbrock |
Jul 4 2021, 06:59 AM
Post
#10
|
|
914 Guru Group: Members Posts: 5,269 Joined: 17-February 17 From: Montana Member No.: 20,845 Region Association: Rocky Mountains
|
QUOTE(dt4 @ Jul 4 2021, 12:31 AM) Hi where can I get the red rubber seals that are used in the branch pipe clamps? thanks https://914rubber.com/heater-blower-plate-gasket-kit-1 |
|
|
|
| 914_7T3 |
Jul 11 2021, 05:04 PM
Post
#11
|
|
Please forgive me, I'm new to all of this! Group: Members Posts: 1,853 Joined: 3-April 17 From: Los Angeles, CA Member No.: 20,991 Region Association: Southern California
|
QUOTE(bdstone914 @ Jul 4 2021, 03:06 AM) QUOTE(914_7T3 @ Feb 7 2019, 08:35 PM) Not sure if these are helpful, but recently snapped these pics at the shop where my drivetrain is being reinstalled. Jeffery, Your warm air elbows appear to be install 180 degrees off. Look at the orher pictures with the flapper boxes and red hoses installed. @914_7T3 @bdstone914 Thanks for having my back! That's long since been sorted...now I'm just driving (IMG:style_emoticons/default/driving.gif)  |
|
|
|
|
