> A few disconnected parts
isdyl
post Feb 9 2019, 07:10 AM
Post #1


Member
**

Group: Members
Posts: 75
Joined: 13-June 18
From: Woking, UK
Member No.: 22,217
Region Association: England



Hi - so I'm just preparing for my maiden voyage - the car must have been off the road for at least 10 years judging by the rust in the floor when I got it in June. I've changed the fan belt this morning, but there are a few thingsI saw that I think need tidying. Its got a mid mounted progressive weber (yes I know), and there looks to be a port on each side near where the headers meet the tin - should some pipes be connected to these please? Also in one photo showing the port on the passenger side there is a wire coming out of the tin with a female spade connector - you can see it in the photo. There is also a green with red trace wire coming out of the loom near the distributor which isn't connected to anything.
The car runs, but not well. Not sure how far I will get down the road!
Thanks, Dylan


Attached image(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Feb 9 2019, 08:40 AM
Post #2


Life's been good to me so far.....
**********

Group: Admin
Posts: 10,566
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille

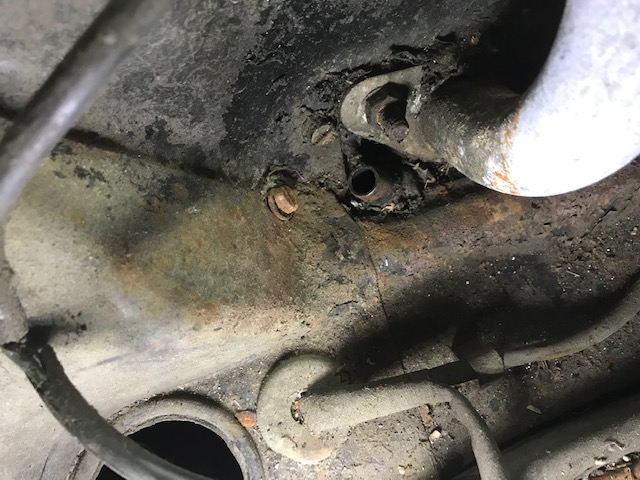

Those two open ports are cylinder head vents. You need to put hoses on them and run them to some kind of vent can that is much higher up in the engine compartment.

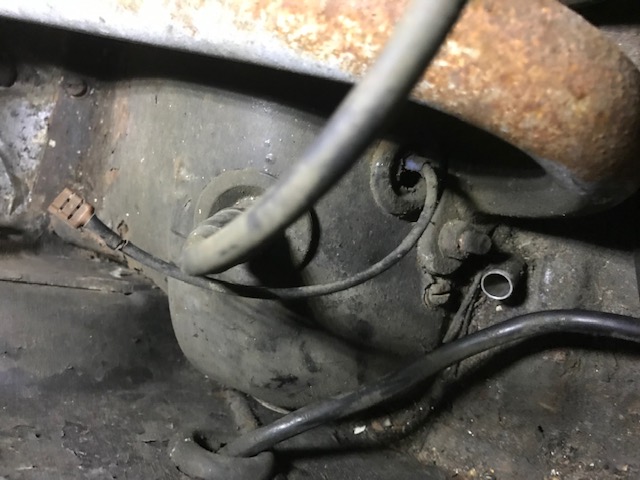

The wire coming out of the tin is the cylinder head temp sensor for the original fuel injection. With a carb, you can ignore it. But I would suggest that you get the original FI parts and put the FI back on the car. It will run much better than the single carb.

The green with a red trace wire is supposed to hook to the oil pressure sender for the idiot light. It is in a hole next to the distributor. If you ground the wire, the oil light should come on.

Hope that helps.

Clay

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
isdyl
post Feb 9 2019, 09:05 AM
Post #3


Member
**

Group: Members
Posts: 75
Joined: 13-June 18
From: Woking, UK
Member No.: 22,217
Region Association: England



Thanks very much!

QUOTE(ClayPerrine @ Feb 9 2019, 08:40 AM) *

Those two open ports are cylinder head vents. You need to put hoses on them and run them to some kind of vent can that is much higher up in the engine compartment.

The wire coming out of the tin is the cylinder head temp sensor for the original fuel injection. With a carb, you can ignore it. But I would suggest that you get the original FI parts and put the FI back on the car. It will run much better than the single carb.

The green with a red trace wire is supposed to hook to the oil pressure sender for the idiot light. It is in a hole next to the distributor. If you ground the wire, the oil light should come on.

Hope that helps.

Clay

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mgphoto
post Feb 9 2019, 09:23 AM
Post #4


"If there is a mistake it will find me"
***

Group: Members
Posts: 884
Joined: 1-April 09
From: Los Angeles, CA
Member No.: 10,225
Region Association: Southern California



In your first photo it looks like your accelerator cable is wrapped around some wiring, that will cause several problems.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
isdyl
post Feb 18 2019, 11:22 AM
Post #5


Member
**

Group: Members
Posts: 75
Joined: 13-June 18
From: Woking, UK
Member No.: 22,217
Region Association: England



Yes, it does look a bit of a mess I admit. The accelerator cable isn't actually touching anything though and is attached to a rather inadequate 32/36 central mounted weber carb. I've got it running ok now, but the throttle doesn't snap shut when you take your foot off the pedal. The spring at the carburettor is ok, but I'm struggling to see if there is any kind of return spring at the foot pedal. Theres some rods that go off somewhere - is there a spring down there too please?

QUOTE(mgphoto @ Feb 9 2019, 09:23 AM) *

In your first photo it looks like your accelerator cable is wrapped around some wiring, that will cause several problems.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mgphoto
post Feb 18 2019, 01:30 PM
Post #6


"If there is a mistake it will find me"
***

Group: Members
Posts: 884
Joined: 1-April 09
From: Los Angeles, CA
Member No.: 10,225
Region Association: Southern California



QUOTE(isdyl @ Feb 18 2019, 09:22 AM) *

Yes, it does look a bit of a mess I admit. The accelerator cable isn't actually touching anything though and is attached to a rather inadequate 32/36 central mounted weber carb. I've got it running ok now, but the throttle doesn't snap shut when you take your foot off the pedal. The spring at the carburettor is ok, but I'm struggling to see if there is any kind of return spring at the foot pedal. Theres some rods that go off somewhere - is there a spring down there too please?

QUOTE(mgphoto @ Feb 9 2019, 09:23 AM) *

In your first photo it looks like your accelerator cable is wrapped around some wiring, that will cause several problems.


No spring at the pedal for the accelerator, I think it is the brake pedal that has the spring.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
isdyl
post Feb 18 2019, 03:51 PM
Post #7


Member
**

Group: Members
Posts: 75
Joined: 13-June 18
From: Woking, UK
Member No.: 22,217
Region Association: England



Ok thanks - so just the spring at the carb or throttle body pulls the foot pedal back up? I'll beed to get a stronger spring then.

QUOTE(mgphoto @ Feb 18 2019, 01:30 PM) *

QUOTE(isdyl @ Feb 18 2019, 09:22 AM) *

Yes, it does look a bit of a mess I admit. The accelerator cable isn't actually touching anything though and is attached to a rather inadequate 32/36 central mounted weber carb. I've got it running ok now, but the throttle doesn't snap shut when you take your foot off the pedal. The spring at the carburettor is ok, but I'm struggling to see if there is any kind of return spring at the foot pedal. Theres some rods that go off somewhere - is there a spring down there too please?

QUOTE(mgphoto @ Feb 9 2019, 09:23 AM) *

In your first photo it looks like your accelerator cable is wrapped around some wiring, that will cause several problems.


No spring at the pedal for the accelerator, I think it is the brake pedal that has the spring.

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Rob-O
post Feb 18 2019, 07:22 PM
Post #8


Senior Member
***

Group: Members
Posts: 1,029
Joined: 5-December 03
From: Mansfield, TX
Member No.: 1,419
Region Association: Southwest Region



With the center mounted carb there is usually a spring from the carb to the tin at the back of the engine. That snaps the throttle plate closed.

I agree with Clay, though. I’d look into sourcing the FI parts and reinstall it. Car runs so much better with FI (and Clay was a huge help getting mine up and running).
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
isdyl
post Feb 19 2019, 01:50 AM
Post #9


Member
**

Group: Members
Posts: 75
Joined: 13-June 18
From: Woking, UK
Member No.: 22,217
Region Association: England



Thanks - I would definitely consider FI but there are a lot of parts missing that I would need and over here in the uk they are few and far between. I’m not sure if it would be L or D-jetronic being a ‘73 but assuming D there’s airbox, throttle body, MPS, ECU, injectors, inlet runners etc etc. There’s no doubt FI would be nicer to have, but it’s a lot of work and expense. At least a pair or Weber 40’s are sold over here for type 4 engines.

QUOTE(Rob-O @ Feb 18 2019, 07:22 PM) *

With the center mounted carb there is usually a spring from the carb to the tin at the back of the engine. That snaps the throttle plate closed.

I agree with Clay, though. I’d look into sourcing the FI parts and reinstall it. Car runs so much better with FI (and Clay was a huge help getting mine up and running).

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Feb 19 2019, 06:47 AM
Post #10


Life's been good to me so far.....
**********

Group: Admin
Posts: 10,566
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille



QUOTE(isdyl @ Feb 19 2019, 01:50 AM) *

Thanks - I would definitely consider FI but there are a lot of parts missing that I would need and over here in the uk they are few and far between. I’m not sure if it would be L or D-jetronic being a ‘73 but assuming D there’s airbox, throttle body, MPS, ECU, injectors, inlet runners etc etc. There’s no doubt FI would be nicer to have, but it’s a lot of work and expense. At least a pair or Weber 40’s are sold over here for type 4 engines.

QUOTE(Rob-O @ Feb 18 2019, 07:22 PM) *

With the center mounted carb there is usually a spring from the carb to the tin at the back of the engine. That snaps the throttle plate closed.

I agree with Clay, though. I’d look into sourcing the FI parts and reinstall it. Car runs so much better with FI (and Clay was a huge help getting mine up and running).




How do you get dual Webers passed the MOT??
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
isdyl
post Feb 19 2019, 07:35 AM
Post #11


Member
**

Group: Members
Posts: 75
Joined: 13-June 18
From: Woking, UK
Member No.: 22,217
Region Association: England



They don't check emissions on vehicles this old, but also now there is no MOT test for vehicles over 40 years old in the UK. Or road tax. Insurance costs me £60 a year and that's all that's required.

QUOTE(ClayPerrine @ Feb 19 2019, 06:47 AM) *

QUOTE(isdyl @ Feb 19 2019, 01:50 AM) *

Thanks - I would definitely consider FI but there are a lot of parts missing that I would need and over here in the uk they are few and far between. I’m not sure if it would be L or D-jetronic being a ‘73 but assuming D there’s airbox, throttle body, MPS, ECU, injectors, inlet runners etc etc. There’s no doubt FI would be nicer to have, but it’s a lot of work and expense. At least a pair or Weber 40’s are sold over here for type 4 engines.

QUOTE(Rob-O @ Feb 18 2019, 07:22 PM) *

With the center mounted carb there is usually a spring from the carb to the tin at the back of the engine. That snaps the throttle plate closed.

I agree with Clay, though. I’d look into sourcing the FI parts and reinstall it. Car runs so much better with FI (and Clay was a huge help getting mine up and running).




How do you get dual Webers passed the MOT??
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
PanelBilly
post Feb 19 2019, 09:24 AM
Post #12


Advanced Member
****

Group: Members
Posts: 4,761
Joined: 23-July 06
From: Kent, Wa
Member No.: 6,488
Region Association: Pacific Northwest



You might check that the throttle wire isn’t wrapped around the clutch cable. That would cause it to not move freely
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Feb 19 2019, 09:29 AM
Post #13


Jerry
*****

Group: Members
Posts: 6,217
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031



If you don't want to do FI, then find a set of dual carbs. You can dick around all day with that single carb and it will still run poorly. Going WOT will generally just produce much black smoke and no more power.

I found a set of used dual Weber carbs. They came on a 1.8L engine with SSHE all for $500.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
isdyl
post Feb 19 2019, 11:27 AM
Post #14


Member
**

Group: Members
Posts: 75
Joined: 13-June 18
From: Woking, UK
Member No.: 22,217
Region Association: England



Thanks, I'll check that.

QUOTE(PanelBilly @ Feb 19 2019, 09:24 AM) *

You might check that the throttle wire isn’t wrapped around the clutch cable. That would cause it to not move freely

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
isdyl
post Feb 19 2019, 11:36 AM
Post #15


Member
**

Group: Members
Posts: 75
Joined: 13-June 18
From: Woking, UK
Member No.: 22,217
Region Association: England



Yes a set of dual Weber carbs would be the more economical solution in the UK, but even a pair of carbs sell for £450 and then there's inlet manifolds, filters and linkage to purchase. Nothing like that is cheap over here. Before I do that I'm going to give the single progressive a chance as it's there and free. I actually picked up another one on eBay for £20 for parts.

QUOTE(Spoke @ Feb 19 2019, 09:29 AM) *

If you don't want to do FI, then find a set of dual carbs. You can dick around all day with that single carb and it will still run poorly. Going WOT will generally just produce much black smoke and no more power.

I found a set of used dual Weber carbs. They came on a 1.8L engine with SSHE all for $500.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mgphoto
post Feb 19 2019, 12:22 PM
Post #16


"If there is a mistake it will find me"
***

Group: Members
Posts: 884
Joined: 1-April 09
From: Los Angeles, CA
Member No.: 10,225
Region Association: Southern California



'73 model year, the angle of the spark plug says it's a 1.7, that model is D Jet and the '72 and '72 share the same system, which is the least wanted, meaning the parts are the cheapest!
Biggest problem with the dual Webers is that it wont run any better than the carb that is on it now.
The reason is that it most certainly has the original cam which is Fuel Injected.
The po didn't spend any real money on the induction system hence the crappy carb, and I doubt that the case was split for a cam install.

There looks to be some missing hoses for the crankcase breather, easy fix.

We have access to several great websites with a lot of D-Jet info and I bet you that the greater majority of cars that were brought back to there D-Jet systems are better running cars than their carbbed counterparts.
MY $.02 on this side of the pond.

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
isdyl
post Feb 19 2019, 02:29 PM
Post #17


Member
**

Group: Members
Posts: 75
Joined: 13-June 18
From: Woking, UK
Member No.: 22,217
Region Association: England



Thanks for the info. D-jetronic is good news as I know the system inside out from a couple of early Mercedes r107's I had in the past. Interesting what you say about the cam too - it's something I have heard before. Ok then, I'll start looking out for a FI system and not waste money on any more carbs. I guess I need to start by making a list of everything I need. D

QUOTE(mgphoto @ Feb 19 2019, 12:22 PM) *

'73 model year, the angle of the spark plug says it's a 1.7, that model is D Jet and the '72 and '72 share the same system, which is the least wanted, meaning the parts are the cheapest!
Biggest problem with the dual Webers is that it wont run any better than the carb that is on it now.
The reason is that it most certainly has the original cam which is Fuel Injected.
The po didn't spend any real money on the induction system hence the crappy carb, and I doubt that the case was split for a cam install.

There looks to be some missing hoses for the crankcase breather, easy fix.

We have access to several great websites with a lot of D-Jet info and I bet you that the greater majority of cars that were brought back to there D-Jet systems are better running cars than their carbbed counterparts.
MY $.02 on this side of the pond.

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
isdyl
post Jan 16 2020, 04:16 AM
Post #18


Member
**

Group: Members
Posts: 75
Joined: 13-June 18
From: Woking, UK
Member No.: 22,217
Region Association: England



Hi - I'm just eventually starting to fit the d-jetronic FI which Clay kindly sent me onto my 1.7 '73 car. I've stripped off the single webber and am just taking it slowly, and buying bits as I need them. I am currently swapping out the distributor to the FI one with the trigger points, and I just wondered if it mattered which way round the body goes please? It only seems to fit in a few positions due to the vacuum canister on the side, and obviously I will need to rotate it to set the timing, but do the trigger points fire all the cylinders each quarter turn please? I seem to remember from a V8 mercedes I had once that the injectors fired in pairs.
Thanks, Dylan
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Jan 16 2020, 04:49 AM
Post #19


Jerry
*****

Group: Members
Posts: 6,217
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031



QUOTE(isdyl @ Jan 16 2020, 05:16 AM) *

Hi - I'm just eventually starting to fit the d-jetronic FI which Clay kindly sent me onto my 1.7 '73 car. I've stripped off the single webber and am just taking it slowly, and buying bits as I need them. I am currently swapping out the distributor to the FI one with the trigger points, and I just wondered if it mattered which way round the body goes please? It only seems to fit in a few positions due to the vacuum canister on the side, and obviously I will need to rotate it to set the timing, but do the trigger points fire all the cylinders each quarter turn please? I seem to remember from a V8 mercedes I had once that the injectors fired in pairs.
Thanks, Dylan


The trigger points fire 2 injectors at a time.

Yes, the distributor only fits one way. Here's a picture of my engine showing the distributor mounting.



Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
isdyl
post Jan 16 2020, 06:28 AM
Post #20


Member
**

Group: Members
Posts: 75
Joined: 13-June 18
From: Woking, UK
Member No.: 22,217
Region Association: England



Thanks - that's a great photo to help me get everything in the right place. Brilliant.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
