 D-Jet Harness power connection (4prong square plug, mine broke |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
  |
| bd1308 |
 Jun 21 2005, 09:19 PM
Post
#1
|
|
Sir Post-a-lot  Group: Members Posts: 8,020 Joined: 24-January 05 From: Louisville,KY Member No.: 3,501  |
hey my 4-prong wiring job broke on 2 wires....so which is which or are they all +12V or what? What's the pinout on this thing anyway?
|
   |

|
| xsboost90 |
Jun 21 2005, 09:26 PM
Post
#2
|
|
Senior Member Group: Members Posts: 1,393 Joined: 2-August 04 From: cincinnati Member No.: 2,432 |

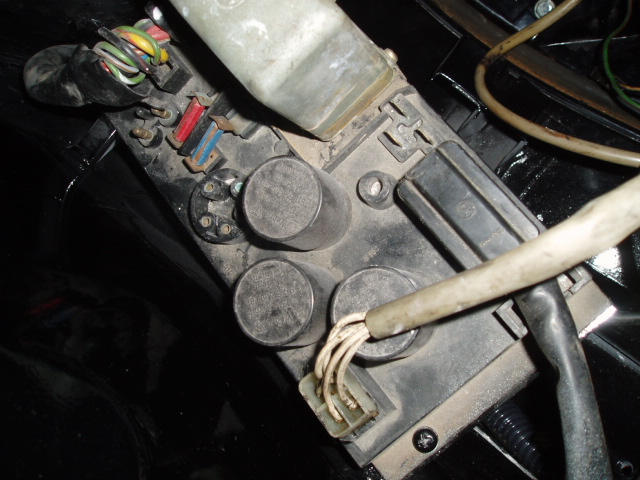

this one?
Attached image(s)
|
|
|
|
| bd1308 |
Jun 21 2005, 09:28 PM
Post
#3
|
|
Sir Post-a-lot Group: Members Posts: 8,020 Joined: 24-January 05 From: Louisville,KY Member No.: 3,501 |
yup....thats the one. Powers the ECU if i'm not mistaken. Unless there is some other mystery connector i didnt see.
|
|
|
|
| McMark |
Jun 21 2005, 09:31 PM
Post
#4
|
|
914 Freak! Group: Retired Admin Posts: 20,180 Joined: 13-March 03 From: Grand Rapids, MI Member No.: 419 Region Association: None |
They are not all constant 12V. You can use shielded spade connectors in place of the four prong connectors. Just make sure the correct wires go in the correct place.
|
|
|
|
| mihai914 |
Jun 21 2005, 09:33 PM
Post
#5
|
|
Senior Member Group: Members Posts: 800 Joined: 2-March 05 From: Montreal, QC Member No.: 3,697 Region Association: None
|
Go see in the electrical diagram and see what pin on the ECU plug corresponds to which wire on the board, then just use a multimeter to figure out the right combination.
|
|
|
|
| bd1308 |
Jun 21 2005, 09:44 PM
Post
#6
|
|
Sir Post-a-lot Group: Members Posts: 8,020 Joined: 24-January 05 From: Louisville,KY Member No.: 3,501 |
well thats my problem....they split not at the plug itself but later in the harness...so i'm resorting to using my crippled 2.0 setup....
|
|
|
|
| mihai914 |
Jun 21 2005, 09:53 PM
Post
#7
|
|
Senior Member Group: Members Posts: 800 Joined: 2-March 05 From: Montreal, QC Member No.: 3,697 Region Association: None
|
I'm talking about doing a continuity test with an ohmmeter and see which wire is which based on a reference point, in this case the only good one, the ECU connector. Doesn't matter where it's split!
On the relay board you have 4 connectors I, II, III and IV here is the matching ones on the ECU plug: I = 16 or 24 II = 18 III = 19 IV = Cold start valve One test probe on the wire and the other goes to any point on the ECU untill you get 0 ohms thus continuity and you have found the wire number. |
|
|
|
| bd1308 |
Jun 21 2005, 10:01 PM
Post
#8
|
|
Sir Post-a-lot Group: Members Posts: 8,020 Joined: 24-January 05 From: Louisville,KY Member No.: 3,501 |
okay makes sense now....just had to boot-strap my brain...which works almost as well as a failing alternator does.
|
|
|
|
| lapuwali |
Jun 21 2005, 10:03 PM
Post
#9
|
|
Not another one! Group: Benefactors Posts: 4,526 Joined: 1-March 04 From: San Mateo, CA Member No.: 1,743  |
There's a diagram in the Haynes manual, and notes on my blog. One wire feeds +12 to the ECU, one controls the fuel pump, one controls the cold start valve, and one detects when the engine is cranking. You can just use bare spade connectors you crimp onto the ends of the wire.
|
|
|
|
| bd1308 |
Jun 21 2005, 10:09 PM
Post
#10
|
|
Sir Post-a-lot Group: Members Posts: 8,020 Joined: 24-January 05 From: Louisville,KY Member No.: 3,501 |
well on my 2.0 setup, the bottom-left plug is actually just screwed onto a bolt for ground....WTF? Actually my fuel pump is supposedly re-wired to help with vapor lock problems....nothing here yet.
|
|
|
|
| mihai914 |
Jun 21 2005, 10:14 PM
Post
#11
|
|
Senior Member Group: Members Posts: 800 Joined: 2-March 05 From: Montreal, QC Member No.: 3,697 Region Association: None
|
Britt, why don't you try fixing ONE thing at a time instead of tackling 20 of them (IMG:http://www.914world.com/bbs2/html/emoticons/confused24.gif)
You're not going anywhere, if things are not going your way, take a break and come back later. |
|
|
|
|
