> Need engine bay pics of 914-6, Fuel line routing
Dion
post Mar 29 2019, 07:18 AM
Post #1


RN
****

Group: Members
Posts: 2,839
Joined: 16-September 04
From: Audubon,PA
Member No.: 2,766
Region Association: MidAtlantic Region
Hey guys most of the diagrams I see on the 914-6 fuel system
always seem to stop where I want some detail. (IMG:style_emoticons/default/confused24.gif)
I just purchased some fuel rail clips and would like to buy the
retro fuelrail 914rubber makes. I wanted to see from the point of the fuel rail
to the carbs how those lines are situated and the clips and such. Pix of the rear portion of engine bay area and carbs.
If anyone has pix would like to see them.
I could not find any in the originality forum.
I’ll be running Weber’s with no stock airbox though. I’m trying to present as near factory layout as possible. (ie. No aftermarket shiny metallic lines)
Thanks fellas! (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
johnlush
post Mar 29 2019, 11:39 AM
Post #2


What's all this then?
**

Group: Members
Posts: 376
Joined: 26-May 04
From: Cheyenne, WY
Member No.: 2,108
Region Association: Rocky Mountains
The engine's currently out of my /6 so I could get some pictures of the rear bulkhead showing the location of the clip holes and the hard line position if that would be helpful.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dion
post Mar 29 2019, 11:49 AM
Post #3


RN
****

Group: Members
Posts: 2,839
Joined: 16-September 04
From: Audubon,PA
Member No.: 2,766
Region Association: MidAtlantic Region
Appreciate it Josh. I understand where the fuel rail sits, just wondering how the lines come forward to Carbs. Any other clips or do they just rest on the tin & fan shroud as they make their way to the banjo fitting on Carbs. Thanks.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
fixer34
post Mar 29 2019, 03:49 PM
Post #4


Senior Member
***

Group: Members
Posts: 1,268
Joined: 16-September 14
From: Chicago area
Member No.: 17,908
Region Association: Upper MidWest

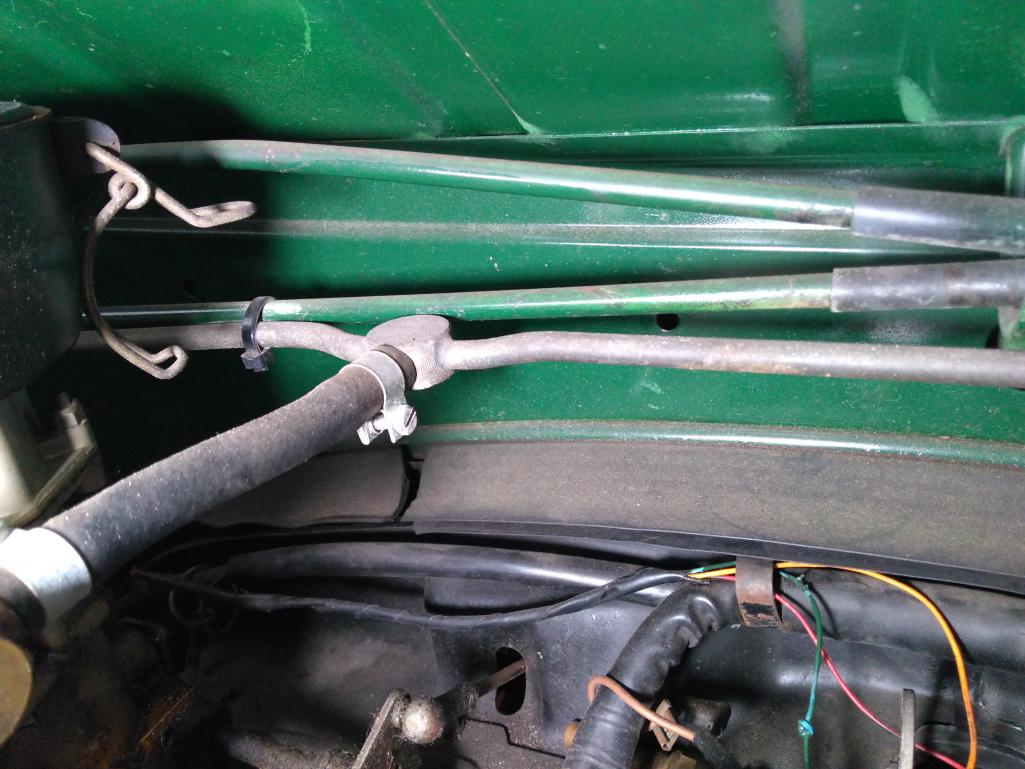

The fuel rail on mine has a couple tie wraps holding it to the rear trunk torsion bars (probably not factory..) The fuel hose from the banjo fittings to the rail are black rubber, I think I replaced them years ago and cut to length. Back on the firewall are 3-4 small holes that look they might be used for clips, but I don't ever recall removing them.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dion
post Mar 29 2019, 04:09 PM
Post #5


RN
****

Group: Members
Posts: 2,839
Joined: 16-September 04
From: Audubon,PA
Member No.: 2,766
Region Association: MidAtlantic Region
@fixer34 thank you. Ok. I have the clips for the holes you referenced.
I think I’ll purchase 914rubber’s fuel rail.
So it’s basically a straight shot from the rail to the banjo fittings it seems.
Appreciate it.
Cheers, Dion
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rgalla9146
post Mar 29 2019, 05:26 PM
Post #6


Advanced Member
****

Group: Members
Posts: 4,743
Joined: 23-November 05
From: Paramus NJ
Member No.: 5,176
Region Association: None

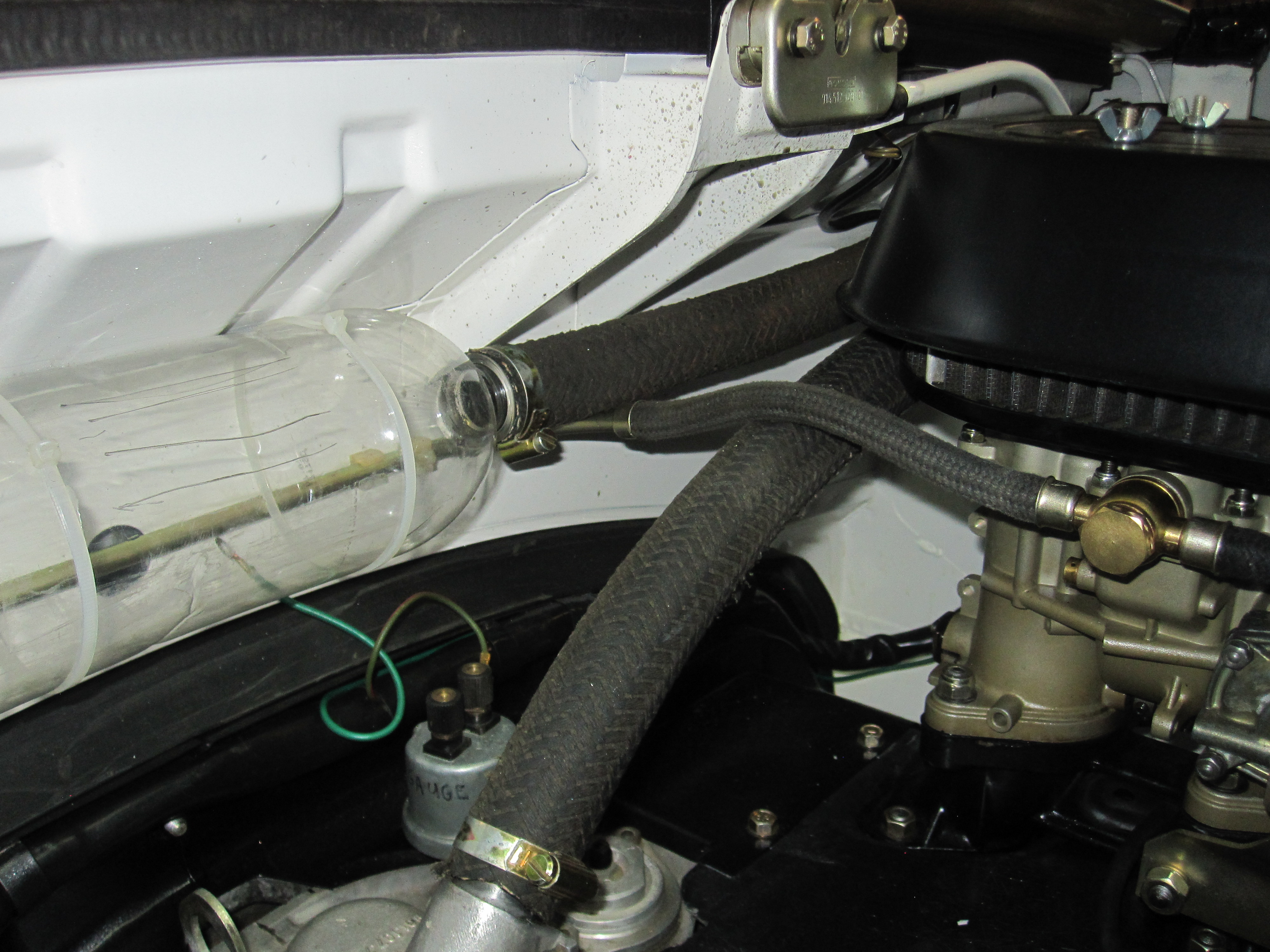

Hey Dion
This is near stock for the fuel line arrangement,
The fuel filter is not original but necessary.
The clear bottle is my catch can.....as simple as possible.
I just noticed one of the fuel line clips is on the loose.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rgalla9146
post Mar 29 2019, 05:27 PM
Post #7


Advanced Member
****

Group: Members
Posts: 4,743
Joined: 23-November 05
From: Paramus NJ
Member No.: 5,176
Region Association: None

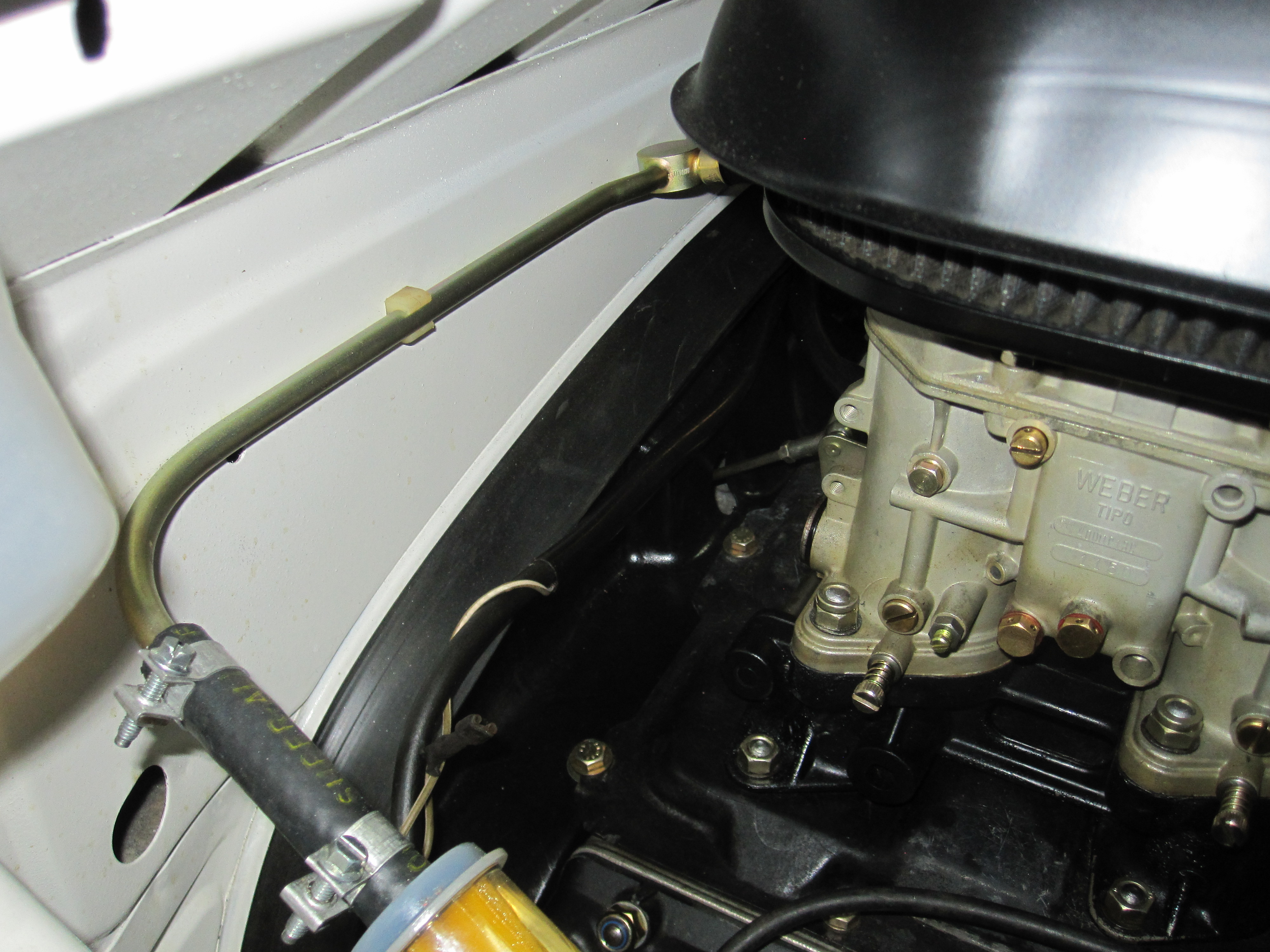

nother


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rgalla9146
post Mar 29 2019, 05:29 PM
Post #8


Advanced Member
****

Group: Members
Posts: 4,743
Joined: 23-November 05
From: Paramus NJ
Member No.: 5,176
Region Association: None

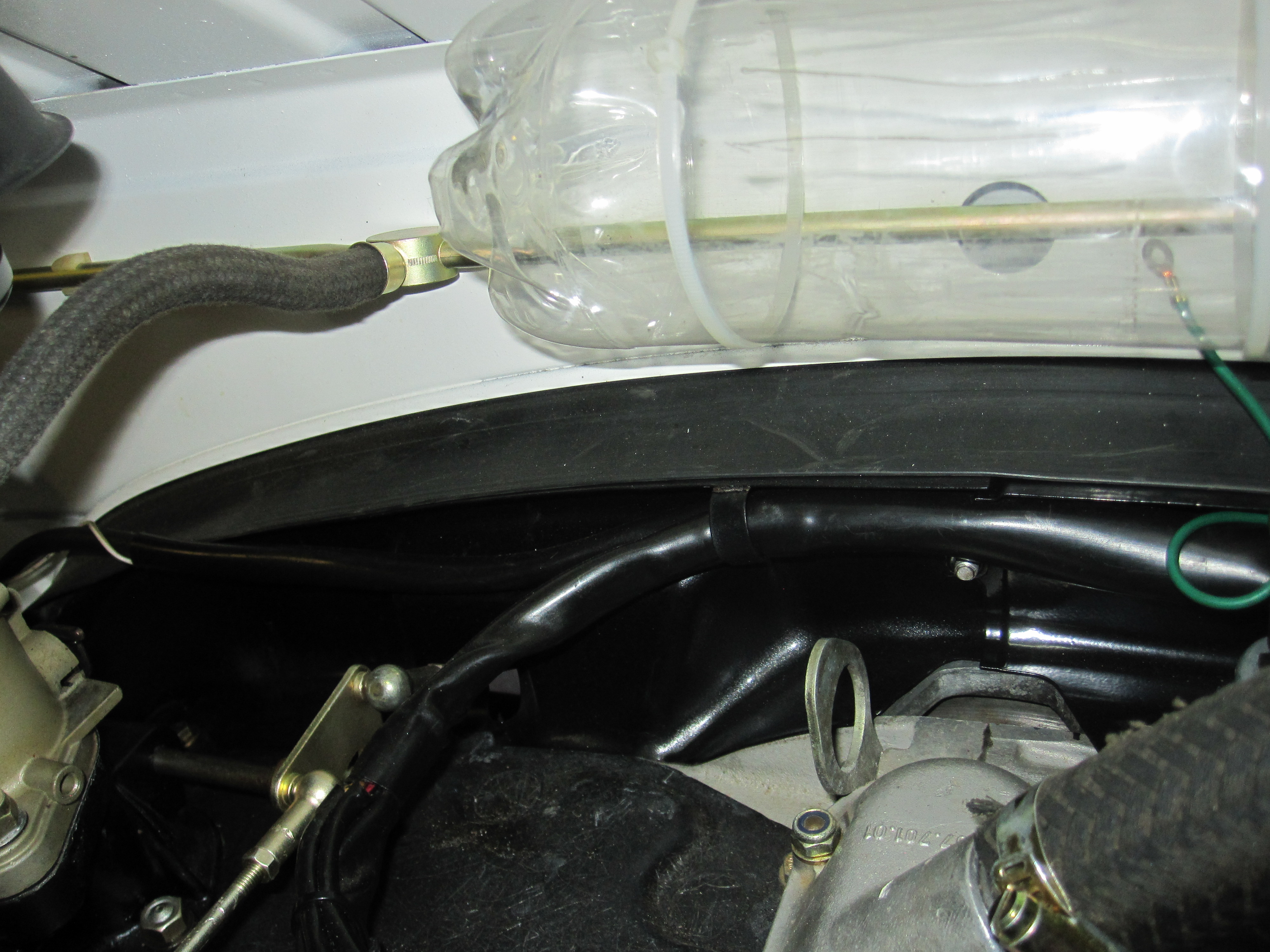

last


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dion
post Mar 29 2019, 05:30 PM
Post #9


RN
****

Group: Members
Posts: 2,839
Joined: 16-September 04
From: Audubon,PA
Member No.: 2,766
Region Association: MidAtlantic Region
(IMG:style_emoticons/default/beerchug.gif) Nice, Thanks Rory! That’s perfect.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
gms
post Mar 29 2019, 06:11 PM
Post #10


Advanced Member
****

Group: Members
Posts: 2,718
Joined: 12-March 04
From: Chicagoland
Member No.: 1,785
Region Association: Upper MidWest
Nice puke tank @rgalla9146
(IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Mar 29 2019, 06:17 PM
Post #11


914 Wizard
**********

Group: Members
Posts: 10,821
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
QUOTE(gms @ Mar 29 2019, 06:11 PM) *

Nice puke tank @rgalla9146
(IMG:style_emoticons/default/biggrin.gif)


He will be sorry, its a vent, go to air cleaners , or kn that will make white black..
evacuation...its a dry sump,,,unless uour engine is totally Fd, and you know how to check oil level,,
you will never need a tank.. or do a proper gt style.. my 2.0 906 plus ,,,pukes a bit at 8500rpm
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
porschetub
post Mar 30 2019, 01:36 PM
Post #12


Advanced Member
****

Group: Members
Posts: 4,816
Joined: 25-July 15
From: New Zealand
Member No.: 18,995
Region Association: None
I didn't use my metal pipe but would rather have,I couldn't seem to set it up because of my regulator placement and the need to read my pressure gauge,I do plan in the future to build a custom hard pipe and minimize the amount of hose used.
Are the holes for the plastic clips drilled in on a 4 cyl or just the factory 6 cyl cars ?.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Mar 30 2019, 01:39 PM
Post #13


914 Guru
*****

Group: Members
Posts: 7,559
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
@Dion why not just a recirculation fuel line setup like PMO does?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rgalla9146
post Mar 30 2019, 06:48 PM
Post #14


Advanced Member
****

Group: Members
Posts: 4,743
Joined: 23-November 05
From: Paramus NJ
Member No.: 5,176
Region Association: None
QUOTE(sixnotfour @ Mar 29 2019, 08:17 PM) *

QUOTE(gms @ Mar 29 2019, 06:11 PM) *

Nice puke tank @rgalla9146
(IMG:style_emoticons/default/biggrin.gif)


He will be sorry, its a vent, go to air cleaners , or kn that will make white black..
evacuation...its a dry sump,,,unless uour engine is totally Fd, and you know how to check oil level,,
you will never need a tank.. or do a proper gt style.. my 2.0 906 plus ,,,pukes a bit at 8500rpm


My other 6 has had this arrangement for many years.
The bottle is slit along the top surface so it would vent easily ......if it had any blowby
Evacuation ? ...please explain.
Not sure if my engine is totally Fd or not.
Is totally Fd good or bad ?
I do know how to check the oil level.
I will always need a tank.
Proper GT style ? Early 911 washer bottle in trunk ....original but not
exactly elegant. My car is not original
My engine will never see 8500rpm
You own a 906 ?


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Larmo63
post Mar 30 2019, 06:55 PM
Post #15


Advanced Member
****

Group: Members
Posts: 4,267
Joined: 3-March 14
From: San Clemente, Ca
Member No.: 17,068
Region Association: Southern California
My 911 washer bottle just rests below the oil tank filler. I use a 914 door vent (the round black thingy with the ball of cotton on it) as a "stopper" for the vent, works like a charm.

Dang Rory, your car is looking great!!!!!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dion
post Mar 30 2019, 07:01 PM
Post #16


RN
****

Group: Members
Posts: 2,839
Joined: 16-September 04
From: Audubon,PA
Member No.: 2,766
Region Association: MidAtlantic Region
QUOTE(mb911 @ Mar 30 2019, 11:39 AM) *

@Dion why not just a recirculation fuel line setup like PMO does?


@mb911 I’m prolly going to do a combo of the two, at least in my
head. Trying to figure out layout and where
regulator like @porschetub has mentioned.
I wasn’t sure how close the feed lines sat once the engine
is in situ. It’ll be a hybrid of factory and PMO.
Most was curious of placement of original setup

(IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rgalla9146
post Mar 30 2019, 07:02 PM
Post #17


Advanced Member
****

Group: Members
Posts: 4,743
Joined: 23-November 05
From: Paramus NJ
Member No.: 5,176
Region Association: None
QUOTE(Larmo63 @ Mar 30 2019, 08:55 PM) *

My 911 washer bottle just rests below the oil tank filler. I use a 914 door vent (the round black thingy with the ball of cotton on it) as a "stopper" for the vent, works like a charm.

Dang Rory, your car is looking great!!!!!


Thank you Lawrence........yep, never seen snow....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
porschetub
post Mar 31 2019, 12:13 AM
Post #18


Advanced Member
****

Group: Members
Posts: 4,816
Joined: 25-July 15
From: New Zealand
Member No.: 18,995
Region Association: None
QUOTE(rgalla9146 @ Mar 31 2019, 01:48 PM) *

QUOTE(sixnotfour @ Mar 29 2019, 08:17 PM) *

QUOTE(gms @ Mar 29 2019, 06:11 PM) *

Nice puke tank @rgalla9146
(IMG:style_emoticons/default/biggrin.gif)


He will be sorry, its a vent, go to air cleaners , or kn that will make white black..
evacuation...its a dry sump,,,unless uour engine is totally Fd, and you know how to check oil level,,
you will never need a tank.. or do a proper gt style.. my 2.0 906 plus ,,,pukes a bit at 8500rpm


My other 6 has had this arrangement for many years.
The bottle is slit along the top surface so it would vent easily ......if it had any blowby
Evacuation ? ...please explain.
Not sure if my engine is totally Fd or not.
Is totally Fd good or bad ?
I do know how to check the oil level.
I will always need a tank.
Proper GT style ? Early 911 washer bottle in trunk ....original but not
exactly elegant. My car is not original
My engine will never see 8500rpm
You own a 906 ?

(IMG:style_emoticons/default/lol-2.gif) (IMG:style_emoticons/default/lol-2.gif) (IMG:style_emoticons/default/lol-2.gif) great answer to a very strange reply,well done (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Mar 31 2019, 02:28 AM
Post #19


914 Wizard
**********

Group: Members
Posts: 10,821
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
QUOTE
Evacuation ? ...please explain.

opening, purging, drainage

906 plus spec

even a -6 air cleaner has a drain

Ill leave it with GMS "Nice puke tank"
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Mar 31 2019, 08:19 AM
Post #20


Michael
**********

Group: Members
Posts: 10,317
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
Rory, Larmo nailed it- your car is beautiful; love the RS finish wheels too. The look is perfect. (IMG:style_emoticons/default/smilie_pokal.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
« Next Oldest · 914World Garage · Next Newest »


2 Pages V  1 2 >
Reply to this topicStart new topic
1 User(s) are reading this topic (1 Guests and 0 Anonymous Users)
0 Members:



Display Mode: Standard · Switch to: Linear+ · Switch to: Outline

Track this topic · Email this topic · Print this topic · Subscribe to this forum

- Lo-Fi Version Time is now: 9th May 2025 - 04:26 AM
Invision Power Board v9.1.4 © 2025  IPS, Inc.
All rights reserved 914World.com © since 2002
914World.com is the fastest growing online 914 community!
We have it all, classifieds, events, forums, vendors, parts, autocross, racing, technical articles, events calendar, newsletter, restoration, gallery, archives, history and more for your Porsche 914 ...
