> Need Massive Help, Case failure
Mblizzard
post Aug 9 2019, 05:32 PM
Post #1


Advanced Member
****

Group: Members
Posts: 3,033
Joined: 28-January 13
From: Knoxville Tn
Member No.: 15,438
Region Association: South East States
Ok so some of you may know I am doing the build of my life.

Put the case together for checking fit all went fine everything turned great. Disassembled and found this break in the case at the cam.

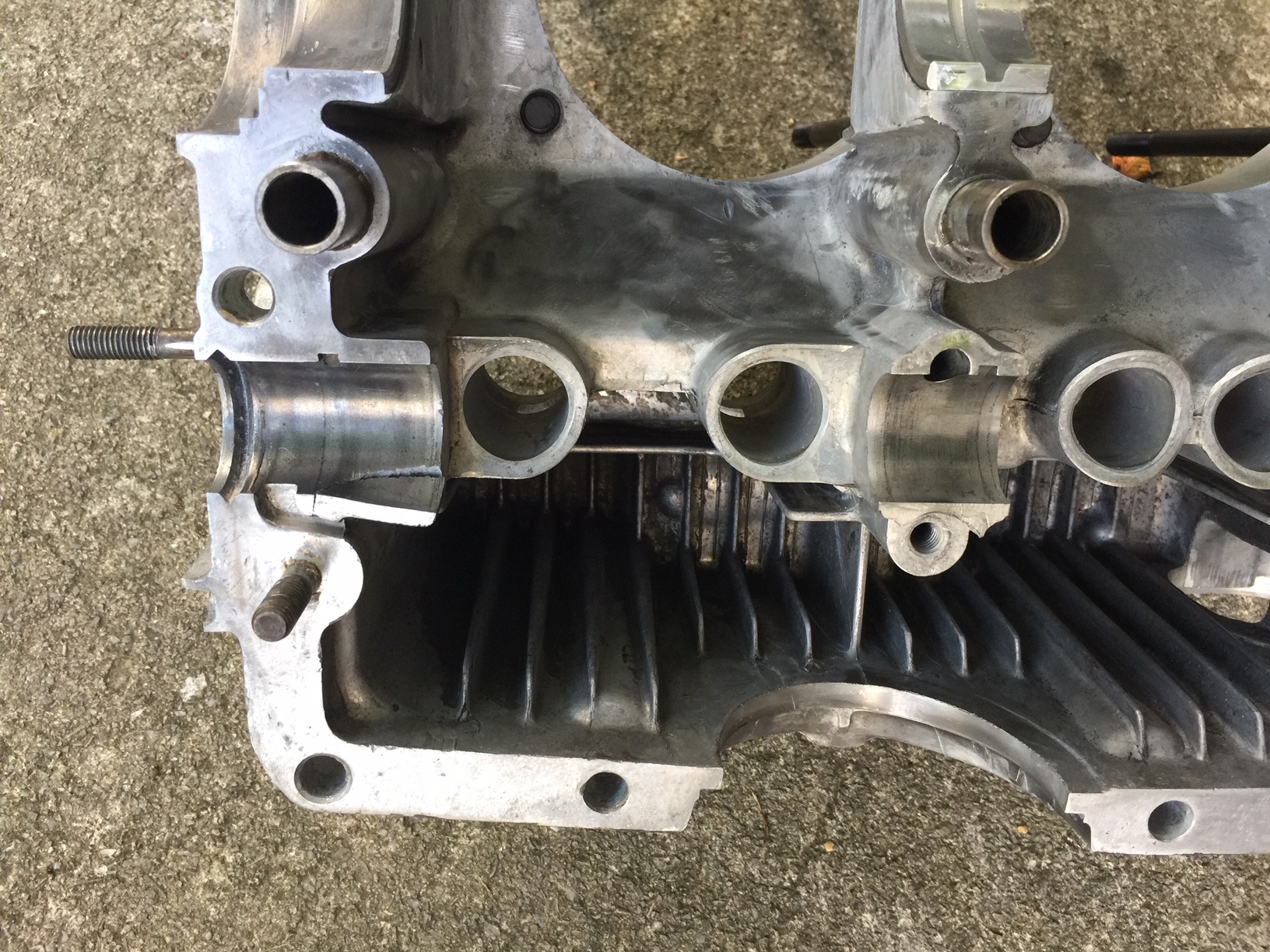

Attached Image

I have a massive amount of money in this case and it is opened for my 102s.

Anyone think of if and where I can get this repaired quickly?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Aug 9 2019, 05:47 PM
Post #2


914-6 GT in waiting
***************

Group: Members
Posts: 19,855
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
Ask Ben if it’s something that he can do.

@MB911
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chi-town
post Aug 9 2019, 06:11 PM
Post #3


Senior Member
***

Group: Members
Posts: 851
Joined: 31-August 18
From: Disneyland
Member No.: 22,446
Region Association: Southern California
If you have it welded you're still going to have to take it back to the machine shop to have it checked/honed
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Aug 9 2019, 07:32 PM
Post #4


914 Guru
*****

Group: Members
Posts: 7,551
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
It looks like aluminum so most any good TIG welder can do it. I leave for Nashville mid next week so if you wanted me to get at it I would need it Tuesday so I could ship back Wednesday
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Mblizzard
post Aug 9 2019, 07:40 PM
Post #5


Advanced Member
****

Group: Members
Posts: 3,033
Joined: 28-January 13
From: Knoxville Tn
Member No.: 15,438
Region Association: South East States
QUOTE(mb911 @ Aug 9 2019, 05:32 PM) *

It looks like aluminum so most any good TIG welder can do it. I leave for Nashville mid next week so if you wanted me to get at it I would need it Tuesday so I could ship back Wednesday


Bit can you machine it back to being true?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
thelogo
post Aug 9 2019, 10:35 PM
Post #6


Senior Member
***

Group: Retired Members
Posts: 1,510
Joined: 6-April 10
Member No.: 11,572
Region Association: None
QUOTE(Mblizzard @ Aug 9 2019, 04:32 PM) *

Ok so some of you may know I am doing the build of my life.

Put the case together for checking fit all went fine everything turned great. Disassembled and found this break in the case at the cam.

I have a massive amount of money in this case and it is opened for my 102s.

Anyone think of if and where I can get this repaired quickly?




Your scaring me

Maybe their is a suabru conversion in your future
(Where the long block only cost a few hundred bucks)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Larmo63
post Aug 9 2019, 10:42 PM
Post #7


Advanced Member
****

Group: Members
Posts: 4,267
Joined: 3-March 14
From: San Clemente, Ca
Member No.: 17,068
Region Association: Southern California
Just do a /6 and get it over with.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
90quattrocoupe
post Aug 9 2019, 10:52 PM
Post #8


Member
**

Group: Members
Posts: 208
Joined: 4-November 16
From: Long Beach, CA.
Member No.: 20,561
Region Association: Southern California
Sorry to see this.

It can be welded up. Maybe a little extra material welded to the back side.

Then have the cam bore can be rebored.

Greg W.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Valy
post Aug 10 2019, 01:41 AM
Post #9


Senior Member
***

Group: Members
Posts: 1,677
Joined: 6-April 10
From: Sunnyvale, CA
Member No.: 11,573
Region Association: Northern California
QUOTE(Mblizzard @ Aug 9 2019, 04:32 PM) *

Ok so some of you may know I am doing the build of my life.

Put the case together for checking fit all went fine everything turned great. Disassembled and found this break in the case at the cam.

I have a massive amount of money in this case and it is opened for my 102s.

Anyone think of if and where I can get this repaired quickly?

It can be repaired but not cheap as you need to weld and rebore the bearing seat.
But,do I see a hairline crack between the cam bearing and the left pushrod tube hole?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Aug 10 2019, 02:54 AM
Post #10


914 Guru
*****

Group: Members
Posts: 7,012
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch
Slow down. Desperation and trying to do anything quickly at this point will only lead to more problems.

Anything can be fixed with enough time and money.

Question is do you have enough of both?

Old joke is you can have only two of the three.
Quick job
Affordable job
Quality job

If you want affordable repair and a quality repair it won't be quick.
Want a quick repair and don't want to spend money, it won't be quality work.

(In no way am I referring to Ben - he will do quality and will do affordable to help a member I'm sure. But the machine work isn't quick)

Think long and hard about trying to save this case. At a minimum you will need to line bore the cam. After welding the cam I'd closely remeasure the crank bores for deformation. Highly likely you would want to line bore the crank too in addition to the need to line bore the cam.

Line boring cases is not for the faint of heart. I know it is commonly done but honestly it is hard to do it right and maintain proper dimensional relationship between crank and cam bores. Even at the factory they dealt with this by select fitting cam gears to take up any dimensional variation between crank centerline and cam centerline.

Are you ready to consider rechecking the cylinder openings too after welding?

After all that - a new case looks better and better.

I am so sorry that you're in this situation. I can feel the pain and anguish, and I've been there before too!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
IronHillRestorations
post Aug 10 2019, 05:25 AM
Post #11


I. I. R. C.
*****

Group: Members
Posts: 6,812
Joined: 18-March 03
From: West TN
Member No.: 439
Region Association: None
Easiest thing to do is get a new/different case
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Aug 10 2019, 05:54 AM
Post #12


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada
QUOTE(IronHillRestorations @ Aug 10 2019, 07:25 AM) *

Easiest thing to do is get a new/different case


Aww man...that really sucks (IMG:style_emoticons/default/sad.gif)

I have to agree with Perry, get another case, too high end of a build to risk on a shaky foundation.
I've never done this, but as far as having an expensive fuch up building an engine BTDT.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
HAM Inc
post Aug 10 2019, 06:45 AM
Post #13


Senior Member
***

Group: Members
Posts: 846
Joined: 24-July 06
From: Watkinsville,GA
Member No.: 6,499
Region Association: None
This is a terrible turn of events for Michael. I know how much this build means to him. He's been planning it for years and we've worked together on getting his heads prepped just right for the build.

I'm very sorry for you Michael. It looked like everything was coming together for you to be ready for Okteenerfest.

As for a repair, I would not be worried about this low amperage weld repair distorting the main saddles or the cylinder spigot. In the hands of a talented TIG welder the heat affected zone will not be that expansive. It is possible, however, that it could distort the adjacent lifter bore. It would probably need to be reamed, though that would remain to be seen. But one thing for sure is the cam saddle would have to be re-machined.

I've put a lot of thought into how to facilitate a quality repair of this case, Michael, but I keep coming up with the sad reality that it makes more sense to replace it and move on.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Aug 10 2019, 08:12 AM
Post #14


Michael
**********

Group: Members
Posts: 10,305
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
OMG! I am sorry to see that. We all know what it takes to put these cars together and I don't mean just the cash. If it were mine, I would source another case. Sorry to say that. I hope your machine shop will do you right on prepping another case. Good luck. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
76-914
post Aug 10 2019, 09:46 AM
Post #15


Repeat Offender & Resident Subaru Antagonist
**********

Group: Members
Posts: 13,698
Joined: 23-January 09
From: Temecula, CA
Member No.: 9,964
Region Association: Southern California
(IMG:style_emoticons/default/sad.gif) My condolences. Still trying to figure out how that happened, given your input. If it ain't one thing it's two. Hang in there. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Aug 10 2019, 09:51 AM
Post #16


Jerry
*****

Group: Members
Posts: 7,156
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
What a bummer. How did this happen since it you were only fitting parts?

I have a cleaned 2L case if you're interested.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ChrisFoley
post Aug 10 2019, 10:45 AM
Post #17


I am Tangerine Racing
*****

Group: Members
Posts: 7,985
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None
I would repair it if it was mine.
Careful build-up with TIG, no use trying to weld the broken bit back on. Then hand grind/file/scrape until a custom made gauge pin barely fit through the bore - always being careful to not cut into the remaining original bore surface nearby.
I wouldn't use a reamer - too much chance of removing material from the other case half.
1 hour for the weld process and another 3-4 hours of hand work.
Tedious, but doable and worth it to recover the investment.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dr914@autoatlanta.com
post Aug 10 2019, 11:00 AM
Post #18


914 Guru
*****

Group: Members
Posts: 8,161
Joined: 3-January 07
From: atlanta georgia
Member No.: 7,418
Region Association: None
yes it can be welded and align bored, c&j welding HERE does beautiful work, then Goza machine shop has all of the align bore equipment, there is hope mike!


QUOTE(Mblizzard @ Aug 9 2019, 04:32 PM) *

Ok so some of you may know I am doing the build of my life.

Put the case together for checking fit all went fine everything turned great. Disassembled and found this break in the case at the cam.

I have a massive amount of money in this case and it is opened for my 102s.

Anyone think of if and where I can get this repaired quickly?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Porschef
post Aug 10 2019, 01:17 PM
Post #19


How you doin'
****

Group: Members
Posts: 2,180
Joined: 7-September 10
From: LawnGuyland
Member No.: 12,152
Region Association: North East States
QUOTE(ChrisFoley @ Aug 10 2019, 12:45 PM) *

I would repair it if it was mine.
Careful build-up with TIG, no use trying to weld the broken bit back on. Then hand grind/file/scrape until a custom made gauge pin barely fit through the bore - always being careful to not cut into the remaining original bore surface nearby.
I wouldn't use a reamer - too much chance of removing material from the other case half.
1 hour for the weld process and another 3-4 hours of hand work.
Tedious, but doable and worth it to recover the investment.




Wow

(IMG:style_emoticons/default/pray.gif) (IMG:style_emoticons/default/pray.gif)



Sorry to see this, you must be heartbroken. (IMG:style_emoticons/default/sad.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Aug 10 2019, 02:02 PM
Post #20


914 Guru
*****

Group: Members
Posts: 7,012
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch
(IMG:style_emoticons/default/popcorn[1].gif)

I see the back and forth on this thread and it is interesting for sure. I want to reiterate again how heartbreaking this is and I feel your pain.

I've been lucky enough to see things from many perspectives in my career.

I've been involved with a race program with corporate funding at the highest professional levels and I can say without a shadow of doubt that I've seen extremely expensive race parts scrapped for minor flaws that are seemingly insignificant. . . Just to be absolutely sure that we had the best chance of winning a race.

I've also been involved in SCCA club racing and have crewed on teams that were run on nothing more than a desire to be there. Each crew member funding their own way. I've seen wrecked cars and motors rebuilt overnight with little more than bailing wire and duct tape in order to compete the next day. I completely understand Chris' perspective that it could be saved. It absolutely could.

The toughest decision is to decide which end of that continuum you are going to be on.

None of us can decide that. It is a deeply personal question dependent on the end goal, time, money, and resources at hand.

I wish you the best in this tough decision. I am so sorry to see you go though this. (IMG:style_emoticons/default/sad.gif)



User is offlineProfile CardPM
Go to the top of the page
+Quote Post
« Next Oldest · 914World Garage · Next Newest »


3 Pages V  1 2 3 >
Reply to this topicStart new topic
1 User(s) are reading this topic (1 Guests and 0 Anonymous Users)
0 Members:



Display Mode: Standard · Switch to: Linear+ · Switch to: Outline

Track this topic · Email this topic · Print this topic · Subscribe to this forum

- Lo-Fi Version Time is now: 29th April 2025 - 04:09 PM
Invision Power Board v9.1.4 © 2025  IPS, Inc.
All rights reserved 914World.com © since 2002
914World.com is the fastest growing online 914 community!
We have it all, classifieds, events, forums, vendors, parts, autocross, racing, technical articles, events calendar, newsletter, restoration, gallery, archives, history and more for your Porsche 914 ...
