> Seat Belt Relay Wiring, Help ID wires
Ed_Turbo
post Aug 25 2019, 03:22 PM
Post #1


Member
**

Group: Members
Posts: 440
Joined: 5-June 17
From: Hacienda Heights, Ca.
Member No.: 21,151
Region Association: Southern California

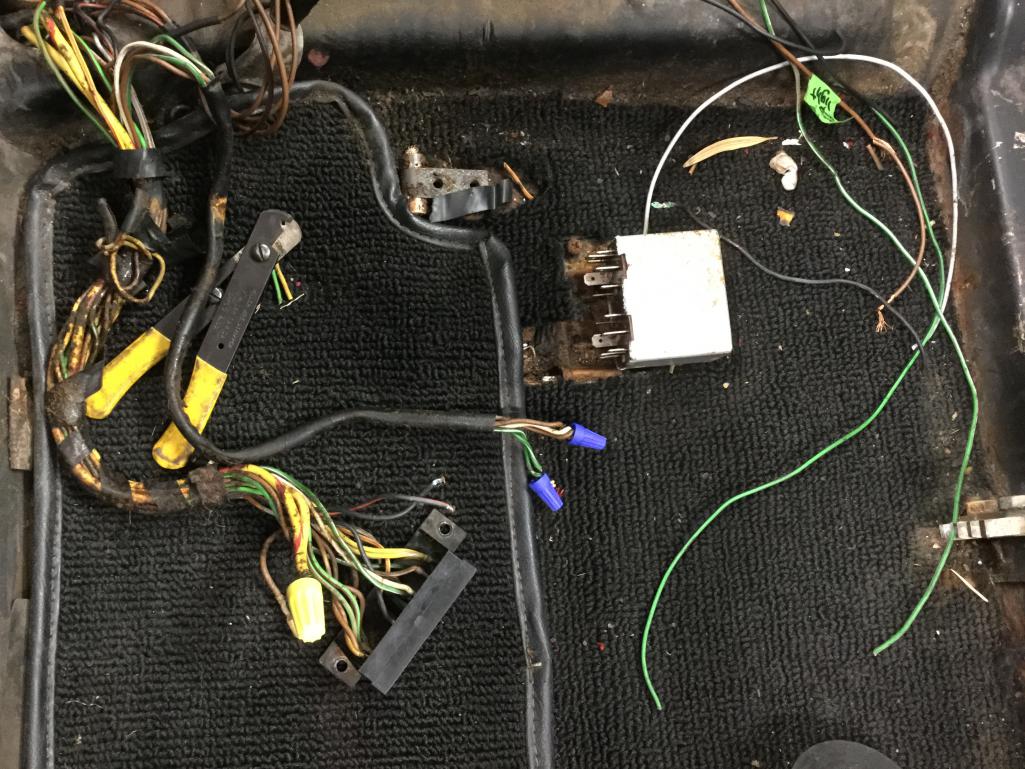

Hello! I am trying to ID these wires:

Attached Image

I am not good at wiring diagrams and I found no luck researching this topic (IMG:style_emoticons/default/confused24.gif)

Enlighten me with your Jedi wiring knowledge @JeffBowlsby @Dave_Darling and anyone else who are pros at wiring 914’s.



-Ed


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post Aug 25 2019, 06:00 PM
Post #2


Get that VIN ?
*****

Group: Members
Posts: 9,225
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California



(IMG:style_emoticons/default/agree.gif)

I would like to know how the relay works; after learning how the dual relay on the L-Jet functions, it made it easier to diagnose problems and is just interesting
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chi-town
post Aug 25 2019, 06:46 PM
Post #3


Senior Member
***

Group: Members
Posts: 850
Joined: 31-August 18
From: Disneyland
Member No.: 22,446
Region Association: Southern California



The ones with the wire nuts appear to be the buckle and seat sensor wires.

The relay plugs into the board there so no mystery there.

Take the two large yellow wires and connect them together to bypass the silly logic.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
FlacaProductions
post Aug 25 2019, 06:49 PM
Post #4


Senior Member
***

Group: Members
Posts: 1,521
Joined: 24-November 17
From: LA
Member No.: 21,628
Region Association: Southern California



Connect the black wire to the black/red stripe and that should give you power to the light in the backpad if you don't have it already.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
FlacaProductions
post Aug 25 2019, 06:50 PM
Post #5


Senior Member
***

Group: Members
Posts: 1,521
Joined: 24-November 17
From: LA
Member No.: 21,628
Region Association: Southern California

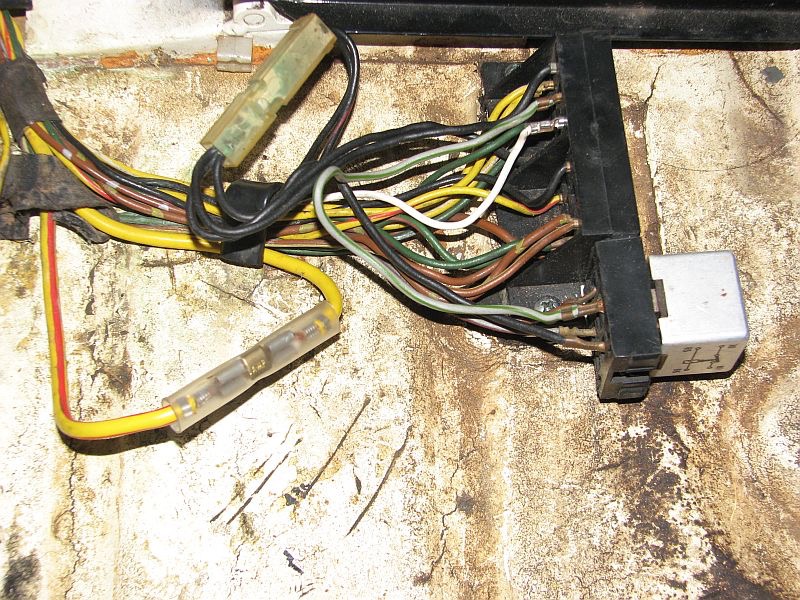

Here's a shot that I've saved from here that shows how it should be....

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jcd914
post Aug 25 2019, 06:55 PM
Post #6


Advanced Member
****

Group: Members
Posts: 2,081
Joined: 7-February 08
From: Sacramento, CA
Member No.: 8,684
Region Association: Northern California



I don't have details on how it is supposed to work and the diagrams I have don't have the relay and wiring on them.

The general consensus is that it more often doesn't work correctly.

It is supposed to turn on the seatbelt warning light on the dash AND lock out the starter if the seatbelts are not fastened. There is a pressure switch in the passenger seat and there are switches in each seatbelt receiver to determine if the belts are buckled. When you try to start the engine if your seatbelt is not fastened the starter won't crank and if you have a passenger their seatbelt has to be fastened too.
The two important wires are the large yellow and yellow with red stripe. These are the power from the ignition switch to the starter and should be pulled from the relay socket and securly connected together. That way when one of the seatbelt receiver switches, seat pressure switch or relay fail you will still be able to start your car.

Jim
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
FlacaProductions
post Aug 25 2019, 06:57 PM
Post #7


Senior Member
***

Group: Members
Posts: 1,521
Joined: 24-November 17
From: LA
Member No.: 21,628
Region Association: Southern California



@jcd914 - I think you mean Yellow and Yellow/red stripe need to be connected as pictured in my post. Those are the important ones and it looks like he already has that taken care of.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Aug 25 2019, 07:01 PM
Post #8


914 Wiring Harnesses
*****

Group: Members
Posts: 8,438
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None



It’s not a relay it’s a logic box. Diagrammed on the FWSM wiring schematic.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
jcd914
post Aug 25 2019, 07:03 PM
Post #9


Advanced Member
****

Group: Members
Posts: 2,081
Joined: 7-February 08
From: Sacramento, CA
Member No.: 8,684
Region Association: Northern California



QUOTE(FlacaProductions @ Aug 25 2019, 05:57 PM) *

@jcd914 - I think you mean Yellow and Yellow/red stripe need to be connected as pictured in my post. Those are the important ones and it looks like he already has that taken care of.


Thanks, I corrected my post.

Jim
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jcd914
post Aug 25 2019, 07:10 PM
Post #10


Advanced Member
****

Group: Members
Posts: 2,081
Joined: 7-February 08
From: Sacramento, CA
Member No.: 8,684
Region Association: Northern California



QUOTE(JeffBowlsby @ Aug 25 2019, 06:01 PM) *

It’s not a relay it’s a logic box. Diagrammed on the FWSM wiring schematic.


In that logic box, there is a relay that controls the starter circuit. So good enough for me.

I didn't find it on the diagrams I have which came from Pelican website when they had them there.
I only looked at the 72 & 73 diagrams, they just have the starter circuit going from ignition switch to the relay panel in the engine compartment.
With diagram is it on?

Thanks
Jim
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Aug 25 2019, 07:57 PM
Post #11


Life's been good to me so far.....
***************

Group: Admin
Posts: 15,367
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille



QUOTE(jcd914 @ Aug 25 2019, 08:10 PM) *

QUOTE(JeffBowlsby @ Aug 25 2019, 06:01 PM) *

It’s not a relay it’s a logic box. Diagrammed on the FWSM wiring schematic.


In that logic box, there is a relay that controls the starter circuit. So good enough for me.

I didn't find it on the diagrams I have which came from Pelican website when they had them there.
I only looked at the 72 & 73 diagrams, they just have the starter circuit going from ignition switch to the relay panel in the engine compartment.
With diagram is it on?

Thanks
Jim



They started installing that crap in 74. There is a wire in there that comes from the ignition fuse on the fuse panel. Make sure you drop the fuse panel and cut that wire out of the circuit for the ignition. If it gets loose from the plug, it will bounce against ground and cause the car to die randomly. That drove Betty crazy for a while when we were dating. I found it and disconnected it. I have since removed all of that seatbelt interlock crap from her car. Even the bracket on the floor pan was removed.

(IMG:style_emoticons/default/ar15.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post Aug 25 2019, 08:28 PM
Post #12


Get that VIN ?
*****

Group: Members
Posts: 9,225
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California



QUOTE(JeffBowlsby @ Aug 25 2019, 06:01 PM) *

It’s not a relay it’s a logic box. Diagrammed on the FWSM wiring schematic.


Ok; any idea of the logic applied to the circuit . (IMG:style_emoticons/default/smile.gif)

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Rand
post Aug 25 2019, 08:30 PM
Post #13


Cross Member
*****

Group: Members
Posts: 7,409
Joined: 8-February 05
From: OR
Member No.: 3,573
Region Association: None



Cut it all. Join the big yellow because it's the one that matters. Join the little browns... may not matter but they are grounds and it's a good idea. Run away laughing happily.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Aug 26 2019, 05:58 AM
Post #14


914 Wiring Harnesses
*****

Group: Members
Posts: 8,438
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None

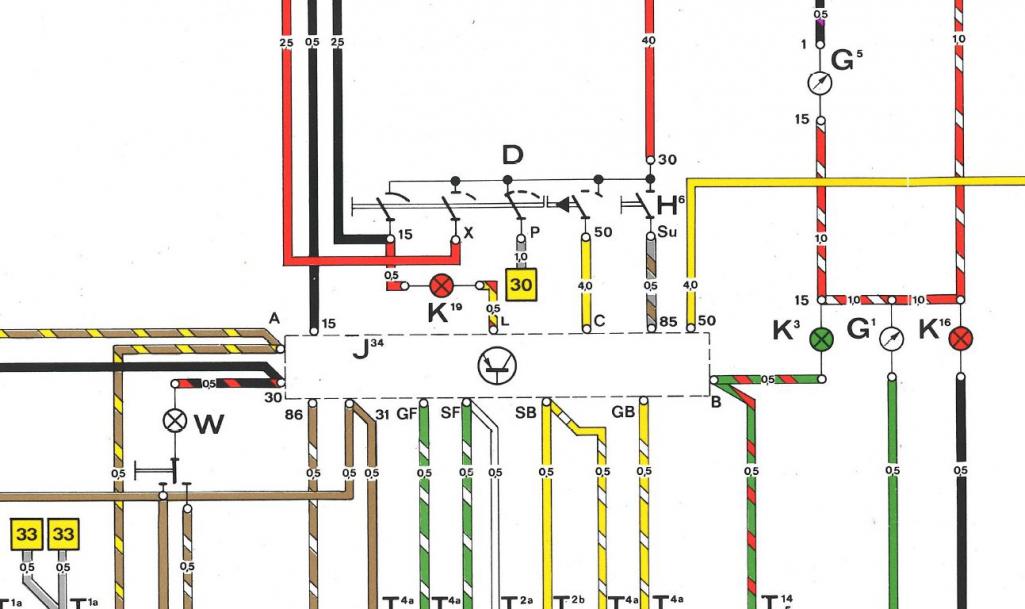

Just bypass it by mating the two big yellow wires. Cutting out wires is dangerous and unnecessary - who knows what won't work if you give it a wire-ectomy.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
porschetub
post Aug 26 2019, 02:06 PM
Post #15


Advanced Member
****

Group: Members
Posts: 4,695
Joined: 25-July 15
From: New Zealand
Member No.: 18,995
Region Association: None



Mines bypassed but I would still like to get rid of the rest,I have removed everthing from my car that is not needed,would be nice to get rid of this lot.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post Aug 26 2019, 02:34 PM
Post #16


"I got blisters on me fingers"
*****

Group: Members
Posts: 9,894
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest



QUOTE(Rand @ Aug 25 2019, 07:30 PM) *
Cut it all. Run away laughing happily.

(IMG:style_emoticons/default/biggrin.gif) @Rand I think your fast approaching Crusty status. ...perhaps a screen name change is in your future: Lt. Crusty? (IMG:style_emoticons/default/shades.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
